WIRTGEN W120Ri — SMALL COLD MILLING MACHINE

EFFICIENT MILLING AND GRANULATING OF ROAD PAVEMENTS
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

COLD MILLING WITH SMALL MILLING MACHINES
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.

HIGH-PRECISION, INTUITIVE LEVELING WITH LEVEL PRO PLUS
When milling, it’s important to remove the layers of asphalt at the specified depth. WIRTGEN’s intuitive LEVEL PRO PLUS leveling technology can be relied on to precisely maintain the specified milling depth.

SIMPLE, INTUITIVE OPERATION WITH LEVEL PRO PLUS
The LEVEL PRO PWS leveling system developed especially for cold milling machines offers easy and intuitive one-hand operation using the rotary knob, and the menu can be configured as desired. LEVEL PRO PLUS stands out due to its precise milling results.

FULLY INTEGRATED
The LEVEL PRO PLUS leveling system is fully integrated into the machine control system, enabling a high degree of automation.

ADDITIONAL AND AUTOMATIC FUNCTIONS
The LEVEL PRO PLUS leveling system offers many automatic and additional functions that make the operator’s job easier. This also speeds up work processes.

DISPLACEMENT SENSORS
The reference line is scanned via heavy-duty displacement sensors built into the hydraulic side plate cylinders and displayed directly on the high-resolution LEVEL PRO PLUS control screen.

LEVELING BOOM
The telescoping leveling boom with an ultrasonic sensor for scanning references located up to 2.0 m to the left of the machine guarantees perfect milling results, even when performing complex leveling jobs.

EFFICIENT MULTIFUNCTIONAL ARMREST
The W 100 R(i) / W 120 R(i) is equipped with an efficient multifunctional armrest that not only speeds up processes and improves results, but also results in a more satisfied operator.

ERGONOMICALLY DESIGNED MULTIFUNCTIONAL ARMREST
The multifunctional, individually adjustable armrest combines innovative design with perfect user-friendliness. Important information is displayed in color on the control screen, The multifunctional armrest is also precisely integrated into the universal operating concept for the entire WIRTGEN small milling fleet, and it enables productive working from the outset.

JOB DATA
Information like the weight and volume of the milled material, the size of milled areas, or the number of loaded trucks can be displayed automatically. This job data can be used to log daily performance.

FAVORITES BUTTONS
Four buttons can be programmed with twenty different functions as required by the operator.

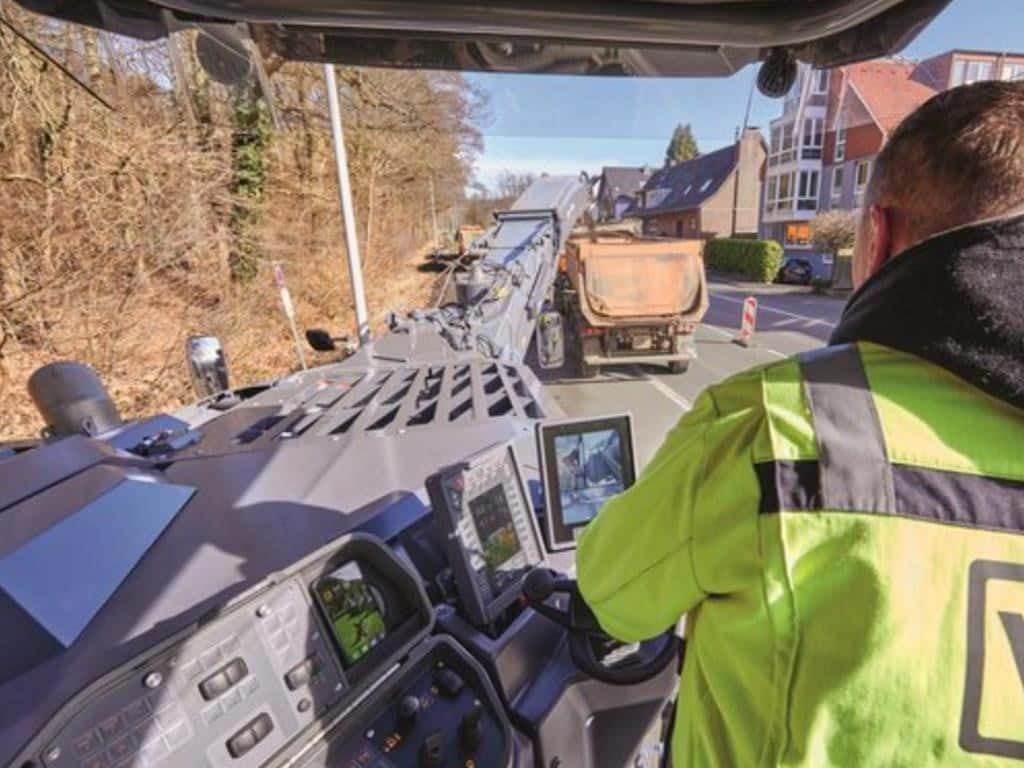

PERFECT VIEW OF IMPORTANT WORKING AREAS
Excellent visibility quickly pays off. The well-designed visibility concept of the W 100 R(i) / W 120 R(i) significantly reduces the operator’s workload, resulting in better milling results.

UNOBSTRUCTED VIEW OF THE RIGHT SIDE PLATE
The optimized shape of the operator’s platform offers an unobstructed view of the right side plate and in front of the milled surface.

EXCELLENT VISIBILITY TO THE REAR
The compact design of the discharge conveyor’s suspension system ensures that the operator has a clear view of the milled surface behind the machine.

HIGH-QUALITY CAMERA / MONITOR SYSTEM
The camera / monitor system consists of two cameras and a heavy-duty monitor. The monitor provides a high-resolution view of the loading situation from the cameras at the end of the discharge conveyor and of the area in front of the milling drum housing below the machine.

OUTSTANDING ERGONOMICS AND EASE OF OPERATION
A wide variety of different equipment features, individual adjustment options, and features that make operating the machine easier significantly enhance operator comfort. The result is maximum productivity on site.

COMFORT OPERATOR’S SEAT
The ergonomically designed operator’s seat with seat heating, which rotates to the right and left, ensures that the operator has outstanding visibility to the side and to the rear.

ELECTRICAL WATER FILLING LEVEL INDICATOR
The operator can conveniently check the level of the water tank via the control screen.

“WELCOME” AND “GO HOME” LIGHTING
The access ladder and operator’s platform can be brightly illuminated when approaching and walking away from the machine.

WEATHER PROTECTION
Additional wind and weather protection elements on the operator’s platform protect the operator from exposure to rain and wind.

QUICK AND PRECISE MANEUVERING
Driving and steering innovations increase efficiency during day-to-day job site operations. The small milling machine is compact and maneuverable, allowing it to be moved quickly from site to site.

MAXIMUM SPEED OF 7.5 KM/H
The machine’s travel speed of up to 7.5 km/h helps complete jobs particularly quickly.

ABILITY TO REVERSE WITH MILLING DRUM ENGAGED
The ability to reverse with the milling drum engaged makes it possible to maneuver quickly and easily on the job site.

RAPID HEIGHT ADJUSTMENT
The electrohydraulic height adjustment system allows the operator to set the milling depth quickly and precisely.

MEMORY FUNCTION FOR HEIGHT ADJUSTMENT
For fast, convenient height adjustment, it’s possible to save up to three different height positions per machine side to memory buttons on the multifunctional armrest.

ELECTRONICALLY CONTROLLED TRAVEL DRIVE
The electronically controlled travel drive with two transport speeds and two milling speeds makes fine maneuvering possible when very precise milling is required.

MANEUVERABLE AND COMPACT MACHINE
The W 100 R(i) / W 120 R(i) small milling machine is an expert in tight curves and urban environments, making small turning radii and precise milling possible in any job site situation.

LARGE STEERING ANGLES
The large steering angles to the left and right guarantee small turning radii and thus rapid maneuvering, even in tight spaces.

FAST STEERING
In situations where the operator needs to steer particularly fast, the machine can be steered as always using the steering wheel.

PRECISION STEERING
The highly responsive hydraulic steering system allows the operator to steer the ma. chine precisely and smoothly, including via the right-hand multifunctional armrest.

COMPACT MACHINE DIMENSIONS
Thanks to its compact design, the small milling machine can mill in confined spaces and is easy to transport.

MAXIMUM FUMCTIONALITY WHEN MILLING
Intelligent solutions for the milling drum, side plate, and scraper make milling faster and increase its quality overall.

HT22 TOOLHOLDER SYSTEM
The extremely wear-resistant HT22 toolholder system (standard) minimizes downtimes and increases the service life of the entire milling drum.

HYDRAULIC PICK EJECTOR
The hydraulically operated pick ejector makes it easier for the operator to change picks.

HYDRAULICALLY RAISABLE SIDE PLATE
Overload sensors on the left and right side plates cause them to lift briefly to prevent them from sinking into soft ground.

AUTOMATIC SCRAPER LIFTING
Overload sensors protect the milling drum unit from damage by triggering the scraper to lift briefly, such as to avoid obstacles or uneven ground.

ELECTRICALLY ADJUSTABLE WATER SPRAY QUANTITY
The water spray quantity can be adjusted from the operator’s platform to reliably cool the picks, bind dust, and ensure that the machine remains productive for extended periods of time.

A VARIETY OF MILLING DRUMS
A large number of different original WIRTGEN milling drums and special milling drums are available for a wide range of applications.

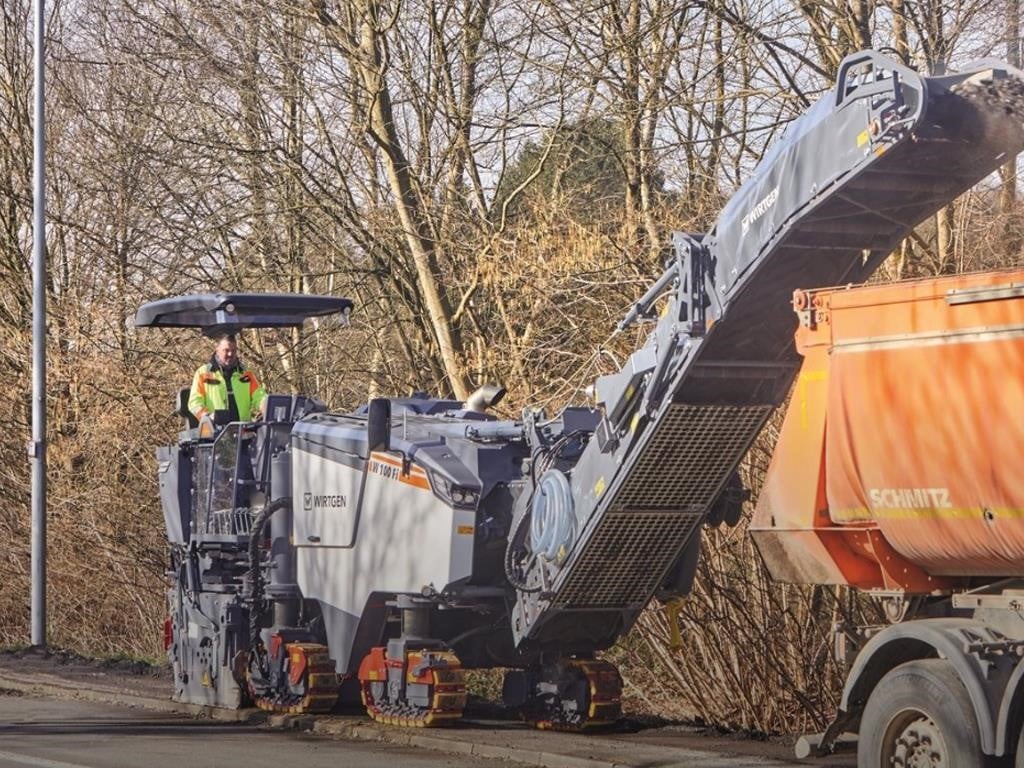

FLEXIBLE, HIGH-PERFORMANCE LOADING
A cold milling machine is only as good as its loading system. That’s why the W 100 R(i) / W 120 R(i) features a milled material loading system that was designed for maximum performance.

HYDRAULIC FOLDING CONVEYOR
The hydraulic folding conveyor can be folded away quickly for easy transport and to adapt to site conditions.

WIDE CONVEYOR SWING ANGLES
Wide conveyor swing angles of 25° to both the right and left make it possible to easily load material, even in difficult job site situations.

QUICK-RELEASE COUPLING
The innovative quick-release coupling ensures that the hydraulic connections can be easily connected when mounting / removing the discharge conveyor.

LARGE BELT WIDTH AND CLEAT HEIGHT
A large belt width and cleat height guarantee a high conveying capacity.

HIGH EFFICIENCY FOR TREMENDOUS PRODUCTIVITY
The high-performance cold milling machine in the 1.0 m class stands out due to its wide range of applications. Its productivity is enhanced further by features tailored to site requirements.

ADDITIONAL WEIGHTS
Variable additional weights up to a total of 400 kg make it possible to achieve a high operating weight, excellent traction, and trouble-free transport.

REDUCED OPERATOR WORKLOAD
The WIDRIVE machine control system, which reduces the operator’s workload and enhances performance is used to control the engine speed, travel speed, activation and deactivation of the water system, among other functions.

AUTOMATIC POSITIONING FUNCTION
The built-in, innovative automatic positioning function considerably simplifies machine operation through the use of relief sensors.

HYDRAULIC POWER BELT TENSIONER
The automatically engaging hydraulic power belt tensioner ensures that power is transmitted safely and effectively.

WITOS FLEETVIEW TELEMATICS SYSTEM
WIRTGEN’s efficient WITOS FleetView telematics system supports fleet management position and status monitoring, as well as maintenance and diagnostic processes.

OPTIMIZED SERVICEABILITY
Outstanding access to all maintenance and inspection points minimizes maintenance requirements.

LOW ENVIRONMENTAL EMISSIONS
Low diesel consumption and low noise levels are better for both the operator and the environment. Ultimately, the small milling machine’s environmentally friendly technology cuts costs and increases the operator’s performance.

TWO ENGINE MODELS
The engine technology used in the W 100 R and the W 120 R meets EU stage 3a / US EPA Tier 3 emissions standards. The W 100 Ri and W 120 Ri meet the stringent requirements of the EU stage 5 / US EPA Tier 4f.

STANDARD DIESEL PARTICULATE FILTER
The diesel particulate filter that comes standard with the engine technology in the W 100 Ri and W 120 Ri meets even more stringent emission standards.

THREE DIFFERENT MILLING DRUM SPEEDS
Three different milling drum speeds make it possible to achieve unparalleled milling performance in a wide range of applications.

OPTIMIZED SOUND AND HEAT INSULATION
The effectively optimized sound and heat insulation significantly reduces noise emissions.

SPEED-CONTROLLED COOLING FAN DRIVE
The cooling system with temperature-controlled fan speed ensures noise emissions are kept to an absolute minimum.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

WIRTGEN W100Ri — SMALL COLD MILLING MACHINE

EFFICIENT MILLING AND GRANULATING OF ROAD PAVEMENTS
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

COLD MILLING WITH SMALL MILLING MACHINES
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.

HIGH-PRECISION, INTUITIVE LEVELING WITH LEVEL PRO PLUS
When milling, it’s important to remove the layers of asphalt at the specified depth. WIRTGEN’s intuitive LEVEL PRO PLUS leveling technology can be relied on to precisely maintain the specified milling depth.

SIMPLE, INTUITIVE OPERATION WITH LEVEL PRO PLUS
The LEVEL PRO PWS leveling system developed especially for cold milling machines offers easy and intuitive one-hand operation using the rotary knob, and the menu can be configured as desired. LEVEL PRO PLUS stands out due to its precise milling results.

FULLY INTEGRATED
The LEVEL PRO PLUS leveling system is fully integrated into the machine control system, enabling a high degree of automation.

ADDITIONAL AND AUTOMATIC FUNCTIONS
The LEVEL PRO PLUS leveling system offers many automatic and additional functions that make the operator’s job easier. This also speeds up work processes.

DISPLACEMENT SENSORS
The reference line is scanned via heavy-duty displacement sensors built into the hydraulic side plate cylinders and displayed directly on the high-resolution LEVEL PRO PLUS control screen.

LEVELING BOOM
The telescoping leveling boom with an ultrasonic sensor for scanning references located up to 2.0 m to the left of the machine guarantees perfect milling results, even when performing complex leveling jobs.

EFFICIENT MULTIFUNCTIONAL ARMREST
The W 100 R(i) / W 120 R(i) is equipped with an efficient multifunctional armrest that not only speeds up processes and improves results, but also results in a more satisfied operator.

ERGONOMICALLY DESIGNED MULTIFUNCTIONAL ARMREST
The multifunctional, individually adjustable armrest combines innovative design with perfect user-friendliness. Important information is displayed in color on the control screen, The multifunctional armrest is also precisely integrated into the universal operating concept for the entire WIRTGEN small milling fleet, and it enables productive working from the outset.

JOB DATA
Information like the weight and volume of the milled material, the size of milled areas, or the number of loaded trucks can be displayed automatically. This job data can be used to log daily performance.

FAVORITES BUTTONS
Four buttons can be programmed with twenty different functions as required by the operator.

PERFECT VIEW OF IMPORTANT WORKING AREAS
Excellent visibility quickly pays off. The well-designed visibility concept of the W 100 R(i) / W 120 R(i) significantly reduces the operator’s workload, resulting in better milling results.

UNOBSTRUCTED VIEW OF THE RIGHT SIDE PLATE
The optimized shape of the operator’s platform offers an unobstructed view of the right side plate and in front of the milled surface.

EXCELLENT VISIBILITY TO THE REAR
The compact design of the discharge conveyor’s suspension system ensures that the operator has a clear view of the milled surface behind the machine.

HIGH-QUALITY CAMERA / MONITOR SYSTEM
The camera / monitor system consists of two cameras and a heavy-duty monitor. The monitor provides a high-resolution view of the loading situation from the cameras at the end of the discharge conveyor and of the area in front of the milling drum housing below the machine.

OUTSTANDING ERGONOMICS AND EASE OF OPERATION
A wide variety of different equipment features, individual adjustment options, and features that make operating the machine easier significantly enhance operator comfort. The result is maximum productivity on site.

COMFORT OPERATOR’S SEAT
The ergonomically designed operator’s seat with seat heating, which rotates to the right and left, ensures that the operator has outstanding visibility to the side and to the rear.

ELECTRICAL WATER FILLING LEVEL INDICATOR
The operator can conveniently check the level of the water tank via the control screen.

“WELCOME” AND “GO HOME” LIGHTING
The access ladder and operator’s platform can be brightly illuminated when approaching and walking away from the machine.

WEATHER PROTECTION
Additional wind and weather protection elements on the operator’s platform protect the operator from exposure to rain and wind.

QUICK AND PRECISE MANEUVERING
Driving and steering innovations increase efficiency during day-to-day job site operations. The small milling machine is compact and maneuverable, allowing it to be moved quickly from site to site.

MAXIMUM SPEED OF 7.5 KM/H
The machine’s travel speed of up to 7.5 km/h helps complete jobs particularly quickly.

ABILITY TO REVERSE WITH MILLING DRUM ENGAGED
The ability to reverse with the milling drum engaged makes it possible to maneuver quickly and easily on the job site.

RAPID HEIGHT ADJUSTMENT
The electrohydraulic height adjustment system allows the operator to set the milling depth quickly and precisely.

MEMORY FUNCTION FOR HEIGHT ADJUSTMENT
For fast, convenient height adjustment, it’s possible to save up to three different height positions per machine side to memory buttons on the multifunctional armrest.

ELECTRONICALLY CONTROLLED TRAVEL DRIVE
The electronically controlled travel drive with two transport speeds and two milling speeds makes fine maneuvering possible when very precise milling is required.

MANEUVERABLE AND COMPACT MACHINE
The W 100 R(i) / W 120 R(i) small milling machine is an expert in tight curves and urban environments, making small turning radii and precise milling possible in any job site situation.

LARGE STEERING ANGLES
The large steering angles to the left and right guarantee small turning radii and thus rapid maneuvering, even in tight spaces.

FAST STEERING
In situations where the operator needs to steer particularly fast, the machine can be steered as always using the steering wheel.

PRECISION STEERING
The highly responsive hydraulic steering system allows the operator to steer the ma. chine precisely and smoothly, including via the right-hand multifunctional armrest.

COMPACT MACHINE DIMENSIONS
Thanks to its compact design, the small milling machine can mill in confined spaces and is easy to transport.

MAXIMUM FUMCTIONALITY WHEN MILLING
Intelligent solutions for the milling drum, side plate, and scraper make milling faster and increase its quality overall.

HT22 TOOLHOLDER SYSTEM
The extremely wear-resistant HT22 toolholder system (standard) minimizes downtimes and increases the service life of the entire milling drum.

HYDRAULIC PICK EJECTOR
The hydraulically operated pick ejector makes it easier for the operator to change picks.

HYDRAULICALLY RAISABLE SIDE PLATE
Overload sensors on the left and right side plates cause them to lift briefly to prevent them from sinking into soft ground.

AUTOMATIC SCRAPER LIFTING
Overload sensors protect the milling drum unit from damage by triggering the scraper to lift briefly, such as to avoid obstacles or uneven ground.

ELECTRICALLY ADJUSTABLE WATER SPRAY QUANTITY
The water spray quantity can be adjusted from the operator’s platform to reliably cool the picks, bind dust, and ensure that the machine remains productive for extended periods of time.

A VARIETY OF MILLING DRUMS
A large number of different original WIRTGEN milling drums and special milling drums are available for a wide range of applications.

FLEXIBLE, HIGH-PERFORMANCE LOADING
A cold milling machine is only as good as its loading system. That’s why the W 100 R(i) / W 120 R(i) features a milled material loading system that was designed for maximum performance.

HYDRAULIC FOLDING CONVEYOR
The hydraulic folding conveyor can be folded away quickly for easy transport and to adapt to site conditions.

WIDE CONVEYOR SWING ANGLES
Wide conveyor swing angles of 25° to both the right and left make it possible to easily load material, even in difficult job site situations.

QUICK-RELEASE COUPLING
The innovative quick-release coupling ensures that the hydraulic connections can be easily connected when mounting / removing the discharge conveyor.

LARGE BELT WIDTH AND CLEAT HEIGHT
A large belt width and cleat height guarantee a high conveying capacity.

HIGH EFFICIENCY FOR TREMENDOUS PRODUCTIVITY
The high-performance cold milling machine in the 1.0 m class stands out due to its wide range of applications. Its productivity is enhanced further by features tailored to site requirements.

ADDITIONAL WEIGHTS
Variable additional weights up to a total of 400 kg make it possible to achieve a high operating weight, excellent traction, and trouble-free transport.

REDUCED OPERATOR WORKLOAD
The WIDRIVE machine control system, which reduces the operator’s workload and enhances performance is used to control the engine speed, travel speed, activation and deactivation of the water system, among other functions.

AUTOMATIC POSITIONING FUNCTION
The built-in, innovative automatic positioning function considerably simplifies machine operation through the use of relief sensors.

HYDRAULIC POWER BELT TENSIONER
The automatically engaging hydraulic power belt tensioner ensures that power is transmitted safely and effectively.

WITOS FLEETVIEW TELEMATICS SYSTEM
WIRTGEN’s efficient WITOS FleetView telematics system supports fleet management position and status monitoring, as well as maintenance and diagnostic processes.

OPTIMIZED SERVICEABILITY
Outstanding access to all maintenance and inspection points minimizes maintenance requirements.

LOW ENVIRONMENTAL EMISSIONS
Low diesel consumption and low noise levels are better for both the operator and the environment. Ultimately, the small milling machine’s environmentally friendly technology cuts costs and increases the operator’s performance.

TWO ENGINE MODELS
The engine technology used in the W 100 R and the W 120 R meets EU stage 3a / US EPA Tier 3 emissions standards. The W 100 Ri and W 120 Ri meet the stringent requirements of the EU stage 5 / US EPA Tier 4f.

STANDARD DIESEL PARTICULATE FILTER
The diesel particulate filter that comes standard with the engine technology in the W 100 Ri and W 120 Ri meets even more stringent emission standards.

THREE DIFFERENT MILLING DRUM SPEEDS
Three different milling drum speeds make it possible to achieve unparalleled milling performance in a wide range of applications.

OPTIMIZED SOUND AND HEAT INSULATION
The effectively optimized sound and heat insulation significantly reduces noise emissions.

SPEED-CONTROLLED COOLING FAN DRIVE
The cooling system with temperature-controlled fan speed ensures noise emissions are kept to an absolute minimum.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

WIRTGEN W60Ri — SMALL COLD MILLING MACHINE

EFFICIENT MILLING AND GRANULATING OF ROAD PAVEMENTS
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

COLD MILLING WITH SMALL MILLING MACHINES
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.

HIGH-PRECISION, INTUITIVE LEVEL PRO PLUS LEVELING SYSTEM
When milling, it’s important to remove the layers at the specified depth. WIRTGEN’s intuitive LEVEL PRO PLUS leveling technology can be relied on to precisely maintain the specified milling depth.

SIMPLE, INTUITIVE OPERATION WITH LEVEL PRO PLUS
The LEVEL PRO PLUS leveling system developed especially for cold milling machines offers easy and intuitive one-hand operation using the rotary knob, and the menu can be configured as desired. LEVEL PRO PLUS stands out due to its extremely precise milling results.

FULLY INTEGRATED
The LEVEL PRO PLUS leveling system is fully integrated into the machine control system. enabling a high degree of automation.

ADDITIONAL AND AUTOMATIC FUNCTIONS
The LEVEL PRO PLUS leveling system Offers many automatic and additional functions that make the operator’s job easier. This also speeds up work processes.

DISPLACEMENT SENSORS
The reference line is scanned via heavy-duty displacement sensors built into the hydraulic side plate cylinders and displayed directly on the high-resolution LEVEL PRO PLUS control screen.

LEVELING BOOM
The telescoping leveling boom with an ultrasonic sensor for scanning references located up to 6 ft 7 in (2.0 m) to the left of the machine guarantees perfect milling results, even when performing complex leveling jobs.

EFFICIENT MULTIFUNCTIONAL ARMREST
The W 50 Ri / W 60 Ri is equipped with an efficient multifunctional armrest that not only speeds up processes and improves results, but also results in a more satisfied operator.

ERGONOMICALLY DESIGNED MULTIFUNCTIONAL ARMREST
The multifunctional, individually adjustable armrest combines innovative design with perfect user-friendliness. Important data is displayed on the color control panel. The multifunctional armrest is also precisely integrated into the universal operating concept for the entire WIRTGEN small milling fleet, and it enables productive working from the outset.

JOB DATA
Information like the weight and volume of the milled material, the size of milled areas, or the number of loaded trucks can be displayed automatically. This job data can be used to log daily performance.

FAVORITES BUTTONS
Four buttons can be programmed with 20 different functions as required by the operator.

ADDITIONAL HEIGHT ADJUSTMENT
The hydraulically proportional machine height adjustment including the milling depth memory feature is conveniently controlled via the multifunctional armrest.

PERFECT VISIBILITY, COMFORT, AND ERGONOMICS
Perfect visibility. comfort. and ergonomics are factors that increase cost-effectiveness especially over the long term. Ultimately, they lead to greater productivity and profitability in every job.

PERFECT VISIBILITY
The optimized shape of the operator’s platform not only offers an unobstructed view of the right side plate, but also the left side plate as well. In addition, the intentionally narrow chassis offers an unobstructed view of the right-hand milled edge, and the compact design of the discharge conveyor’s suspension system ensures that the operator has a clear view of the milled surface behind the machine.

HIGH-QUALITY CAMERA / MONITOR SYSTEM
The camera / monitor system consists of two cameras and a heavy-duty monitor. The monitor provides a high-resolution view of the loading situation from the cameras at the end of the discharge conveyor and of the area in front of the milling drum housing below the machine.

COMFORT OPERATOR’S SEAT
The ergonomically designed, swiveling comfort seat with seat heater allows the operator to work in a relaxed manner. It also helps provide the operator an excellent view to the side and rear of the machine.

EFFECTIVE STEERING FUNCTIONS
The W 50 Ri / W 60 Ri is the most maneuverable cold milling machine in its class. Whether milling the tightest radii, turning in narrow sections, or driving around obstacles – the machine fully leverages its time-saving potential.

WIDE, OFFSET FRONT WHEELS
The wheels on the front axle are offset by 6 in (1 5 cm) (four-wheeled version) and drive “along one track” when the steering wheel is turned to the right. This optimizes driving onto obstacles and terrain edges. The extra wide front wheels also reduce surface load and wear.

EXTREMELY WIDE STEERING ANGLES
The extremely wide steering angles to the left and right guarantee small turning radii and thus rapid maneuvering, even in tight spaces.

AUTOMATIC SELF-STEERING FEATURE
When pivoted in front of the milling drum, the right rear wheel’s automatic self-steering feature not only gives the small milling machine maximum maneuverability but also minimizes tire wear.

DYNAMIC AND FAST MANEUVERING
The W 50 Ri / W 60 Ri is also the fastest cold milling machine in its class. It is always the first to reach its destination when quickly and independently driving to the next job site.

FAST STEERING
In situations where the operator needs to steer particularly fast – such as maneuvering or turning – the machine can be steered as always using the steering wheel.

PRECISION STEERING
The highly responsive hydraulic steering system allows the operator to steer the machine precisely and smoothly, including via the right-hand multifunctional armrest.

MAXIMUM SPEED OF 7.5 MPH (12 KM/H)
The travel speed of up to 5 mph (8 km/h) (three-wheeled version) or 7.5 mph {12 km/h) (four-wheeled version) ensures that milling jobs can be completed particularly quickly.

ABILITY TO REVERSE WITH MILLING DRUM ENGAGED
The ability to reverse with the milling drum engaged makes it possible to maneuver quickly and easily on the job site.

QUICK-PIVOTING RIGHT-HAND REAR WHEEL
When pivoted in, the right rear wheel makes precise milling along obstacles such as curbs and walls possible.

AUTOMATIC PIVOTING
The right-hand rear support wheel can be pivoted in front of the milling drum hydraulically from the operator’s platform to allow milling along curbs or other obstacles – without having to lower the milling drum to the ground. This process can be completed extremely quickly in 30 seconds or less. And since the milling drum is not in contact with the ground during the pivoting process, there is no risk of damage to the picks or the milled surface.

SECURE LOCKING
The secure end sturdy connection of the right-hand rear wheel to the chassis in the final position minimizes wear and increases precision.

EXTREMELY RUGGED SLIDING BEARING
The rugged, wear-resistant sliding bearing minimizes play in the kinematics, guaranteeing consistent, high-precision milling results.

OUTSTANDING PERFORMANCE THANKS TO SUPERIOR CUTTING TECHNOLOGY
Intelligent milling drum, side plate, scraper, and material depressor solutions make milling faster, easier, and increase its overall quality.

HT08 TOOLHOLDER SYSTEM
The newly developed HTO8 toolholder system stands out thanks to its outstanding wear resistance and long useful operating life.

SMALL RIDGES
The extremely small distance between the right-hand milled edge and the outer edge of the machine leaves only minimal ridges.

HYDRAULICALLY LIFTING SIDE PLATES WITH PROACTIVE FLOATING POSITION
Overload sensors on the left and right-side plates cause them to lift briefly to prevent them from sinking into soft ground.

AUTOMATIC SCRAPER LIFTING
Overload sensors protect the milling drum unit from damage by triggering the scraper to lift briefly, such as to avoid obstacles or uneven ground.

DECOUPLED SCRAPER
The scraper is decoupled from the discharge conveyor, enabling partial loading even when milling at maximum milling depth

ROAD SWEEPER
The sweeping unit attached to the front of the machine ensures that the milled surface is cleaned via circular brushes, enabling it to be milled precisely along an existing track.

HIGH LOADING CAPACTIY FOR MAXIMUM PERFORMANCE
A cold milling machine is only as good as its loading system. That’s why the W 50 Ri / W 60 Ri features a milled material loading system that was designed for maximum performance.

WIDE CONVEYOR SWING ANGLES
Wide conveyor swing angles of 30° to both the right and left make it possible to easily load material, even in difficult job site situations.

14 IN (350 MM) BELT WIDTH AND 1 IN (25 MM) CLEAT HEIGHT
The extra-large belt width of 14 in (350 mm) and cleat height of 1 in (25 mm) ensure a high conveying capacity.

HYDRAULIC FOLDING CONVEYOR
The hydraulic folding conveyor can be folded away quickly for easy transport and to adapt to site conditions.

OUICK-RELEASE COUPLING
The innovative quick-release coupling ensures that the hydraulic connections can be easily connected when mounting / removing the discharge conveyor.

HIGH TRACTION THROUGH OPTIMIZED WEIGHT DISTRIBUTION
High traction is the key to high productivity. The perfect weight distribution of the W 50 Ri / W 60 Ri provides a constant, high level of traction in any job site situation.

ADDITIONAL WEIGHTS
The low net weight of the small milling machine in combination with variable additional weights up to 2,205 lbs (1,000 kg) makes a high operating weight, ideal traction, and smooth and easy transport possible, depending on the requirements.

PARTICULARLY LOW CENTER OF GRAVITY
The machine’s extremely low center of gravity and its well-balanced weight distribution always ensure that it has excellent traction.

CENTRALLY LOCATED WATER AND DIESEL TANKS
Water and diesel tanks located in the middle of the machine ensure that its weight is distributed evenly between the axles and provide optimum traction, regardless of the fill level.

OUTSTANDING MACHINE STABILITY
The intelligently designed four-wheeled axle offers perfect maneuverability in any job site situation.

HIGHEST PRODUCTIVITY IN ITS CLASS
Complete jobs up to 20% faster with maximum cost savings! The small milling machine’s impressive engine performance and intelligent engine control play a major role in this respect.

IMPRESSIVE ENGINE PERFORMANCE
The maximum engine output with high torque guarantees fast, productive work, even at the maximum milling depth.

STATE-OF-THE-ART ENGINE CONTROL
The engine speed is controlled as required, keeping noise levels low and diesel consumption to a minimum. The cooling system with temperature-controlled fan speed also helps reduce noise emissions.

THREE DIFFERENT MILLING DRUM SPEEDS
Three different milling drum speeds make it possible to achieve unparalleled milling performance in a wide range of applications.

HYDRAULICALLY SWITCHING POWER BELT TENSIONER
The automatically engaging hydraulic power belt tensioner ensures that power is transmitted safely and effectively.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

WIRTGEN W50RI — SMALL COLD MILLING MACHINE

EFFICIENT MILLING AND GRANULATING OF ROAD PAVEMENTS
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

COLD MILLING WITH SMALL MILLING MACHINES
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.

HIGH-PRECISION, INTUITIVE LEVEL PRO PLUS LEVELING SYSTEM
When milling, it’s important to remove the layers at the specified depth. WIRTGEN’s intuitive LEVEL PRO PLUS leveling technology can be relied on to precisely maintain the specified milling depth.

SIMPLE, INTUITIVE OPERATION WITH LEVEL PRO PLUS
The LEVEL PRO PLUS leveling system developed especially for cold milling machines offers easy and intuitive one-hand operation using the rotary knob, and the menu can be configured as desired. LEVEL PRO PLUS stands out due to its extremely precise milling results.

FULLY INTEGRATED
The LEVEL PRO PLUS leveling system is fully integrated into the machine control system. enabling a high degree of automation.

ADDITIONAL AND AUTOMATIC FUNCTIONS
The LEVEL PRO PLUS leveling system Offers many automatic and additional functions that make the operator’s job easier. This also speeds up work processes.

DISPLACEMENT SENSORS
The reference line is scanned via heavy-duty displacement sensors built into the hydraulic side plate cylinders and displayed directly on the high-resolution LEVEL PRO PLUS control screen.

LEVELING BOOM
The telescoping leveling boom with an ultrasonic sensor for scanning references located up to 6 ft 7 in (2.0 m) to the left of the machine guarantees perfect milling results, even when performing complex leveling jobs.

EFFICIENT MULTIFUNCTIONAL ARMREST
The W 50 Ri / W 60 Ri is equipped with an efficient multifunctional armrest that not only speeds up processes and improves results, but also results in a more satisfied operator.

ERGONOMICALLY DESIGNED MULTIFUNCTIONAL ARMREST
The multifunctional, individually adjustable armrest combines innovative design with perfect user-friendliness. Important data is displayed on the color control panel. The multifunctional armrest is also precisely integrated into the universal operating concept for the entire WIRTGEN small milling fleet, and it enables productive working from the outset.

JOB DATA
Information like the weight and volume of the milled material, the size of milled areas, or the number of loaded trucks can be displayed automatically. This job data can be used to log daily performance.

FAVORITES BUTTONS
Four buttons can be programmed with 20 different functions as required by the operator.

ADDITIONAL HEIGHT ADJUSTMENT
The hydraulically proportional machine height adjustment including the milling depth memory feature is conveniently controlled via the multifunctional armrest.

PERFECT VISIBILITY, COMFORT, AND ERGONOMICS
Perfect visibility. comfort. and ergonomics are factors that increase cost-effectiveness especially over the long term. Ultimately, they lead to greater productivity and profitability in every job.

PERFECT VISIBILITY
The optimized shape of the operator’s platform not only offers an unobstructed view of the right side plate, but also the left side plate as well. In addition, the intentionally narrow chassis offers an unobstructed view of the right-hand milled edge, and the compact design of the discharge conveyor’s suspension system ensures that the operator has a clear view of the milled surface behind the machine.

HIGH-QUALITY CAMERA / MONITOR SYSTEM
The camera / monitor system consists of two cameras and a heavy-duty monitor. The monitor provides a high-resolution view of the loading situation from the cameras at the end of the discharge conveyor and of the area in front of the milling drum housing below the machine.

COMFORT OPERATOR’S SEAT
The ergonomically designed, swiveling comfort seat with seat heater allows the operator to work in a relaxed manner. It also helps provide the operator an excellent view to the side and rear of the machine.

EFFECTIVE STEERING FUNCTIONS
The W 50 Ri / W 60 Ri is the most maneuverable cold milling machine in its class. Whether milling the tightest radii, turning in narrow sections, or driving around obstacles – the machine fully leverages its time-saving potential.

WIDE, OFFSET FRONT WHEELS
The wheels on the front axle are offset by 6 in (1 5 cm) (four-wheeled version) and drive “along one track” when the steering wheel is turned to the right. This optimizes driving onto obstacles and terrain edges. The extra wide front wheels also reduce surface load and wear.

EXTREMELY WIDE STEERING ANGLES
The extremely wide steering angles to the left and right guarantee small turning radii and thus rapid maneuvering, even in tight spaces.

AUTOMATIC SELF-STEERING FEATURE
When pivoted in front of the milling drum, the right rear wheel’s automatic self-steering feature not only gives the small milling machine maximum maneuverability but also minimizes tire wear.

DYNAMIC AND FAST MANEUVERING
The W 50 Ri / W 60 Ri is also the fastest cold milling machine in its class. It is always the first to reach its destination when quickly and independently driving to the next job site.

FAST STEERING
In situations where the operator needs to steer particularly fast – such as maneuvering or turning – the machine can be steered as always using the steering wheel.

PRECISION STEERING
The highly responsive hydraulic steering system allows the operator to steer the machine precisely and smoothly, including via the right-hand multifunctional armrest.

MAXIMUM SPEED OF 7.5 MPH (12 KM/H)
The travel speed of up to 5 mph (8 km/h) (three-wheeled version) or 7.5 mph {12 km/h) (four-wheeled version) ensures that milling jobs can be completed particularly quickly.

ABILITY TO REVERSE WITH MILLING DRUM ENGAGED
The ability to reverse with the milling drum engaged makes it possible to maneuver quickly and easily on the job site.

QUICK-PIVOTING RIGHT-HAND REAR WHEEL
When pivoted in, the right rear wheel makes precise milling along obstacles such as curbs and walls possible.

AUTOMATIC PIVOTING
The right-hand rear support wheel can be pivoted in front of the milling drum hydraulically from the operator’s platform to allow milling along curbs or other obstacles – without having to lower the milling drum to the ground. This process can be completed extremely quickly in 30 seconds or less. And since the milling drum is not in contact with the ground during the pivoting process, there is no risk of damage to the picks or the milled surface.

SECURE LOCKING
The secure end sturdy connection of the right-hand rear wheel to the chassis in the final position minimizes wear and increases precision.

EXTREMELY RUGGED SLIDING BEARING
The rugged, wear-resistant sliding bearing minimizes play in the kinematics, guaranteeing consistent, high-precision milling results.

OUTSTANDING PERFORMANCE THANKS TO SUPERIOR CUTTING TECHNOLOGY
Intelligent milling drum, side plate, scraper, and material depressor solutions make milling faster, easier, and increase its overall quality.

HT08 TOOLHOLDER SYSTEM
The newly developed HTO8 toolholder system stands out thanks to its outstanding wear resistance and long useful operating life.

SMALL RIDGES
The extremely small distance between the right-hand milled edge and the outer edge of the machine leaves only minimal ridges.

HYDRAULICALLY LIFTING SIDE PLATES WITH PROACTIVE FLOATING POSITION
Overload sensors on the left and right-side plates cause them to lift briefly to prevent them from sinking into soft ground.

AUTOMATIC SCRAPER LIFTING
Overload sensors protect the milling drum unit from damage by triggering the scraper to lift briefly, such as to avoid obstacles or uneven ground.

DECOUPLED SCRAPER
The scraper is decoupled from the discharge conveyor, enabling partial loading even when milling at maximum milling depth

ROAD SWEEPER
The sweeping unit attached to the front of the machine ensures that the milled surface is cleaned via circular brushes, enabling it to be milled precisely along an existing track.

HIGH LOADING CAPACTIY FOR MAXIMUM PERFORMANCE
A cold milling machine is only as good as its loading system. That’s why the W 50 Ri / W 60 Ri features a milled material loading system that was designed for maximum performance.

WIDE CONVEYOR SWING ANGLES
Wide conveyor swing angles of 30° to both the right and left make it possible to easily load material, even in difficult job site situations.

14 IN (350 MM) BELT WIDTH AND 1 IN (25 MM) CLEAT HEIGHT
The extra-large belt width of 14 in (350 mm) and cleat height of 1 in (25 mm) ensure a high conveying capacity.

HYDRAULIC FOLDING CONVEYOR
The hydraulic folding conveyor can be folded away quickly for easy transport and to adapt to site conditions.

OUICK-RELEASE COUPLING
The innovative quick-release coupling ensures that the hydraulic connections can be easily connected when mounting / removing the discharge conveyor.

HIGH TRACTION THROUGH OPTIMIZED WEIGHT DISTRIBUTION
High traction is the key to high productivity. The perfect weight distribution of the W 50 Ri / W 60 Ri provides a constant, high level of traction in any job site situation.

ADDITIONAL WEIGHTS
The low net weight of the small milling machine in combination with variable additional weights up to 2,205 lbs (1,000 kg) makes a high operating weight, ideal traction, and smooth and easy transport possible, depending on the requirements.

PARTICULARLY LOW CENTER OF GRAVITY
The machine’s extremely low center of gravity and its well-balanced weight distribution always ensure that it has excellent traction.

CENTRALLY LOCATED WATER AND DIESEL TANKS
Water and diesel tanks located in the middle of the machine ensure that its weight is distributed evenly between the axles and provide optimum traction, regardless of the fill level.

OUTSTANDING MACHINE STABILITY
The intelligently designed four-wheeled axle offers perfect maneuverability in any job site situation.

HIGHEST PRODUCTIVITY IN ITS CLASS
Complete jobs up to 20% faster with maximum cost savings! The small milling machine’s impressive engine performance and intelligent engine control play a major role in this respect.

IMPRESSIVE ENGINE PERFORMANCE
The maximum engine output with high torque guarantees fast, productive work, even at the maximum milling depth.

STATE-OF-THE-ART ENGINE CONTROL
The engine speed is controlled as required, keeping noise levels low and diesel consumption to a minimum. The cooling system with temperature-controlled fan speed also helps reduce noise emissions.

THREE DIFFERENT MILLING DRUM SPEEDS
Three different milling drum speeds make it possible to achieve unparalleled milling performance in a wide range of applications.

HYDRAULICALLY SWITCHING POWER BELT TENSIONER
The automatically engaging hydraulic power belt tensioner ensures that power is transmitted safely and effectively.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

WIRTGEN W35XRi — SMALL COLD MILLING MACHINE

EFFICIENT MILLING AND GRANULATING OF ROAD PAVEMENTS
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.

COLD MILLING WITH SMALL MILLING MACHINES
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.

EVERYTHING UNDER CONTROL
With the W 35 XRi small mining machine, operators have complete control. The machine features clearly and ergonomically arrange control instruments, a perfect view of the most important working areas, and additional operator’s platform behind the milling drum, and the intuitive LEVEL PRO PLUS leveling technology is also on board. The W 35 XRi – for stress-free work and increased output.

HIGH-PRECISION, INTUITIVE LEVEL PRO PLUS LEVELING SYSTEM
When milling it’s important to remove the layers of asphalt at the specified depth. WIRTGEN’s intuitive LEVEL PRO PLUS leveling technology can be relied on to precisely maintain the specified milling depth.

HIGH-PRECISION LEVELING SYSTEM
The LEVEL PRO PLUS leveling system programmed especially for cold milling machines offers easy and intuitive one-hand operation using the rotary’ knob, and the menu can be configured as desired. LEVEL PRO PLUS stands out clue to its extremely precise milling results. The leveling system is fully integrated into the machine control system, enabling a high degree of automation.

FAST CROSS-SLOPE SENSOR
The fast, electronic RAPID SLOPE cross-slope sensor ensures that the cross-slope profile is extremely precise. The cross-slope sensor makes it possible to work significantly faster while maintaining the same leveling quality.

LASER LEVELING
Laser sensors on the machine work in conjunction with a stationary rotating laser that creates a virtual reference surface. The extremely accurate height measurement via laser sensors is suitable, for example, for indoor milling work. Rotating lasers are not included in our delivery range.

SIMPLE, ERGONOMIC OPERATION
The effortless operation of the W 35 XRi is also perfectly integrated into the standardized operating concept of WIRTGEN’s entire range of small milling machines, guaranteeing productive operation right from the start.

VARIABLE OPERATOR’S PLATFORM
For universal ergonomic operation, the operator can choose to operate the small milling machine from above or from the rear of the machine. The operator can quickly and easily switch to the respective position on the job site.

ERGONOMIC MULTIFUNCTIONAL ARMREST
The individually adjustable armrest with multifunctional joystick guarantees fast, ergonomic operation.

INTUITIVE OPERATING CONECPT
The simple operating concept increases the operator’s performance and thus the productivity of the small milling machine.

UNOBSTRUCTED VIEW
An unobstructed view forward to the milled edge, of the right-hand side plate, and to the rear ensures that the machine be used effectively on the job site in accordance with the on-site requirements.

DISPLAY
The display located in the operator’s field of vision clearly shows important machine parameters.

A HIGHLY MANEUVERABLE AND COMPACT MACHINE
The outstanding maneuverability of the extremely compact W 35 XRi small milling machine means that it can be used to complete a variety of jobs in the narrow sections of a milling site much more quickly and easily.

EXCELLENT MANEUVERABILITY
The large steering angles ensure that the machine can quickly maneuver and turn on the job site. It also features the smallest inside milling radius in its class.

COMPACT MACHINE DIMENSIONS
Thanks to its extremely compact design, the small milling machine can mill in confined spaces, fit through narrow factory’ doors, and is easy to transport.

PRECISE STEERING
The hydraulic steering system features fast yet precise steering. When operated from the operator’s platform at the rear of the machine, the machine can be steered electronically via the steering system built into the multifunctional joystick.

PRECISE STEERING WITH HIGH TRACTION
The W 35 XRi is equipped with sensitive steering system that enables it to mill with maximum precision whenever required – such as around hydrants or drains, for example. In addition, optimal traction ensures that milling operations can be carried out without interruption.

HYDRAULIC ALL-WHEEL DRIVE
The machine’s hydraulic all-wheel drive offers excellent traction in difficult job site situations and during loading.

PRECISE HEIGHT ADJUSTMENT
The electrohydraulic, two-stage height adjustment system allows the operator to set the milling depth precisely.

MEMORY FUNCTION FOR HEIGHT ADJUSTMENT
For fast, convenient height adjustment, it’s possible to save up to three different height positions per machine side to memory buttons on the multifunctional armrest.

ELECTRONICALLY CONTROLLED TRAVEL DRIVE
The electronically controlled travel drive with one transport speed and two milling speeds makes fine maneuvering possible when extremely precise milling is required.

FLEXIBILITY FOR DIFFERENT MILLING JOBS
Intelligent milling drum, side plate, and scraper solutions make milling faster, easier, and increase overall quality.

WEAR-RESISTANT HT08 TOOLHOLDER SYSTEM
The HT08 toolholder system stands out thanks to its outstanding wear resistance and long tool life.

RAISABLE SIDE PLATE ON RIGHT SIDE
Side plates on both sides reliably seal the drum housing and enable the milled material to be loaded cleanly. The side plate on the right side can be conveniently raised via foot pedal in order to drive over obstacles (such as a curb).

HIGH-PERFORMANCE, LOAD-DEPENDENT WATER SPRINKLING
Together with the water spray bar, the high-performance, load-dependent water pump reliably cools the picks, binds dust, and ensures that the machine remains productive for extended periods of time. It also in a constant high-water pressure for easy machine cleaning on the job site.

MILLING DRUM HOUSINGS FOR WORKING WIDTHS UP TO 14 IN (350 MM) AND 20 IN (500)
The standard milling drum housing can be fitted with milling drums with a working width of up to 14 in (350 mm), end with milling drums with a working width of up to 20 in (500 mm) at the customer’s request. A large number of different original WIRTGEN milling drums and special milling drums are available.

RAPID MILLING DRUM CHANGES
The hinged MCS side panel on the right and intelligent installation tools allow milling drums to be changed in a short period of time.

THREE DIFFERENT MILLING DRUM SPEEDS
Three different milling drum speeds make it possible to achieve unparalleled milling performance in a wide range of applications.

MILLING POWER CONTROL FOR MAXIMUM ADVANCE SPEED
The electronic load limitation regulator that can be activated as required adjusts the advance rate function of the engine load so that the small milling machine always operates at the ideal milling speed.

EFFICIENT LOAD OF MILLED MATERIAL
Anyone who has the arduous task of manually removing milled material from the milled surface will immediately appreciate the W 35 XRi rear loader’s height adjustable discharge conveyor that can swing in both directions. It transports the milled material effectively and safely into a wheel loader bucket, for instance.

HEIGHT-ADJUSTABLE DISCHARGE CONVEYOR OR THAT CAN SWING IN BOTH DIRECTIONS
The height-adjustable discharge conveyor that can swing in both directions ensures that the milled material can be easily loaded, even in difficult job site conditions. In this process, the angle can be conveniently adjusted using a cable winch.

HYDRAULICALLY RAISABLE CONVEYOR MOUNTING
The hydraulically raisable conveyor mounting, combined with the hydraulic scraper, not only ensures that the milled material is loaded cleanly, but also makes it possible to load only part of the milled material, if required.

RAPID MOUNTING AND DEMOUNTING OF THE DISCHARGE CONVEYOR
The intelligent design ensures that the charge conveyor can be mounted/demounted quickly by just one person. Thanks to the roller unit, the demounted discharge concept can be moved effortlessly around the job site.

HIGH PRODUCTIVITY WITH LOW ENVIRONMENTAL EMISSIONS
The W 35 XRi equips contractors with sophisticated technology – a key factor in ensuring consistently high operational safety and daily output rates. The machine is even perfect for job sites that only allow minimal exhaust emissions.

HIGH-PERFORMANCE DIESEL ENGINE THAT MEETS US EPA TIER 4f EMISSION STANDARD
The powerful diesel engine with temperature dependent fan speed guarantees quiet, economical operation and high-power reserves for fast milling at any milling depth. The engine also meets the stringent requirements of the US EPA Tier 4f, currently the highest emission standard.

VARIABLE ADDITIONAL WEIGHTS
The wide ballasting range consists of individually removable weight plates up to a total of 3,087 lbs (1,400 kg), increasing the machine’s range of applications.

WITOS FLEETVIEW TELEMATICS SYSTEM
WIRTGEN’s efficient WITOS FleetView telematics system supports fleet management, position and status monitoring, as well as maintenance and diagnostic processes.

LED WORK LIGHTS
The ideal arrangement of the LED work lights ensures that the entire machine environment is brightly illuminated.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
