VR 600 — EXTENDING SCREED

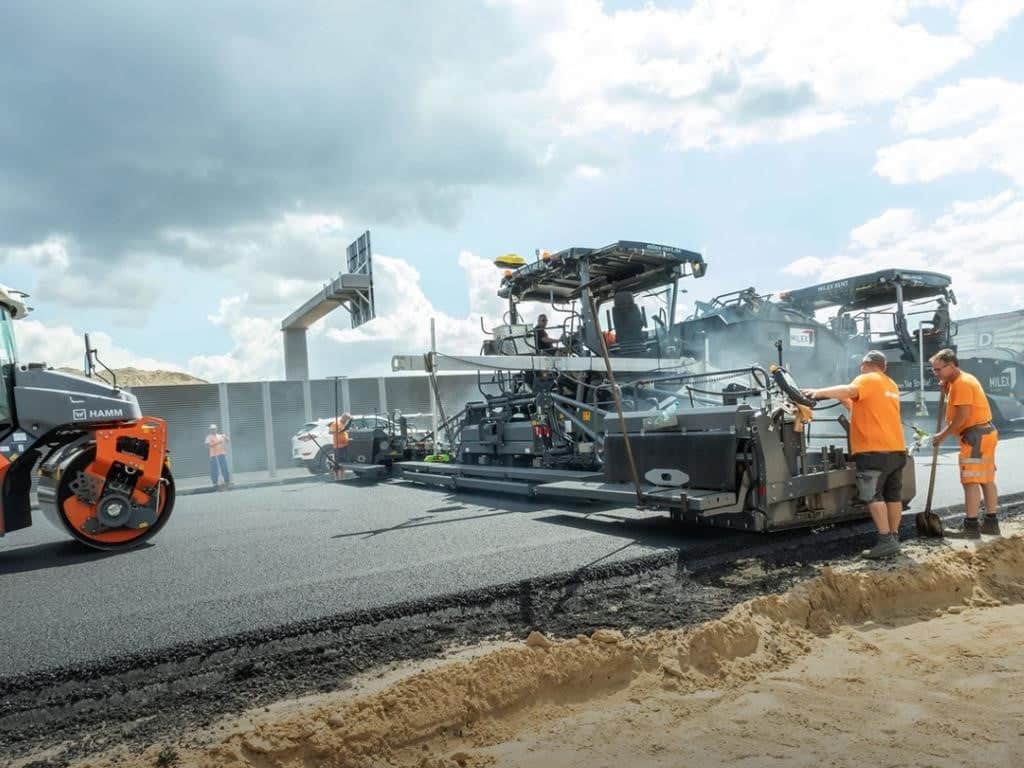

The VR 600 Extending Screed has been specially developed for Highway Class pavers and is ideally suited to the requirements of road construction in the USA and Australia. The rear-mounted VÖGELE screed is the ideal tool for paving in widths between 10 ft and 19 ft 8 in. Equipped with our proven electrical screed heating system, the VR 600 Extending Screed builds superbly even, top-quality road pavements.
The operating principle underlying the VÖGELE VR 600 screed is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the telescoping system is arranged at a high level, this prevents any contact with paving mix.
The 3-point support in VÖGELE extending screeds means that torsional forces acting on the hydraulic extensions as a result of the pressure of the mix do not have a negative influence on the telescoping system. The point at which the telescoping tube is attached, the bearing for the telescoping tube and the torque restraint system all absorb the forces acting here, guaranteeing strain-free extension and retraction of the hydraulic extensions – without any kind of tilting or jamming. Robust, large-scale guidance system featuring high-precision operator control ensures excellent screed stability, resulting in top-quality paving.
HIGHLIGHTS
ERGONOMIC SCREED OPERATOR’S CONSOLE
The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.
OUTSTANDING PAVING CHARACTERISTICS
Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.

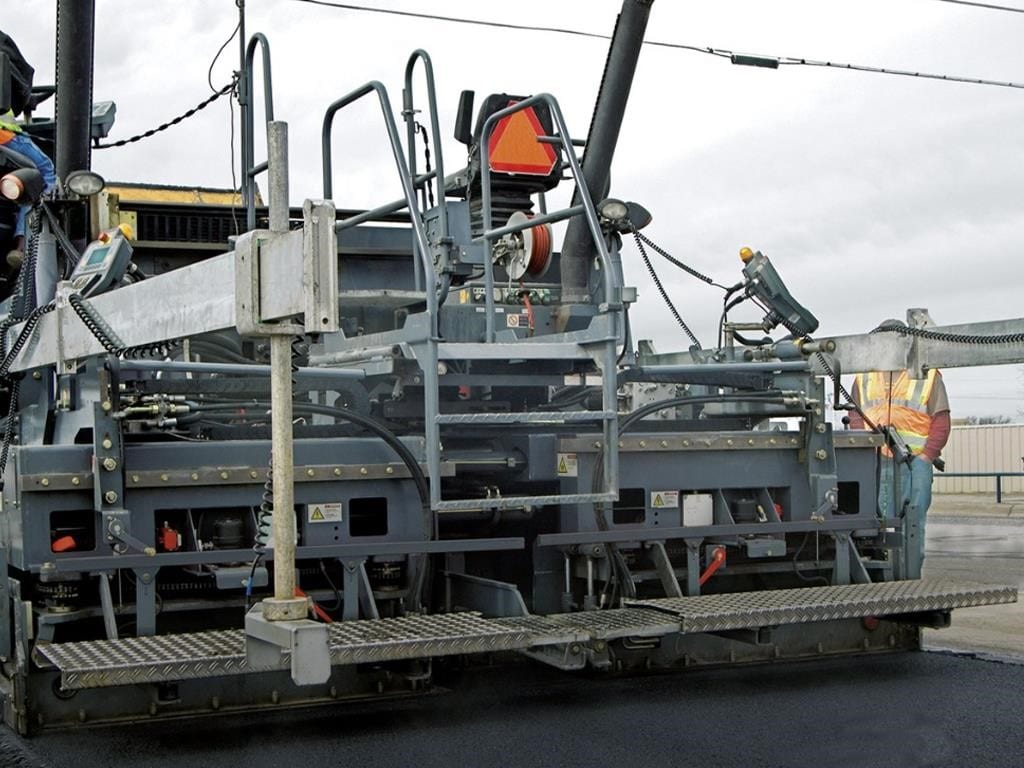

SAFE, CONVENIENT SCREED STEP
The walkway and convenient central step on the screed allow safe, convenient access to the paver operator’s platform.
HYDRAULIC CROWN ADJUSTMENT
Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.
HIGHLY EFFICIENT SCREED HEATING
The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
