Vogele SB300HD

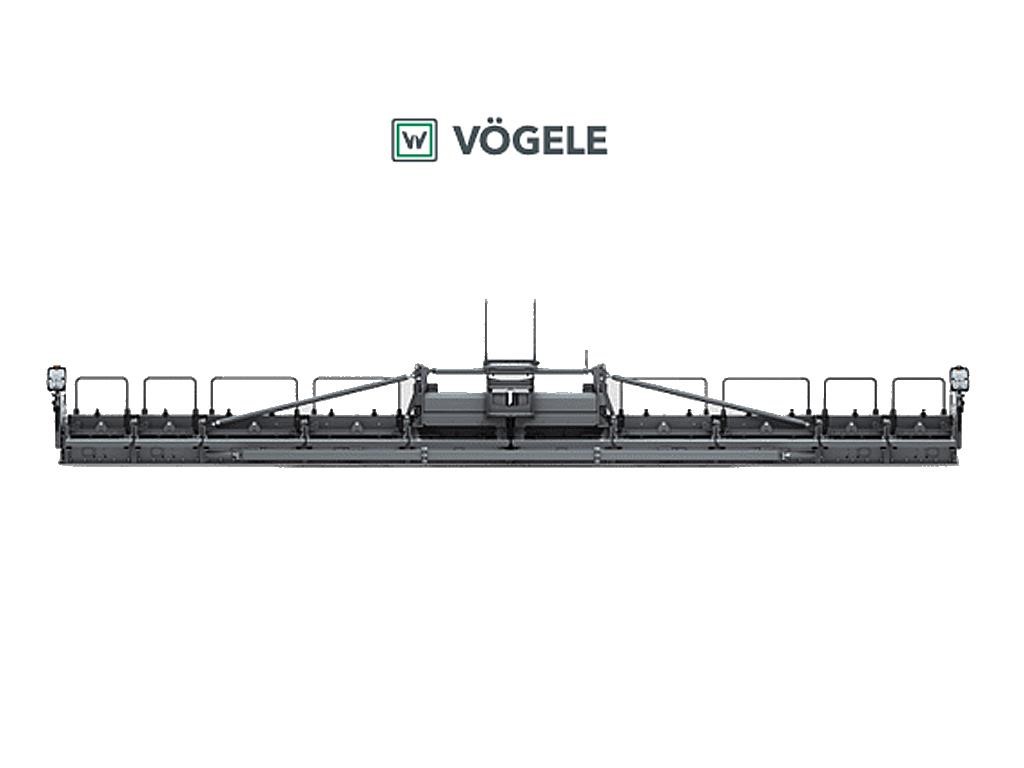

SB300 HD — FIXED-WIDTH SCREED
Like the SB 300,the SB 300 HD Fixed-Width Screed has a basic width of 3 m and can be combined with the SUPER 1800-3(i), SUPER 1900-3(i), SUPER 2100-3(i) and SUPER 3000-3(i) pavers. The SB 300 HD fixed-width screed is specially designed for paving non-bituminous mixes in the roadbase, so that ballast base courses and frost protection layers are paved efficiently and precisely in large layer thicknesses. For the purpose, the robust screed is equipped with a special tamper that enables very high precompaction rates to be achieved.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Similar models may be shown in addition to the featured model. Specifications are subject to change without prior notice.
Compacting Systems
| Screed Version | TV |
|---|---|
| Tamper (T) | speed up to 1,800 rpm |
| Stroke Adjustable | mechanical | 2, 4 and 7 mm |
| Hydraulic Oil Pressure | |
| Vibrators (V) | eccentric vibration up to 3,000 rpm |
| Pulse frequency | |
| Stroke Adjustable Optional | |
| Pressure bars (P) |
Transport Dimensions (basic Screed)
| Depth | 1.34 m |
|---|---|
| Width | 3 m |
| Weight | 2,400 kg |
Pave Widths
| * | Depending on paver type |
|---|---|
| Pave Width | 3 m to 12 m* |
| Basic Width | 3 m |
Bolton Extensions
| Bolt-On Extensions | 25 cm | 50 cm | 100 cm | 150 cm |
|---|
Crown Adjustment
| Mechanical | -2% to +3% |
|---|
