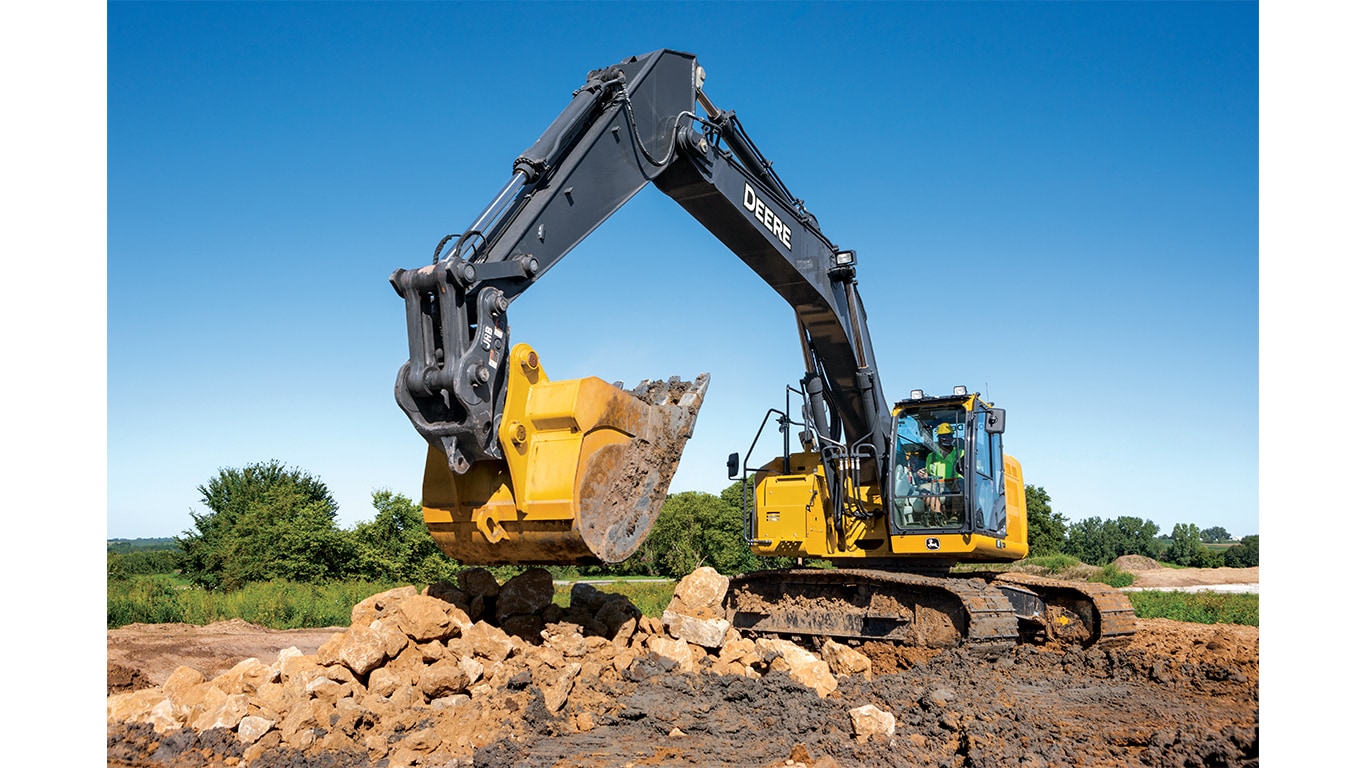

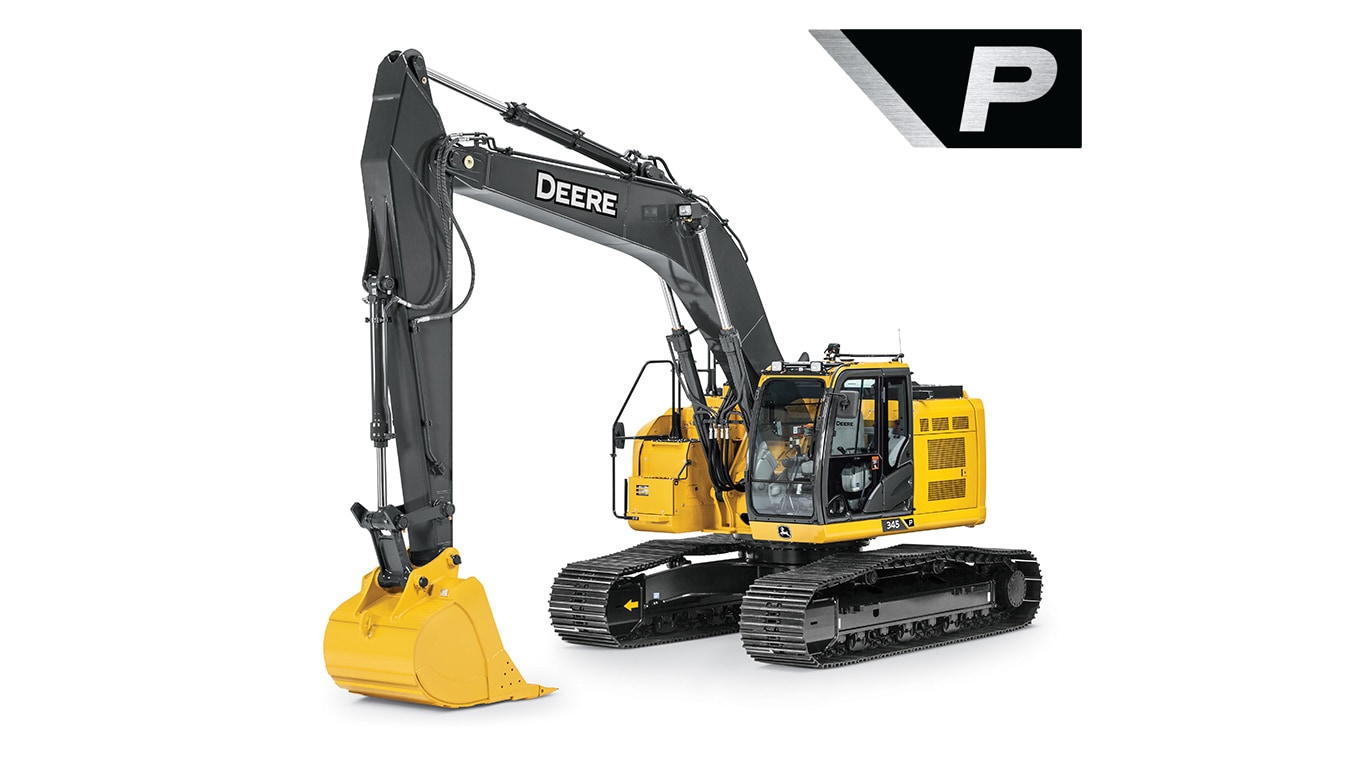

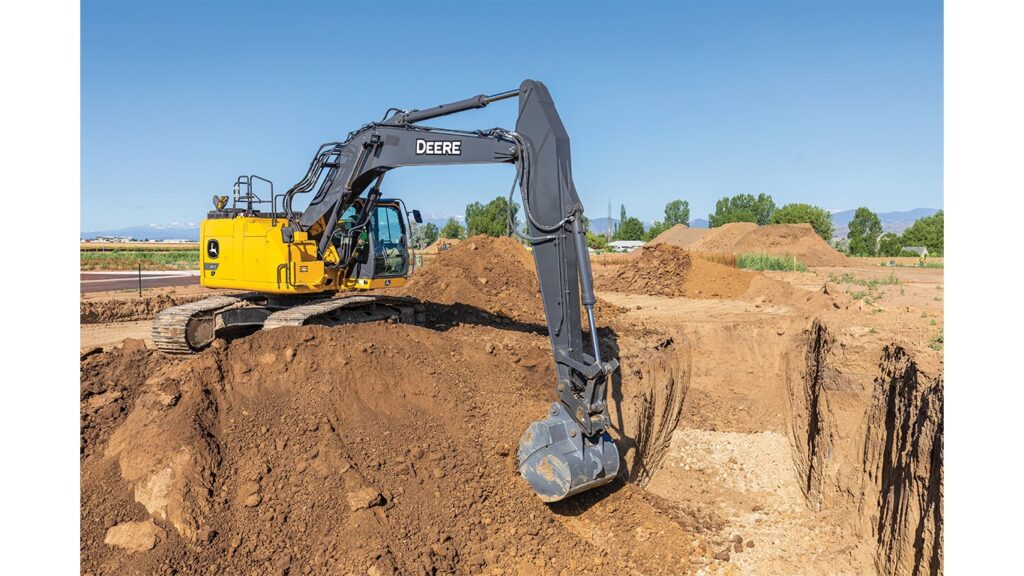

John Deere 345 P-Tier Mid-Size Excavator
- Net Power: 186 kW (249 hp)
- Max. Digging Depth: 7.57 m (24 ft. 10 in.)
- Operating Weight: 35 700 kg (78,705 lb.)
Work Confidently via Optional Cameras and Lighting
Right, rear, and left cameras with additional LED surround lighting
Overview
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Three-Pump Hydraulic System for Fast Cycle Times and Fuel Efficiency
Three-pump hydraulic system
Overview
Pumps 1 and 2 combined control the boom and arm functions. Pump 3 is dedicated to swing. The result is fast cycle times and increased productivity.
Take digging forces to new levels with power boost when you need it. This machine is a well-balanced, smooth operating machine in a reduced tailswing configuration.
Benefits
- Use power boost with the push of a button to get through tough material
- Pilot controlled hydraulics provide smooth function and feel for operators
- Maneuverable reduced tailswing eases the risk of damage to surroundings or the machine
Standard Auxiliary Hydraulics
Auxiliary hydraulic lines
Overview
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Benefits
- Standard auxiliary proportional control in the right pilot control lever
- Toggle between attachments and adjust flow and pressure based on attachment requirements right in the monitor
No Diesel Particulate Filter (DPF), No Problem
Final Tier 4 (FT4)/ EU Stage IV aftertreatment without the use of DPF
Overview
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Benefits
- Proven, integrated, simple engine meets EPA Final Tier 4 (FT4)/ EU Stage IV standards
- 185.6 kW (249 net peak horsepower)
- Ground level diesel exhaust fluid (DEF) fill
Driveline
| Emission Rating | Tier 4 / Stage IV |
|---|---|
| Rated speed, rpm | 1900 |
| Engine Manufacturer | Isuzu |
| Engine Output - Net, kW (hp) | 186 (249) |
| Track Shoe Width, mm (inches) | 800 (32) |
| Number Of Cylinders | 6 |
| Number Of Track Rollers - Each Side | 8 |
| Number Of Carrier Rollers - Each Side | 2 |
| Displacement, ltr (Inches³) | 7.8 (475) |
Performance
| Total Flow, lt/min (gallons (US) / min) | 681 (180) |
|---|---|
| Swing Torque, kNm (lbf / ft) | 90.5 (66750) |
| Tractive Force, kN (lbf) | 298 (66990) |
| Gradeability, % | 70 |
| Side lift - 7.5m Reach, kg (lbs) | 5450 (11770) |
| Ground Bearing Pressure, kPa (PSI) | 50 (7.3) |
| End lift - 7.5m Reach, kg (lbs) | 9220 (19870) |
| Travel Speed - High, kph (mph) | 4.1 (2.5) |
| Boost Pressure, bar (PSI) | 380 (5510) |
| Arm Tearout, kN (lbf) | 127 (28550) |
| Bucket Breakout, kN (lbf) | 202 (45410) |
| Swing Speed, rpm | 10.5 |
| Bucket Pressure, bar (PSI) | 343 (4970) |
Dimensions
| Width over fixed tracks, mm (ft/in) | 3390 (11 ft 1 in) |
|---|---|
| Dig Depth - Mono Boom, mm (ft/in) | 7570 (24 ft 10 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 11460 (37 ft 7 in) |
| Overall Undercarriage Width, mm (ft/in) | 3390 (11 ft 1 in) |
| Track Gauge, mm (ft/in) | 2590 (8 ft 6 in) |
| Ground Clearance, mm (inches) | 500 (20) |
| Dig Height - Mono Boom, mm (ft/in) | 11690 (38 ft 4 in) |
| Dump Height - Mono Boom, mm (ft/in) | 8670 (28 ft 5 in) |
| Transport Height - Maximum, mm (ft/in) | 3420 (11 ft 3 in) |
| Overall Undercarriage Length, mm (ft/in) | 4940 (16 ft 2 in) |
| Tailswing Radius, mm (ft/in) | 2090 (6 ft 10 in) |
| Transport Length Mono Boom, mm (ft/in) | 10020 (32 ft 10 in) |
| Track Length On Ground, mm (ft/in) | 4050 (13 ft 3 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 7410 (24 ft 4 in) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 11220 (36 ft 10 in) |
Weights
| Operating Weight, kg (lbs) | 35700 (78705) |
|---|
Capacities
| Fuel Tank, ltr (gallons (US)) | 380 (100) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 160 (42) |
