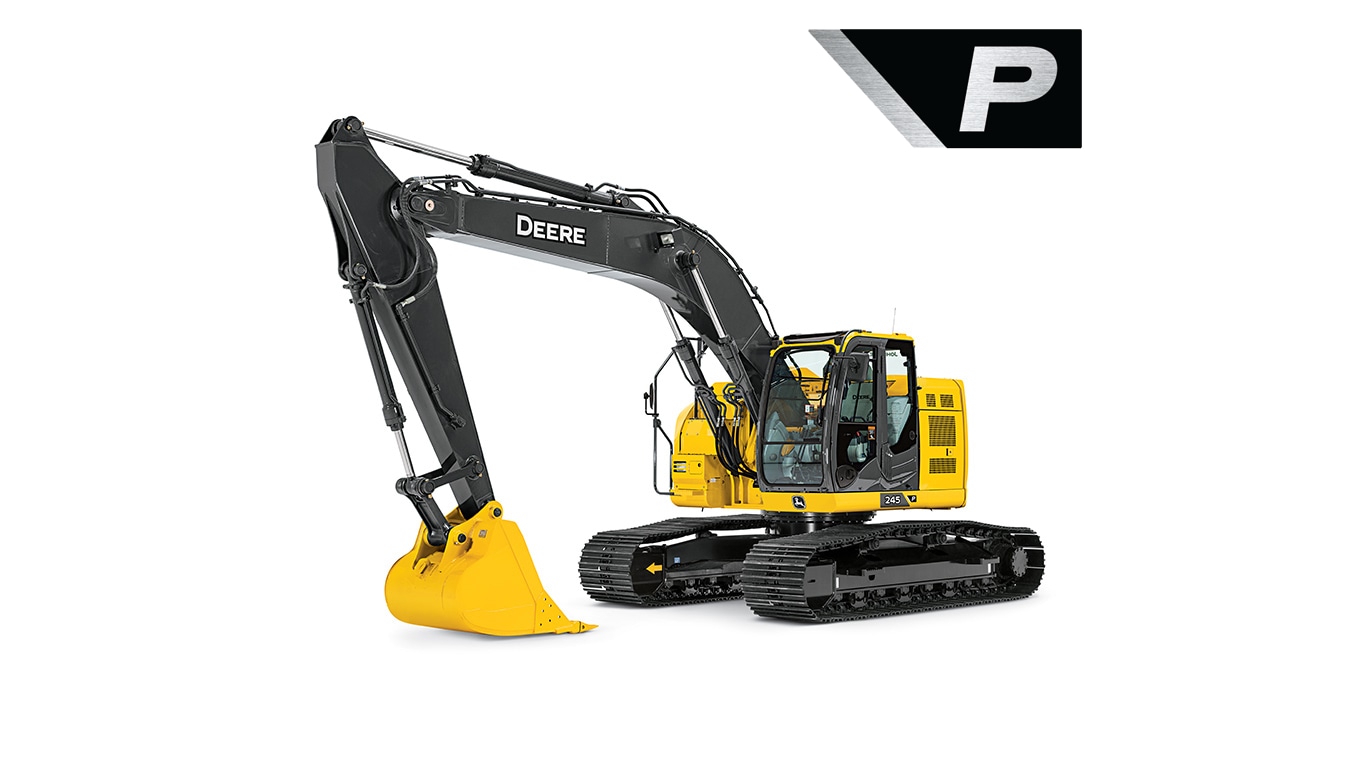

John Deere 245 P-Tier Mid-Size Excavator
- Net Power: 119 kW (159 hp)
- Max. Digging Depth: 6.62 m (21 ft. 8 in.)
- Operating Weight: 25 800 kg (56,879 lb.)
No Diesel Particulate Filter (DPF), No Problem
Final Tier 4 (FT4)/ EU Stage IV aftertreatment without the use of DPF
Overview
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid (DEF) is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Benefits
- Proven, integrated, simple engine meets EPA Final Tier 4 (FT4)/ EU Stage IV standards
- Ground level DEF fill
Isuzu is a trademark of Isuzu Motors Limited Corporation.
Three-Pump Hydraulic System for Fast Cycle Times and Fuel Efficiency
Three-pump hydraulic system
Overview
Pumps 1 and 2 combined control the boom and arm functions. Pump 3 is dedicated to swing. The result is fast cycle times and increased productivity.
Take digging forces to new levels with power boost when you need it. This machine is a well-balanced, smooth operating machine in a reduced tailswing configuration.
Benefits
- Use power boost with the push of a button to get through tough material
- Pilot controlled hydraulics provide smooth function and feel for operators
- Maneuverable reduced tailswing eases the risk of damage to surroundings or the machine
Work Confidently via Optional Cameras and Lighting
Right, rear, and left cameras with additional LED surround lighting
Overview
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Standard Auxiliary Hydraulics
Auxiliary hydraulic lines
Overview
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Benefits
- Standard auxiliary proportional control in the right pilot control lever
- Toggle between attachments and adjust flow and pressure based on attachment requirements right in the monitor
Dimensions
| Dig Height - Mono Boom, mm (ft/in) | 11230 (36 ft 10 in) |
|---|---|
| Width over fixed tracks, mm (ft/in) | 3090 (10 ft 1 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 6410 (21 ft ) |
| Track Gauge, mm (ft/in) | 2390 (7 ft 10 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 10110 (33 ft 2 in) |
| Overall Undercarriage Width, mm (ft/in) | 3090 (10 ft 1 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 6620 (21 ft 8 in) |
| Track Length On Ground, mm (ft/in) | 3660 (12 ft ) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 9900 (32 ft 6 in) |
| Overall Undercarriage Length, mm (ft/in) | 4460 (14 ft 7 in) |
| Transport Length Mono Boom, mm (ft/in) | 9120 (29 ft 11 in) |
| Transport Height - Maximum, mm (ft/in) | 3030 (9 ft 11 in) |
| Tailswing Radius, mm (ft/in) | 1680 (5 ft 6 in) |
| Ground Clearance, mm (inches) | 450 (18) |
| Dump Height - Mono Boom, mm (ft/in) | 8290 (27 ft 2 in) |
Performance
| Gradeability, % | 70 |
|---|---|
| Bucket Breakout, kN (lbf) | 158 (35520) |
| Boost Pressure, bar (PSI) | 380 (5510) |
| End lift - 7.5m Reach, kg (lbs) | 5590 (12050) |
| Travel Speed - High, kph (mph) | 5.5 (3.4) |
| Swing Speed, rpm | 11.8 |
| Tractive Force, kN (lbf) | 203 (45640) |
| Bucket Pressure, bar (PSI) | 343 (4970) |
| Total Flow, lt/min (gallons (US) / min) | 613 (162) |
| Swing Torque, kNm (lbf / ft) | 68 (50000) |
| Arm Tearout, kN (lbf) | 114 (25630) |
| Side lift - 7.5m Reach, kg (lbs) | 3390 (7330) |
| Ground Bearing Pressure, kPa (PSI) | 45 (6.53) |
Driveline
| Rated speed, rpm | 2000 |
|---|---|
| Number Of Cylinders | 4 |
| Number Of Track Rollers - Each Side | 8 |
| Emission Rating | Tier 4 / Stage IV |
| Engine Manufacturer | Isuzu |
| Number Of Carrier Rollers - Each Side | 2 |
| Engine Output - Net, kW (hp) | 119 (159) |
| Displacement, ltr (Inches³) | 5.19 (317) |
| Track Shoe Width, mm (inches) | 700 (28) |
Weights
| Operating Weight, kg (lbs) | 25500 (56218) |
|---|
Capacities
| Hydraulic Tank, ltr (gallons (US)) | 130 (34.3) |
|---|---|
| Fuel Tank, ltr (gallons (US)) | 380 (100) |
