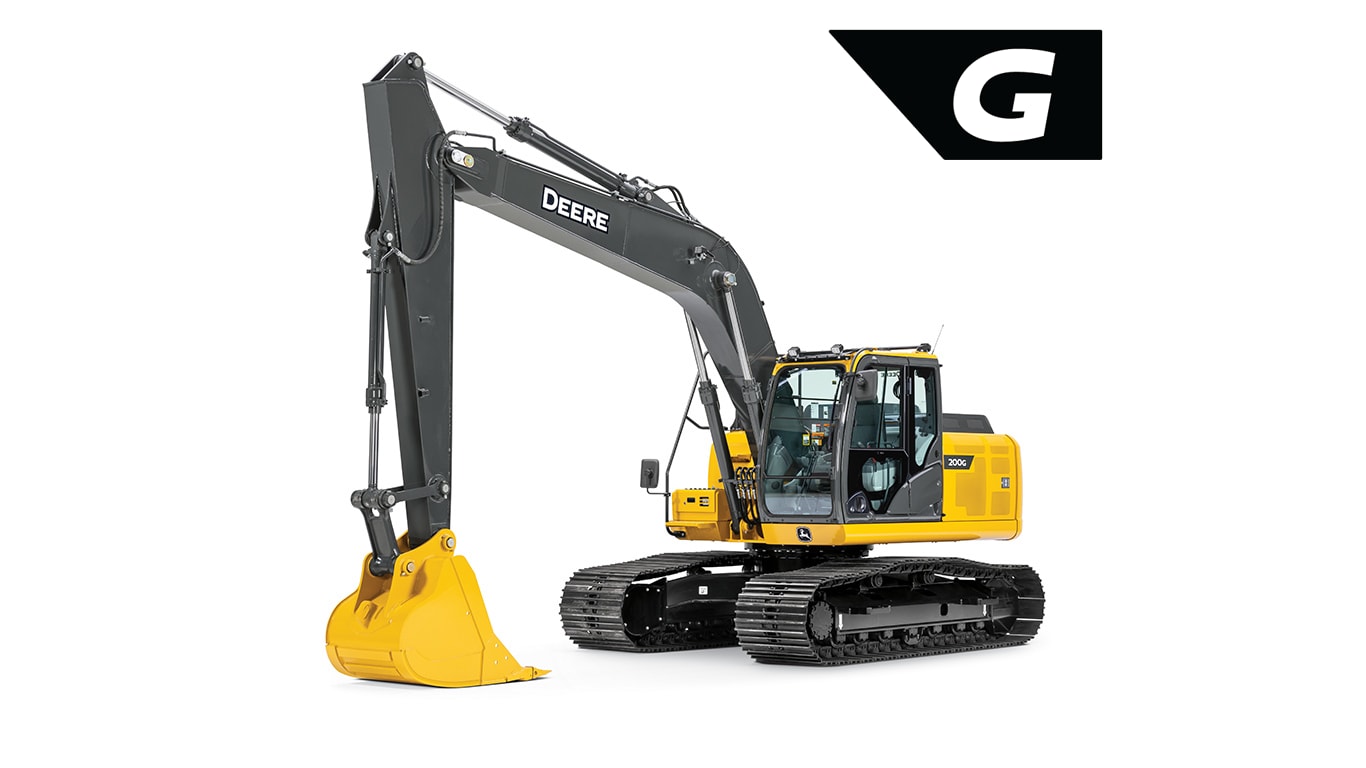

John Deere 200 G-Tier Mid-Size Excavator
Find Out More
- Net Power: 109 kW (146 hp)
- Max. Digging Depth: 7.07 m (23 ft. 2 in.)
- Operating Weight: 20 507 kg (45,170 lb.)
Quickly Change Attachments with Integrated Hydraulic Coupler Ready Option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Improved Front Joint Durability
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Redesigned boom foot bushings improve durability.
Dimensions
| Track Gauge, mm (ft/in) | 2200 (7 ft 3 in) |
|---|---|
| Dig Height - Mono Boom, mm (ft/in) | 9790 (32 ft 1 in) |
| Overall Undercarriage Length, mm (ft/in) | 4170 (13 ft 8 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 7070 (23 ft 2 in) |
| Width over fixed tracks, mm (ft/in) | 3000 (9 ft 10 in) |
| Overall Undercarriage Width, mm (ft/in) | 3000 (9 ft 10 in) |
| Ground Clearance, mm (inches) | 450 (18) |
| Transport Height - Maximum, mm (ft/in) | 3390 (11 ft 1 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 9940 (32 ft 7 in) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 9790 (32 ft 1 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 6870 (22 ft 6 in) |
| Dump Height - Mono Boom, mm (ft/in) | 6930 (22 ft 9 in) |
| Tailswing Radius, mm (ft/in) | 2550 (8 ft 4 in) |
| Transport Length Mono Boom, mm (ft/in) | 9040 (29 ft 8 in) |
| Track Length On Ground, mm (ft/in) | 3370 (11 ft 1 in) |
Driveline
| Number Of Cylinders | 4 |
|---|---|
| Rated speed, rpm | 2000 |
| Displacement, ltr (Inches³) | 4.5 (275) |
| Engine Manufacturer | John Deere Power Tech |
| Number Of Carrier Rollers - Each Side | 2 |
| Track Shoe Width, mm (inches) | 800 (32) |
| Engine Output - Net, kW (hp) | 109 (146) |
| Emission Rating | Tier 4 / Stage IV |
| Number Of Track Rollers - Each Side | 7 |
Performance
| End lift - 7.5m Reach, kg (lbs) | 4370 (9420) |
|---|---|
| Arm Tearout, kN (lbf) | 83.7 (18825) |
| Gradeability, % | 70 |
| Travel Speed - High, kph (mph) | 5.3 (3.3) |
| Total Flow, lt/min (gallons (US) / min) | 382 (100) |
| Bucket Breakout, kN (lbf) | 127 (28552) |
| Bucket Pressure, bar (PSI) | 343 (4980) |
| Boost Pressure, bar (PSI) | 380 (5511) |
| Swing Speed, rpm | 12.8 |
| Tractive Force, kN (lbf) | 169 (38030) |
| Ground Bearing Pressure, kPa (PSI) | 32 (4.64) |
| Swing Torque, kNm (lbf / ft) | 50 (36765) |
| Side lift - 7.5m Reach, kg (lbs) | 2830 (6110) |
Capacities
| Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 125 (33) |
Weights
| Operating Weight, kg (lbs) | 20507 (45170) |
|---|
