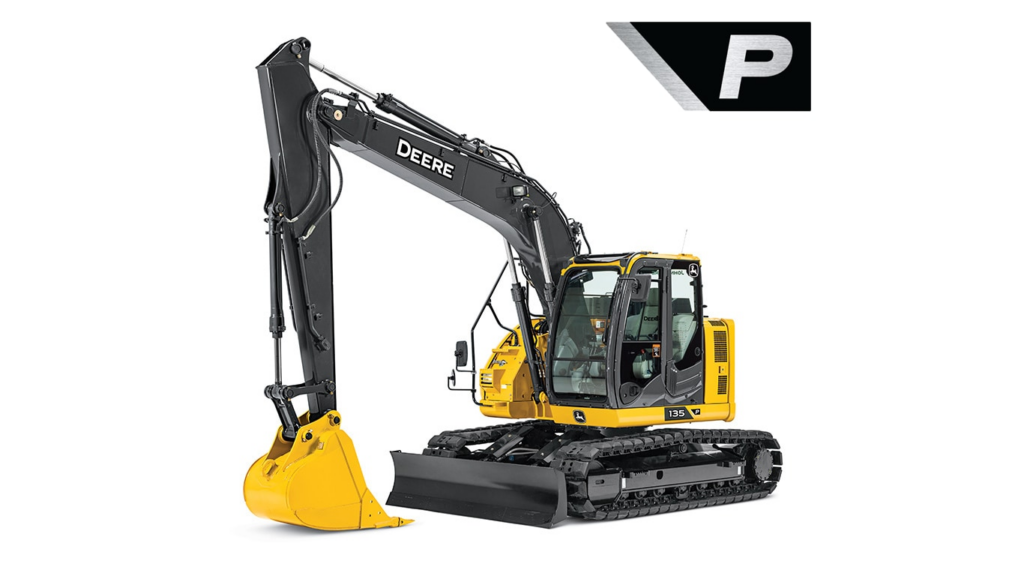

John Deere 135 P-Tier Mid-Size Excavator
- Net Power: 75 kW (101 hp)
- Max. Digging Depth: 5.98 m (20 ft. 0 in.)
- Operating Weight: 14 300–15 400 kg (31,526–33,951 lb.)

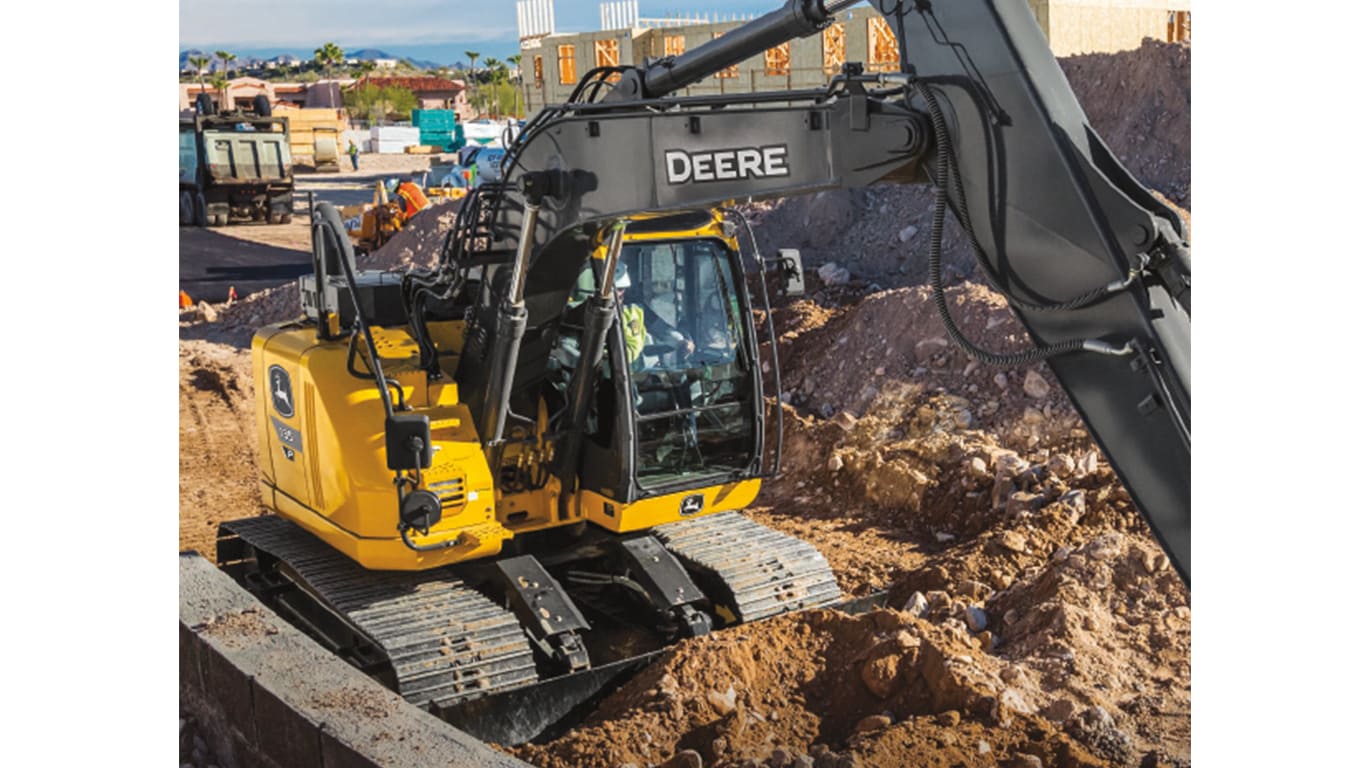

Work Confidently via Optional Cameras and Lighting
Right, Rear, and Left Cameras with additional LED Surround Lighting
Overview
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment

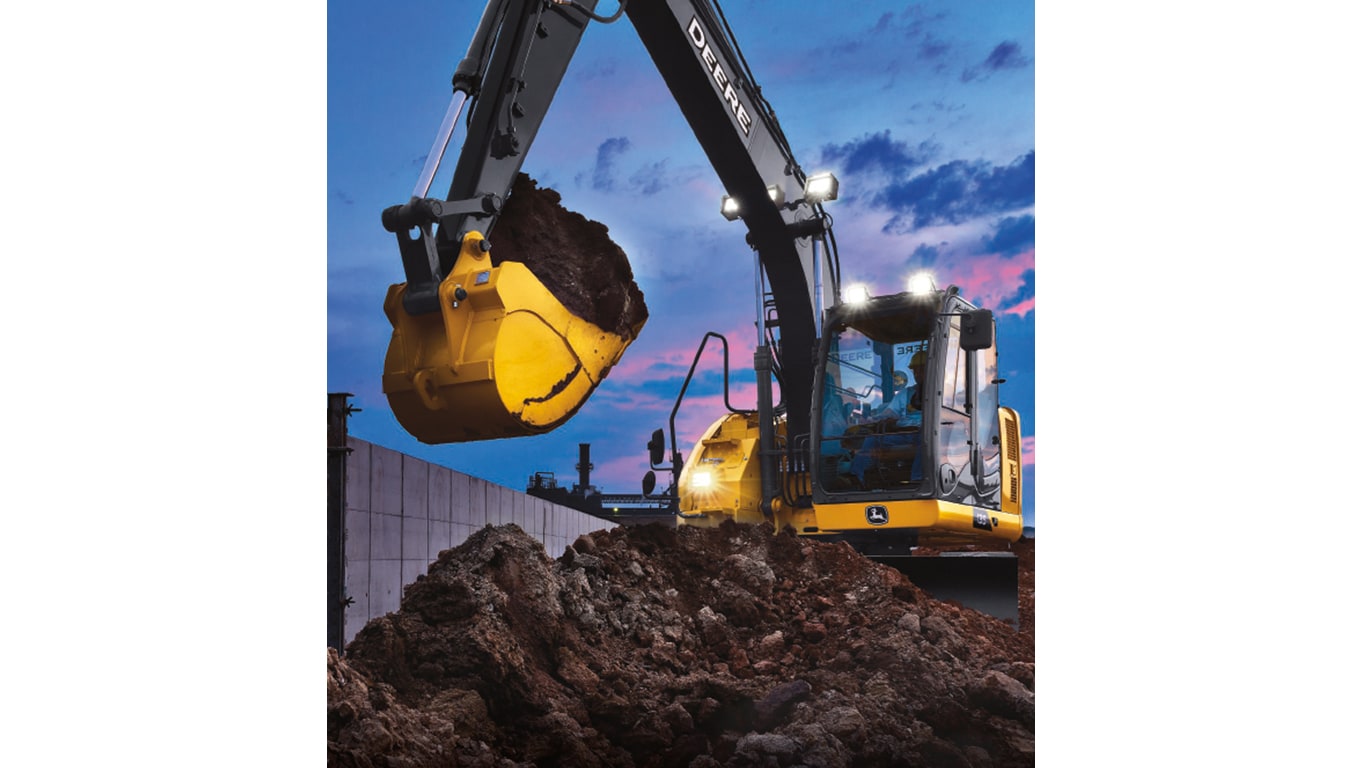

Exceptional Performance in Tight Spaces
135 P-tier excavator
Overview
Take digging forces to new levels with power boost when you need it. A well-balanced, smooth operating machine in a reduced tailswing configuration.
Benefits
- Use power boost with the push of a button to get through tough material
- Pilot controlled hydraulics provide smooth function and feel for operators
- Optional backfill blade provides added stability and improved productivity when backfilling
- Maneuverable reduced tailswing eases the risk of damage to surroundings or the machine
No Diesel Particulate Filter (DPF), No Problem
Final Tier 4 (FT4)/ EU Stage IV aftertreatment without the use of DPF
Overview
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Benefits
- Proven, integrated, simple engine meets EPA Final Tier 4 (FT4)/ EU Stage IV standards
- 75.3 kW (101 net peak horsepower)
- Ground level diesel exhaust fluid (DEF) fill
Isuzu is a trademark of Isuzu Motors Limited Corporation.

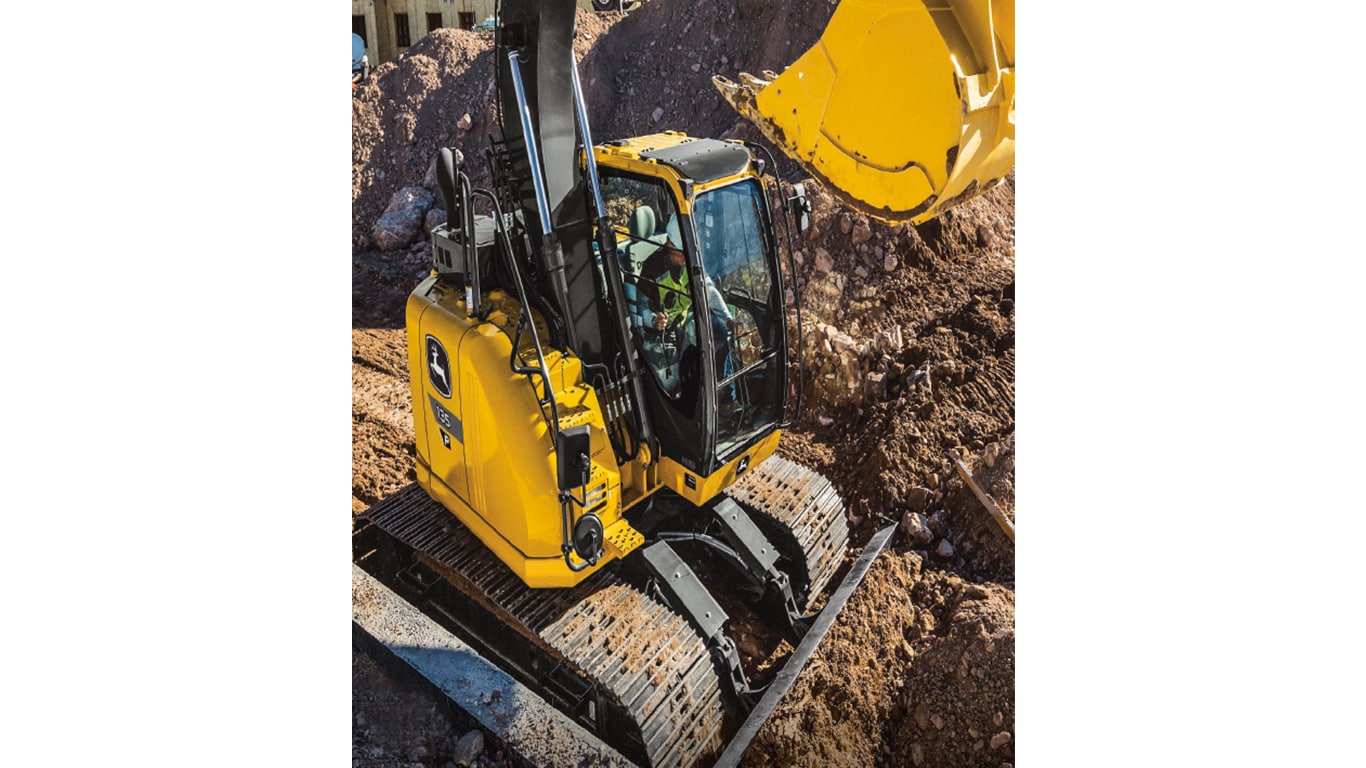

Standard Auxiliary Hydraulics
Auxiliary hydraulic lines
Overview
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Benefits
- Standard auxiliary proportional control in the right pilot control lever
- Toggle between attachments and adjust flow and pressure based on attachment requirements right in the monitor
Performance
| Swing Torque, kNm (lbf / ft) | 34 (25000) |
|---|---|
| Arm Tearout, kN (lbf) | 61 (13710) |
| Ground Bearing Pressure, kPa (PSI) | 39 (5.66) |
| Travel Speed - High, kph (mph) | 5.5 (3.4) |
| Gradeability, % | 70 |
| Total Flow, lt/min (gallons (US) / min) | 210 (56) |
| Swing Speed, rpm | 13.3 |
| Bucket Breakout, kN (lbf) | 104 (23380) |
| Bucket Pressure, bar (PSI) | 343 (4975) |
| Tractive Force, kN (lbf) | 110 (24729) |
| Boost Pressure, bar (PSI) | 363 (5265) |
Driveline
| Engine Manufacturer | Isuzu |
|---|---|
| Track Shoe Width, mm (inches) | 600 (24) |
| Number Of Carrier Rollers - Each Side | 1 |
| Rated speed, rpm | 2000 |
| Displacement, ltr (Inches³) | 3 (182) |
| Number Of Track Rollers - Each Side | 7 |
| Emission Rating | Tier 4 / Stage IV |
| Engine Output - Net, kW (hp) | 75 (101) |
| Number Of Cylinders | 4 |
Dimensions
| Width over fixed tracks, mm (ft/in) | 2590 (8 ft 6 in) |
|---|---|
| Ground Level Reach - Mono Boom, mm (ft/in) | 8720 (28 ft 8 in) |
| Dump Height - Mono Boom, mm (ft/in) | 7220 (23 ft 8 in) |
| Overall Undercarriage Length, mm (ft/in) | 3580 (11 ft 9 in) |
| Overall Undercarriage Width, mm (ft/in) | 2590 (8 ft 6 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 5790 (19 ft ) |
| Tailswing Radius, mm (ft/in) | 1490 (4 ft 11 in) |
| Dozer Blade Width, mm (ft/in) | 2490 (8 ft 2 in) |
| Transport Length Mono Boom, mm (ft/in) | 7390 (24 ft 3 in) |
| Dozer Blade Height, mm (inches) | 460 (18) |
| Ground Clearance, mm (inches) | 410 (16) |
| Dig Depth - Mono Boom, mm (ft/in) | 5980 (19 ft 8 in) |
| Track Gauge, mm (ft/in) | 1990 (6 ft 6 in) |
| Transport Height - Maximum, mm (ft/in) | 2870 (9 ft 5 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 8860 (29 ft ) |
| Track Length On Ground, mm (ft/in) | 2880 (9 ft 5 in) |
| Dig Height - Mono Boom, mm (ft/in) | 9690 (31 ft 10 in) |
Capacities
| Fuel Tank, ltr (gallons (US)) | 220 (58) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 60 (15.9) |
Weights
| Operating Weight, kg (lbs) | 15100 (33290) |
|---|
