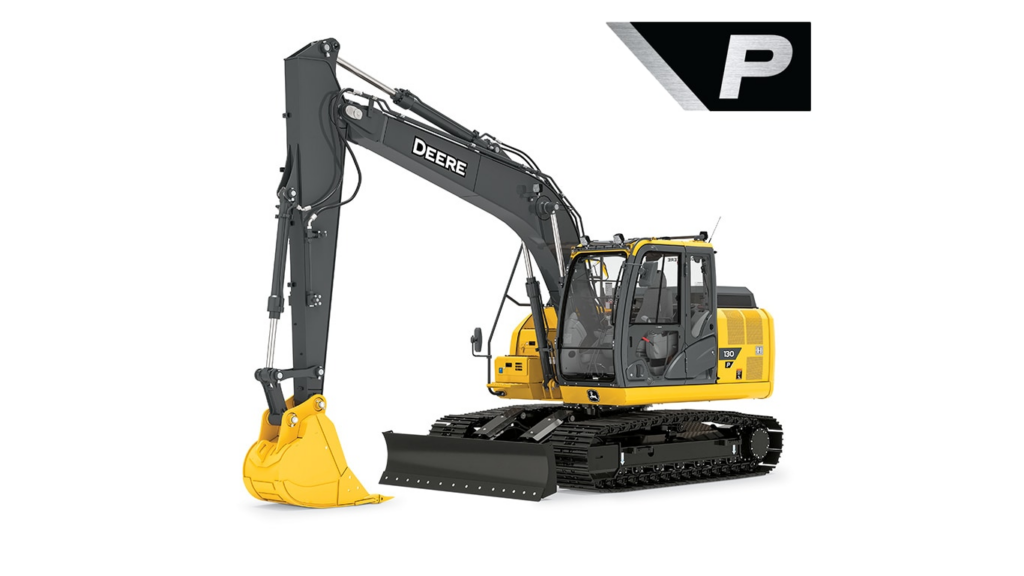

John Deere 130 P-Tier Mid-Size Excavator
Find Out More
- Net Power: 73 kW (98 hp)
- Max. Digging Depth: 6.03 m (19 ft. 9 in.)
- Operating Weight: 13 407 kg (29,531 lb.)
Work Confidently via Optional Cameras and Lighting
Right, Rear, and Left Cameras with additional light-emitting diode (LED) Surround Lighting
Overview
Optional Right Rear and Left Camera system with additional LED surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Quickly Change Attachments with Integrated Hydraulic Coupler Ready Option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Improved Front Joint Durability
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Redesigned boom foot bushings improve durability.
Performance
| Tractive Force, kN (lbf) | 110 (24729) |
|---|---|
| Swing Speed, rpm | 13.3 |
| Travel Speed - High, kph (mph) | 5.5 (3.4) |
| Ground Bearing Pressure, kPa (PSI) | 35 (5.11) |
| Gradeability, % | 70 |
| Total Flow, lt/min (gallons (US) / min) | 210 (56) |
| Bucket Breakout, kN (lbf) | 96 (21480) |
| Bucket Pressure, bar (PSI) | 343 (4980) |
| Arm Tearout, kN (lbf) | 60 (13521) |
| Swing Torque, kNm (lbf / ft) | 34 (25000) |
| Boost Pressure, bar (PSI) | 363 (5265) |
Weights
| Operating Weight, kg (lbs) | 13624 (30009) |
|---|
Driveline
| Number Of Carrier Rollers - Each Side | 1 |
|---|---|
| Engine Manufacturer | John Deere Power Tech |
| Rated speed, rpm | 2000 |
| Number Of Cylinders | 4 |
| Emission Rating | Tier 4 / Stage IV |
| Engine Output - Net, kW (hp) | 73 (98) |
| Track Shoe Width, mm (inches) | 600 (24) |
| Number Of Track Rollers - Each Side | 7 |
| Displacement, ltr (Inches³) | 4.5 (275) |
Dimensions
| Width over fixed tracks, mm (ft/in) | 2590 (8 ft 6 in) |
|---|---|
| Dig Height - Mono Boom, mm (ft/in) | 8930 (29 ft 4 in) |
| Overall Undercarriage Width, mm (ft/in) | 2590 (8 ft 6 in) |
| Transport Height - Maximum, mm (ft/in) | 2870 (9 ft 5 in) |
| Tailswing Radius, mm (ft/in) | 2190 (7 ft 2 in) |
| Track Length On Ground, mm (ft/in) | 2880 (9 ft 5 in) |
| Dozer Blade Width, mm (ft/in) | 2590 (8 ft 6 in) |
| Dozer Blade Height, mm (inches) | 523 (21) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 8670 (28 ft 5 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 8770 (28 ft 9 in) |
| Track Gauge, mm (ft/in) | 1990 (6 ft 6 in) |
| Ground Clearance, mm (inches) | 410 (16) |
| Dump Height - Mono Boom, mm (ft/in) | 6520 (21 ft 5 in) |
| Transport Length Mono Boom, mm (ft/in) | 7710 (25 ft 4 in) |
| Overall Undercarriage Length, mm (ft/in) | 3580 (11 ft 9 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 6030 (19 ft 9 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 5880 (19 ft 3 in) |
Capacities
| Hydraulic Tank, ltr (gallons (US)) | 69 (18.2) |
|---|---|
| Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
