WIRTGEN SP61i – OFFSET SLIPFORM PAVERS
CONTINUOUS PAVING OF CONCRETE SURFACES AND MONOLITHIC PROFILES
Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, curb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.
OFFSET PLATFORM PAVERS

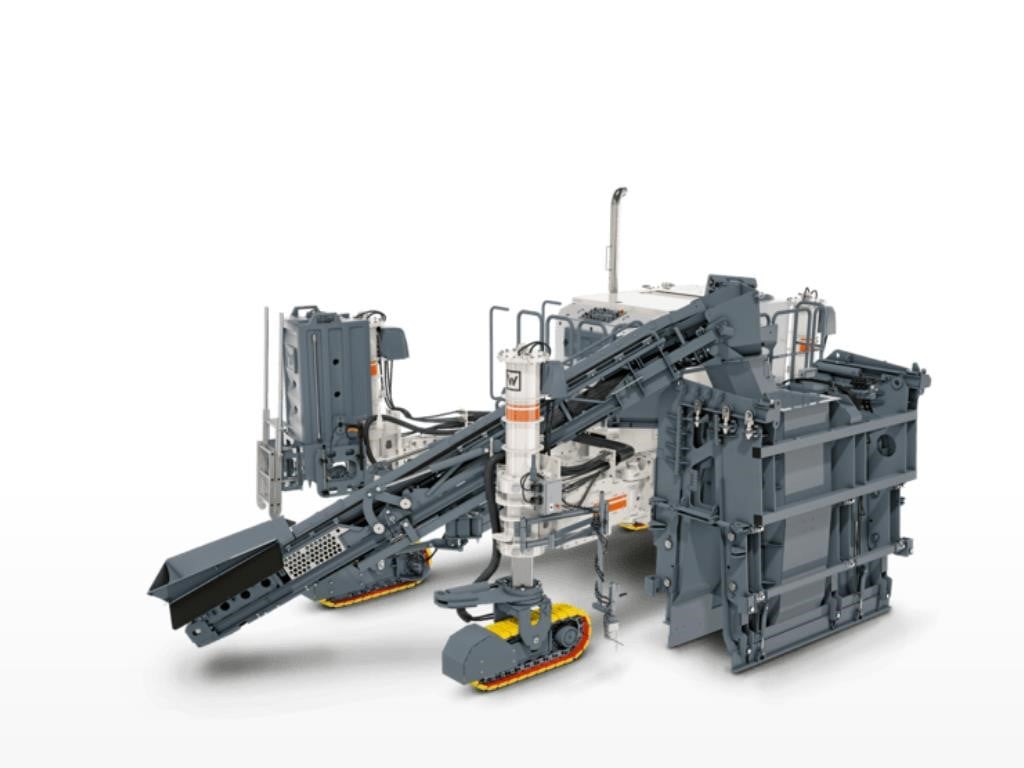

With offset slipform pavers, the concrete is transported into the offset mold via a loading conveyor or a conveyor auger. The offset mold can be mounted on the left or right-hand side of the machine. A number of molds in a wide range of different shapes and sizes are available for individual applications. The offset profiles are continually produced monolithically, with or without reinforcements. Machine features include a top-quality machine control system, a practical steering and drive system and stringline-free concrete paving.
VERSATILE, FULLY MODULAR, HIGH-PERFORMANCE OFFSET SLIPFORM PAVER
• The flexible slipform paver is suitable for paving a wide variety of monolithic profiles up to 9 ft 10 in high.
• WIRTGEN’s offset molds are custom-built to customer specifications and are available in a variety of profile shapes.
• Concrete surfaces up to 13 ft 1 in paving width can be easily paved using the offset method.
• Special slipforms make the construction of concrete safety barriers with variable paving heights possible – for example from 3 ft 3 in to 9 ft 10 in.
• The fully modular machine design and simple changeover and expansion options guarantee that the machine can be easily adapted to any job site situation.
FEATURES
FULLY MODULAR MACHINE DESIGN

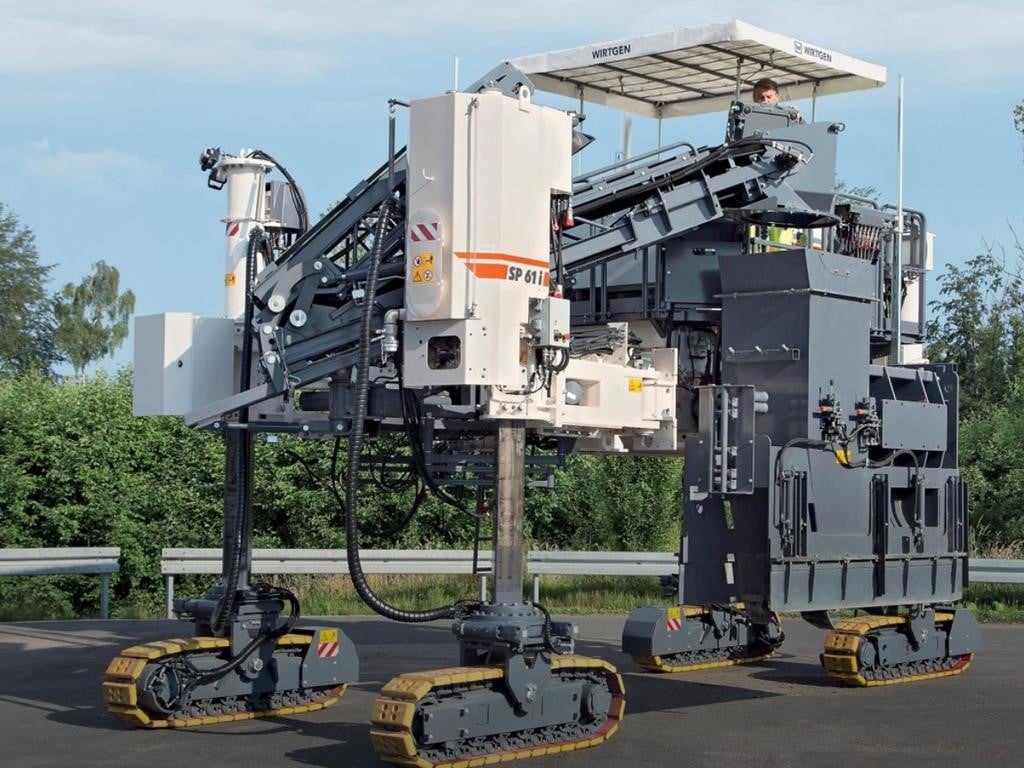

The machine’s fully modular design means its possible to flexibly modify, upgrade with new options, and adapt the machine to the specific job site situation. It can even be converted to the inset configuration of the SP 64i quickly and easily.
SOPHISTICATED TRANSPORT CONCEPT

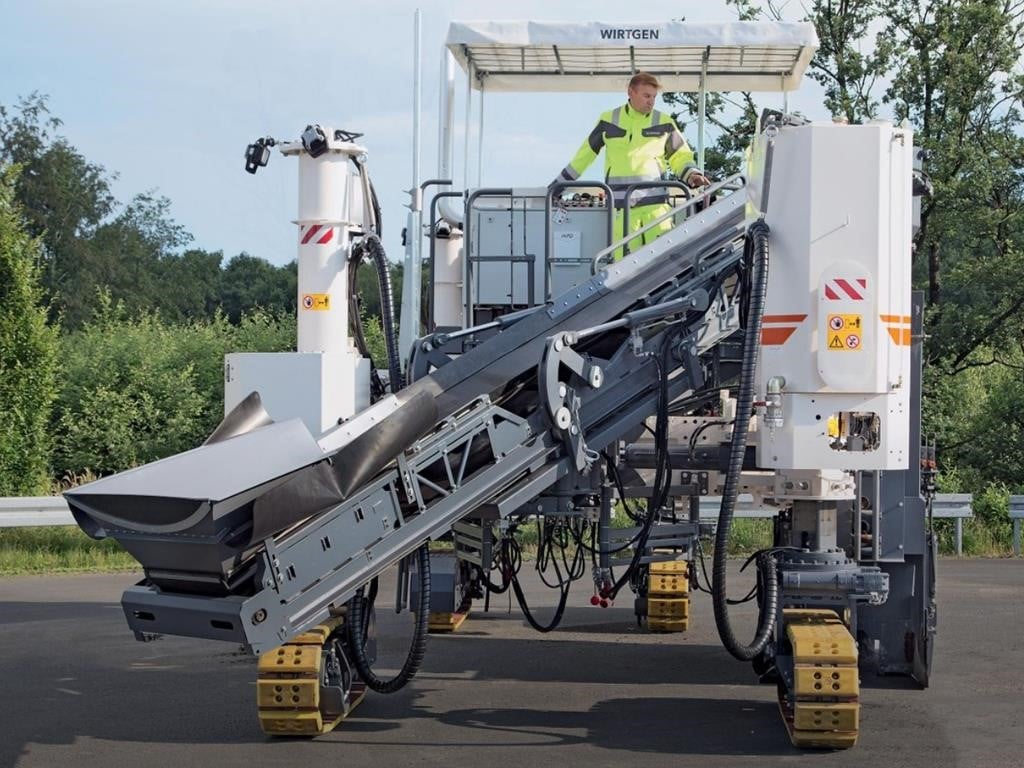

Compact dimensions, an optional folding belt conveyor, and minimal time and effort needed to prepare the machine make loading easy and transport cost-effective.
HIGHLY FLEXIBLE CONCRETE PAVING
The slipform paver is unparalleled when it comes to perfectly, precisely paving both small and large monolithic offset profiles – up to 9 ft 10 in (3.0 m) in height or 13 ft 1 in (4.0 m) in width in its standard configuration.
TRIED-AND-TESTED OFFSET SLIPFORMS
A wide variety of field-tested, standard slipform profile shapes are available that can be mounted to both sides of the machine. Customized slipforms designed to meet specific customer requirements can be manufactured on short notice.
VARIABLE CONCRETE FEEDING
The powerful and versatile adjustable concrete feeding system is supplied via belt conveyor in folding design (standard option) or auger conveyors in various lengths (optional equipment).
ALTERNATIVE CONSOLIDATION TECHNOLOGY
Depending on site requirements, the machine can be equipped with a hydraulic or electric vibrator drive.
IDEAL SURFACE PREPARATIONS
The use of a flexible adjustable trimmer guarantees a level sub-base for paving that produces a uniform profile.
COST-EFFECTIVE ENGINE MANAGEMENT
The “ECO Mode” setting automatically adjusts engine power to the current performance requirements to ensure fuel-efficient diesel consumption and low noise emission.
STATE-OF-THE-ART ENGINE TECHNOLOGY
The SP 61i features cutting-edge, high-performance engine technology (180 kw / 241 HP / 245 PS) that meets EU Stage IV / US EPA Tier 4f emissions standards.
PERFECT ERGONOMICS AND HANDLING

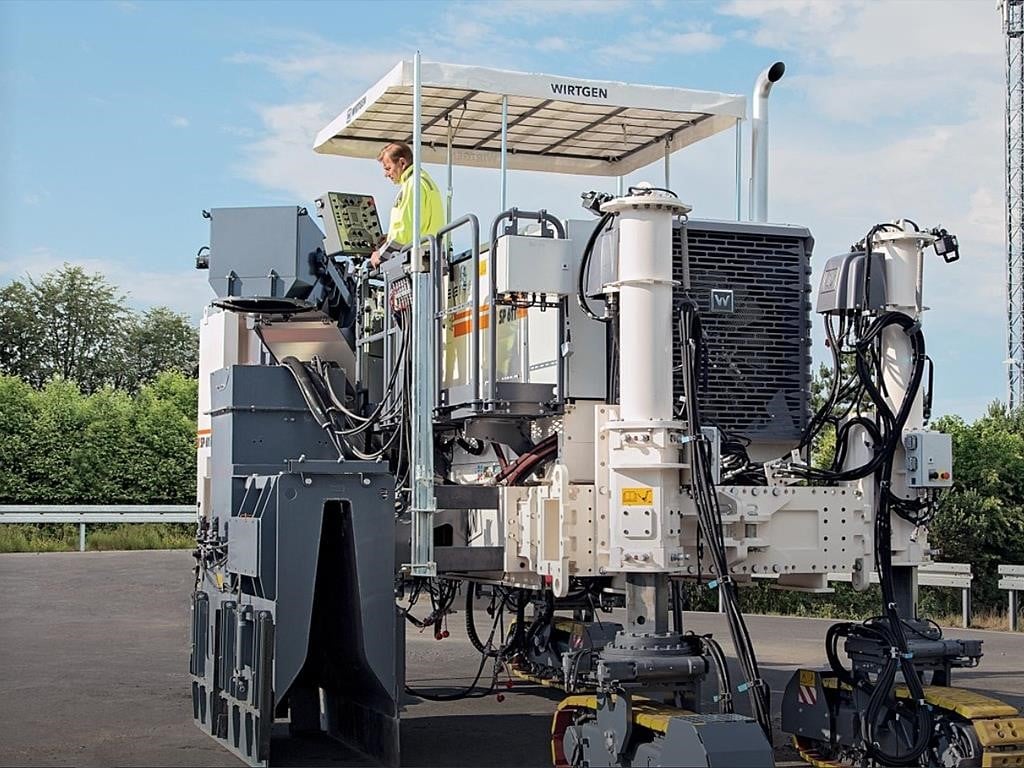

The ergonomically designed operator’s platform, the standardized intuitive operating concept for all SP series’ models, and exceptional visibility makes the job easier for the operator.
HIGH-PRECISION STEERING AND DRIVE SYSTEMS
Intelligent steer and control systems for extremely smooth operation – even around tight curves – make high-precision concrete paving possible.
MACHINE CONTROL SYSTEM FEATURING ADVANCED INTELLIGENCE
WIRTGEN’s efficient WITOS FleetView telematics system supports fleet management, position and status monitoring, as well as maintenance and diagnostic processes.
FIELD-PROVEN 3D INTERFACE
The field-proven interface guarantees tested compatibility with leading suppliers’ 3D control systems.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Filling Capacities
| Hydraulic oil tank, hydraulic vibration | 106 gal (400 l) |
|---|---|
| Water tank | 145 gal + 145 gal (500 l + 500 l) |
| Additional water tank | |
| Hydraulic fluid tank | |
| Fuel tank | 106 gal (400 l) |
| AdBlue® / DEF tank *3 | 8.5 gal (32 l) |
| NOTE | *3 = AdBlue® is a registered trademark of the German Association of the Automotive Industry (VDA) |
| Water tank (option) | |
| Hydraulic oil tank, electric vibration | 53 gal (200 l) |
Transport Dimensions (l X W X H)
| Belt conveyor in folding design without chute | |
|---|---|
| Auger conveyor without chute | |
| Belt conveyor without chute | |
| Basic machine including auger conveyor | |
| Trimmer | |
| Basic machine excluding concrete feeding system | |
| Basic machine including belt conveyor in folding design | |
| Basic machine including belt conveyor |
Trimmer (option)
| Height adjustment, hydraulic | 16 in (400 mm) |
|---|---|
| Lateral adjustment of trimmer | |
| NOTE | *2 = Special widths available on request |
| Working depth | 0 to 5.9 in (0 to 150 mm) |
| Height adjustment, mechanical | 12 in (300 mm) |
| Max. lift | |
| Max. width *2 | 5 ft 3 in (1,600 mm) |
| Cutting diameter | 20 in (500 mm) |
| Two-stage lateral telescoping feature | 4 ft 3 in (1,300 mm) |
| Standard width | 2 ft (600 mm) |
Electrical System
| Electric vibration | 110 V AC 3-/200 Hz |
|---|---|
| Electrical power supply | 24 V DC |
Concrete Feeding System
| Belt conveyor, folding design (option) | Length: 19 ft 8 in (6,000 mm), belt width: 2 ft (600 mm) |
|---|---|
| Belt conveyor, long (option) | |
| Belt conveyor | |
| Auger conveyor (option) | |
| Auger conveyor, short (option) | Length: 15 ft 1 in (4,600 mm), auger diameter: 16 in (400 mm) |
| Auger conveyor, long (option) | Length: 18 ft 8 in (5,700 mm), auger diameter: 16 in (400 mm) |
| Discharge chute | Steel or rubber |
Vibration
| Electically driven vibrators | Straight (D76) |
|---|---|
| Connectors for electric vibration (option) | |
| Hydraulically driven vibrators | Straight (D66) |
| Connectors for hydraulic vibration | 6 (Optional 12) |
| Connectors for electric vibration | 18 |
Engine
| Sound power level in accordance with DIN EN 500-6 engine | operator’s platform | ≤ 102 dB(A) | ≥ 81 dB(A) |
|---|---|
| Engine manufacturer | Deutz |
| Type | TCD6.1 L6 |
| Fuel consumption, field mix | |
| Fuel consumption 2/3 load | 4.8 gal/h (18 l/h) |
| Rated power at 2,100 rpm | 180 kW / 241 HP / 245 PS |
| Cooling | Water |
| Rated power | |
| Emission standards | EU Stage IV / US EPA Tier 4f |
| Number of cylinders | 6 |
| Fuel consumption, full load | 12.2 gal/h (46 l/h) |
| Displacement | 370 in³ (6,057 cm³) |
Height Adjustment Of Machine
| Hydraulic height adjustment | 3 ft 3 in (1,100 mm) |
|---|---|
| Mechanical height adjustment | 17 in (400 mm) |
Concrete Kit For Inset Paving (option)
| Cross-feeding auger | |
|---|---|
| Super smoother | |
| Max. paving thickness | |
| Oscillating beam | |
| Front wall | |
| Slab paving mold |
Concrete Mold
| NOTE | *1 = Other offset geometry and special applications available on request |
|---|---|
| Lateral adjustment of mold | |
| Max. mold height *1 | 9 ft 10 in (3,000 mm) |
| Max. mold width *1 | 13 ft 1 in (4,000 mm) |
| Position | Left / Right |
| Height adjustment of mold (option) | |
| Cross-feeding auger |
Machine Weights
| Belt conveyor in folding design | 3,968 lbs (1,800 kg) |
|---|---|
| Trimmer, working width 2 ft. (600 mm) | |
| Machine weight *5 | 34,172 to 99,208 lbs (15,500 to 45,000 kg) |
| Auger conveyor | 5,842 lbs (2,650 kg) |
| Trimmer, working width 600 mm | 2,866 lbs (1,300 kg) |
| Belt conveyor | 3,417 lbs (1,550 kg) |
| Empty weight of basic machine including belt conveyor | |
| NOTE | *4 = Machine weight, half-full tanks, vehicle tool kits, machine operator (165 lbs (75 kg)), excluding optional equipment *5 = Weight specifications depend on the installed equipment and working width |
| Operating weight, CE *4, Basic machine with belt conveyor | 38,360 lbs (17,400 kg) |
| Max. operating weight, full tanks, including trimmer, auger conveyor, excluding mold |
Crawler Tracks
| Number | 3 or 4 |
|---|---|
| Arrangement | |
| Dimensions (L x W x H) | 5 ft 3 in x 12 x 23 in (1,590 mm x 300 mm x 570 mm) |
Driving Characteristics
| Travel speed | 0 to 69 ft/min (0 to 21 m/min) |
|---|---|
| Operating speed | 0 to 20 ft/min (0 to 6 m/min) |
