WIRTGEN SP15i – OFFSET SLIPFORM PAVERS
CONTINUOUS PAVING OF CONCRETE SURFACES AND MONOLITHIC PROFILES
Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, curb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.
OFFSET PLATFORM PAVERS

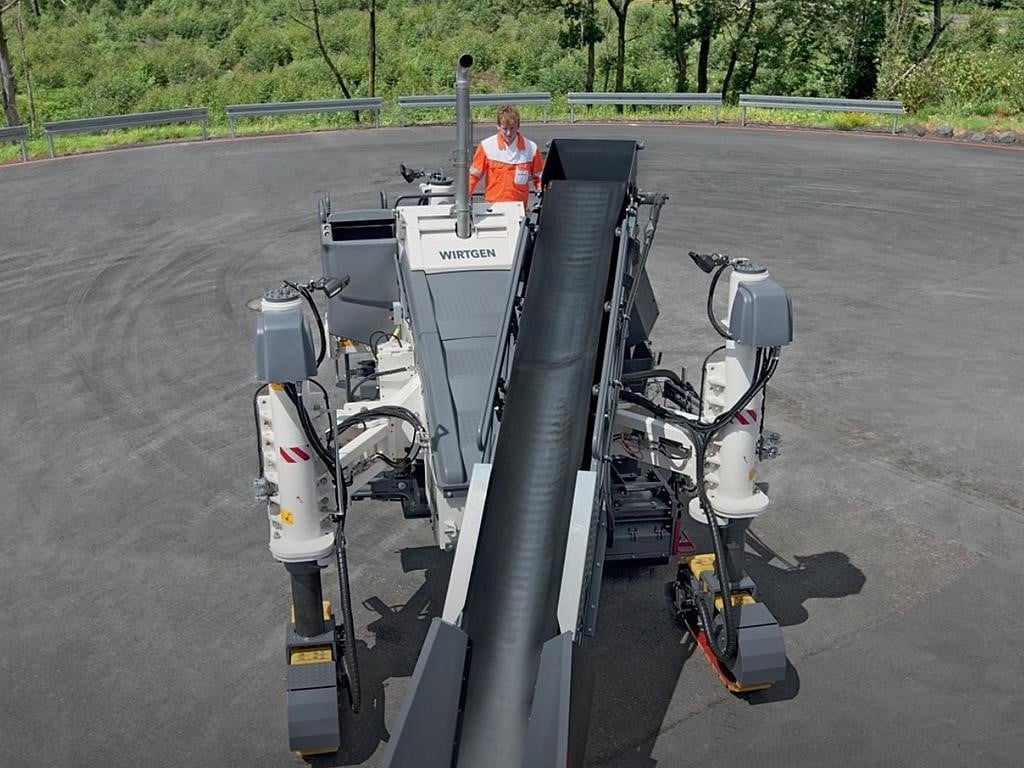

With offset slipform pavers, the concrete is transported into the offset mold via a loading conveyor or a conveyor auger. The offset mold can be mounted on the left or right-hand side of the machine. A number of molds in a wide range of different shapes and sizes are available for individual applications. The offset profiles are continually produced monolithically, with or without reinforcements. Machine features include a top-quality machine control system, a practical steering and drive system and stringline-free concrete paving.
COMPACT OFFSET SLIPFORM PAVER FOR MONOLITHIC PROFILES AND NARROW PATHS
• The compact slipform paver paves a wide range of monolithic profiles up to 4 ft 3 in thick.
• It can be used to easily pave concrete surfaces up to 7 ft wide (cannot be combined with all options).
• The slipform paver is perfect for job sites that require a high degree of maneuverability, tight turning angles, and maximum flexibility.

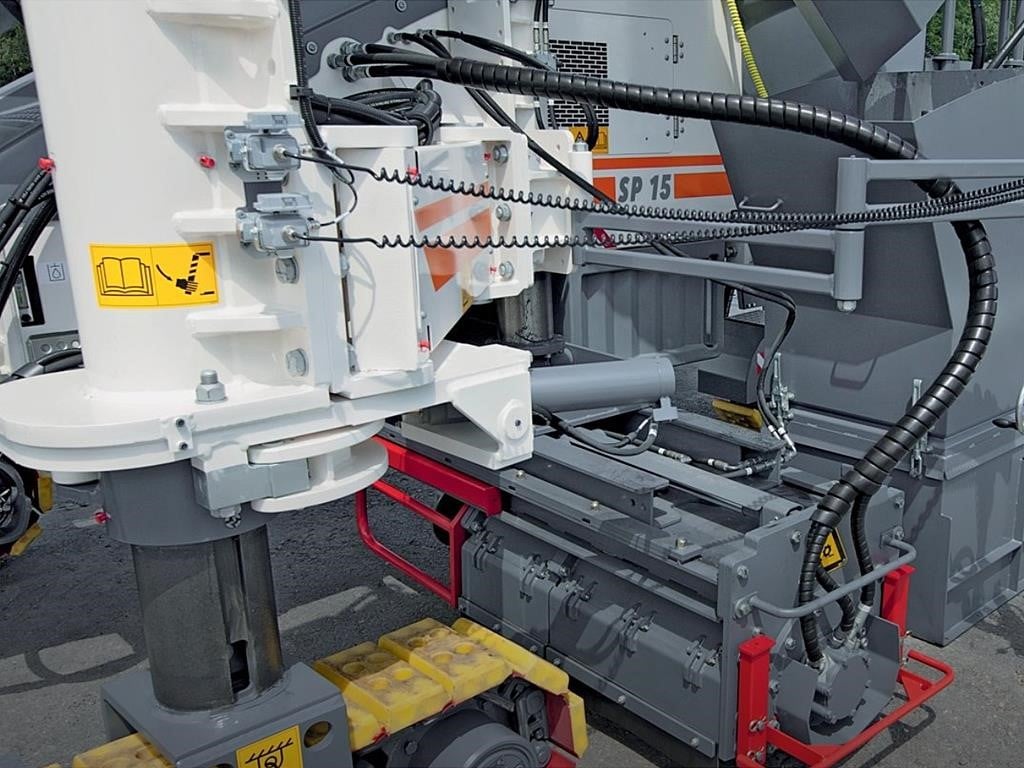

• Two crawler units with parallelogram swing arms at the front and a movable crawler unit at the rear offer maximum flexibility and make zero clearance paving possible.
• The machine can be precisely controlled via stringline scanning, without a stringline using WIRTGEN AutoPilot 2.0, or via 3D applications.

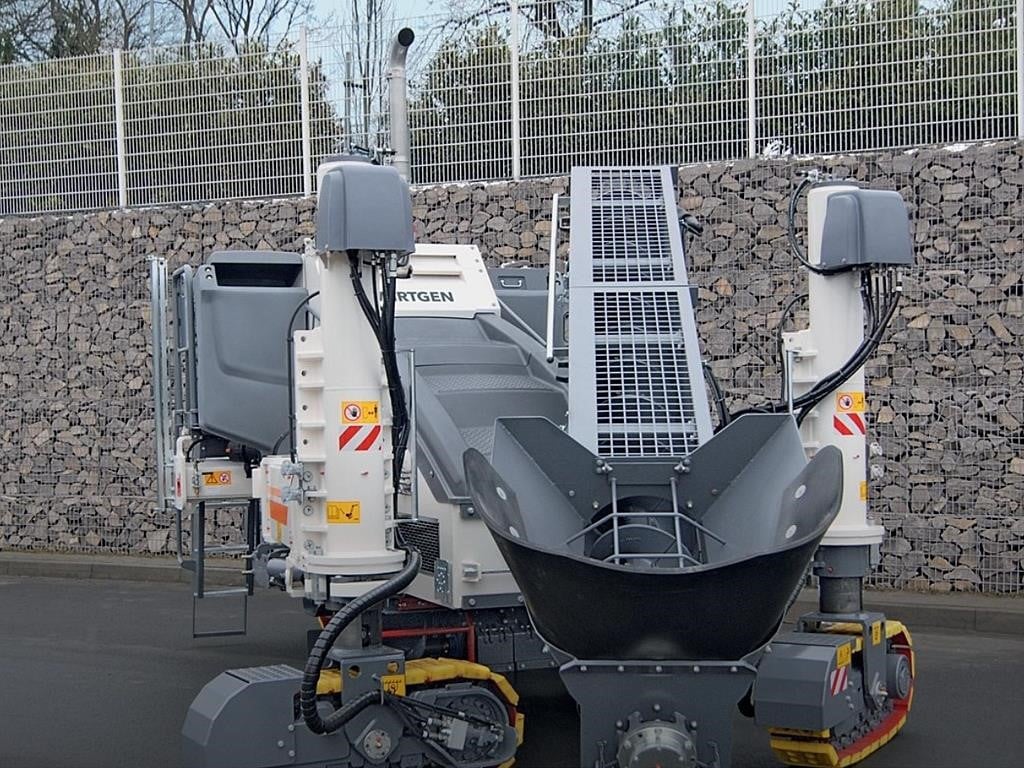

HIGHLY FLEXIBLE OFFSET CONCRETE EQUIPMENT
Wide range of options for adjusting the concrete feeding system. Flexible positioning of the offset mold to the left or right as well as close to or further away from the machine frame. Various monolithic offset profiles available for a wide range of applications. Paving widths of up to 7 ft 3 in (2.2 m) possible.
HIGH-QUALITY MACHINE CONTROL SYSTEM
High-quality machine control system for maximum operational safety, precise machine functionality and automatic recognition of configuration and operating modes.

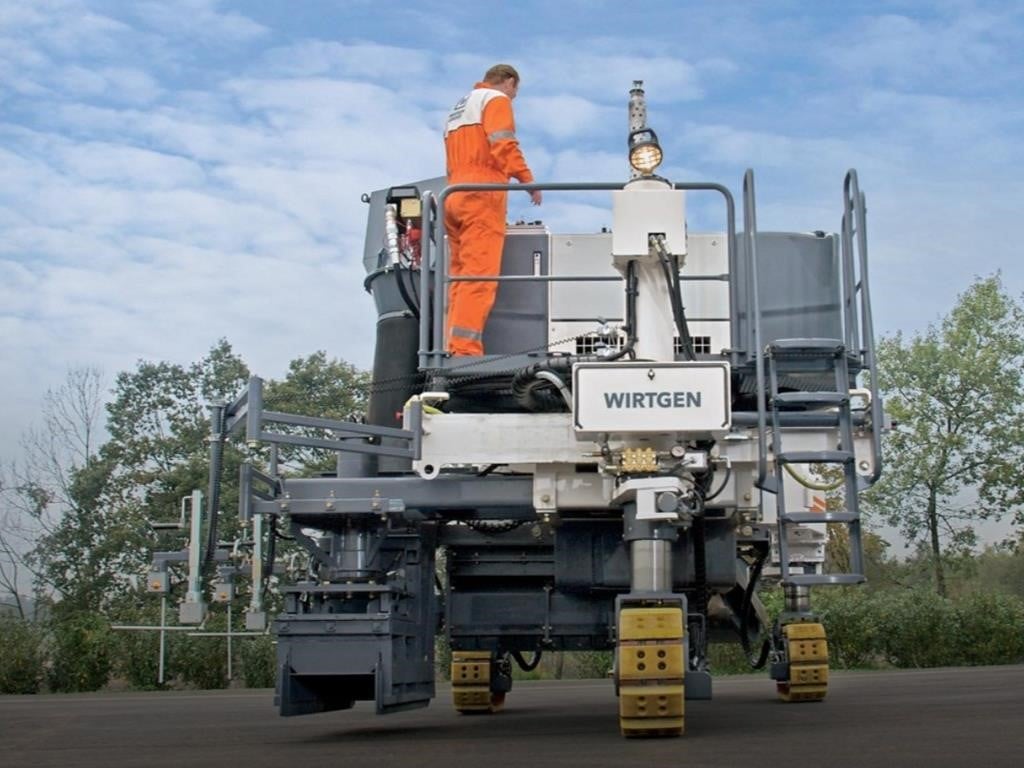

FIELD-PROVEN STEERING AND DRIVE SYSTEM
Adaptive, electronic steering and control system for precise handling and high-precision concrete paving.
ECONOMICAL DIESEL ENGINE MANAGEMENT
Demand-based engine management for economical diesel consumption and minimal emissions.
AUTOPILOT 2.0 – ECONOMIC MACHINE CONTROL WITHOUT STRINGLINES
Economic machine control system developed by WIRTGEN for precise concrete paving without the need for stringlines.
FUTURE-PROOF 3D INTERFACE
Certified standard interface for reliable communication with common 3D systems.
BEST-IN-CLASS SLOPE CONTROL
One-of-a-kind electronic slope control system developed in-house for perfect paving results.

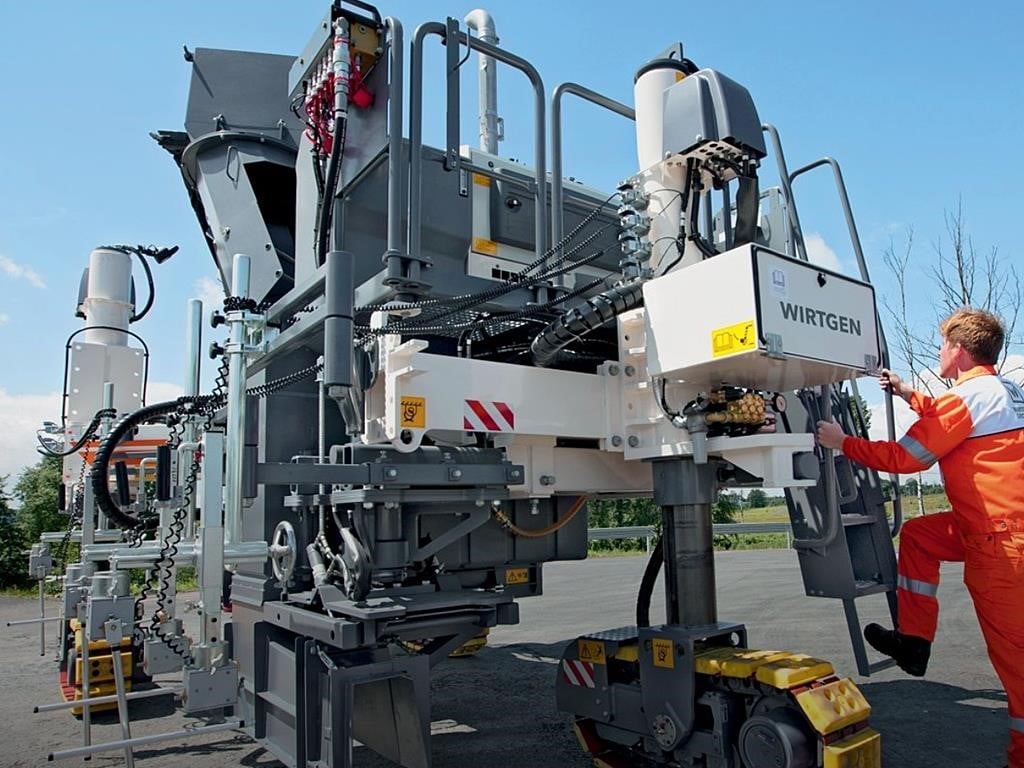

MODULAR CONVERTIBILITY
Variable positioning of the mold and crawler units for high machine utilization.
EASE OF OPERATION

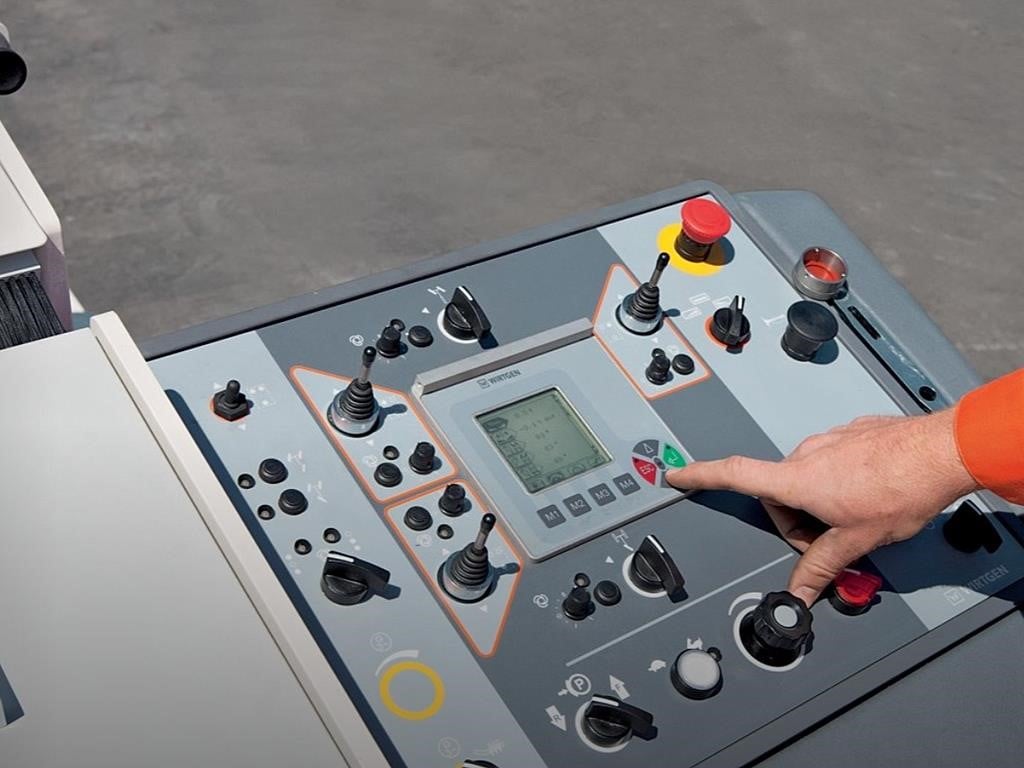

Ergonomically designed operator’s platform with self-explanatory operating concept for productive work.
SOPHISTICATED TRANSPORT CONCEPT
Compact machine dimensions for easy transport.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| CONCRETE FEEDING SYSTEM - Belt conveyor: | Length: 16 ft 1 in (4,900 mm), belt width: 2 ft (600 mm) |
|---|---|
| ENGINE - Rated power: | |
| MACHINE WEIGHTS - Operating weight, CE *5 : | 22,046 to 29,762 lbs (10,000 to 13,500 kg) |
| ENGINE - Displacement: | 247 in³ (4,040 cm³) |
| FILLING CAPACITIES - Additional water tank: | 77 gal (290 l) |
| HEIGHT ADJUSTMENT OF MACHINE - Mechanical height adjustment: | 11 in (280 mm) |
| CONCRETE KIT FOR INSET PAVING (OPTION) - Super smoother: | |
| FILLING CAPACITIES - AdBlue® / DEF tank *3: | 5 gal (20 l) |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Trimmer: | 7 ft 3 in x 2 ft 7 in x 5 ft 6 in (2,200 mm x 800 mm x 1,680 mm) |
| ENGINE - Type: | TCD 4.1 L4 |
| TRIMMER (OPTION) - Maximum stroke: | 30.5 in (775 mm) |
| ENGINE - Number of cylinders: | 4 |
| CONCRETE MOLD - Height adjustment of mold (option): | 15.7 in (400 mm) |
| CONCRETE KIT FOR INSET PAVING (OPTION) - Max. paving thickness: | |
| TRIMMER (OPTION) - Max. width *2: | 5 ft 3 in (1,600 mm) |
| CRAWLER TRACKS - Dimensions (L x W x H): | 4 ft 5 in x 10.2 in x 21.7 in (1,340 mm x 260 mm x 550 mm) |
| TRIMMER (OPTION) - Two-stage lateral telescoping feature: | |
| CONCRETE MOLD - Cross-feeding auger: | |
| MACHINE WEIGHTS - Trimmer, working width 600 mm: | |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Auger conveyor without chute: | 16 ft 9 in x 3 ft 9 in x 3 ft 3 in (5,100 mm x 1,150 mm 1,000 mm) |
| FILLING CAPACITIES - Water tank: | 42 gal (160 l) |
| TRIMMER (OPTION) - Standard width: | 2 ft (600 mm) |
| CONCRETE KIT FOR INSET PAVING (OPTION) - Slab paving mold: | |
| ELECTRICAL SYSTEM - Electrical power supply: | 24V |
| CONCRETE KIT FOR INSET PAVING (OPTION) - Front wall: | |
| MACHINE WEIGHTS - Empty weight of basic machine with belt conveyor: | |
| CONCRETE FEEDING SYSTEM - Folding belt conveyor (option): | Length: 18 ft (5,500 mm), belt width: 2 ft (600 mm) |
| VIBRATION - Connectors for electric vibration : | |
| CONCRETE FEEDING SYSTEM - Belt conveyor, long (option): | |
| MACHINE WEIGHTS - Trimmer, working width 2 ft. (600 mm): | 2,425 lbs (1,100 kg) |
| CRAWLER TRACKS - Arrangement: | 2 x front/1 x rear |
| MACHINE WEIGHTS - Auger conveyor: | 2,866 lbs (1300 kg) |
| ENGINE - Fuel consumption, field mix: | 3 gph (11.2 l/h) |
| CRAWLER TRACKS - Number: | 3 |
| CONCRETE MOLD - NOTE: | *1 = Other offset geometry and special applications available on request |
| MACHINE WEIGHTS - Belt conveyor: | 1,874 lbs (850 kg) |
| TRANSPORT DIMENSIONS (L X W X H) *4 - NOTE: | *4 = All specifications are minimum specifications without offset mold mounted |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Basic machine excluding concrete feeding system: | 17 ft 9 in x 7 ft 10 in x 8 ft 8 in (5,400 mm x 2,400 mm x 2,650 mm) |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Basic machine including auger conveyor: | 22 ft 2 in x 8 ft 2 in x 9 ft 2 in (6,750 mm x 2,500 mm x 2,800 mm) |
| HEIGHT ADJUSTMENT OF MACHINE - Hydraulic height adjustment: | 3 ft 3 in (1,000 mm) |
| CONCRETE FEEDING SYSTEM - Auger conveyor, long (option): | |
| MACHINE WEIGHTS - Max. operating weight, full tanks, including trimmer, auger conveyor, excluding mold: | |
| DRIVING CHARACTERISTICS - Operating speed: | 0 to 49 ft/min (0 to 15 m/min) |
| CONCRETE KIT FOR INSET PAVING (OPTION) - Cross-feeding auger: | |
| TRIMMER (OPTION) - Mechanical height adjustment: | 14.8 in (375 mm) |
| ENGINE - Fuel consumption, full load: | 6.6 gph (25 l/h) |
| DRIVING CHARACTERISTICS - Travel speed: | 0 to 115 ft/min (0 to 35 m/min) |
| TRIMMER (OPTION) - NOTE: | *2 = Special widths available on request |
| CONCRETE MOLD - Position: | Left/Right |
| TRIMMER (OPTION) - Cutting diameter: | 19.7 in (500 mm) |
| FILLING CAPACITIES - NOTE: | *3 = AdBlue® is a registered trademark of the German Association of the Automotive Industry (VDA) |
| MACHINE WEIGHTS - Belt conveyor in folding design: | 2,028 lbs (920 kg) |
| VIBRATION - Connectors for hydraulic vibration: | 6 |
| ELECTRICAL SYSTEM - Electric vibration: | |
| CONCRETE MOLD - Max. mold height *1: | 4 ft 3 in (1,300 mm) |
| TRIMMER (OPTION) - Hydraulic height adjustment: | 15.7 in (400 mm) |
| CONCRETE FEEDING SYSTEM - Auger conveyor (option): | Length: 15 ft 1 in (4,600 mm), auger diameter: 15.7 in (400 mm) |
| ENGINE - Emissions standard: | US EPA Tier 4f |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Basic machine including belt conveyor: | 23 ft 11 in x 8 ft 4 in x 9 ft (7,300 mm x 2,550 mm x 2,750 mm) |
| ENGINE - Engine manufacturer: | Deutz |
| ENGINE - Sound power level in accordance with DIN EN 500-6 engine | operator’s platform: | ≤ 99 dB(A) | ≥ 81 dB(A) |
| FILLING CAPACITIES - Fuel tank: | 58 gal (220 l) |
| CONCRETE FEEDING SYSTEM - Auger conveyor, short (option): | |
| CONCRETE MOLD - Lateral adjustment of mold: | 2 ft 4 in (700 mm) |
| ENGINE - Rated power at 2,100 rpm: | 95 Kw / 127 HP / 129 PS |
| ENGINE - Cooling: | Water |
| VIBRATION - Connectors for electric vibration (option): | 6 |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Belt conveyor without chute: | 18 ft x 3 ft 5 in x 2 ft 3 in (5,500 mm x 1,050 mm x 680 mm) |
| TRIMMER (OPTION) - Lateral adjustment of trimmer: | 4 ft 3 in (1,300 mm) |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Belt conveyor in folding design without chute: | 20 ft 4 in x 3 ft 5 in x 3 ft 1 in (6,200 mm x 1,050 mm x 930 mm) |
| VIBRATION - Electically driven vibrators: | |
| FILLING CAPACITIES - Hydraulic oil tank, hydraulic vibration: | |
| CONCRETE MOLD - Max. mold width *1: | 5 ft 11 in (1,800 mm) 7 ft 3 in (2,200 mm) |
| MACHINE WEIGHTS - NOTE: | *5 = Weight of machine, half weight of al consumables, machine operator (165.3 lbs (75 kg)), on-board tool kit, no optional equipment; weights depend on the actual equipment installed and the working width |
| TRANSPORT DIMENSIONS (L X W X H) *4 - Basic machine including belt conveyor in folding design: | 22 ft x 8 ft 4 in x 9 ft 8 in (6,700 mm x 2,550 mm x 2,950 mm) |
| CONCRETE KIT FOR INSET PAVING (OPTION) - Oscillating beam: | |
| FILLING CAPACITIES - Water tank (option): | |
| VIBRATION - Hydraulically driven vibrators: | |
| FILLING CAPACITIES - Hydraulic oil: | 58 gal (220 l) |
| TRIMMER (OPTION) - Working depth: | 0 to 5.9 in (0 to 150 mm) |
