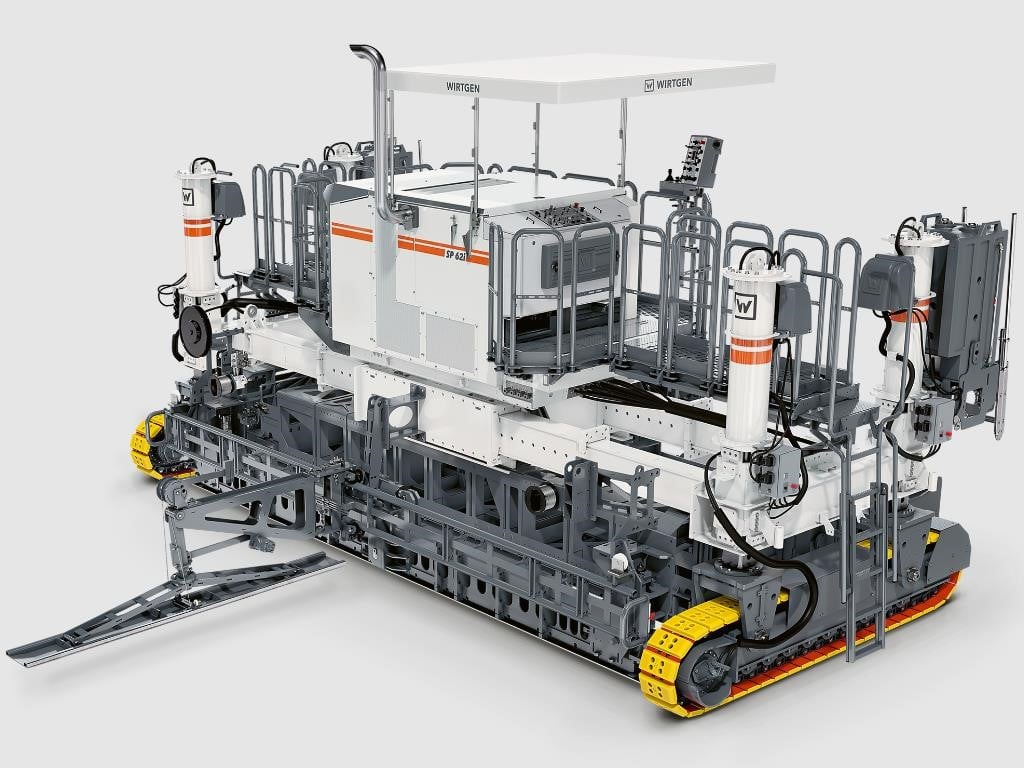

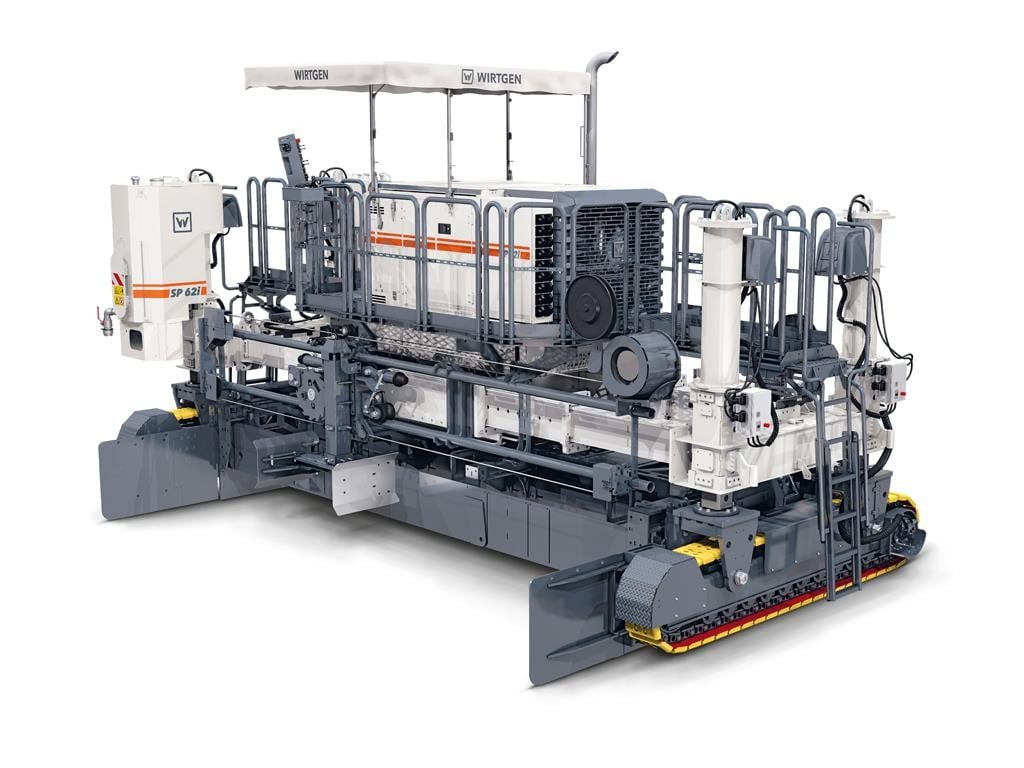

WIRTGEN SP62i – INSET SLIPFORM PAVERS
Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, curb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.

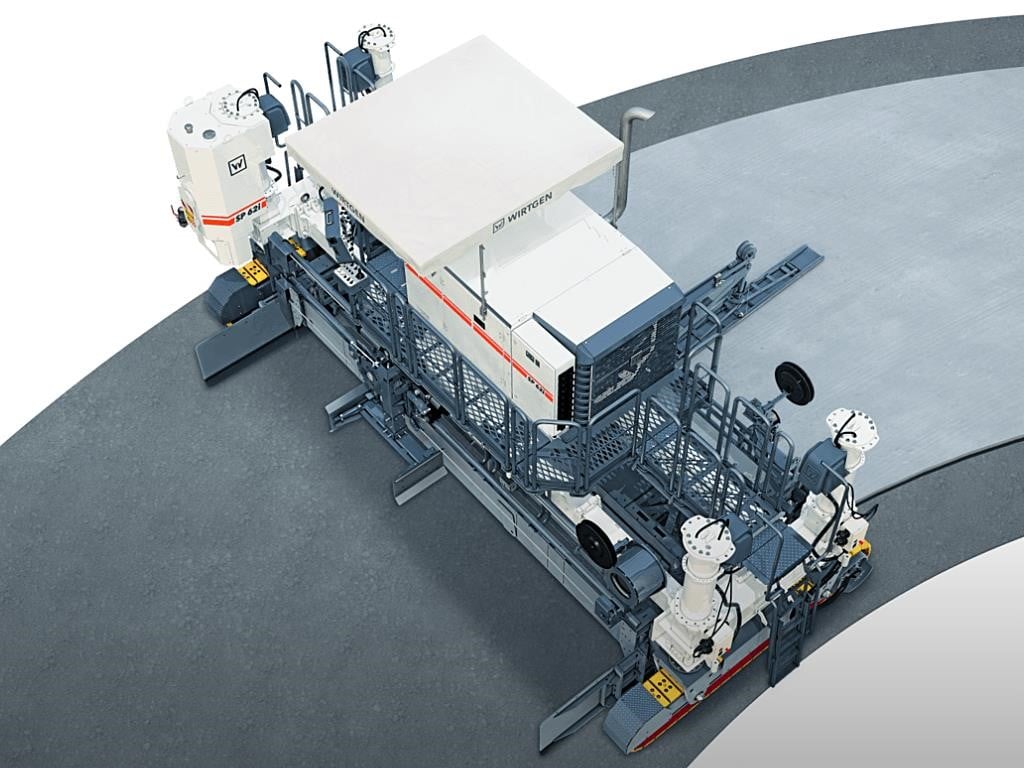

With inset slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances. Integrated dowel bar and tie bar inserters position dowel bars and tie bars as specified. The finishing beam levels the area transverse to the pavement and the super smoother creates a perfect surface. When paving dual-layer concrete, the bottom-layer and top-layer concrete are processed simultaneously and paved wet-in-wet.
COMPACT, FULLY MODULAR INSET SLIPFORM PAVER
• The flexible 2-track slipform paver with concrete equipment specially adapted to the US market is suitable for a wide range of paving jobs from 12 ft to 24 ft wide and 18 in thick.
• The fully modular machine design and simple changeover and expansion options make the machine highly adaptable to any job site situation.
• The intelligent, electronic steering and control concept as well as the sensitive track steering of the two-track machine guarantee high-precision concrete paving.
• Simple machine changeover makes fast transport and maximum machine availability possible.
• The particularly low ground pressure simplifies operation, even under difficult operating conditions.
FEATURES
TELESCOPING MACHINE FRAME
Machine frame telescoping in longitudinal and transverse direction to allow full adjustment to site conditions.
SELF-LOADING FEATURE
Hydraulic self-loading module for dowel bar inserter, tie bar inserter and finishing equipment.
LONGITUDINAL JOINT TIE BAR INSERTER
Insertion of longitudinal joint tie bars to prevent concrete slabs from drifting apart.
OPERATOR’S PLATFORM
Ergonomically designed, walk-through operator’s platform for non-tiring, productive working.
POWER UNIT
High-powered, fuel-efficient diesel engine for concrete paving in the optimum performance and torque ranges.
CONCRETE SPREADING
Spreading plough for even distribution of the freshly delivered concrete in front of the inset paving mold.
VIBRATORS
Electrically driven vibrators for reliable concrete compaction.
INSET PAVING MOULD
Inset paving mold suitable for mounting between the track units, underneath the machine.
DOWEL BAR INSERTER
Insertion of dowel bars to maintain the surface levels of neighboring concrete slabs.
SIDE TIE BAR INSERTER
Insertion of side tie bars when paving adjacent concrete slabs.
OSCILLATING BEAM
Eccentrically driven oscillating beam for the removal of surface irregularities.
SUPER SMOOTHER
Super smoother for a perfectly smooth surface finish.
TRACK UNITS
Hydraulically driven, separately height-adjustable and steerable track units for precise driving behavior and high-precision concrete paving.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Machine Weights
| Operating weight, CE (including slab paving mold type 910 m), 12 ft | |
|---|---|
| Machine weight *4 | 52,910 to 74,957 lb (24,000 to 34,000) |
| NOTE | *4 = Weight specifications depend on the installed equipment and paving width |
Tank Capacities
| Fuel tank | 106 gal (400 l) |
|---|---|
| Water tank | 145 gal + 145 gal (550 l + 550 l) |
| Hydraulic oil tank, hydraulic vibration | 106 gal (400 l) |
| NOTE | *2 = AdBlue® is a registered trademark of the German Association of the Automotive Industry (VDA) |
| Additional water tank | |
| AdBlue®/DEF tank *2 | 8.5 gal (32 l) |
| Water tank (option) | |
| Hydraulic fluid tank | |
| Hydraulic oil tank, electric vibration | 53 gal (200 l) |
Concrete Spreading
| Spreading plow | Modular extension up to 24 ft |
|---|---|
| Spreading auger | Modular extension up to 24 ft |
Engine
| Rated power at 2,300 RPM | 180 kW / 241 HP / 245 PS |
|---|---|
| Fuel consumption, full load | 12.2 gal/h (46 l/h) |
| Sound power level in accordance with DIN EN 500-2 engine | Operator’s platform | ≤ 102 dB(A) | ≥ 81 dB(A) |
| Fuel consumption 2/3 load | 4.8 gal/h (18 l/h) |
| Engine manufacturer | Deutz |
| Cooling | Water |
| Displacement | 369.5 in³ (6,057 cm³) |
| Rated power | |
| Emission standards | EU Stage IV / US EPA Tier 4f |
| Type | TCD 6.1 L6 |
| Number of cylinders | 6 |
| Rated power at 2,100 RPM |
Crawler Units
| Type B1: Dimensions (L x W x H) | 11 ft 1 in x 12 in x 2 ft 2 in (3,390 x 300 x 660 mm) |
|---|---|
| Type B4: Dimensions (L x W x H) | |
| Number | 2 |
| Type B0: Dimensions (L x W x H) |
Transport Dimensions (l X W X H)
| Paving width 6.00 m | |
|---|---|
| Paving width 12 ft | 21 ft 2 in x 11 ft 6 in x 10 ft 2 in (6,450 x 3,500 x 3,100 mm) |
| Paving width 9.50 m | |
| Paving width 4.00 m | |
| Paving width 24 ft | 33 ft 2 in x 11 ft 6 in x 10 ft 2 in (10,110 x 3,500 x 3,100 mm) |
Height Adjustment Of Machine
| Mechanical height adjustment | 17 in (420 mm) |
|---|---|
| Hydraulic height adjustment | 3 ft 3 in (1,100 mm) |
Driving Characteristics
| Paving speed | 0 to 20 ft/min (0 to 6 m/min) |
|---|---|
| Travel speed in travel gear | 0 to 59 ft/min (0 to 18 m/min) |
Slab Paving Equipment
| Longitudinal joint tie bar inserter | |
|---|---|
| Dowel bar inserter (DBI) | |
| Super smoother | Modular extension up to 24 ft |
| Oscillating beam | Modular extension up to 24 ft |
| Slab paving mold type 910 m (including wearing pan and crown function | Modular extension up to 24 ft |
| Side tie bar inserter (hydraulic) | |
| Side tie bar inserter | Right and/or left |
| Slab paving mold type 910 m (excluding wearing pan and crown function | Modular extension up to 24 ft |
Central Crown
| NOTE | *3 = Values within standard transport height; special dimensions on request |
|---|---|
| Variable adjustment range *3 | For paving widths of 12 ft to 24 ft: max. 3% |
Range Of Applications
| Slab paving application *1 | Paving width: 12 ft to 24 ft | Layer thickness: up to 18 in (450 mm) |
|---|---|
| Slab paving application with central crown *1 | |
| NOTE | *1 = Special paving widths, paving heights, and options available on request |
| Slab paving application without central crown *1 |
Vibrators And Circuits
| Hydraulically driven vibrators | Curved (D66) |
|---|---|
| Connectors for hydraulic vibration | 12 (optional 18) |
| Connectors for electric vibration | 18 (optional 24) |
| Electically driven vibrators | Curved (D76) |
Electrical System
| Electric vibration | 110 V AC 3-/200 Hz |
|---|---|
| Electrical power supply | 24 V DC |
