Wirtgen W210Fi

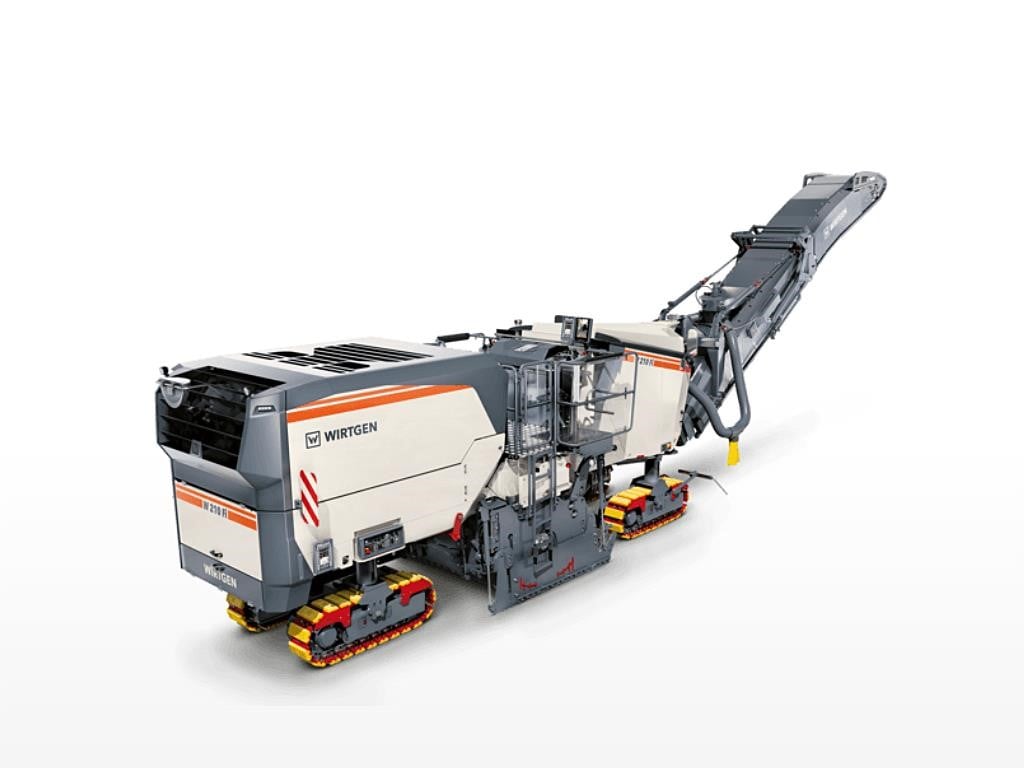

WIRTGEN W210Fi — LARGE COLD MILLING MACHINE
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
INNOVATIVE PROFESSIONAL MACHINE OFFERING MAXIMUM MILLING PERFORMANCE
• The powerful cold milling machine offers compact dimensions and caters to a wide range of applications from surface course rehabilitation and pavement removal at full depth all the way to fine milling operations.
• The range of applications is broadened even further thanks to the quick exchange of milling drum units and exceptionally rapid exchange of milling drums offering milling widths of 6 ft 7 in (2.0 m), 7 ft 3 in (2.2 m) or 8 ft 2 in (2.5 m) as part of MCS – Multiple Cutting System.
• The innovative MILL ASSIST machine control system always adjusts the most favorable relationship between performance and cost when operating in automatic mode. An operating strategy can additionally be selected in terms of cost, performance or quality.
• Thanks to the unique DUAL SHIFT powershift transmission with extended milling drum speed, the W 210 Fi is the ideal candidate for exceptionally challenging milling jobs.
• The new LEVEL PRO ACTIVE leveling system integrated in the machine’s control system optimizes precision in both height control and machine positioning.
FEATURES
OPERATION

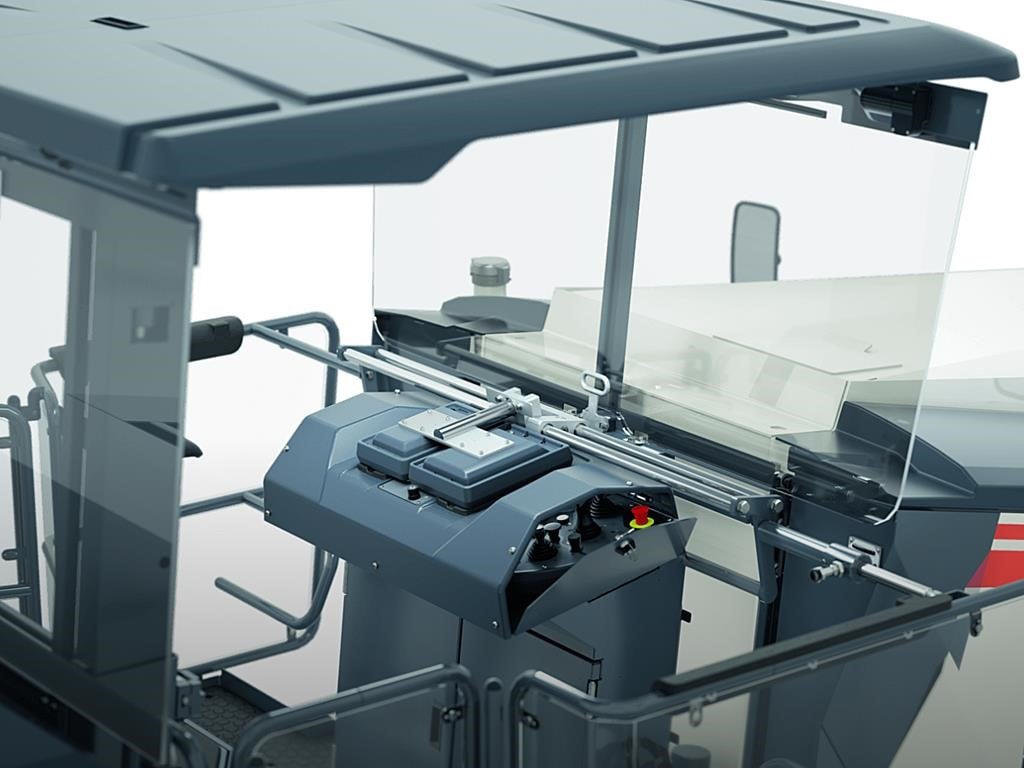

FULLY EQUIPPED OPERATOR’S PLATFORM
• Perfect view of important areas of the operation
• Exceptionally powerful LED lighting System
• Ample storage space
• Powerful heating system on the operator’s platform
• Flexible, vertically adjustable weather canopy

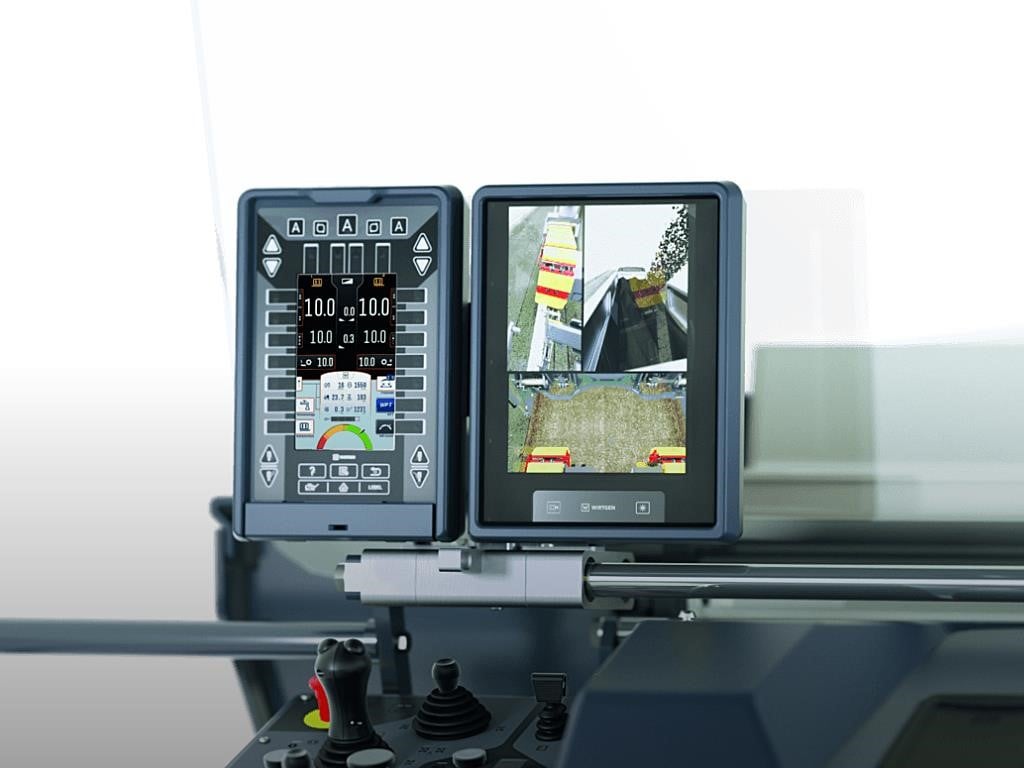

INTUITIVE MMI – MAN-MACHINE INTERFACE
• Flexible control panel concept for maximum machine control
• 2” control panel including favorites keys
• 5” control panels for leveling
• 7” control panel for the convenient display of important parameters
• Robust. high-quality camera system including 10″ control panel
QUALITY
VERSATILE, HIGH-PRECISION LEVEL PRO ACTIVE LEVELING SYSTEM
• New. easy-to-operate LEVEL PRO ACTIVE operating concept
• New complementary and automated features
• Optimized 3D and laser leveling
• Leveling boom, right, or leveling boom, right and left, including Sonic Ski sensor
• Optimized Multiplex system
HIGH RELIABILITY
• Pioneering diagnostic concept
• Redundant machine control system
• Dual CAN network
• Reliable protection against vandalism
• Efficient servicing and maintenance concept
MILLING

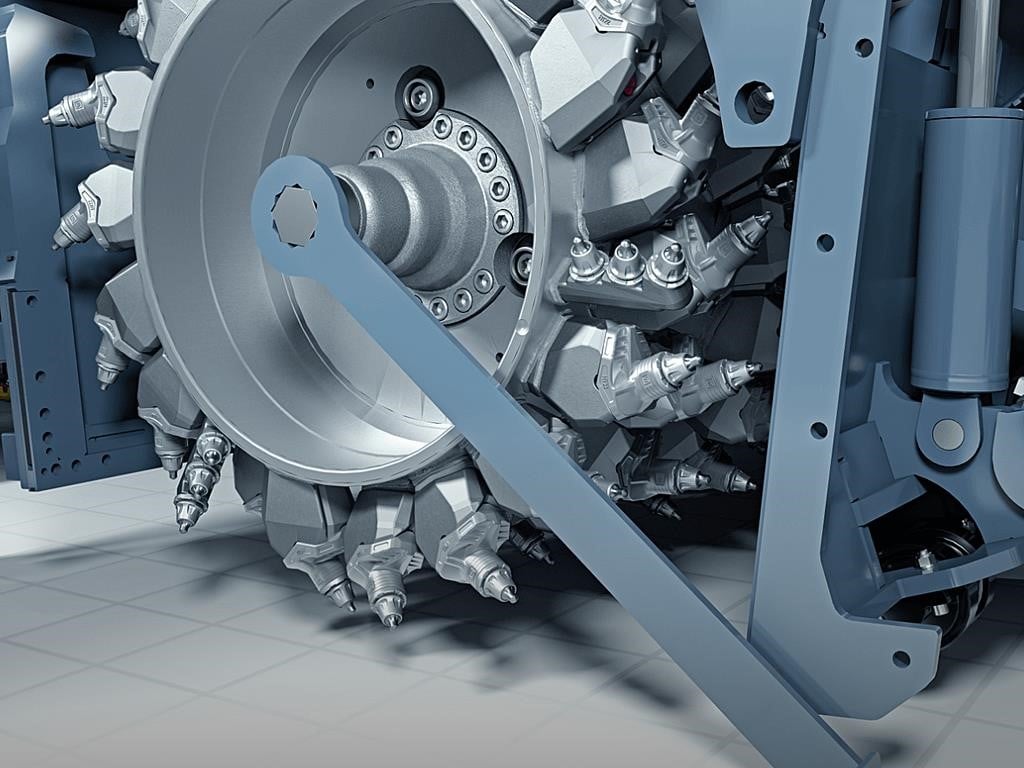

UNMATCHED CUTTING TECHNOLOGY

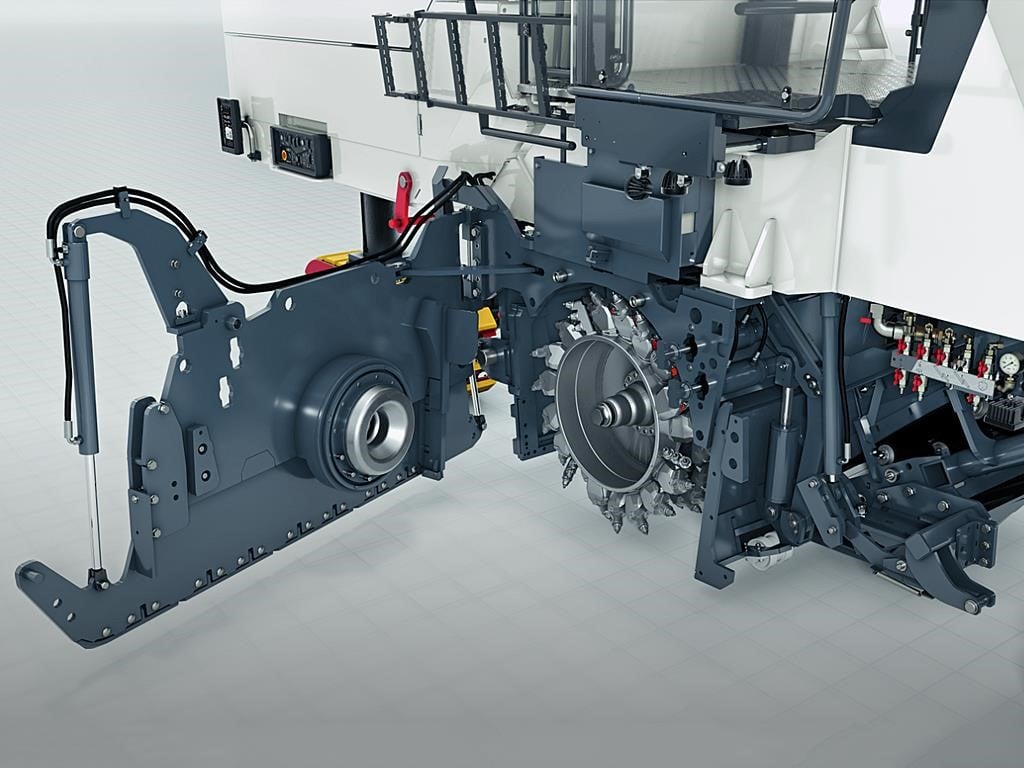

• Easy exchange of milling drums in record time

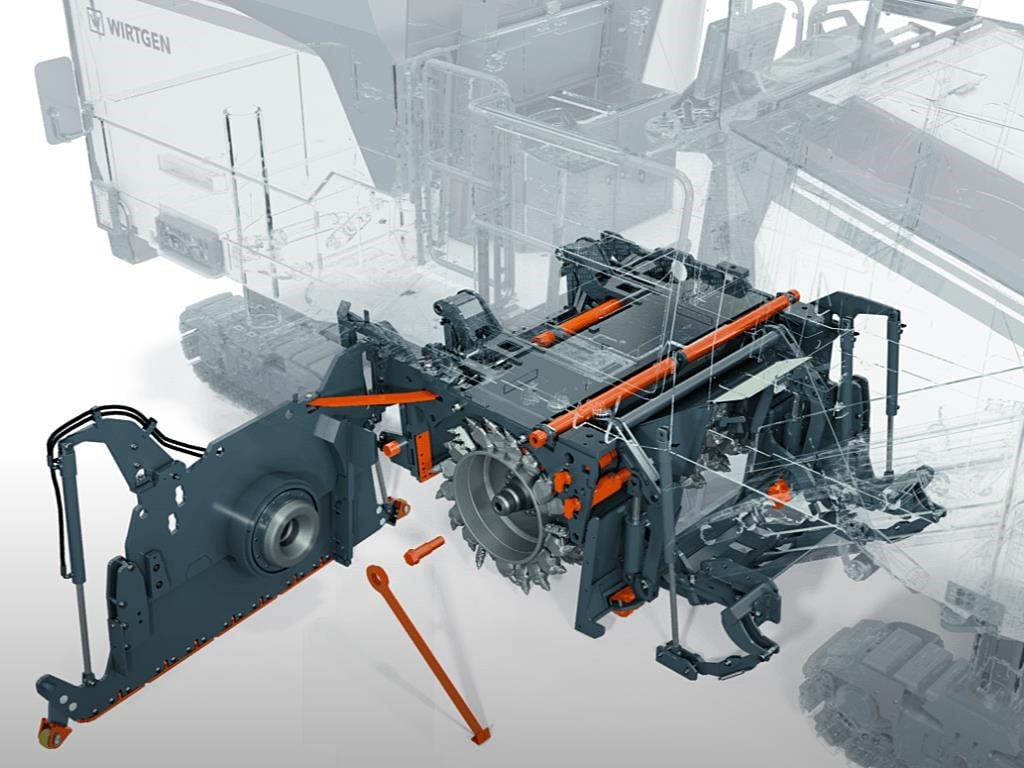

• Quick exchange of milling drum units
• Optimized wear protection for the milling drum unit
• Extremely hard-wearing quick-change toolholder system HT22
• New upper toolholder part HT22 PLUS with extended lifespan
INNOVATIVE MILL ASSIST
• MILL ASSIST automatic mode
• New DUAL SHIFT powershift transmission
• Additional pre-selection of operating strategy in automatic mode
• Clear pre-selection of consistent quality of the milling pattern
• Innovative efficiency display
PERFORMANCE
MAXIMUM MILLING PERFORMANCE

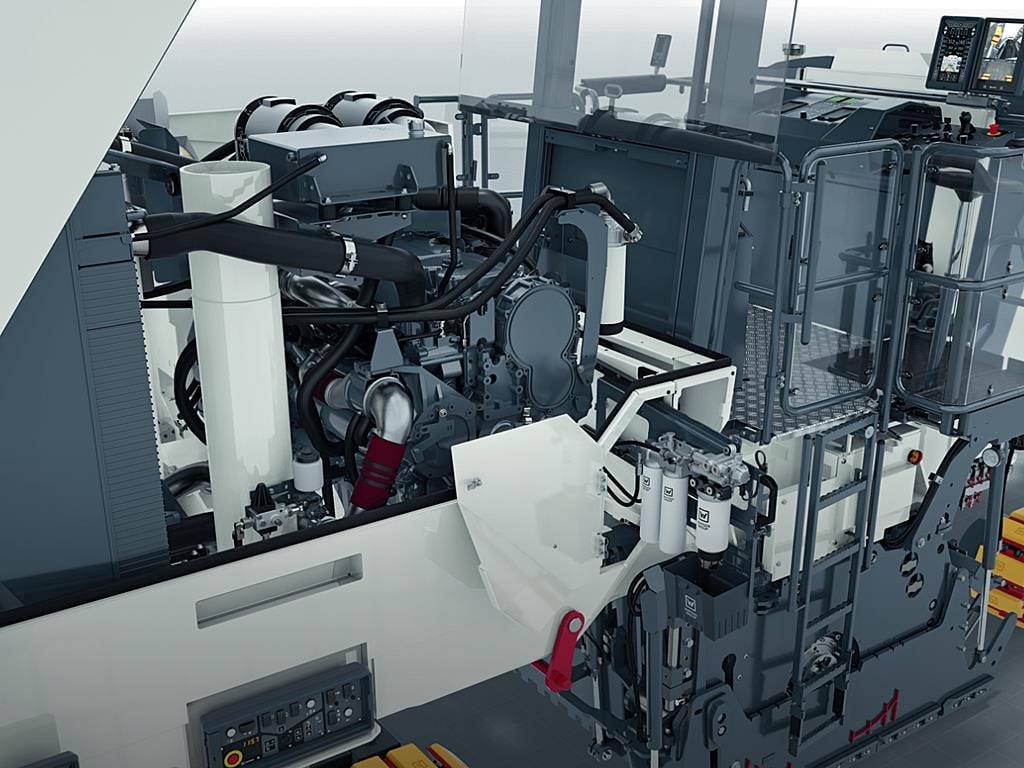

• High-powered diesel engine
• Increased ballasting flexibility
• Large scraper lift
• Flexible and efficient material loading
• “Boost” feature to increase the discharge trajectory
INFORMATIVE WPT – WIRTGEN PERFORMANCE TRACKER
• Tried-and-tested WITOS FleetView telematics system with optional WPT feature
• Clear documentation of milling performance
• Automatically generated measurement reports
• Assignment to site by means of satellite map display
• Direct display of actual milling width
ECONOMY
REDUCED DIESEL CONSUMPTION
• Two-speed powershift transmission for a wide range of usable milling drum speeds
• Automatic stop feature on the diesel engine
• Maximum use of engine power in the low engine speed range
• Automatic start-stop feature of the milling drum
• Intelligent dual fan concept
ENVIRONMENTALLY SUSTAINABLE MACHINE TECHNOLOGY
• Maximum exhaust gas purification for low exhaust emissions
• Reduced noise emissions during repositioning
• Optimized VCS extraction system
• Start-stop engine feature via exterior control panel
• Efficient water management
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Track Units - : | |
|---|---|
| Engine - Sound Power Level in Accordance with DIN EN 500-2 | Operator's Stand: | ≤ 112 dB(A) | ≥ 80 dB(A) |
| Driving Performance - : | |
| Electrical System - Voltage Supply: | 24 V |
| Weight Of Basic Machine - Empty Weight of Machine Excluding Operating Fluid: | 59,400 lbs (27,000 kg) |
| Optional Additional Equipment - VCS Extraction System: | 300 lbs (140 kg) |
| Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2200 HT22 LA15 with 175 Picks: | 1,050 lbs (470 kg) |
| Milling Drum - Cutting Diameter: | 3 ft 4 in (1,020 mm) |
| Filling Capacities - Water: | 865 gal (3,270 l) |
| Optional Milling Drum Units In Lieu Of Standard - Quick-Change Milling Drum Unit FB2000 MCS BASIC: | 1,500 lbs (670 kg) |
| Optional Milling Drum Units In Lieu Of Standard - Quick-Change Milling Drum Unit FB2500 MCS BASIC: | 2,750 lbs (1,240 kg) |
| Optional Additional Equipment - Operator's Platform with Functional Stand-up Seat and Large Storage Compartment: | 200 lbs (80 kg) |
| Engine - Fuel Consumption at Rated Power | Fuel Consumption, Field Mix: | 38.8 gal/h (147 l/h) | 15.5 gal/h (59 l/h) |
| Optional Additional Equipment - Extension of LEVEL PRO ACTIVE with Two Hydraulic Sensors Mounted on the Right and Left: | 250 lbs (110 kg) |
| Driving Performance - Maximum Travel and Milling Speed: | 0 to 330 ft/min (3.7 mph) | 0 to 100 m/min (6 km/h) |
| Optional Additional Equipment - Extension of LEVEL PRO ACTIVE with a Hyrdraulic Sensor Mounted on the Right: | 140 lbs (65 kg) |
| Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2000 HT22 LA18 with 146 Picks: | 500 lbs (225 kg) |
| Optional Milling Drum Units In Lieu Of Standard - Quick-Change Milling Drum Unit FB2200 MCS BASIC: | 2,000 lbs (920 kg) |
| Milling Drum - NOTE: | *1 = The maximum milling depth may deviate from the value indicated due tolerances and wear. |
| Operator And Tools - Operator: | 165 lbs (75 kg) |
| Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2200 HT22 LA18 with 155 Picks: | 750 lbs (340 kg) |
| Loading Of The Milled Material - Theoretical Capacity of Discharge Conveyor: | 490 yd³/h (375 m³/h) |
| Weight Of Basic Machine - Operating Weight, CE *2: | 64,500 lbs (29,300 kg) |
| Filling Capacities - Hydraulic Oil: | 26.5 gal (100 l) |
| Optional Additional Equipment - Extension of LEVEL PRO ACTIVE with Two Leveling Booms Mounted on the Right and Left: | 100 lbs (75 kg) |
| Optional Additional Equipment - Large Storage Compartment on Rear of Machine for 69 Pick Containers: | 350 lbs (150 kg) |
| Engine - Maximum Power at 1,700 min-¹: | 563 kW / 755 HP / 766 PS |
| Milling Drum - Milling Width, Standard: | 7 ft 3 in (2,200 mm) |
| Engine - Type: | C18 ATAAC |
| Milling Drum - Milling Width, Optional 1: | 6 ft 7 in (2,000 mm) |
| Loading Of The Milled Material - Belt Width of Discharge Conveyor: | 2 ft 9 in (850 mm) |
| Loading Of The Milled Material - Belt Width of Primary Conveyor: | 2 ft 9 in (850 mm) |
| Engine - Displacement: | 4.8 gal (18.1 l) |
| Operator And Tools - On-Board Tools: | 65 lbs (30 kg) |
| Weight Of Machine US Standard - Empty Weight of Machine Excluding Operating Fluids: | 67,100 lbs (30,500 kg) |
| Electrical System - : | |
| Weight Of Basic Machine - NOTE: | *2 = Weight of machine, half weight of all operating materials, machine operator, on-board tools, no optional equipment features. |
| Weight Of Machine US Standard - Shipping Weight, US Standard (Full Fuel Tanks, Without Water): | 67,700 lbs (31,700 kg) |
| Engine - Manufacturer: | Caterpillar |
| Track Units - Track Units, Front and Rear (L x W x H): | 5 ft 8 in x 11.8 in x 2 ft (1,730 x 300 x 610 mm) |
| Weight Of Basic Machine - Maximum Operating Weight 9Full Tanks, Full Range of Equipment), in FB2500: | 80,300 lbs (36,500 kg) |
| Engine - Exhaust Emission Standards: | US EPA Tier 4f |
| Weights Of Operating Fluids - Fuel 6.9 lbs/gal (0.83 kg/l): | 2,200 lbs (1,000 kg) |
| Optional Additional Equipment - Operator's Platform Including a Hight-Quality Comfort Cabin: | 1,900 lbs (850 kg) |
| Engine - Number of Cylinders: | 6 |
| Engine - Cooling: | water |
| Optional Additional Equipment - Two-Piece Additional Weight with a Total Weight of 3,500 lbs (1,600 kg): | 3,500 lbs (1,600 kg) |
| Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2000 HT22 LA15 with 162 Picks: | 550 lbs (250 kg) |
| Milling Drum - Milling Depth*1: | 0 to 1 ft 1 in (0 to 330 mm) |
| Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2500 HT22 LA18 with 171 Picks: | 1,250 lbs (570 kg) |
| Operator And Tools - 5 Pick Containers: | 275 lbs (125 kg) |
| Optional Additional Equipment - Operator's Platform with Functional Stand-up Seat, a Large Storage Compartment and Weather Canopy: | 1,300 lbs (600 kg) |
| Optional Additional Equipment - Extension of MCS BASIC with a Hydraulically Opening Side Door: | 300 lbs (140 kg) |
| Milling Drum - Milling Width, Optional 2: | 8 ft 2 in (2,500 mm) |
| Filling Capacities - Fuel: | 317 gal (1,200 l) |
| Weights Of Operating Fluids - Water: | 7,200 lbs (3,270 kg) |
| Engine - Rated Power at 1,950 min-¹: | 563 kW / 755 HP / 766 PS |
