Vogele AB500TP2 PLUS

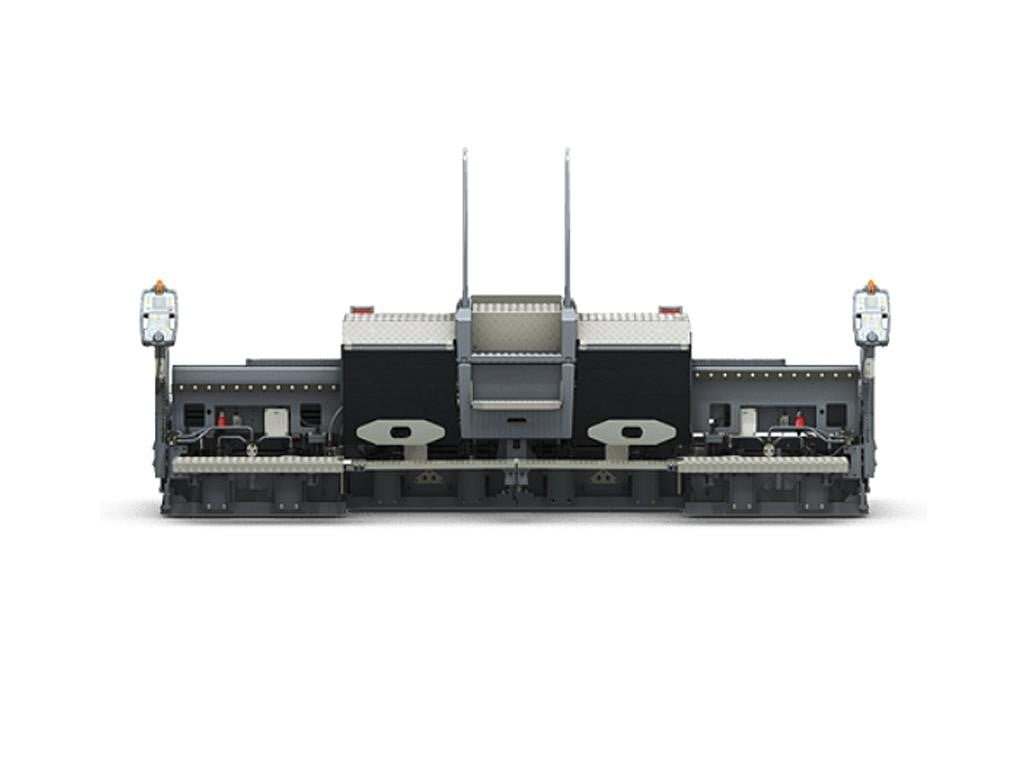

AB 500TP2 — PLUS EXTENDING SCREED

With a basic width of 2.55 m, the AB 500 is the universal tool for all VÖGELE pavers of the Premium Class. Its infinitely adjustable single-tube telescoping system covers a wide range of applications from 2.55 m to 5 m and with bolt-on extensions, it extends to a maximum width of 8.5 m. VÖGELE extending screeds, either front or rear-mounted are tailored specifically to meet the requirements of the North American and Australian market and cover a wide range of applications. They are characterized by a high level of variability and are therefore ideal for paving different widths and winding roads. These VÖGELE screeds ensure high paving quality, even on projects involving long distances, large widths or high speeds. As state-of-the-art products, they accurately maintain paving parameters at the specified level throughout the entire paving phase.

HIGHLIGHTS

ERGONOMIC SCREED OPERATOR’S CONSOLE

The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.

OUTSTANDING PAVING CHARACTERISTICS

Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.

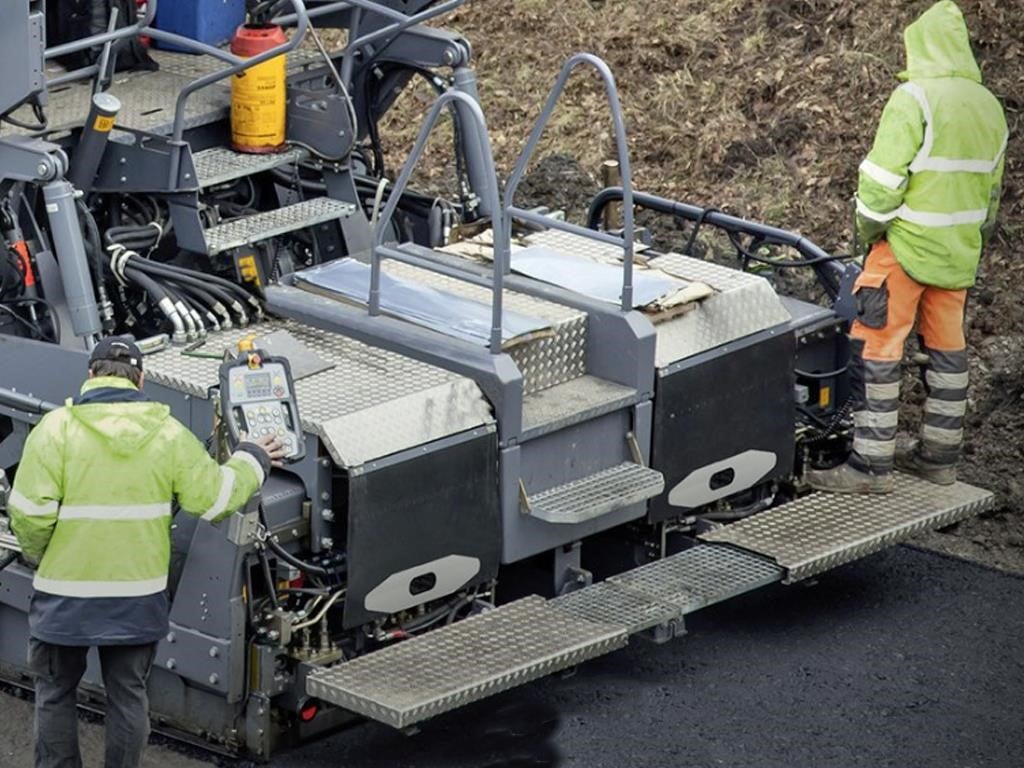

SAFE, CONVENIENT SCREED STEP

The walkway and convenient central step on the screed allow safe, convenient access to the paver operator’s platform.

HYDRAULIC CROWN ADJUSTMENT

Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.

HIGHLY EFFICIENT SCREED HEATING

The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
