Vogele AB220TV

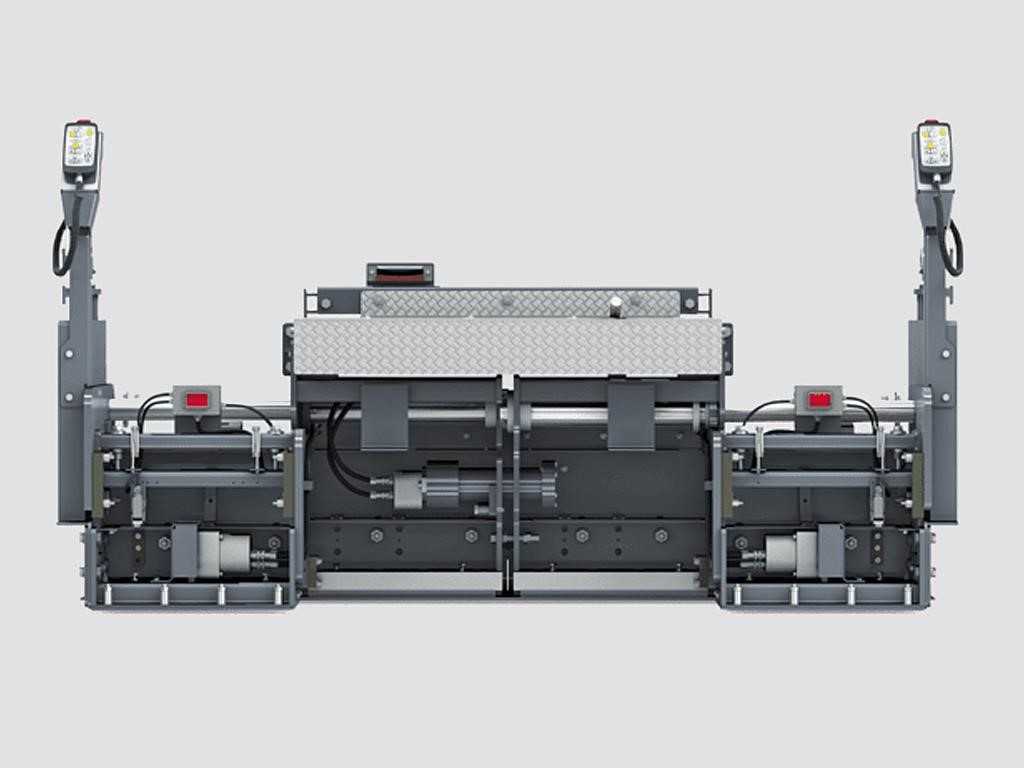

AB 220TV — EXTENDING SCREED

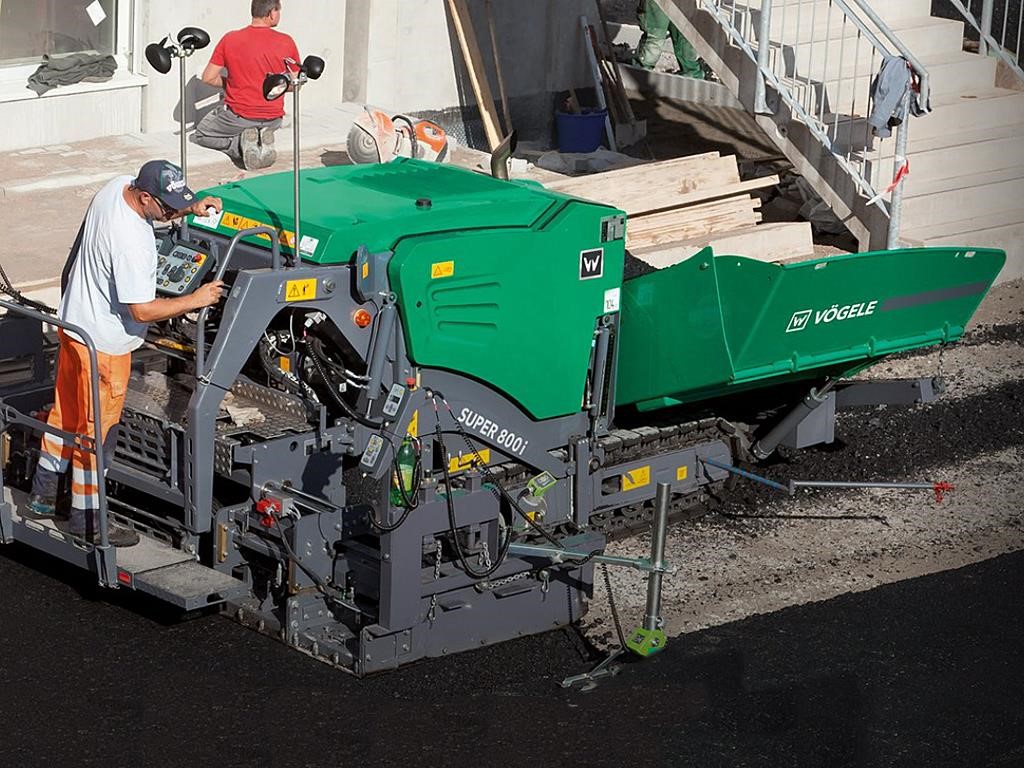

The AB 220 Extending Screed delivers maximum precision and high pre-compaction values on our small pavers. The AB 220 TV with tamper and vibrators is matched to the SUPER 800(i).
HIGHLIGHTS

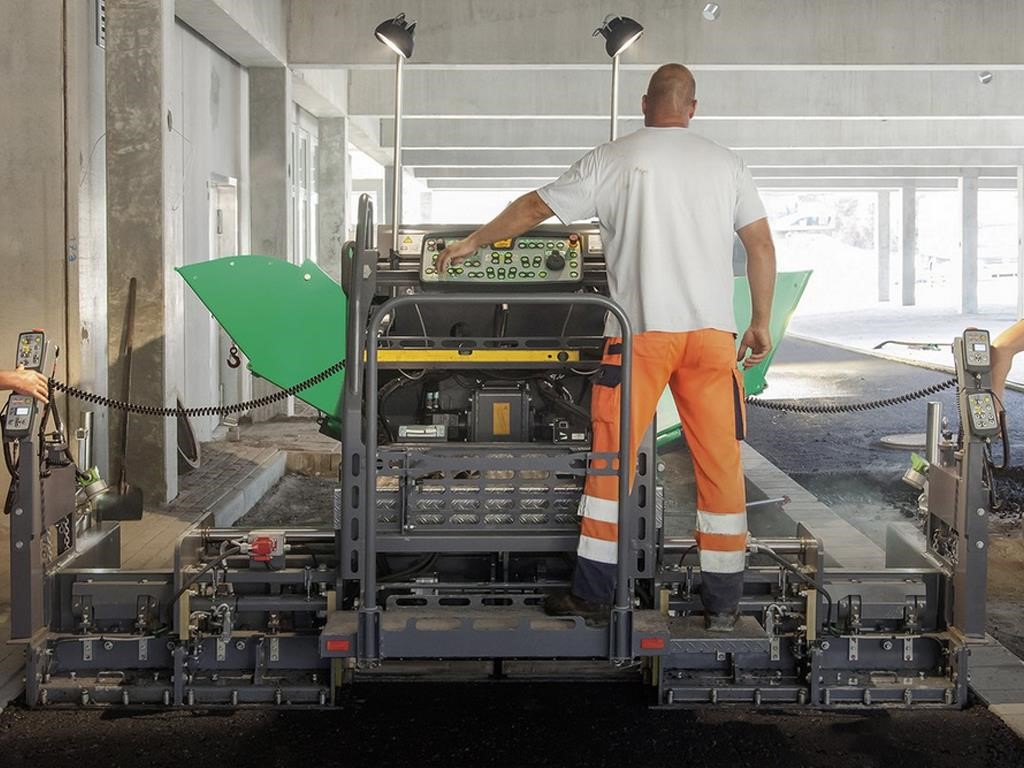

ERGONOMIC SCREED OPERATOR’S CONSOLE
The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.
OUTSTANDING PAVING CHARACTERISTICS
Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.

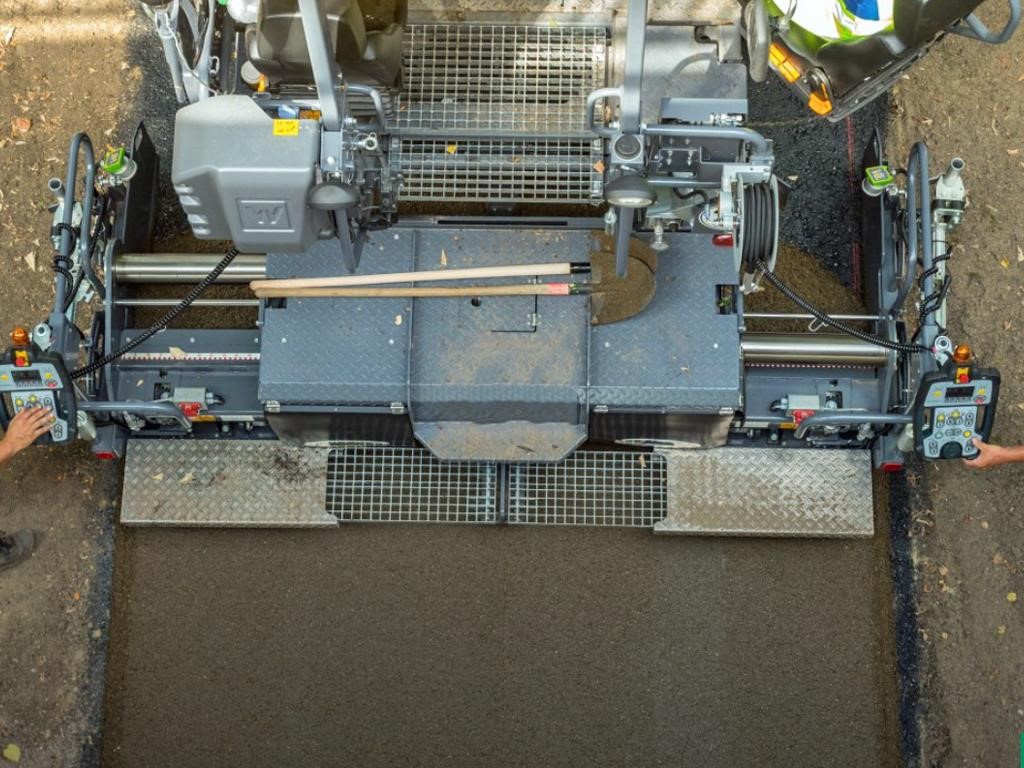

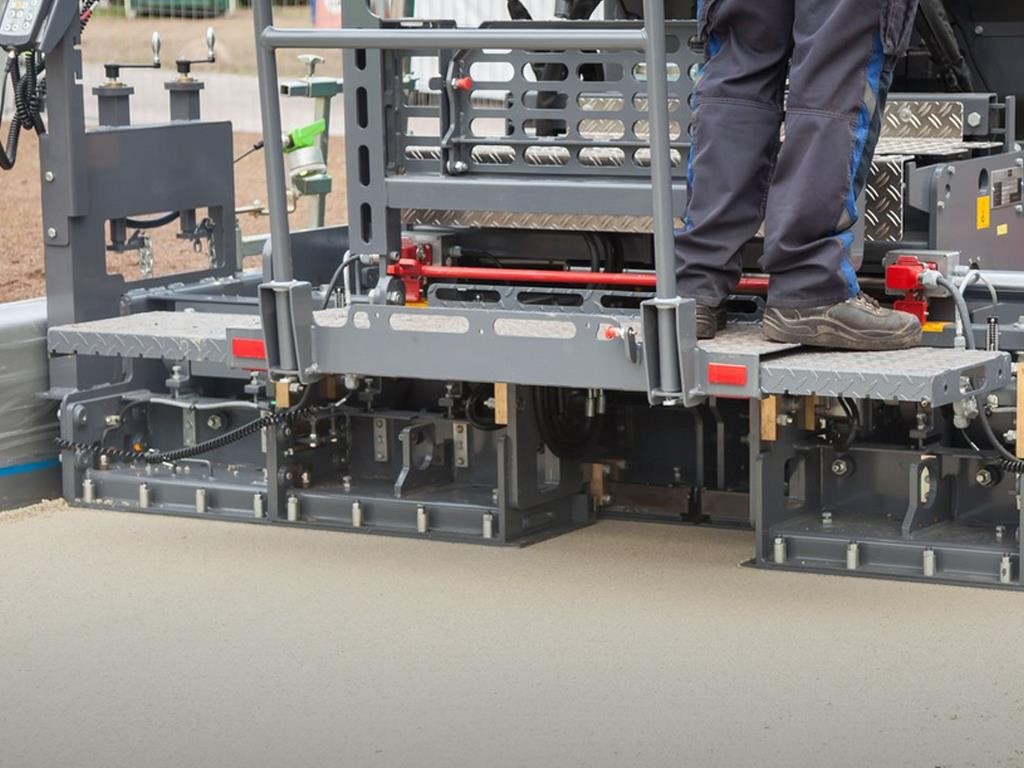

SAFE, CONVENIENT SCREED STEP
The walkway and convenient central step on the screed allow safe, convenient access to the paver operator’s platform.
HYDRAULIC CROWN ADJUSTMENT
Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.
HIGHLY EFFICIENT SCREED HEATING
The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
| Reduction In Width - : | |
|---|---|
| Reduction In Width - Variable Adjustment: | 0.5 m to 1.2 m |
| Crown Adjustment - Mechanical: | -2% to +4% |
| Pave Widths - Pave Widths: | 0.5 m to 3.5 m* |
| Transport Dimensions (Basic Screed) - Weight: | 820 kg |
| Bolton Extensions - : | |
| Pave Widths - *: | Depending on paver type |
| Pave Widths - Basic Width: | 1.2 m |
| Crown Adjustment - : | |
| Compacting Systems - Tamper (T) : | Speed up to 1,800 rpm |
| Bolton Extensions - Bolt-on Extensions: | 25 cm | 50 cm | 65 cm |
| Transport Dimensions (Basic Screed) - Depth: | 0.76 m |
| Compacting Systems - Version: | TV |
| Compacting Systems - Vibrators (V): | Eccentric vibration up to 3,300 rpm |
| Transport Dimensions (Basic Screed) - Width: | 1.27 m |
| Pave Widths - Infinitely Variable Range: | up tp 2.2 m |
| Screed Heating - Heating: | Screed plates and tamper bars heated by means of electric heating rods |
| Compacting Systems - Stroke: | 4 mm |
| Screed Heating - : |
