Vogele SUPER 1800-3i

VÖGELE SUPER 1800-3I — SPRAYJET

THE UNIQUE SPRAY PAVER WITH INNOVATIVE TECHNOLOGY

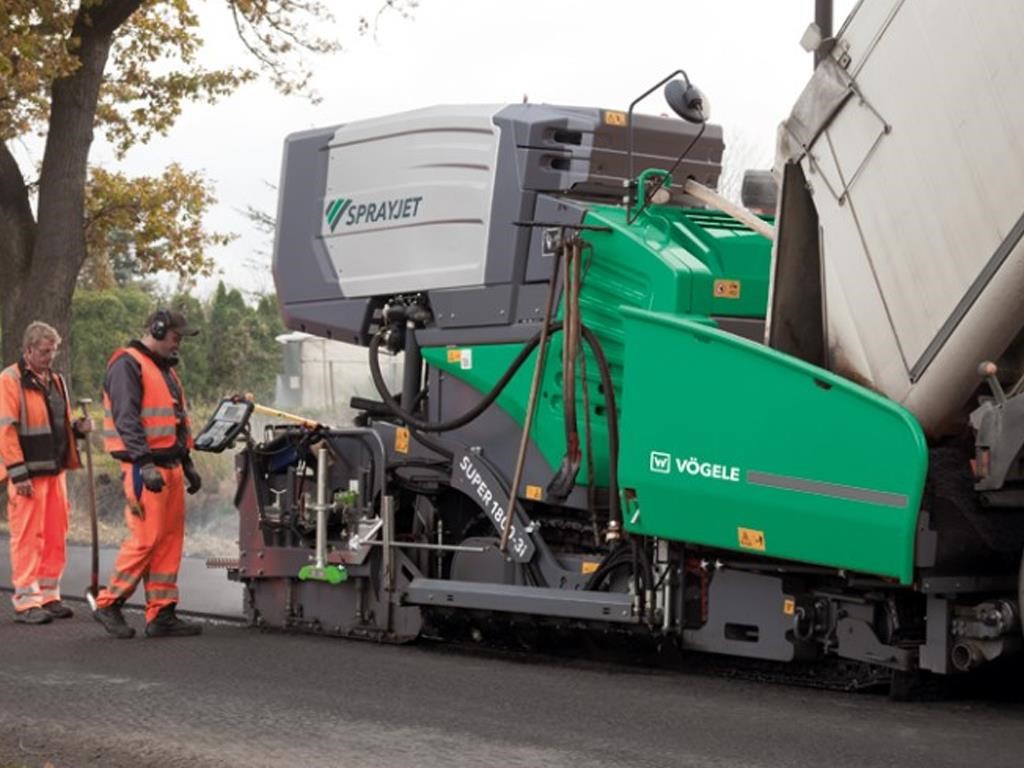

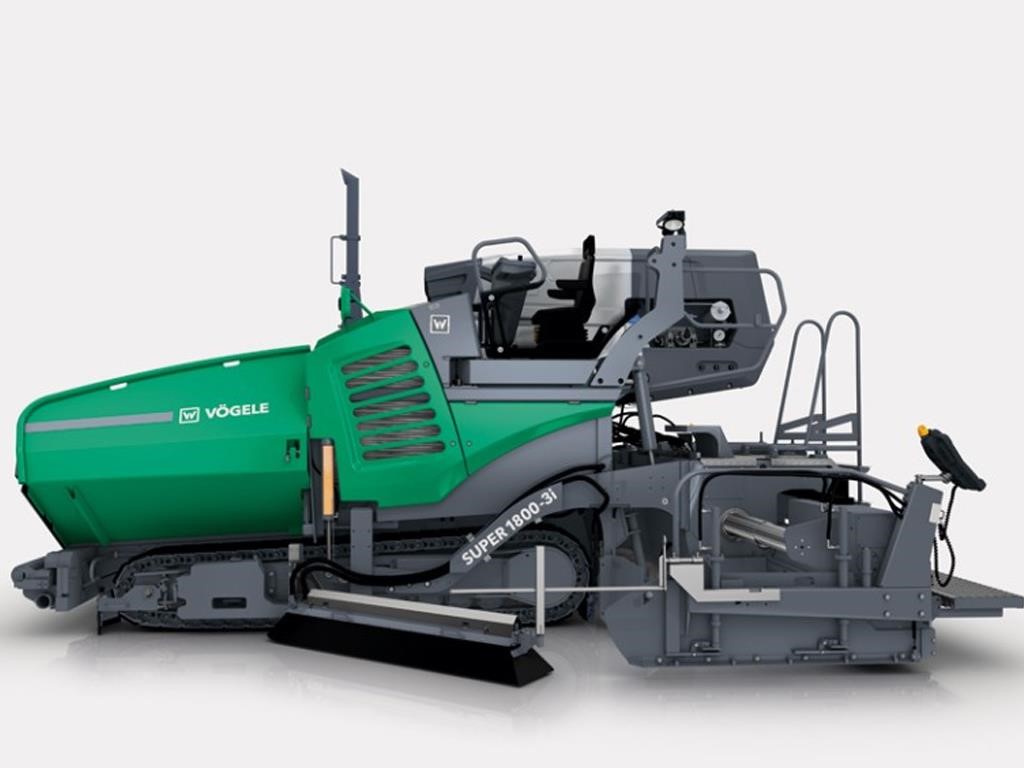

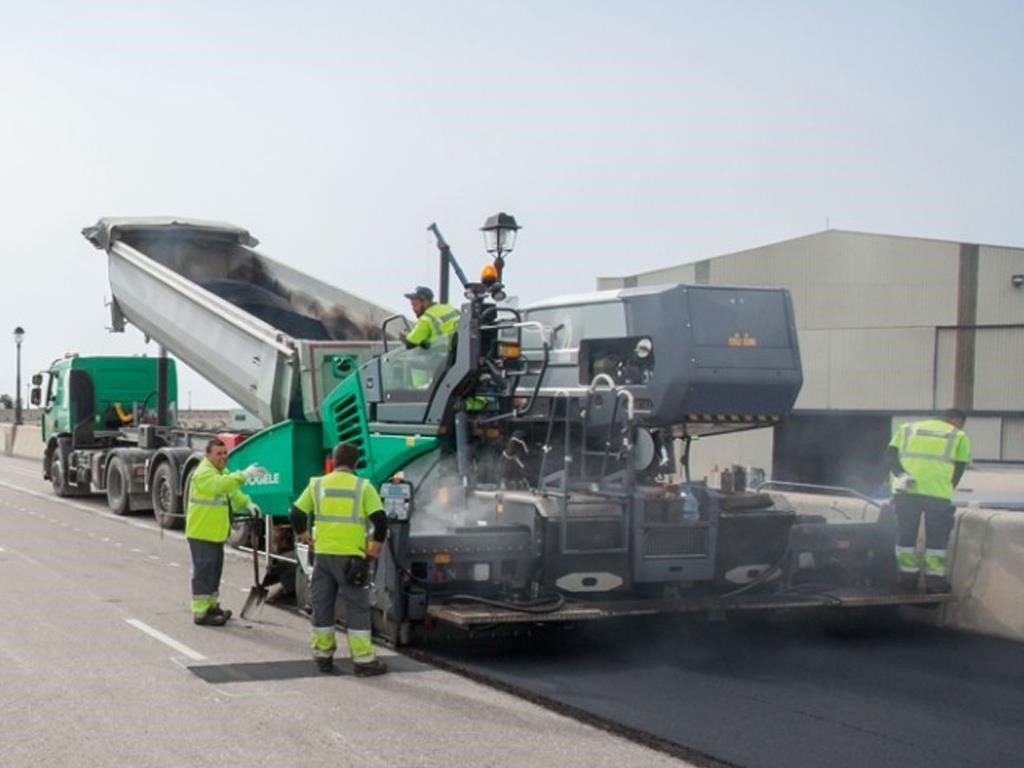

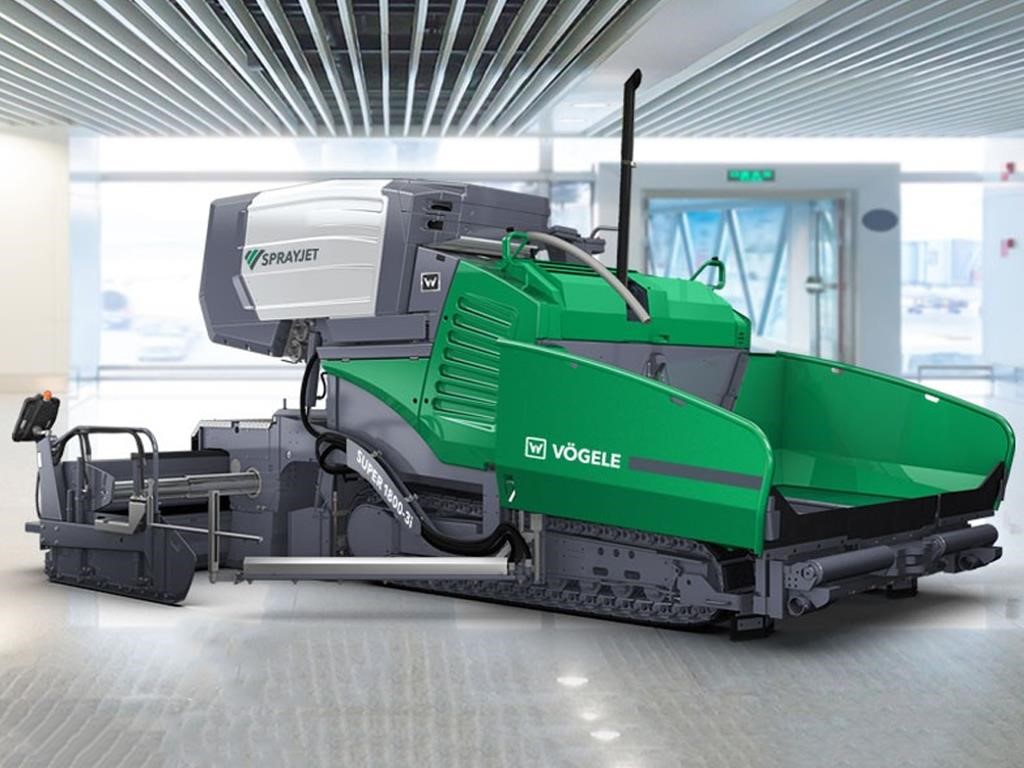

The VÖGELE SUPER 1800-3i SprayJet is the world‘s only spray paver for placing thin asphalt overlay as well as conventional binder and surface courses. The new VÖGELE SprayJet features a large array of impressive innovations. One key feature is that operation of the spray module has been integrated into the ErgoPlus 3 operating concept.

The unique spray paver with innovative technology, the VÖGELE SUPER 1800-3 SprayJet is the world’s only spray paver for placing thin asphalt overlay as well as conventional binder and surface courses. The new VÖGELE SprayJet features a large array of impressive innovations. One key feature is that operation of the spray module has been integrated into the ErgoPlus 3 operating concept. For many road construction and civil engineering contractors, the SUPER 1800-3i SprayJet offers an excellent opportunity to employ their paver in a variety of applications, be it as a classic upper mid-range paver or as a special machine for particular jobs. The machine technology of the SUPER 1800-3i SprayJetis ideal in all cases and is based on VÖGELE‘s modular machine concept. As a result, the paver can be used either with the SprayJet module or, with just minor modifications, as a classic asphalt paver without the SprayJet module.

It goes without saying that our road pavers conform to the applicable emissions directives, but we like to go much further. That’s why the machine concept of the “Dash 3” generation uses environmentally friendly innovations in machine technology, resulting in lower consumption, lower emissions and lower costs. One of these innovations is the VÖGELE EcoPlus low-emissions package. Fuel savings of up to 25% can be achieved with VÖGELE EcoPlus, depending on the application and capacity utilization of the paver. That doesn’t just result in considerable savings for the contractor – it is good news for the environment, too. That’s because every liter of fuel saved reduces carbon dioxide (CO 2 ) emissions.

The VÖGELE ErgoPlus 3 operating system has been supplemented by numerous ergonomic and functional features for the “Dash 3” generation. The paver operator‘s console, for example, comes with a large color display which provides brilliant readability even in poor lighting conditions.

The paver operator‘s ErgoPlus 3 console has been designed according to practice-related principles. All controls are clearly arranged. Paver functions are clustered in logical groups so that operators find their controls just where they would expect them to be.

Niveltronic Plus, the System for Automatic Grade and Slope Control, is an in-house development by VÖGELE based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks, ensuring perfect mastery of all grade and slope control jobs.

HIGHLIGHTS:

• World‘s unique spray paver for placing thin asphalt overlay as well as conventional binder and surface courses

• The VÖGELE EcoPlus low-emissions package significantly reduces fuel consumption and noise levels

• Cutting-edge ErgoPlus 3 operating concept for paver and spray module

• Emulsion sprayed at a rate of 0.3 to 1.6 kg/m²* in a clean and controlled process

• Uniform “dash 3” service concept ensures easy maintenance and cuts training costs

• AutoSet Plus automatic functions for rapid relocation of the paver on the job site and storing paving programs

• ErgoPlus 3 screed console with Smart Wheel for convenient screed width control

• Pavedock Assistant for better and safer communication when feeding the paver with mix

• Advanced and precise screed technology for perfect high-quality pavements

*The rate of spread per m² must be determined as a function of the emulsion or tack coat to be used. The rate of spread depends on the emulsion or tack coat’s consistency and temperature when applied, and on the size of nozzles used for spraying.

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
