Vogele SUPER 700i

VÖGELE SUPER 700I — MINI CLASS TRACKED PAVER

GREAT THINGS COME IN SMALL PACKAGES

Thanks to its compact design, variable paving width and high performance, the SUPER 700i is the ideal mini paver for surfacing footpaths and cycle paths, as well as for minor paving jobs and pavement repairs. Its excellent value for money and particularly simple operating concept makes the SUPER 700i an ideal partner for landscaping contractors, as well as for municipal authorities.

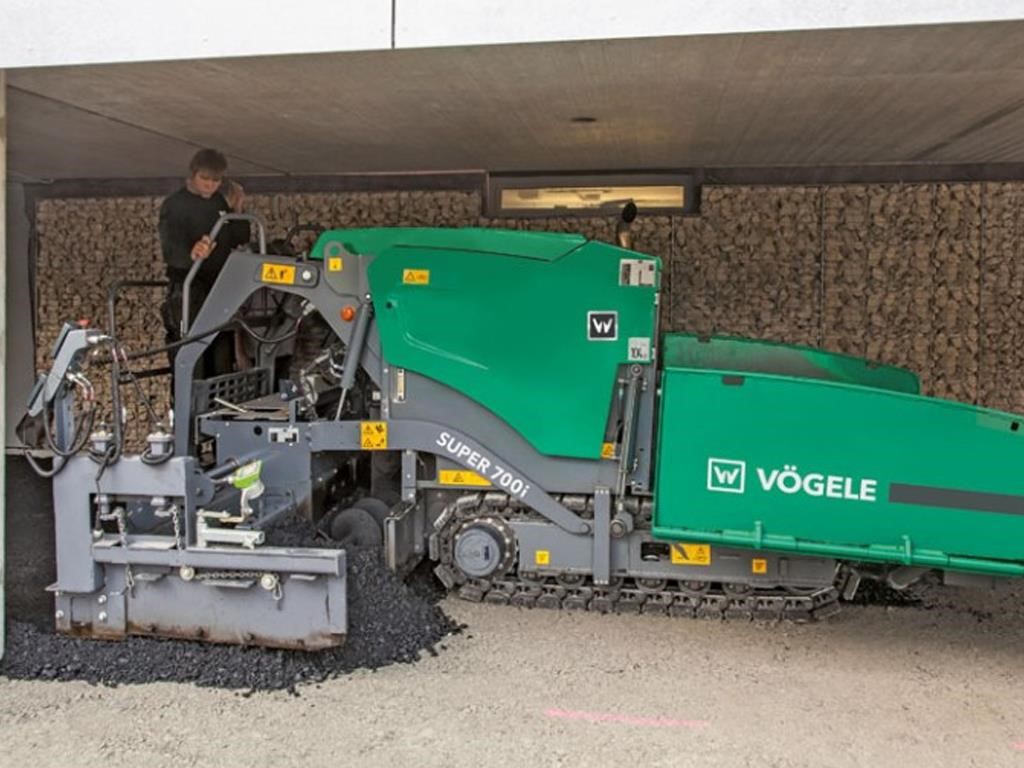

The SUPER 700i is a highly compact small paver suitable for a wide range of applications. Whether paving on narrow paths, close to walls and edges, between streetcar tracks, or inside buildings: the Mini Class demonstrates the full range of its capabilities specially when working in confined spaces.

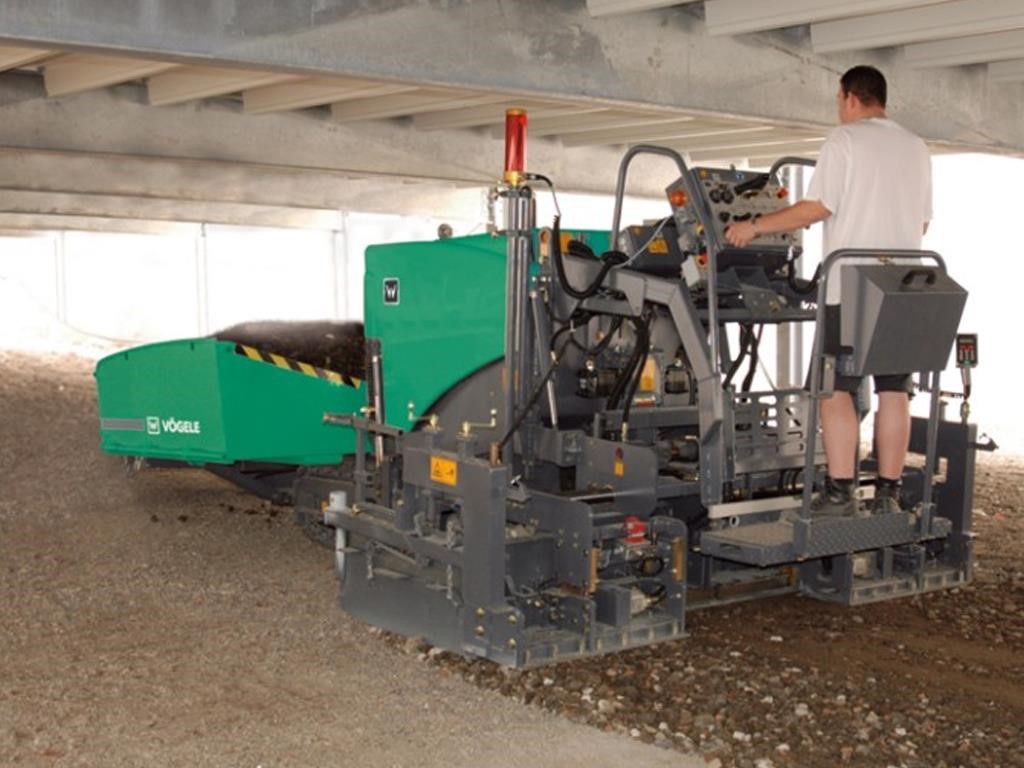

The SUPER 700i is ideal for small and medium-sized jobs such as backfilling trenches or paving footpaths and cycle tracks. The SUPER 700i also brings its special qualities to bear in gardening and landscaping applications, as well as for paving inside halls and underground parking garages, where machines need to be highly maneuverable and compact.

Its technology is a match for the large “Dash 3” pavers, featuring highly efficient material feed and the advanced ErgoBasic operating concept. The ErgoBasic operating concept was developed on the basis of the tried and tested ErgoPlus operating system, and specially adapted to the needs of Mini Class pavers. It focuses on the essential functions.

The aim was to develop an operating system with which our small machines can be operated just as quickly, precisely and intuitively as the large ones. That makes VÖGELE the only manufacturer to offer a standardized operating concept for all paver classes.

In line with the ErgoBasic operating concept for Mini Class pavers, VÖGELE has also developed Niveltronic Basic, a System for Automatic Grade and Slope Control. It is completely integrated into the machine control system and therefore perfectly adapted to the paver model concerned.

And last but not least, it also offers great value for money. That makes the SUPER 700i the ideal machine for small gardening and landscaping businesses and municipal services.

FEATURES

• Powerful and economical thanks to its 74 hp (55.4 kW) diesel engine and ECO mode.

• Positive tracking and precise steering thanks toclosed-loop traction drive.

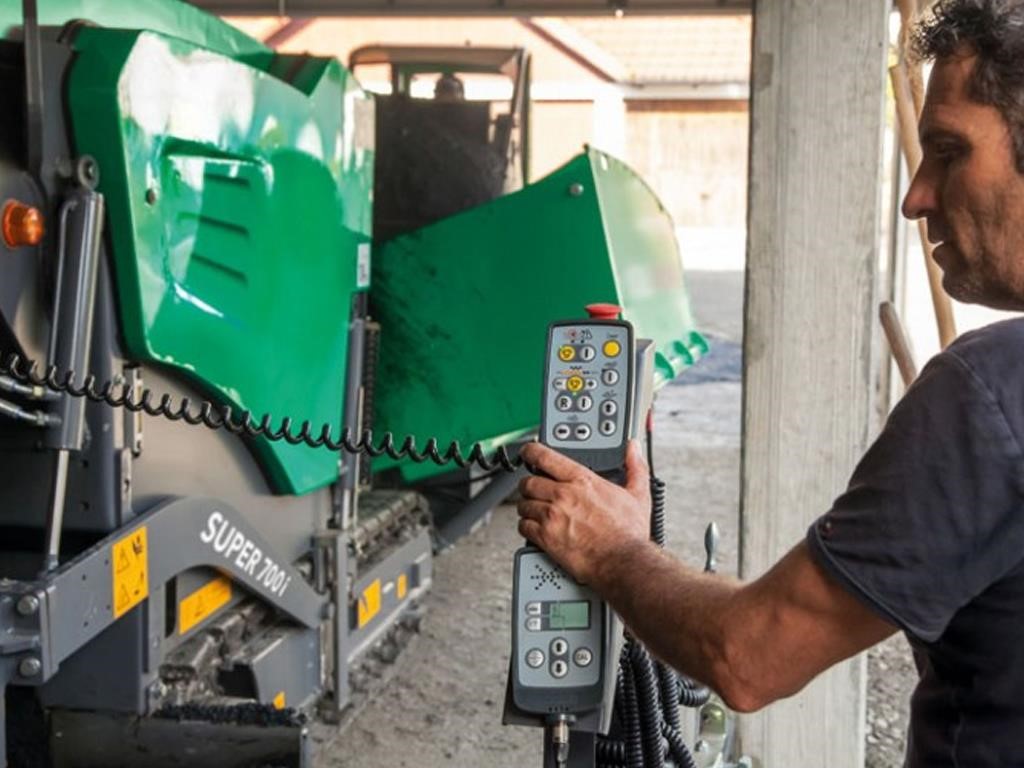

• Simple operation with the innovative and easy-to-grasp ErgoBasic operating concept.

• Easy-to-use system for automated grade and slope control.

• Optimal feeding thanks to large material hopper with 12,790 Ibs. (5.8 metric tonnes) capacity.

• Hydraulically adjustable asymmetric hopper wall for easier loading on confined jobsites.

• Facility to move the push roller to left makes material supply from trucks easier when paving along walls and other boundary structures.

• Small enough to operate in the tightest conditions.

• Wide range of paving applications from 20 in. — 10 ft. 6 in. (0.5 — 3.2 m) for a large number of paving projects.

• The SUPER 700i delivers high levels of precompaction with both the AB 200 V and the AB 220 V.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
