LeeBoy L150

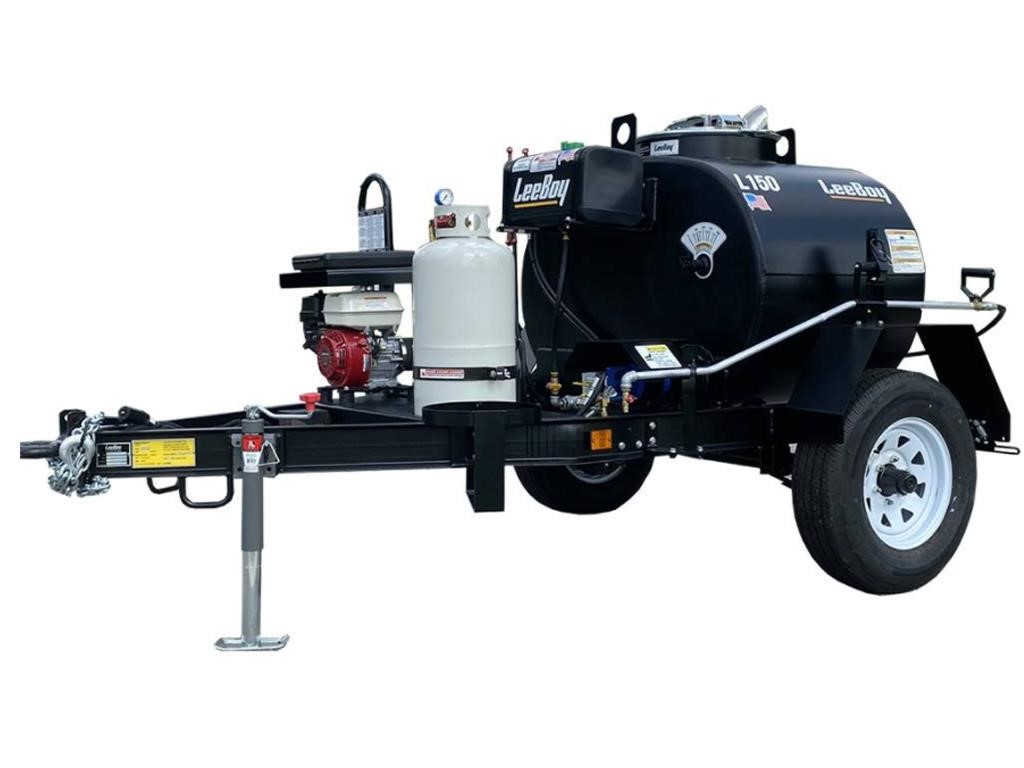

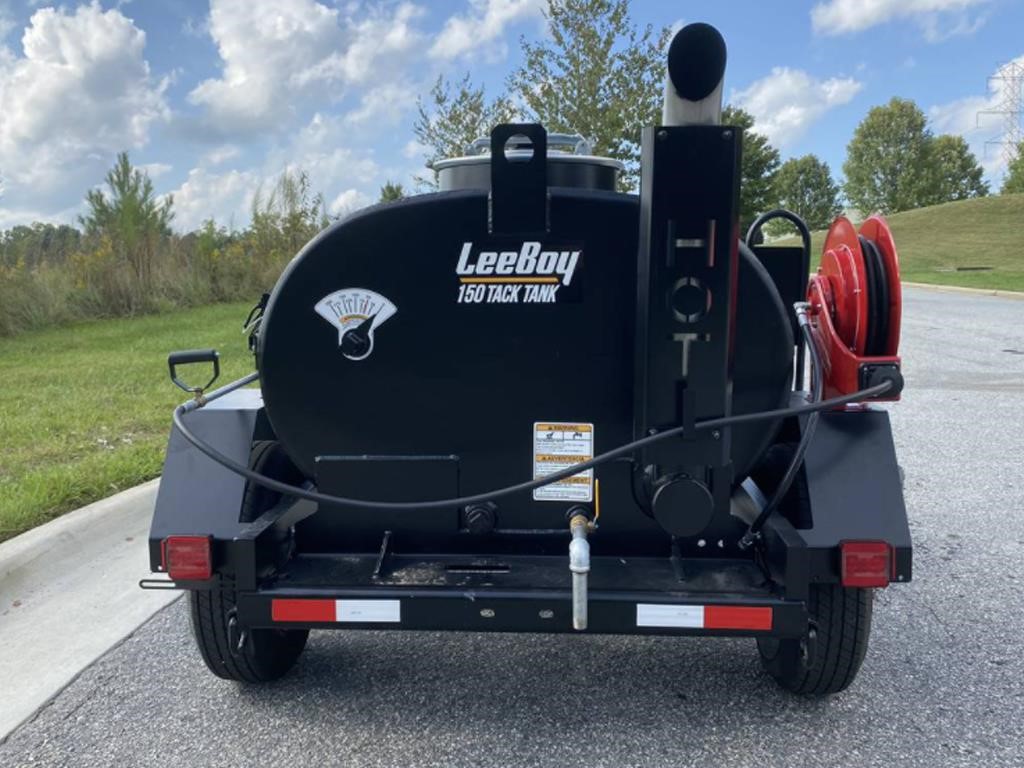

LEEBOY L150 — TACK DISTRIBUTOR

The L150 Tack Distributor ideally serves the paving contractor dedicated to smaller projects. With a conservative 150-gallon capacity tank, this solution still contains many of the features and functionality of the larger units. Inclusive of a powerful gas engine, the user-friendly design can either be trailer or skid mounted. Multiple additional options including remote in-cab controls or overnight heating can further enhance the end user’s experience.

PERFORMANCE

• 150 Gallon (567.8 l) Capacity Tank

• 4.8 hp (3.6 kw) Honda Engine

• 6’ (1.8 m) Wand with On/Off Valve

• 40’ (12.19 m) Heavy-Duty Recoil Hose Reel

• 3,194 lbs (1,448 kg) Loaded Weight

• 1” (25 mm) Rear Tank Sampling Valve

• One 300,000 BTU Propane Burner

• Trailer-Mounted or Skid-Mounted Configurations

• Electric brakes

• Emergency Brake-Away System

• Optional Accessories Available

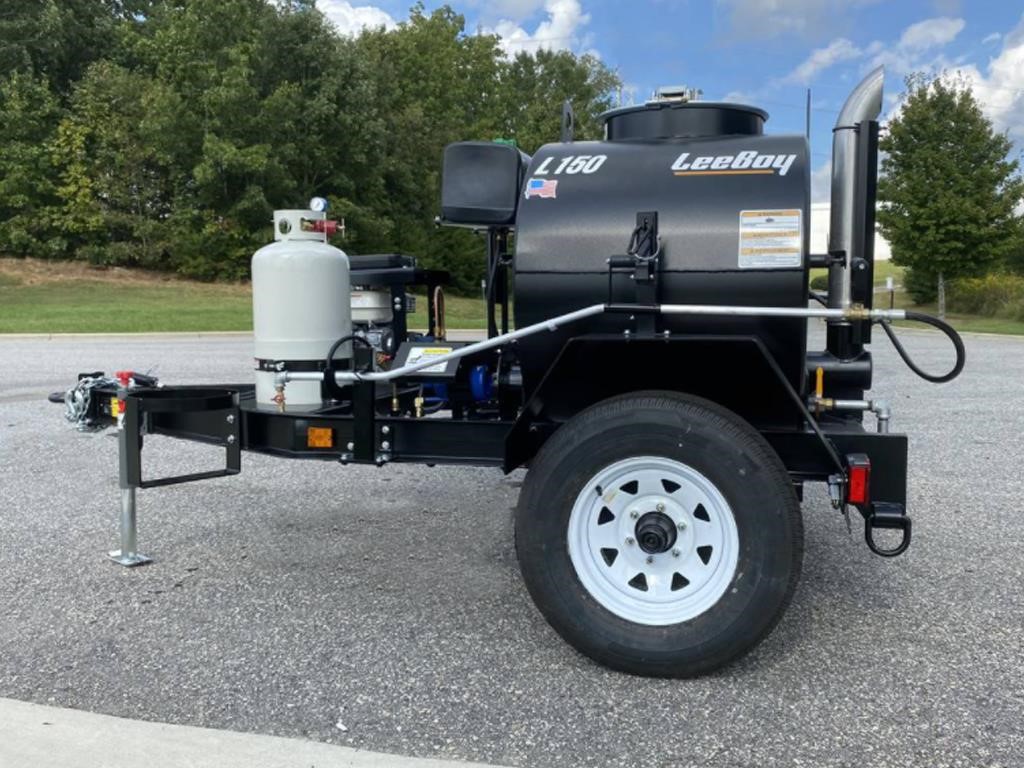

TRAILER SPECIFICATION (FOR TRAILER CONFIGURATION)

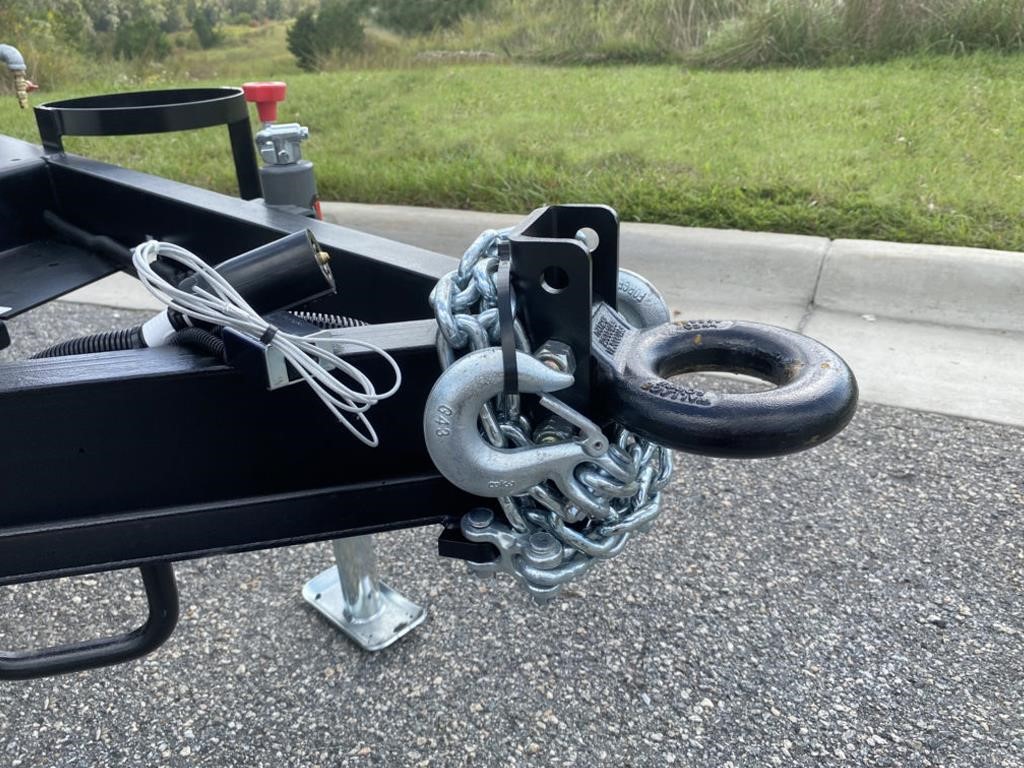

• 6,000 lb axle with a pintle eye

• 5,000 lb jackleg

• Wired for towing

• Tires: ST 225/75D15

• Electric brakes on axle

• Safety chains

• Emergency breakaway switch with battery backup

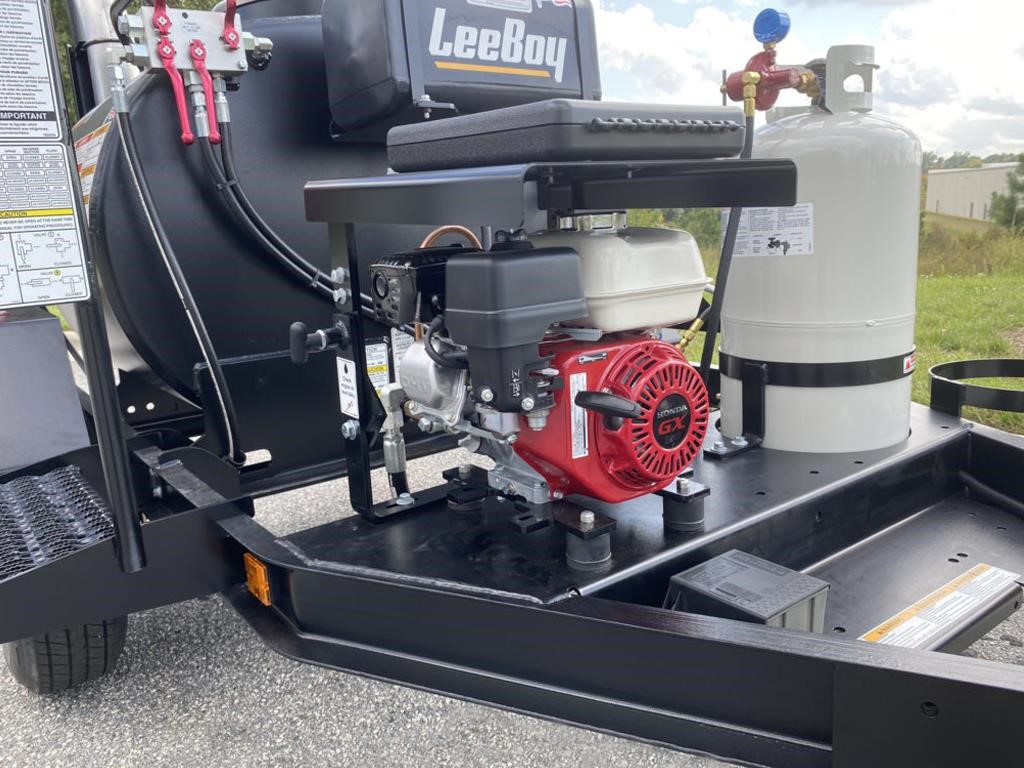

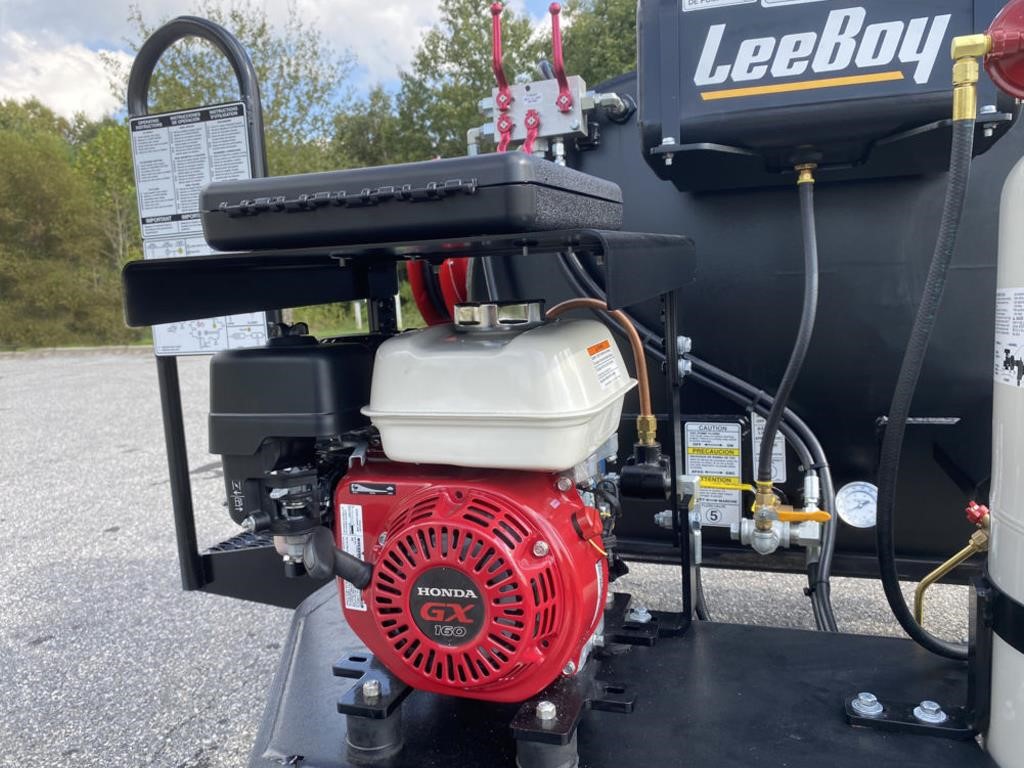

ENGINE

• 4.8 HP (3.6 kw) Honda

• 1 gallon (3.79 l) fuel tank

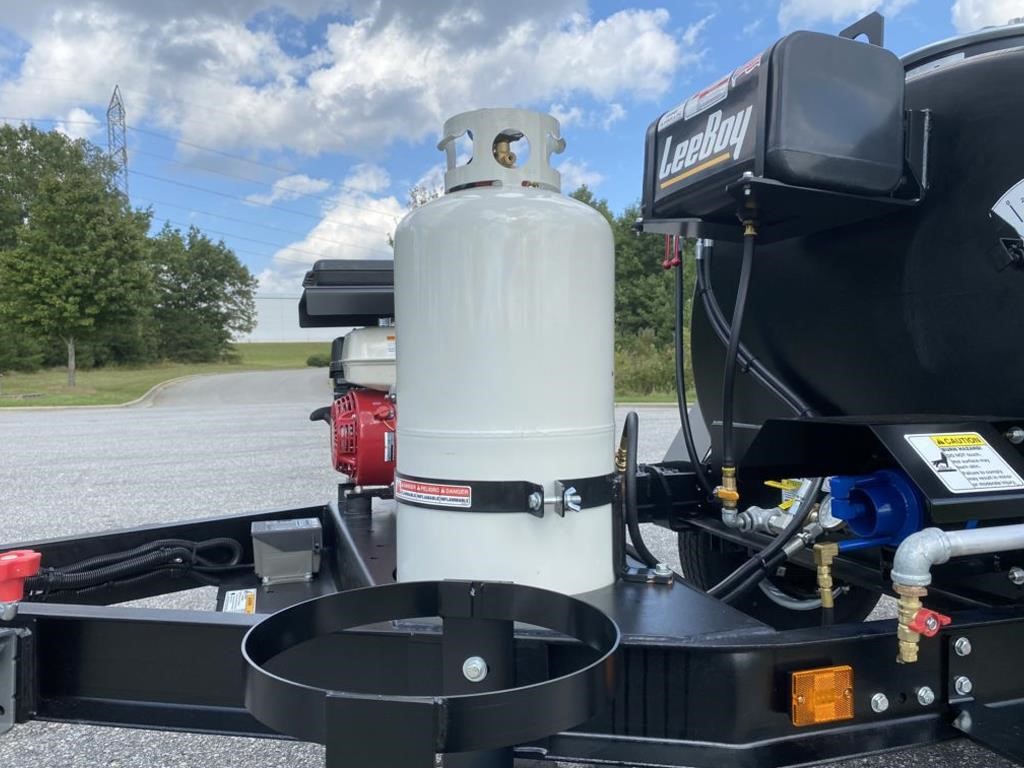

HEAT SYSTEM

• One 300,000 BTU propane burner

• One starter burner

• 40 lbs (18.1 kg) propane fuel tank

ASPHALT PUMP

Specially designed 7 gallons per minute (26.5 lmp) pump

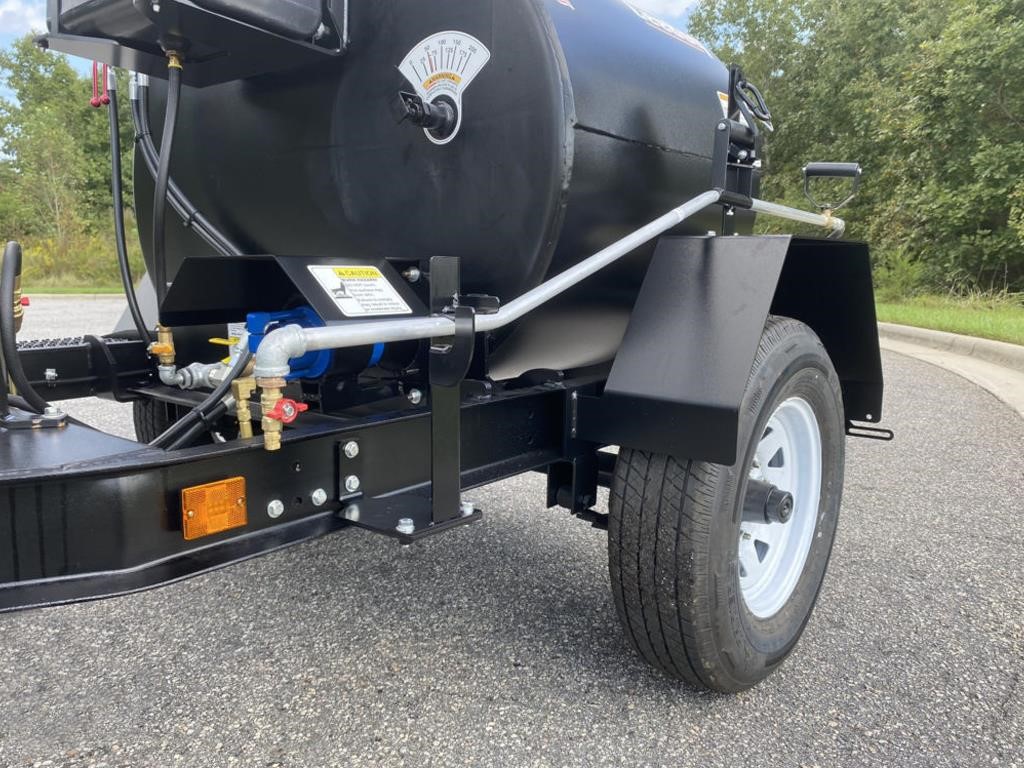

TEMPERATURE GAUGE

• 50 – 300⁰ F (10 – 149⁰ C)

• Adjustable angle face plate

FLUSH TANK

7 gallons (26.5 l) tank with suck back valve

HOSE AND REEL

.5” x 40’ (13 mm x 12.192 m) heavy-duty recoil hose reel

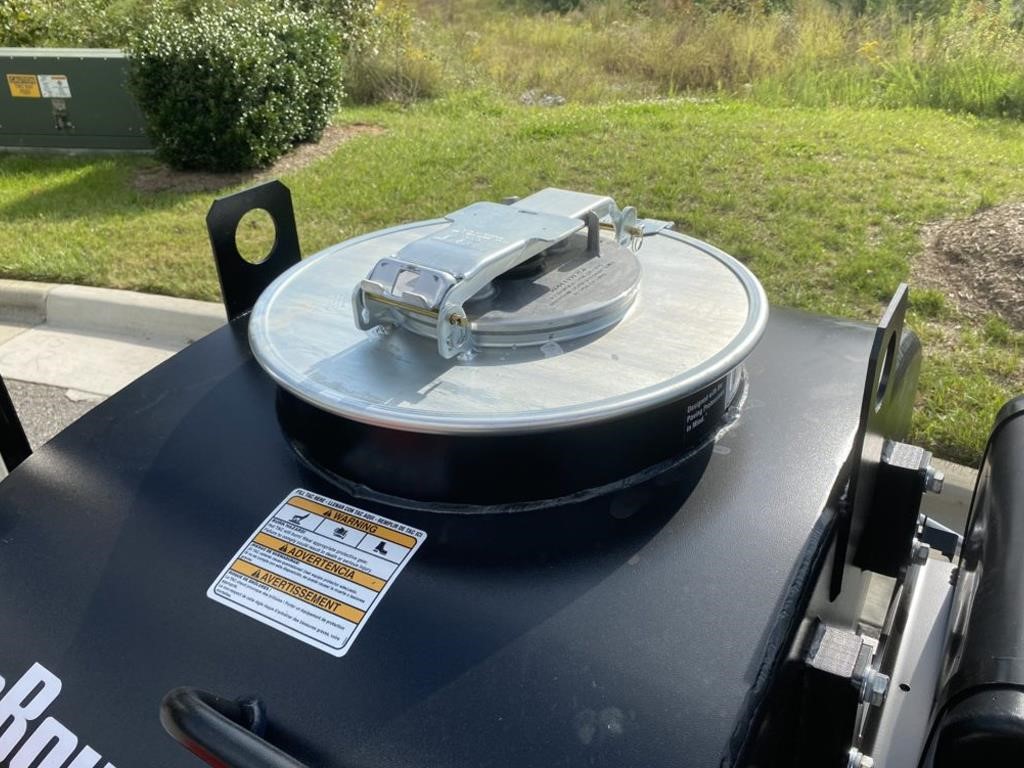

MANHOLE

• 20″ (508 mm) diameter

• 10″ (254 mm) diameter fill hose

• 3 osi (2.1 bar) pressure relief

WAND

• 6’ (1.829 m) wand with cold handles

• On/off valve

• Removable spray tip

CLEAN OUT

4” (102 mm)

SAMPLING VALVE

1” (25 mm)

ADDITIONAL STANDARD EQUIPMENT

• Waste bucket mount (trailer only)

• 1” rear tank return

• 2” in-tank overflow

OPTIONAL EQUIPMENT

ENGINES

• Honda gas – 4.8 hp (3.6 kW) electric start

• Hatz diesel – 7.2 hp (5.4 kW) pull start or electric start

• Fuel: 1.32 gallons (5.0 l)

HEAT SYSTEMS

• Diesel Burner – One 300,000 BTU diesel burner (only available with electric start engines), 7 gallon (26.5 l) fuel tank, Auto ignition diesel burner with outfire

• Overnight Heat – 120 volt/1500 watt, Immersion element

SPRAY BAR

• Spray width: 12’ (3.65 m)

• Spray Bar Controls: In-truck wireless remote controls (requires spray bar option)

• Spray bar lift with wireless remote control

Insulated Tank

2-5/16” ball hitch

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
