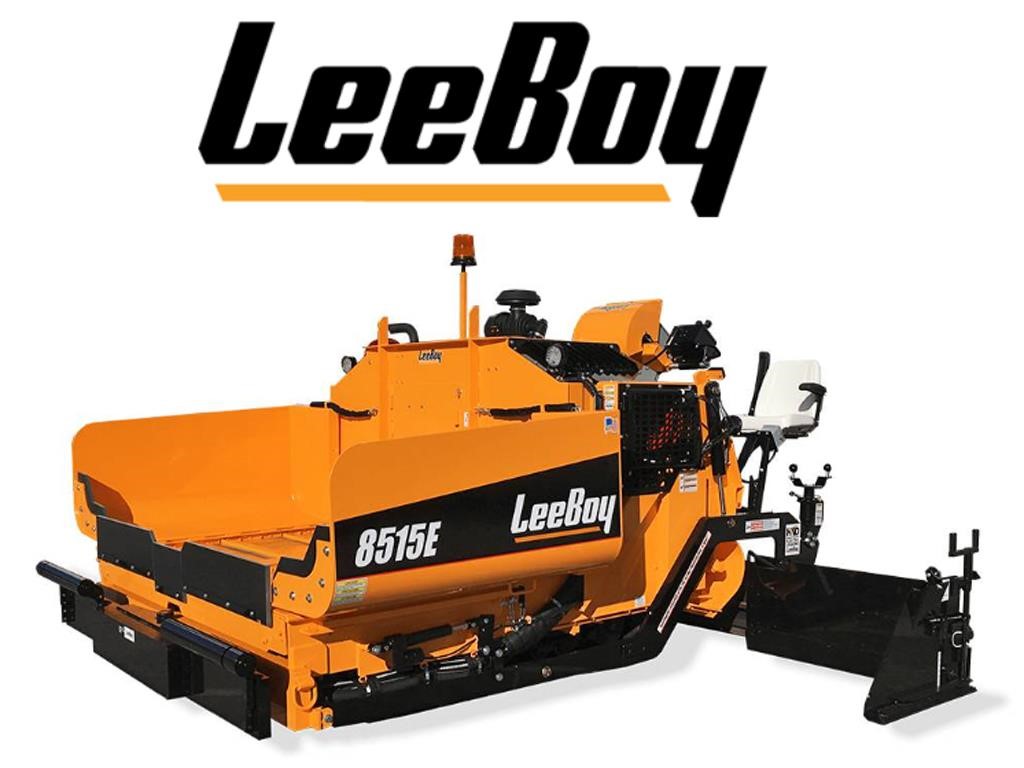

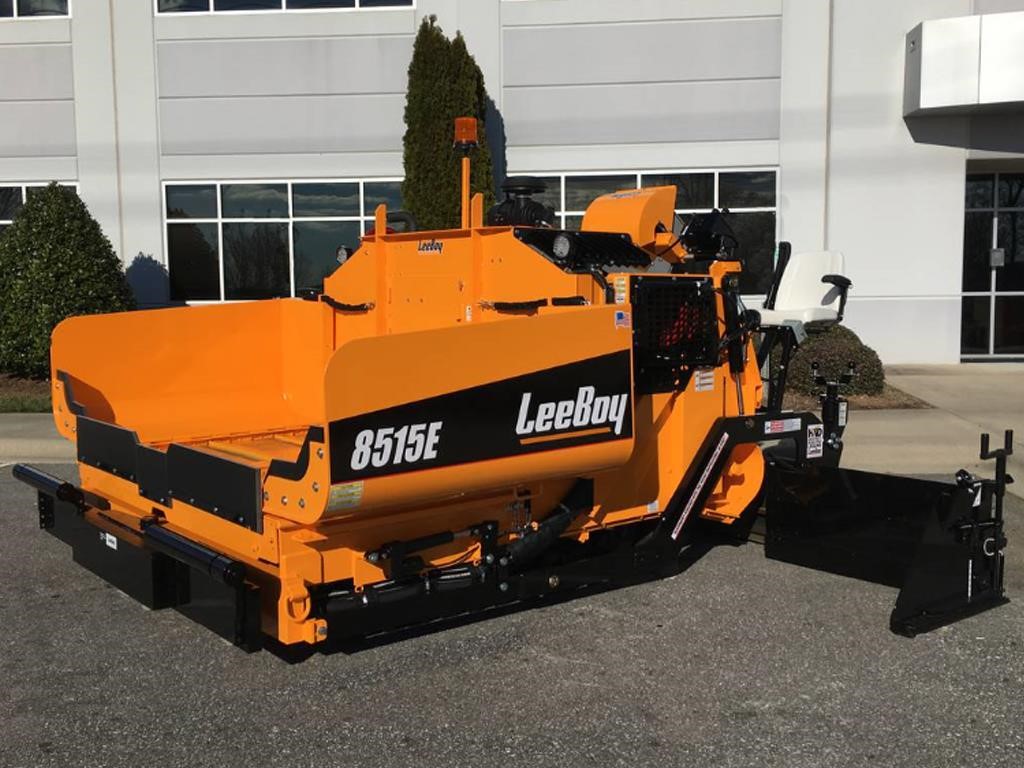

LeeBoy 8515E

LEEBOY 8515E — ASPHALT PAVERS

Sleek, modern and low-profile are three words that immediately come to mind when evaluating the LeeBoy 8515E Asphalt Paver. Featuring an engine hood height of 69 inches (1.75 m) and a sliding control station, the 8515E gives the operator an extremely clear and comfortable view of their surroundings. With a class-leading tunnel size and self-cleaning conveyor bars, this machine is built to perform at the highest level. Easy-to-access, convenient maintenance areas are also a highlight of machine ownership.

PERFORMANCE FEATURES

• 74 hp (48 kw) Kubota Tier 4 Final Diesel Engine

• Paving Widths Variable Up To 15’

• Low Profile Engine Hood For Better Visibility

• Choice of High Deck or Low Deck Configuration

• Sliding Operator Control Station

• Ultra-efficient Material Management System

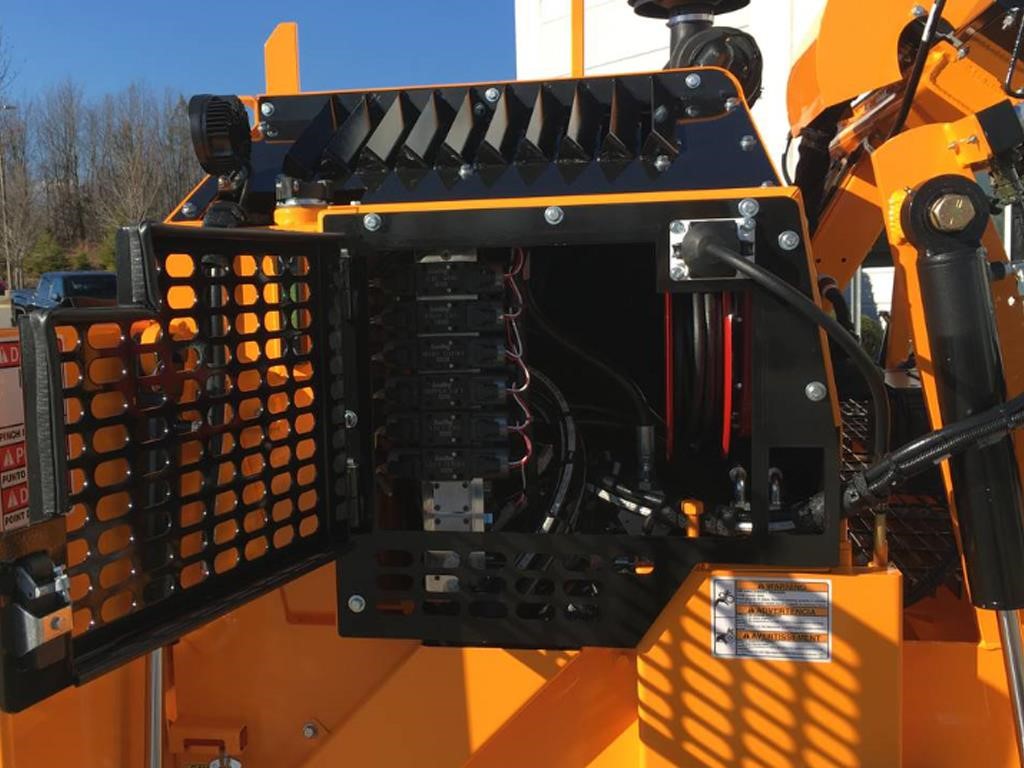

• Pressure Ports for Diagnostics and Testing

• 7.5 Ton Capacity Material Hopper

• Proven Legend Screed System

• Electric Screed Heat, 10 kw Generator

• Heavy-duty Undercarriage and Track System

ENGINE

• Kubota turbocharged diesel,

• Tier 4 Final – 74 hp (55.4 kw)

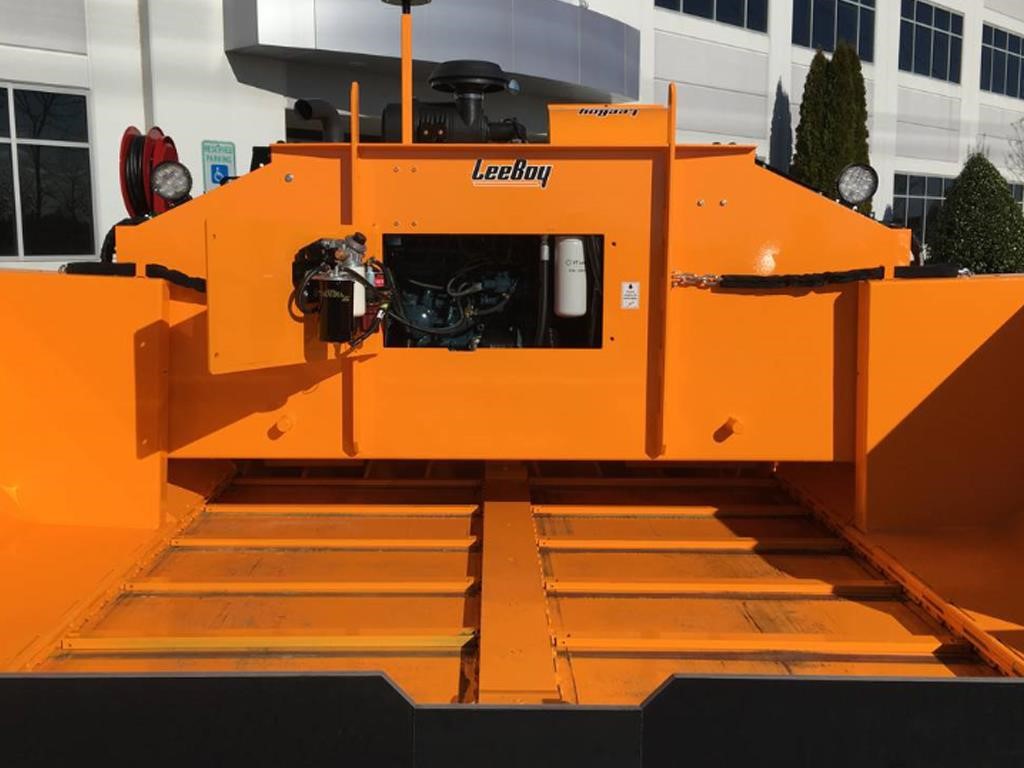

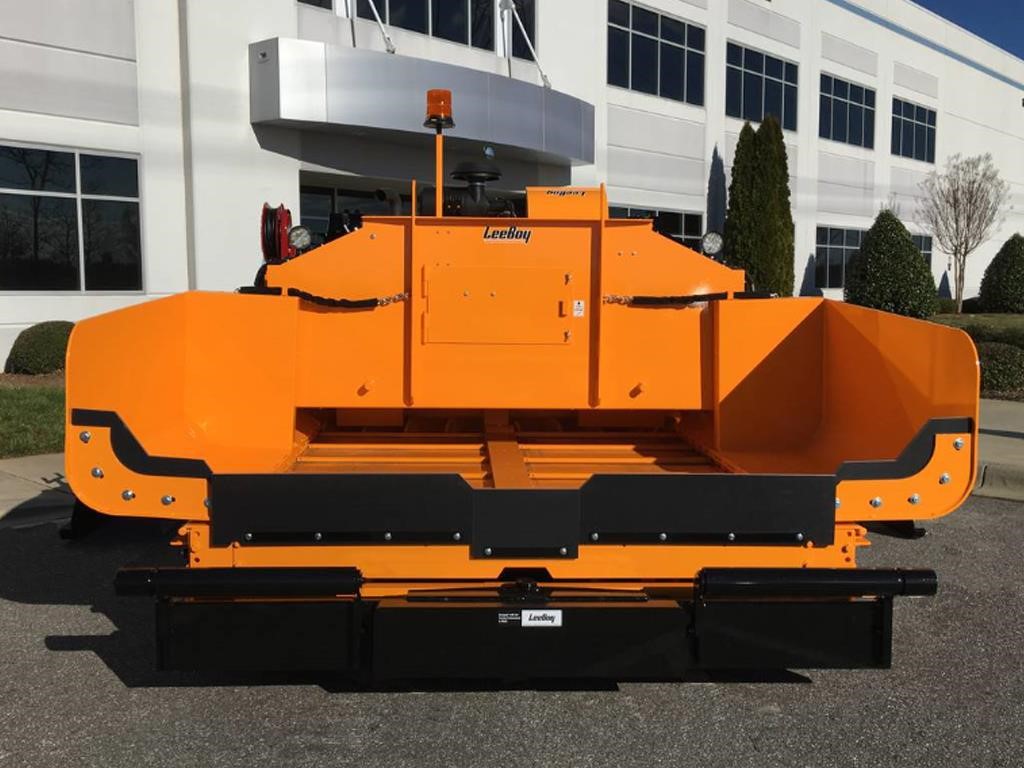

HOPPER

Hopper size: 7.5 ton

PAVING WIDTHS

Variable up to 15’

PAVING DEPTHS

• Manual flight screws positioned on the screed to control material thickness

• Depth: 0” to 6”

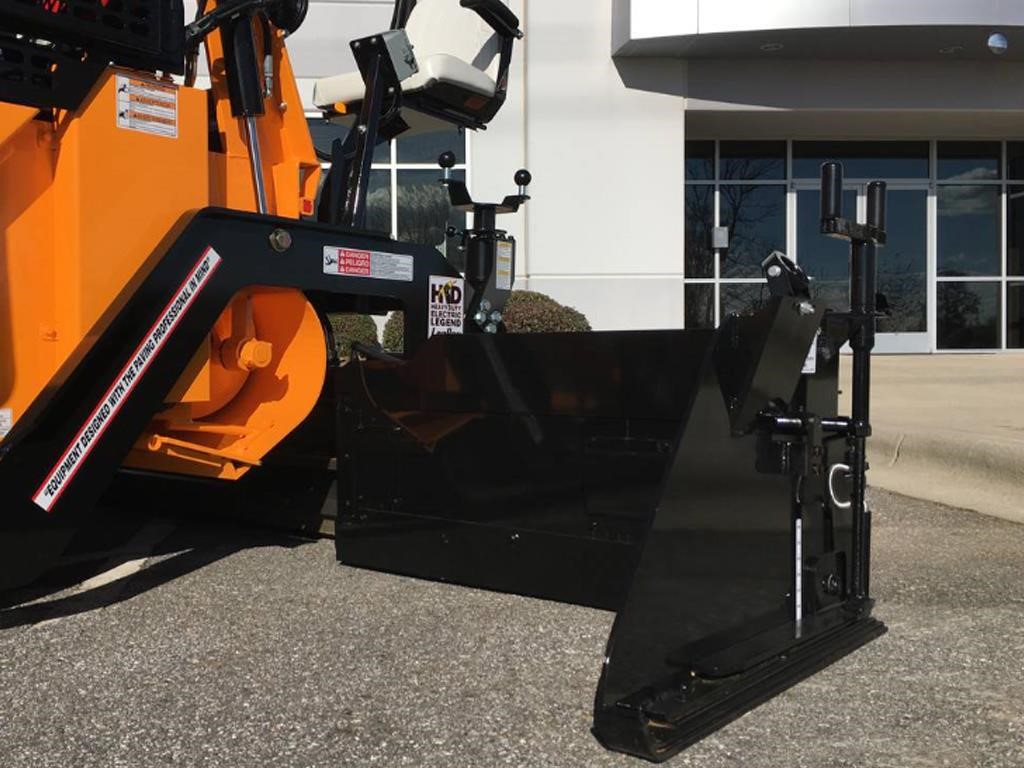

SCREED

• Legend Electric screed

• Consisting of a main screed and two hydraulically operated screed extensions

• Equipped with two electric vibrators

SCREED HEAT

• Legend electric screed heat, 10kw generator

• Electric timer and automatic RPM control system

• 2 Blade heating elements in main, 1 blade element in each extension

SCREED CROWN/VALLEY

• Equipped with a crown/invert adjustment

• Includes a levelling indicator for the operator

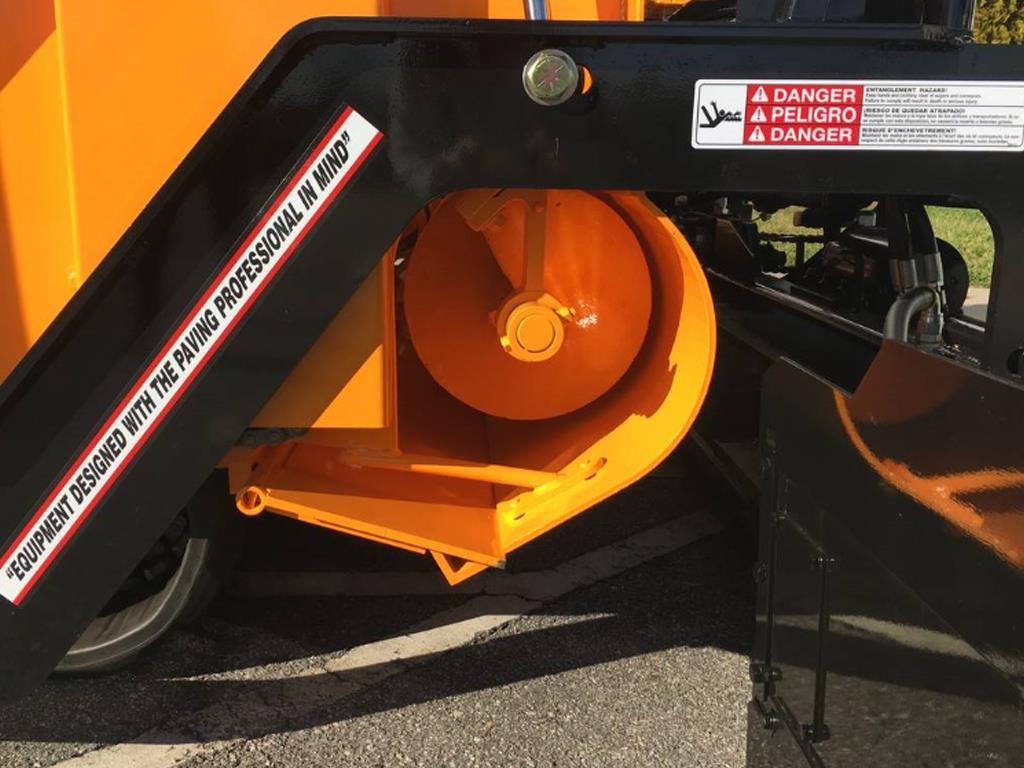

MATERIAL HANDLING

• Two independentaly controled, hydraulically operated under auger material cutoff

• Two 12” diameter independent hydraulically operated cast augers

OPERATOR’S PLATFORM

• Full machine width platform

• Walkboard extensions slide outs, left and right

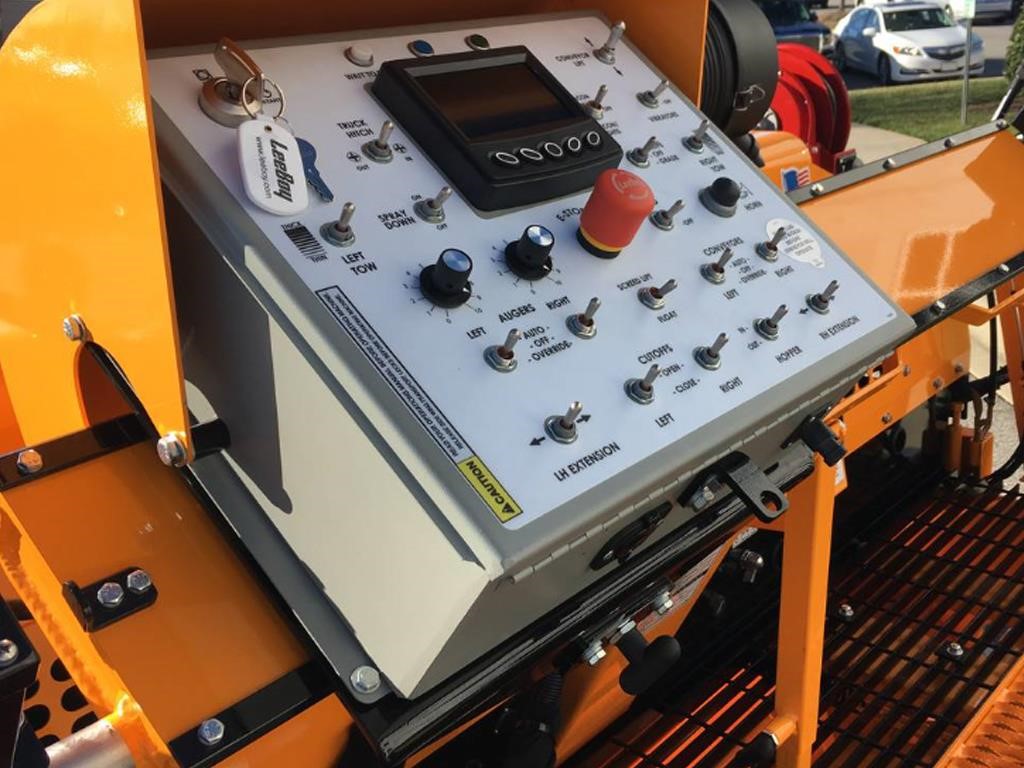

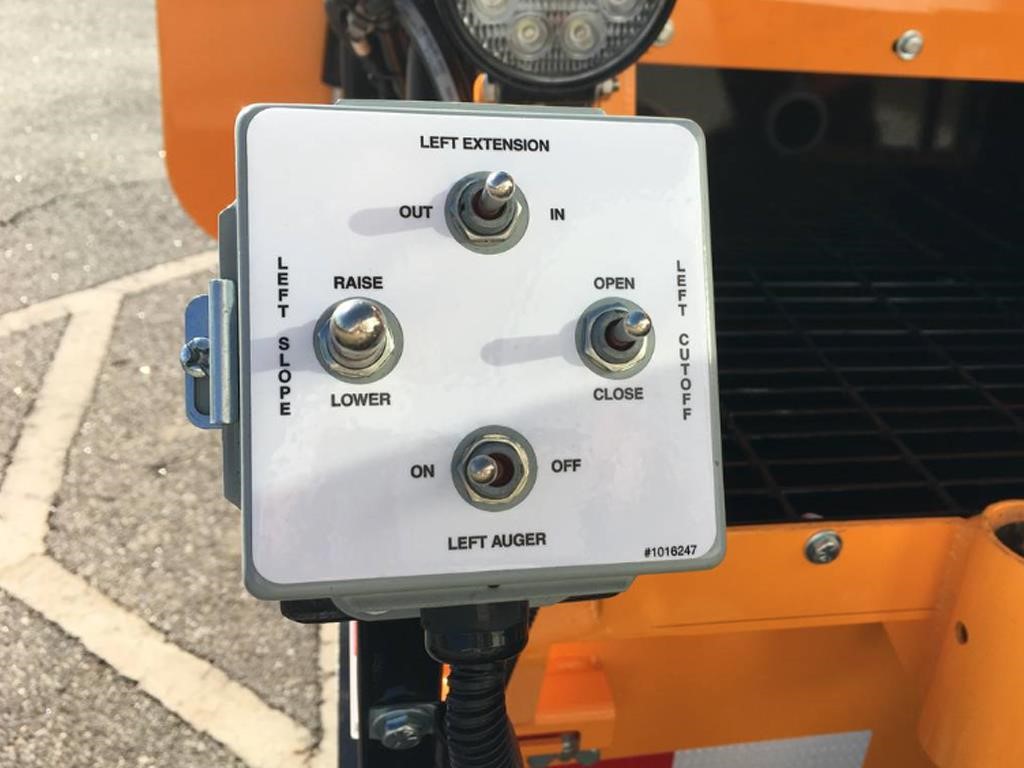

OPERATOR’S CONTROLS

All control switches are in a single control box which can be moved from right side to left side

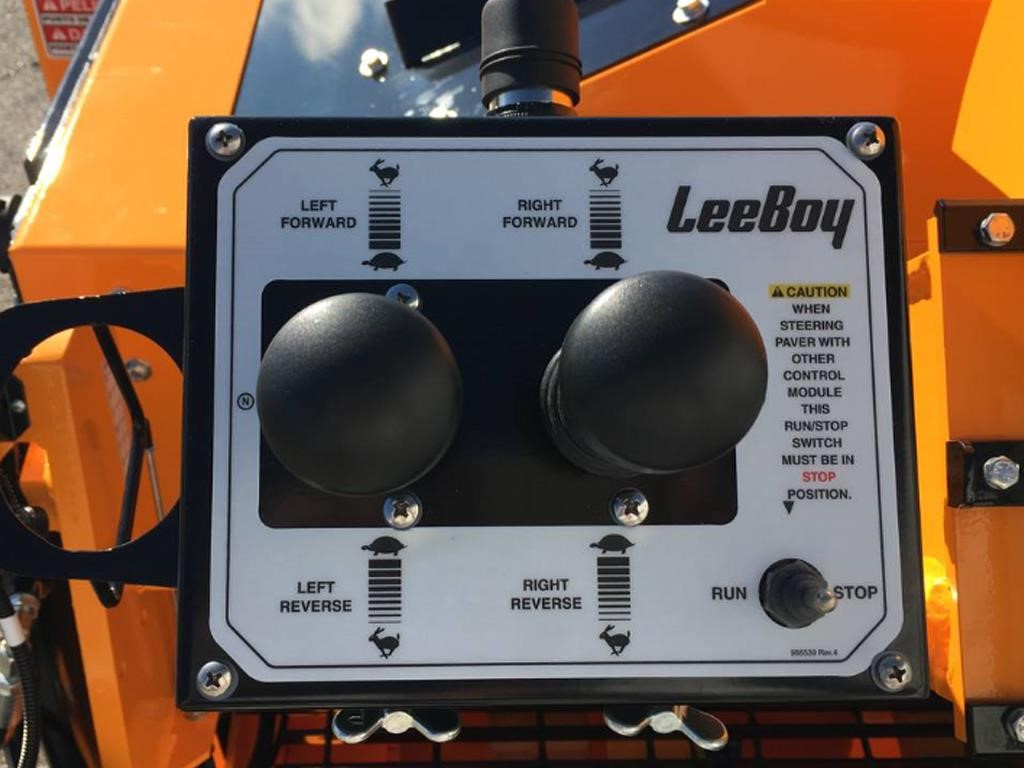

STEERING

• Dual electronic steering

• Electronically controlled pumps operated by the forward/reverse joysticks

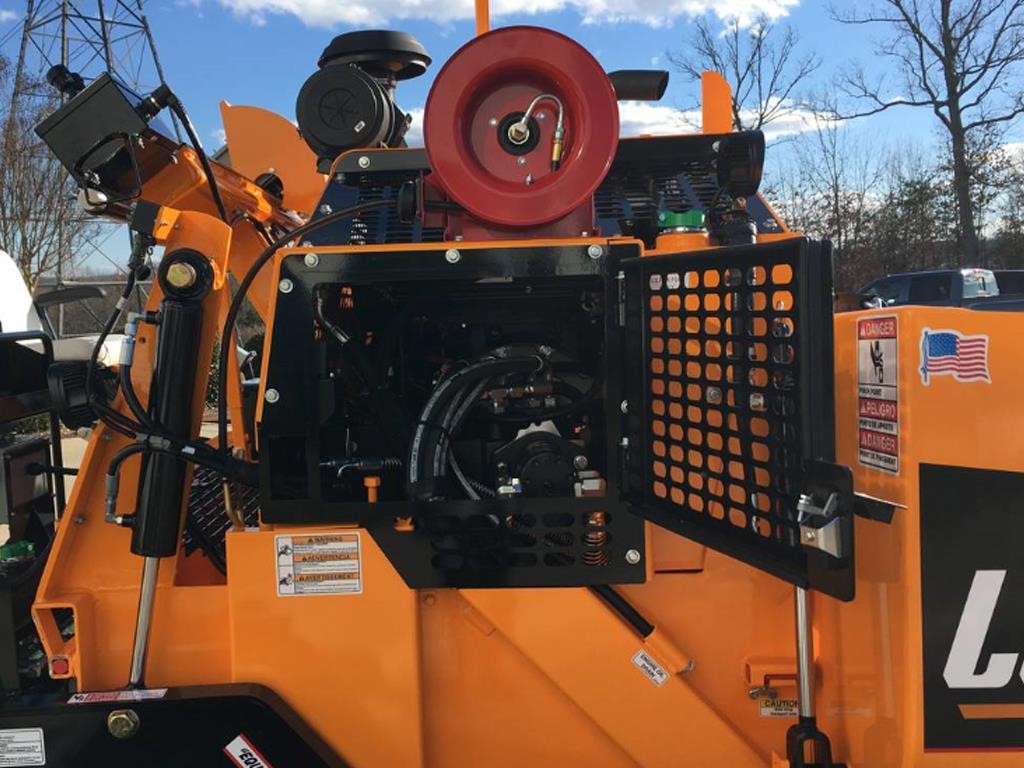

WASHDOWN SYSTEM

Electric HD pump and two hose reels

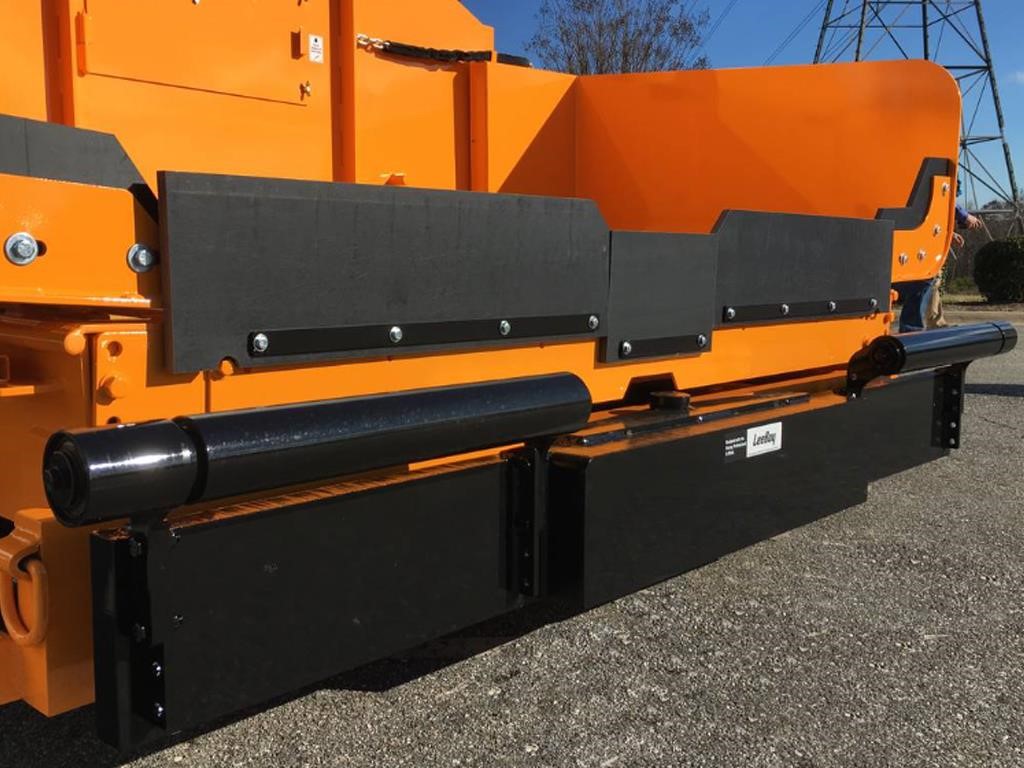

PUSH ROLLERS

Two vertically adjustable rollers with sealed bearings mounted to allow pivoting on frame.

TRACK DRIVE SYSTEM

• Hydrostatically powered, self-cleaning crawler type

• Track size: 14” wide x 77” long poly

• Paving speed: 0 to 150’ per minute (1.7 mph)

• Travel speed: 0 to 300’ per minute (3.4 mph)

ADDITIONAL STANDARD EQUIPMENT

• Back-up alarm

• LED beacon light

• LED work light package

• Vandalism protection covers

• Electronic gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, level warning)

OPTIONAL EQUIPMENT

• Legend HD Screed, 8’ to 15’, 10kw generator

• Remote screed control

• Automatic screed temperature controls

• Screed extension vibration

• Rubber track, continuous – in lieu of poly

• Steel track – in lieu of poly

• Sloping screed extensions

• Heated end gates

• Truck hitch

• Power crown

• Steering wheel drive controls (in lieu of joysticks)

• Wiring only, grade controls, includes A/M module

• Sonic grade control both sides

• Sonic grade control, one side (TopCon)

• Dual sonic grade (Topcon)

• Dual sonic grade and slope (Topcon)

• 12” x 4.5” berm extension, left and right

• Other options available

Specifications are subject to change without prior notice.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
