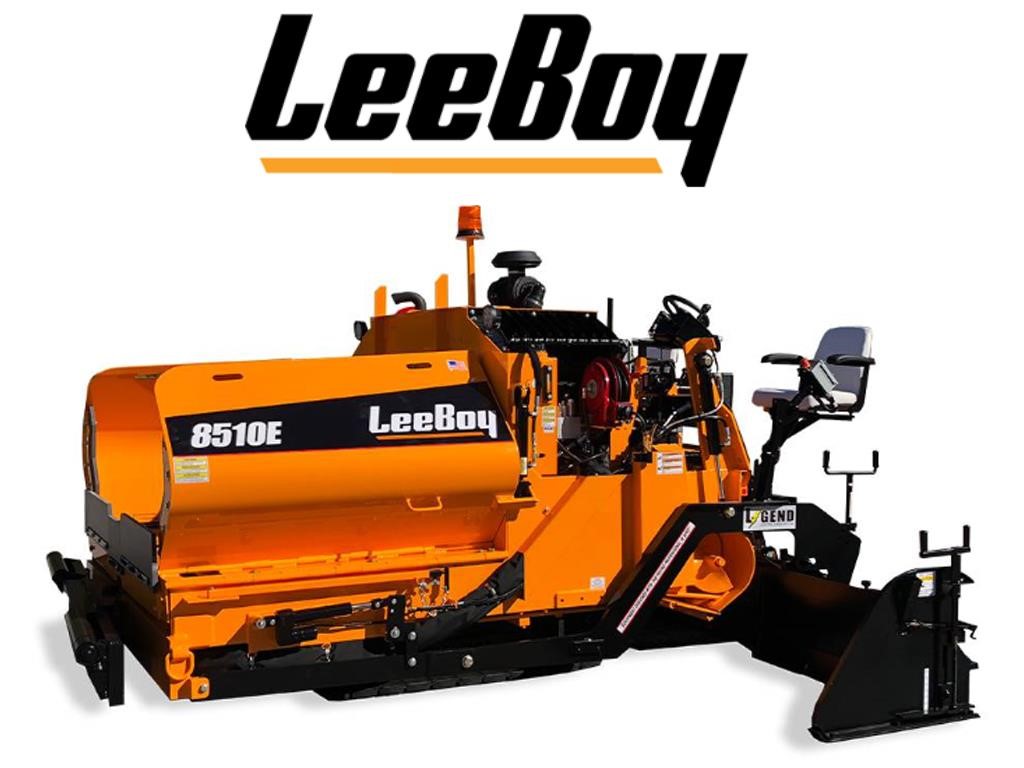

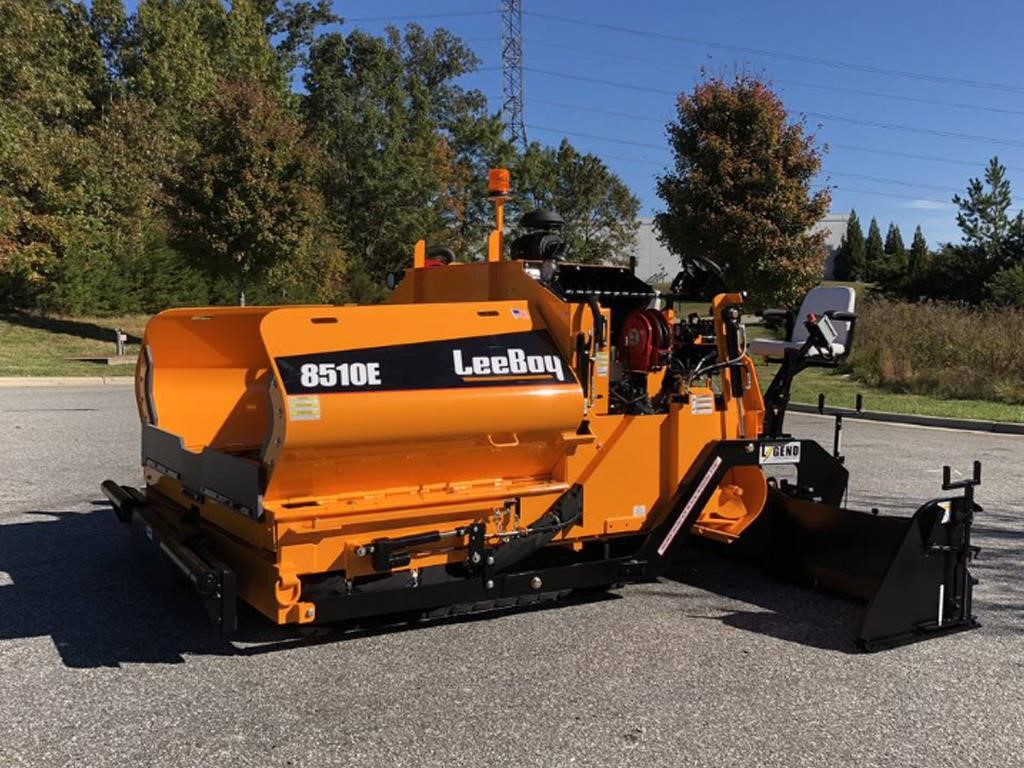

LeeBoy 8510E

LEEBOY 8510E — ASPHALT PAVERS

Serving as a staple among commercial paving contractors, the LeeBoy 8510E delivers precise asphalt placement resulting in a flawless mat. Comprised of robust components for longer wear, this asphalt paving solution is perfect for contractors seeking a lower cost per ton. Embracing a large material receiving hopper and one of the widest conveyor system on the market, this paver is meant to deliver the utmost productivity between truckloads. If you desire an all-around commercial paving machine that delivers unmatched results, the 8510E is for you.

PERFORMANCE FEATURES

• 74 hp (55 kw) Kubota Tier 4 Final Turbocharged Diesel Engine

• Paving Widths Variable Up To 15’

• Choice of High Deck or Low Deck Configuration

• Dual Lever Joystick Steering Controls (both sides)

• Ultra-efficient Material Management System

• Gauge Package for System Monitoring

• 7.5 Ton Capacity Material Hopper

• Proven Legend Screed System

• Electric Screed Heat, 10 kw Generator

• LED Operating Light Package

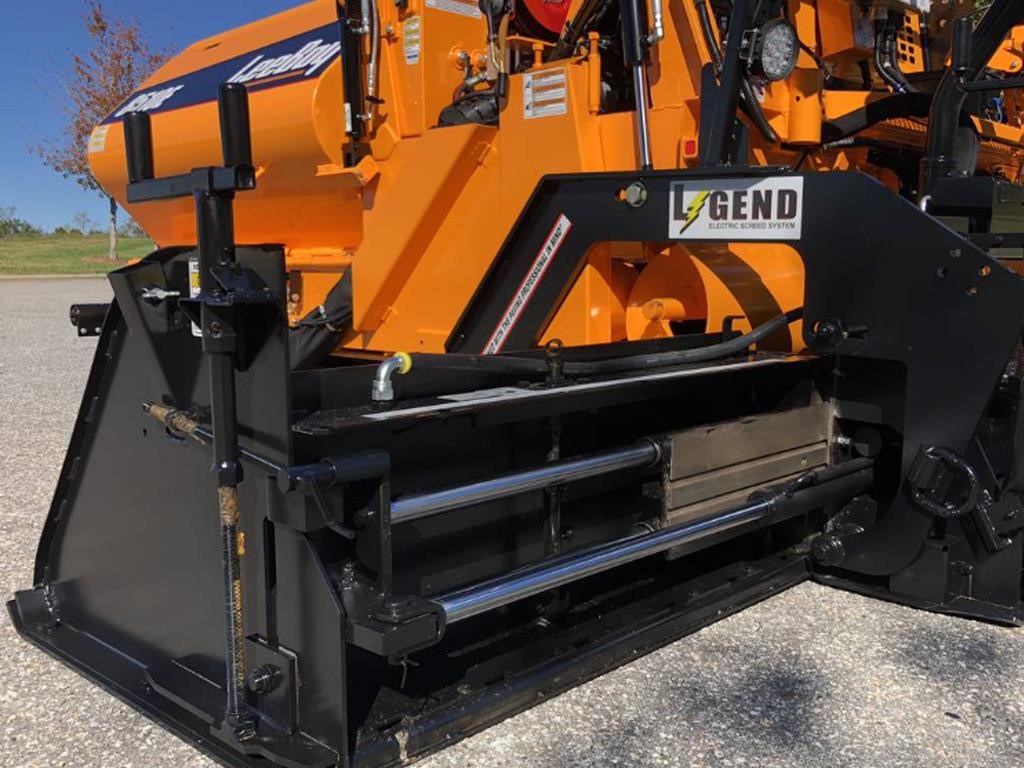

SCREED

• Legend Electric screed

• Consisting of a main screed and two hydraulically operated screed extensions

• Equipped with two electric vibrators

SCREED HEAT

• Legend electric screed heat, 10kw generator

• Electric timer and automatic RPM control system

• 2 Blade heating elements in main, 1 blade element in each extension

SCREED CROWN/VALLEY

• Equipped with a crown/invert adjustment

• Includes a levelling indicator for the operator

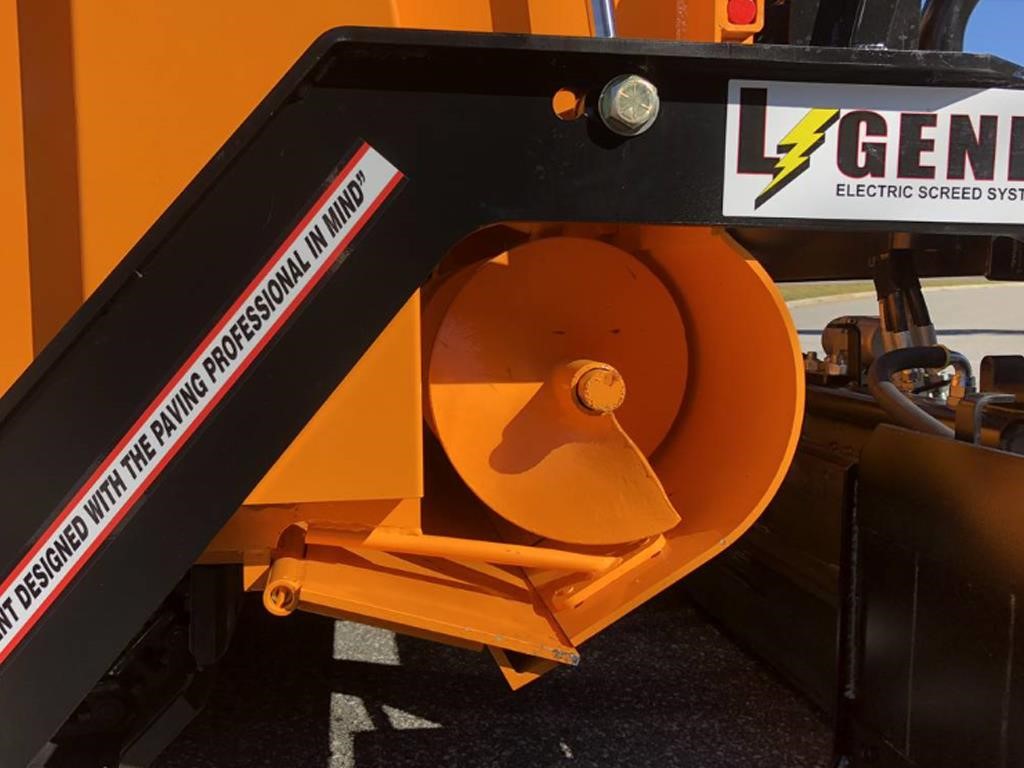

MATERIAL HANDLING

• Two independentaly controled, hydraulically operated under auger material cutoff

• Two 12” diameter independent hydraulically operated cast augers

OPERATOR’S PLATFORM

• High Deck: Seats mounted on tractor

• Low Deck: Seats mounted on screed

• Walkboard extensions slide outs, left and right

OPERATOR’S CONTROLS

• All control levers are on left side

• Right side levers include screed raise/float, left and right cutoffs, hopper wings, and right screed extension

STEERING

• Dual electronic steering

• Electronically controlled pumps operated by the forward/reverse joysticks

WASHDOWN SYSTEM

Electric pump with two hose reels

PUSH ROLLERS

Two rollers with sealed bearings mounted to allow pivoting on frame

TRACK DRIVE SYSTEM

• Hydrostatically powered, self-cleaning crawler type

• Track size: 14” wide x 77” long poly

• Paving speed: 0 to 150’ per minute (1.5 mph)

• Travel speed: 0 to 300’ per minute (3.2 mph)

ADDITIONAL STANDARD EQUIPMENT

• Back-up alarm

• LED beacon light

• LED work light package

• Glow plugs

• Vandalism protection covers

• Horn

OPTIONAL EQUIPMENT

• Legend HD Screed, 8’ to 15’

• Screed extension vibration

• Automatic screed temperature control

• Heated endgates

• Slope meter

• Horizontal flight screws

• 3:1 flight screw adjusters

• Single point lube system, screed

• Rubber track continuous, in lieu of poly

• Steel track, in lieu of poly

• High deck configuration

• Steering wheel drive controls, in lieu of joysticks

• Truck hitch

• Wiring only, grade controls (TopCon)

• Sonic grade control, one side (TopCon)

• Dual grade control (TopCon)

• Dual grade and slope (TopCon)

• 12”x 4.5” berm extension, left & righ

Specifications are subject to change without prior notice.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
