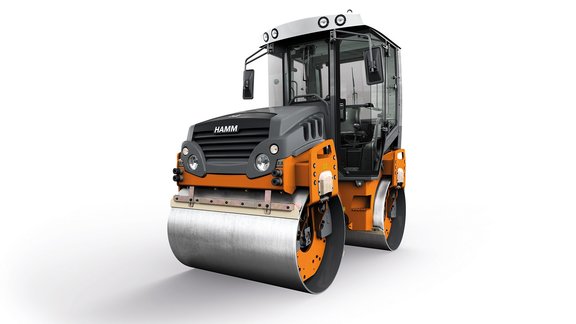

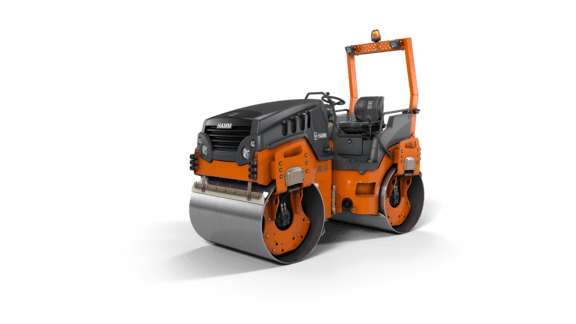

Hamm HD 14i VO
-

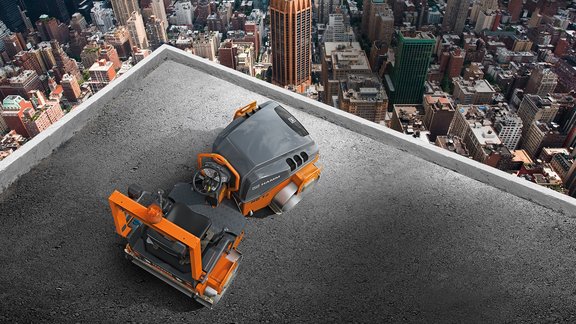

Excellent view of drum edge, machine and construction site environment
-
Ergonomic driver platform
-
Simple, intuitive and language-neutral control
-

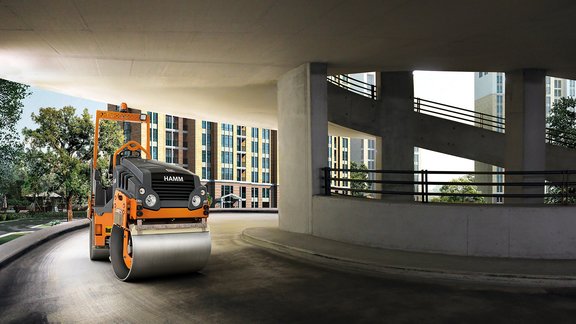

Compact dimensions
-
Compaction with oscillation
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Oscillation
In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.
| OSCILLATION - Tangential amplitude, rear, II: | 0.054 in |
|---|---|
| MACHINE DIMENSIONS - Maximum working width: | 56.3 in |
| VIBRATION - Centrifugal force, front, I: | 14,400 lbs |
| DRUM DIMENSIONS - Drum diameter, front: | 35.4 in |
| DIESEL ENGINE - Manufacturer: | KUBOTA |
| WEIGHTS - Operating weight with cab: | 10,551 lbs |
| MACHINE DIMENSIONS - Total height with ROPS: | 102 in |
| MACHINE DIMENSIONS - Total width: | 59.3 in |
| MACHINE DIMENSIONS - Total length: | 116.7 in |
| DRUM DIMENSIONS - Drum width, rear: | 54.3 in |
| DIESEL ENGINE - Power ISO 14396, rpm: | 2,700 rpm |
| DIESEL ENGINE - Model: | V2403-CR-E5B |
| VIBRATION - Amplitude, front, I: | 0.02 in |
| DRUM DIMENSIONS - Drum type, rear: | Smooth/non-split |
| MACHINE DIMENSIONS - Ground clearance, center: | 12 in |
| WEIGHTS - Static linear load, rear: | 92.4 |
| DRUM DIMENSIONS - Track offset, right: | 2 in |
| TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: | 19.3 gal |
| OSCILLATION - Tangential amplitude, rear, I: | 0.054 in |
| DIESEL ENGINE - Exhaust gas after-treatment: | DOC-DPF |
| VIBRATION - Vibration frequency, front, I: | 3,600 VPM |
| WEIGHTS - Empty weight without cab, without ROPS: | 9,294 lbs |
| STEERING - Oscillation angle +/-: | 8 ° |
| DRUM DIMENSIONS - Drum width, front: | 54.3 in |
| OSCILLATION - Oscillation frequency, rear, II: | 1,800 VPM |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 75.3 gal |
| DIESEL ENGINE - Power SAE J1995, HP: | 50.1 hp |
| VIBRATION - Amplitude, front, II: | 0.012 in |
| DIESEL ENGINE - Power SAE J1995, kW: | 37.4 kW |
| BASIC DATA - Exhaust emissions category: | EU Stage V / EPA Tier 4 |
| WEIGHTS - Axle load, front: | 4,961 lbs |
| DRUM DIMENSIONS - Drum thickness, front: | 0.6 in |
| WEIGHTS - Static linear load, front: | 91.3 lbs/in |
| TRAVEL DRIVE - Climbing ability, with vibration: | 30 |
| DRUM DIMENSIONS - Track offset, left: | 0 in |
| DRUM DIMENSIONS - Drum diameter, rear: | 35.4 in |
| DIESEL ENGINE - Power SAE J1995, rpm: | 2,700 rpm |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| VIBRATION - Centrifugal force, front, II: | 8,775 lbs |
| OSCILLATION - Oscillation frequency, rear, I: | 2,340 VPM |
| BASIC DATA - Name: | HD 14i VO |
| OSCILLATION - Oscillation force, rear, I: | 16,200 lbs |
| DIESEL ENGINE - Cylinders, quantity: | 4 |
| DRUM DIMENSIONS - Drum type, front: | Smooth/non-split |
| DIESEL ENGINE - Power ISO 14396, kW: | 36.8 kW |
| DIESEL ENGINE - Power ISO 14396, HP: | 50 HP |
| TRAVEL DRIVE - Climbing ability, without vibration: | 40 % |
| OSCILLATION - Oscillation force, rear, II: | 9,675 lbs |
| MACHINE DIMENSIONS - Turning radius, inside: | 104.3 in |
| SOUND LEVEL - Sound power level L(WA), guaranteed: | 106 |
| WEIGHTS - Operating weight with ROPS: | 10,000 lbs |
| WEIGHTS - Axle load, rear: | 5,027 lbs |
| STEERING - Steering, type: | Articulated steering |
| BASIC DATA - Series: | HD CompactLine |
| BASIC DATA - Description: | Tandem roller with vibration and oscillation drum |
| MACHINE DIMENSIONS - Center distance: | 76.8 in |
| VIBRATION - Vibration frequency, front, II: | 3,060 VPM |
| DIESEL ENGINE - Exhaust emission standard: | EU Stage V / EPA Tier 4 |
| TRAVEL DRIVE - Speed, infinitely variable: | 0,0 - 6,8 |
| MACHINE DIMENSIONS - Total height with cab: | 107.1 in |
| SOUND LEVEL - Acoustic power LW(A), measured: | 102 db(A) |
| DRUM DIMENSIONS - Drum thickness, rear: | 0.6 in |
