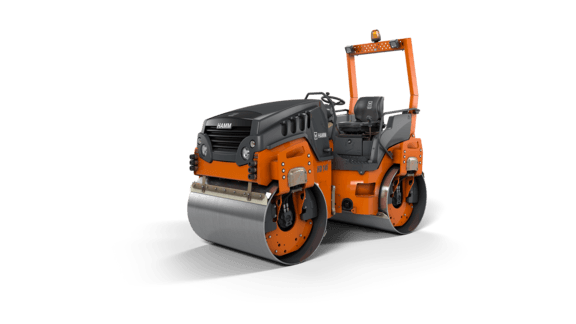

Hamm HD 13i VV
Find Out More
-
Simple transport, simple loading
-

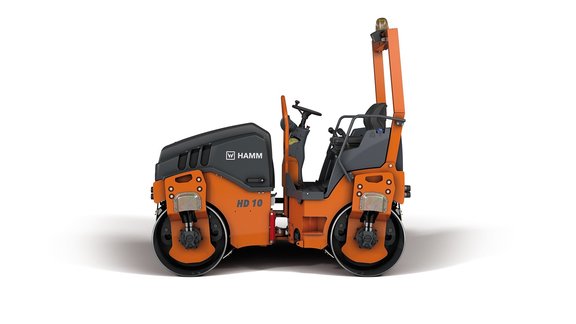

Compact dimensions
-

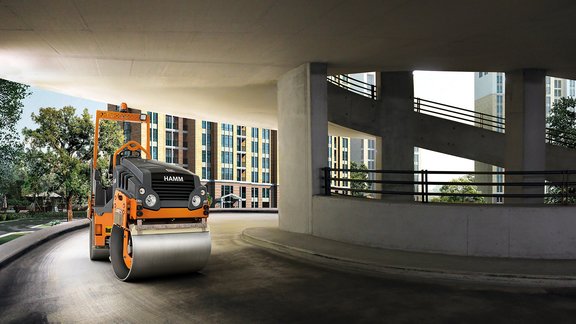

Excellent view of drum edge, machine and construction site environment
-

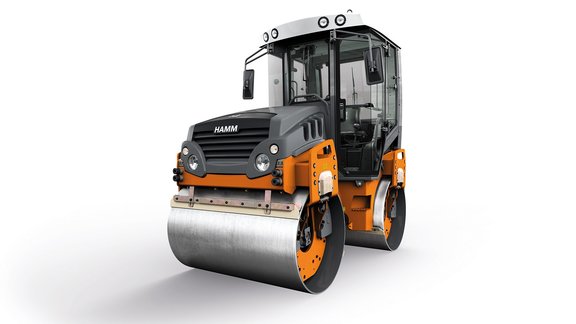

Ergonomic driver platform
-
Simple, intuitive and language-neutral control
| WEIGHTS - Empty weight without cab, without ROPS: | 8,478 lbs |
|---|---|
| DIESEL ENGINE - Manufacturer: | KUBOTA |
| WEIGHTS - Static linear load, rear: | 87.9 |
| DRUM DIMENSIONS - Drum width, front: | 51.2 in |
| MACHINE DIMENSIONS - Ground clearance, center: | 12 in |
| DRUM DIMENSIONS - Drum thickness, rear: | 0.7 in |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 75.3 gal |
| VIBRATION - Centrifugal force, front, I: | 14,400 lbs |
| DIESEL ENGINE - Power ISO 14396, HP: | 50 HP |
| VIBRATION - Centrifugal force, rear, I: | 14,400 lbs |
| WEIGHTS - Axle load, rear: | 4,509 lbs |
| MACHINE DIMENSIONS - Maximum working width: | 53.1 in |
| DRUM DIMENSIONS - Drum diameter, front: | 35.4 in |
| DIESEL ENGINE - Exhaust gas after-treatment: | DOC-DPF |
| VIBRATION - Vibration frequency, rear, II: | 3,060 VPM |
| DIESEL ENGINE - Power SAE J1995, HP: | 50.1 hp |
| VIBRATION - Vibration frequency, rear, I: | 3,600 VPM |
| TRAVEL DRIVE - Climbing ability, with vibration: | 30 |
| SOUND LEVEL - Sound power level L(WA), guaranteed: | 106 |
| TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: | 19.3 gal |
| DRUM DIMENSIONS - Drum width, rear: | 51.2 in |
| STEERING - Steering, type: | Articulated steering |
| BASIC DATA - Name: | HD 13i VV |
| SOUND LEVEL - Acoustic power LW(A), measured: | 102 db(A) |
| VIBRATION - Amplitude, front, II: | 0.012 in |
| DIESEL ENGINE - Power ISO 14396, rpm: | 2,700 rpm |
| DRUM DIMENSIONS - Track offset, left: | 0 in |
| VIBRATION - Centrifugal force, rear, II: | 8,775 lbs |
| DIESEL ENGINE - Cylinders, quantity: | 4 |
| WEIGHTS - Operating weight with cab: | 9,735 lbs |
| MACHINE DIMENSIONS - Turning radius, inside: | 105.9 in |
| STEERING - Oscillation angle +/-: | 8 ° |
| DIESEL ENGINE - Power SAE J1995, kW: | 37.4 kW |
| BASIC DATA - Exhaust emissions category: | EU Stage V / EPA Tier 4 |
| DIESEL ENGINE - Power SAE J1995, rpm: | 2,700 rpm |
| WEIGHTS - Operating weight with ROPS: | 9,184 lbs |
| DRUM DIMENSIONS - Drum type, rear: | Smooth/non-split |
| TRAVEL DRIVE - Speed, infinitely variable: | 0,0 - 6,8 |
| DIESEL ENGINE - Exhaust emission standard: | EU Stage V / EPA Tier 4 |
| WEIGHTS - Axle load, front: | 4,675 lbs |
| DIESEL ENGINE - Power ISO 14396, kW: | 36.8 kW |
| MACHINE DIMENSIONS - Center distance: | 76.8 in |
| MACHINE DIMENSIONS - Total height with ROPS: | 102 in |
| WEIGHTS - Static linear load, front: | 91.3 lbs/in |
| VIBRATION - Centrifugal force, front, II: | 8,775 lbs |
| DRUM DIMENSIONS - Drum type, front: | Smooth/non-split |
| BASIC DATA - Series: | H285 |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| MACHINE DIMENSIONS - Total height with cab: | 107.1 in |
| DIESEL ENGINE - Model: | V2403-CR-E5B |
| VIBRATION - Vibration frequency, front, I: | 3,600 VPM |
| VIBRATION - Vibration frequency, front, II: | 3,060 VPM |
| MACHINE DIMENSIONS - Total length: | 116.7 in |
| DRUM DIMENSIONS - Drum thickness, front: | 0.7 in |
| TRAVEL DRIVE - Climbing ability, without vibration: | 40 % |
| MACHINE DIMENSIONS - Total width: | 56.1 in |
| VIBRATION - Amplitude, rear, I: | 0.02 in |
| DRUM DIMENSIONS - Track offset, right: | 2 in |
| BASIC DATA - Description: | Tandem roller with two vibrating roller drums |
| VIBRATION - Amplitude, front, I: | 0.02 in |
| VIBRATION - Amplitude, rear, II: | 0.012 in |
| DRUM DIMENSIONS - Drum diameter, rear: | 35.4 in |
