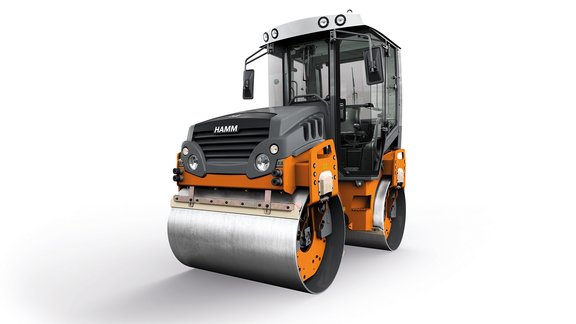

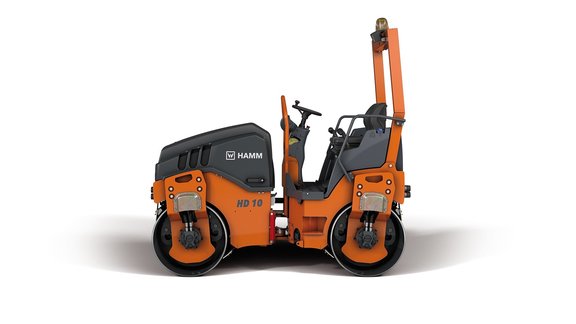

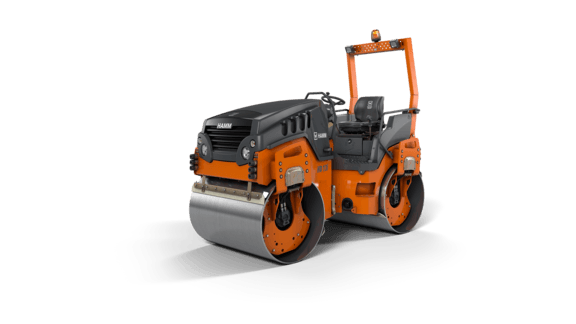

Hamm HD 13i VO
-
Ergonomic driver platform
-
Compaction with oscillation
-
Simple, intuitive and language-neutral control
-
Compact dimensions
-
Excellent view of drum edge, machine and construction site environment

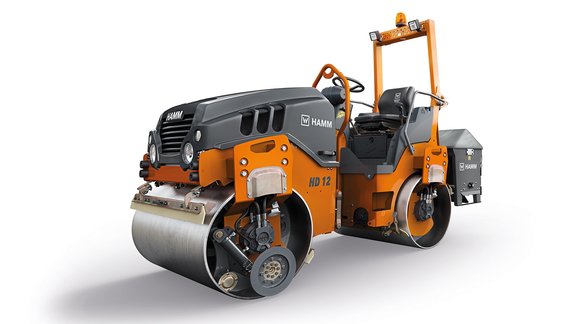

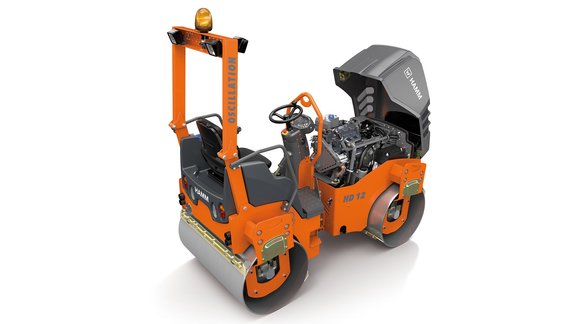

Oscillation
In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
| BASIC DATA - Exhaust emissions category: | EU Stage V / EPA Tier 4 |
|---|---|
| WEIGHTS - Operating weight with cab: | 9,889 lbs |
| DIESEL ENGINE - Exhaust emission standard: | EU Stage V / EPA Tier 4 |
| SOUND LEVEL - Acoustic power LW(A), measured: | 102 db(A) |
| DIESEL ENGINE - Power ISO 14396, HP: | 50 HP |
| WEIGHTS - Static linear load, rear: | 91.3 |
| STEERING - Oscillation angle +/-: | 8 ° |
| DIESEL ENGINE - Power SAE J1995, kW: | 37.4 kW |
| DIESEL ENGINE - Exhaust gas after-treatment: | DOC-DPF |
| MACHINE DIMENSIONS - Center distance: | 76.8 in |
| MACHINE DIMENSIONS - Total height with ROPS: | 102 in |
| DIESEL ENGINE - Power ISO 14396, kW: | 36.8 kW |
| OSCILLATION - Oscillation force, rear, I: | 16,200 lbs |
| DRUM DIMENSIONS - Drum type, rear: | Smooth/non-split |
| MACHINE DIMENSIONS - Total height with cab: | 107.1 in |
| DIESEL ENGINE - Model: | V2403-CR-E5B |
| DIESEL ENGINE - Power ISO 14396, rpm: | 2,700 rpm |
| VIBRATION - Centrifugal force, front, II: | 8,775 lbs |
| DRUM DIMENSIONS - Track offset, left: | 0 in |
| DIESEL ENGINE - Power SAE J1995, HP: | 50.1 hp |
| MACHINE DIMENSIONS - Maximum working width: | 53.1 in |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| DRUM DIMENSIONS - Drum thickness, rear: | 0.7 in |
| VIBRATION - Vibration frequency, front, II: | 3,060 VPM |
| MACHINE DIMENSIONS - Ground clearance, center: | 12 in |
| DRUM DIMENSIONS - Drum thickness, front: | 0.7 in |
| TRAVEL DRIVE - Climbing ability, with vibration: | 30 |
| DRUM DIMENSIONS - Drum diameter, front: | 35.4 in |
| TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: | 19.3 gal |
| WEIGHTS - Operating weight with ROPS: | 9,338 lbs |
| DRUM DIMENSIONS - Drum width, rear: | 51.2 in |
| WEIGHTS - Empty weight without cab, without ROPS: | 8,633 lbs |
| DRUM DIMENSIONS - Drum type, front: | Smooth/non-split |
| STEERING - Steering, type: | Articulated steering |
| TRAVEL DRIVE - Climbing ability, without vibration: | 40 % |
| DIESEL ENGINE - Cylinders, quantity: | 4 |
| WEIGHTS - Axle load, rear: | 4,664 lbs |
| OSCILLATION - Tangential amplitude, rear, II: | 0.057 in |
| OSCILLATION - Oscillation frequency, rear, I: | 2,340 VPM |
| VIBRATION - Amplitude, front, II: | 0.012 in |
| BASIC DATA - Series: | H285 |
| VIBRATION - Vibration frequency, front, I: | 3,600 VPM |
| MACHINE DIMENSIONS - Total length: | 116.7 in |
| MACHINE DIMENSIONS - Total width: | 56.1 in |
| BASIC DATA - Name: | HD 13i VO |
| OSCILLATION - Tangential amplitude, rear, I: | 0.057 in |
| SOUND LEVEL - Sound power level L(WA), guaranteed: | 106 |
| DIESEL ENGINE - Manufacturer: | KUBOTA |
| BASIC DATA - Description: | Tandem roller with vibration and oscillation drum |
| MACHINE DIMENSIONS - Turning radius, inside: | 105.9 in |
| DRUM DIMENSIONS - Drum diameter, rear: | 35.4 in |
| DRUM DIMENSIONS - Track offset, right: | 2 in |
| TRAVEL DRIVE - Speed, infinitely variable: | 0,0 - 6,8 |
| DRUM DIMENSIONS - Drum width, front: | 51.2 in |
| VIBRATION - Amplitude, front, I: | 0.02 in |
| WEIGHTS - Axle load, front: | 4,675 lbs |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 75.3 gal |
| WEIGHTS - Static linear load, front: | 91.3 lbs/in |
| OSCILLATION - Oscillation frequency, rear, II: | 1,800 VPM |
| VIBRATION - Centrifugal force, front, I: | 14,400 lbs |
| DIESEL ENGINE - Power SAE J1995, rpm: | 2,700 rpm |
| OSCILLATION - Oscillation force, rear, II: | 9,675 lbs |
