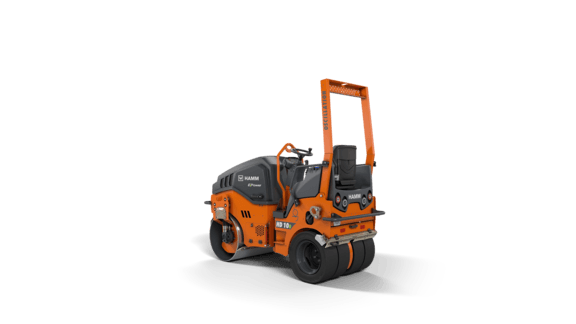

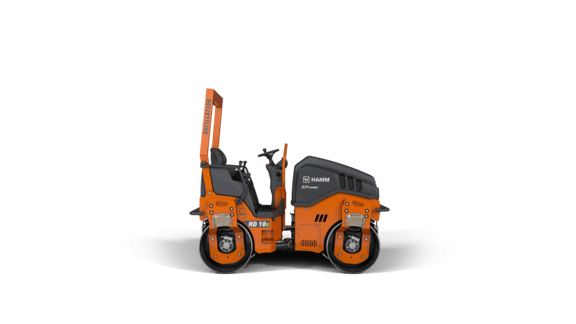

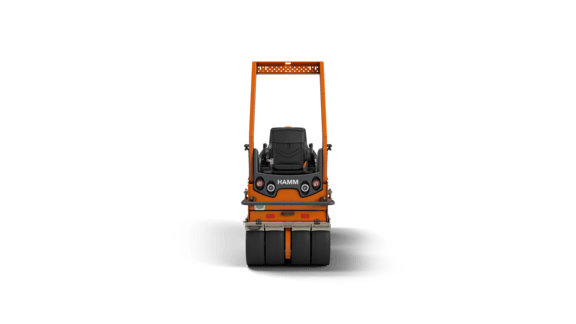

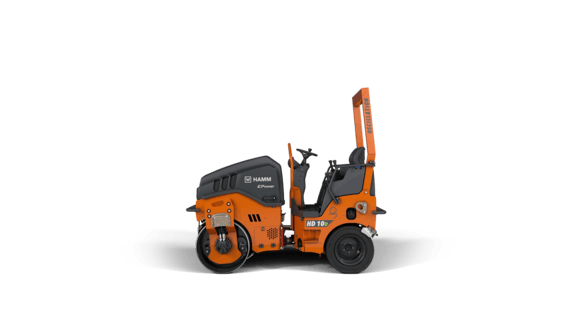

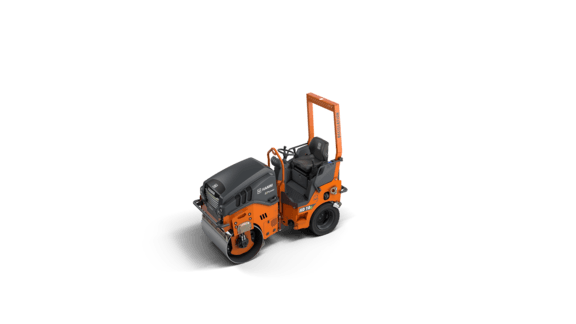

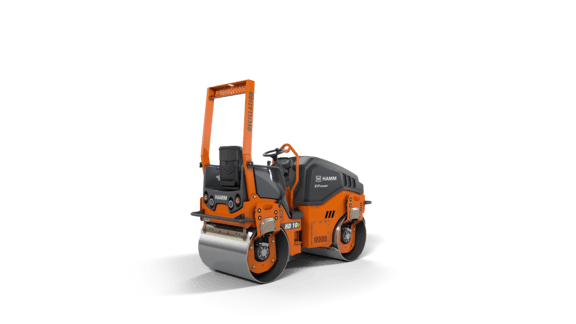

Hamm HD 12e VT
Find Out More
-
Electrical operation, with no compromise on driving or compacting performance
-
Zero local emissions, with low noise
-
High efficiency from electric motors for vibration/oscillation
-
Recuperation for extended lifetime
-
Simple, intuitive and language-neutral control
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Electric rollers
Demand for low-emission or even zero-emission construction machines keeps growing. And the road construction and earthworks sector is no exception to this trend. HAMM has factored this into its product development, enabling customers around the world to benefit from quiet and emission-free compaction with electric rollers.
| MACHINE DIMENSIONS - Center distance: | 66.9 in |
|---|---|
| WEIGHTS - Operating weight with ROPS: | 5,887 lbs |
| DRUM DIMENSIONS - Track offset, right: | 2 in |
| DRUM DIMENSIONS - Drum type, front: | Smooth/non-split |
| VIBRATION - Amplitude, front, I: | 0.02 in |
| WEIGHTS - Static linear load, front: | 64.2 lbs/in |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 47.6 gal |
| BASIC DATA - Name: | HD 12e VT |
| STEERING - Steering, type: | Articulated steering |
| VIBRATION - Centrifugal force, front, II: | 5,625 lbs |
| DRUM DIMENSIONS - Drum thickness, front: | 0.6 in |
| TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: | 4.8 gal |
| BATTERY - Nominal voltage: | 48 V |
| MACHINE DIMENSIONS - Total length: | 99.6 in |
| BATTERY - Capacity: | 23.4 kWh |
| MACHINE DIMENSIONS - Ground clearance, center: | 11 in |
| MACHINE DIMENSIONS - Total width: | 51.6 in |
| SOUND LEVEL - Sound power level L(WA), guaranteed: | 104 |
| TIRE DIMENSIONS - Number of tires, rear: | 4 |
| TIRE DIMENSIONS - Tire size, rear: | 9,5/65-15 |
| MACHINE DIMENSIONS - Maximum working width: | 48 in |
| DRUM DIMENSIONS - Track offset, left: | 0 in |
| VIBRATION - Vibration frequency, front, I: | 3,900 VPM |
| DRUM DIMENSIONS - Drum width, front: | 47.2 in |
| BATTERY - 230 V/400 V plug type: | CEE 7/4 (earthed type F); CEE 16 A |
| TRAVEL DRIVE - Climbing ability, without vibration: | 44 % |
| BATTERY - Battery, type: | NMC lithium-ion |
| MACHINE DIMENSIONS - Total height with ROPS: | 97.4 in |
| TIRE DIMENSIONS - Width over tires, rear: | 44.9 in |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| WEIGHTS - Axle load, rear: | 2,855 lbs |
| DRUM DIMENSIONS - Drum diameter, front: | 28.3 in |
| VIBRATION - Centrifugal force, front, I: | 9,225 lbs |
| BASIC DATA - Series: | H289 |
| WEIGHTS - Axle load, front: | 3,032 lbs |
| VIBRATION - Vibration frequency, front, II: | 3,060 VPM |
| WEIGHTS - Empty weight without cab, without ROPS: | 5,369 lbs |
| VIBRATION - Amplitude, front, II: | 0.02 in |
| TRAVEL DRIVE - Speed, infinitely variable: | 0,0 - 6,0 |
| BASIC DATA - Description: | Tandem roller with vibrating roller drum and set of wheels |
| MACHINE DIMENSIONS - Turning radius, inside: | 93.3 in |
