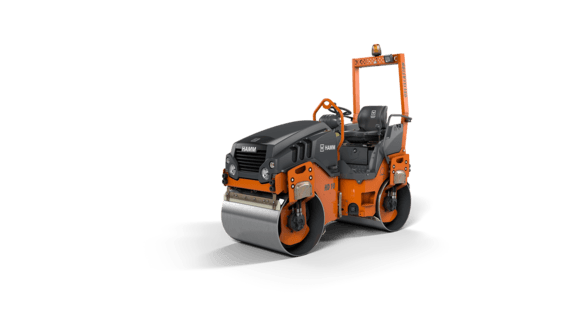

Hamm HD 12 VT
Find Out More
Highlights
-
Ergonomic driver platform
-
Compact dimensions
-
Excellent view of drum edge, machine and construction site environment
-
Simple transport, simple loading
-
Simple, intuitive and language-neutral control
| TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: | 4.8 gal |
|---|---|
| DRUM DIMENSIONS - Track offset, right: | 2 in |
| DIESEL ENGINE - Cylinders, quantity: | 3 |
| WEIGHTS - Static linear load, front: | 62.7 lbs/in |
| VIBRATION - Centrifugal force, front, II: | 5,175 lbs |
| TRAVEL DRIVE - Climbing ability, with vibration: | 30 |
| DIESEL ENGINE - Manufacturer: | KUBOTA |
| MACHINE DIMENSIONS - Curb clearance, left: | 22.4 in |
| TIRE DIMENSIONS - Width over tires, rear: | 44.9 in |
| MACHINE DIMENSIONS - Total height with ROPS: | 97.4 in |
| TIRE DIMENSIONS - Number of tires, rear: | 4 |
| DIESEL ENGINE - Exhaust emission standard: | EU Stage V / EPA Tier 4 |
| DRUM DIMENSIONS - Track offset, left: | 0 in |
| SOUND LEVEL - Sound power level L(WA), guaranteed: | 106 |
| BASIC DATA - Description: | Tandem roller with vibrating roller drum and set of wheels |
| STEERING - Steering, type: | Articulated steering |
| DRUM DIMENSIONS - Drum width, front: | 47.2 in |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| DIESEL ENGINE - Exhaust gas after-treatment: | - |
| VIBRATION - Amplitude, front, II: | 0.018 in |
| MACHINE DIMENSIONS - Maximum working width: | 48 in |
| DRUM DIMENSIONS - Drum thickness, front: | 0.6 in |
| MACHINE DIMENSIONS - Ground clearance, center: | 11 in |
| MACHINE DIMENSIONS - Total length: | 99.6 in |
| BASIC DATA - Exhaust emissions category: | EU Stage V / EPA Tier 4 |
| DRUM DIMENSIONS - Drum type, front: | Smooth/non-split |
| VIBRATION - Vibration frequency, front, II: | 3,060 VPM |
| TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: | 11.1 gal |
| MACHINE DIMENSIONS - Curb clearance, rear: | 22.4 in |
| DIESEL ENGINE - Power ISO 14396, HP: | 24.8 HP |
| VIBRATION - Centrifugal force, front, I: | 8,550 lbs |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 47.6 gal |
| WEIGHTS - Operating weight with ROPS: | 5,722 lbs |
| DIESEL ENGINE - Power ISO 14396, rpm: | 2,200 rpm |
| TRAVEL DRIVE - Climbing ability, without vibration: | 40 % |
| BASIC DATA - Name: | HD 12 VT |
| DIESEL ENGINE - Power ISO 14396, kW: | 18.2 kW |
| STEERING - Oscillation angle +/-: | 8 ° |
| DRUM DIMENSIONS - Drum diameter, front: | 28.3 in |
| SOUND LEVEL - Acoustic power LW(A), measured: | 104 db(A) |
| MACHINE DIMENSIONS - Total width: | 51.6 in |
| DIESEL ENGINE - Model: | D1703-M-DI-E4B |
| VIBRATION - Amplitude, front, I: | 0.018 in |
| VIBRATION - Vibration frequency, front, I: | 3,900 VPM |
| TIRE DIMENSIONS - Tire size, rear: | 9,5/65-15 |
| MACHINE DIMENSIONS - Center distance: | 66.9 in |
| TRAVEL DRIVE - Speed, infinitely variable: | 6.0 |
| BASIC DATA - Series: | HD CompactLine |
| MACHINE DIMENSIONS - Turning radius, inside: | 93.3 in |
