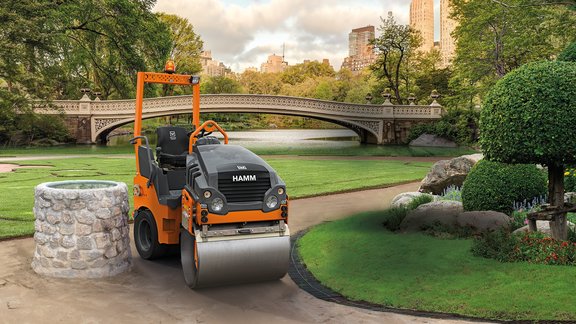

Hamm HD 10C VV
Find Out More
-

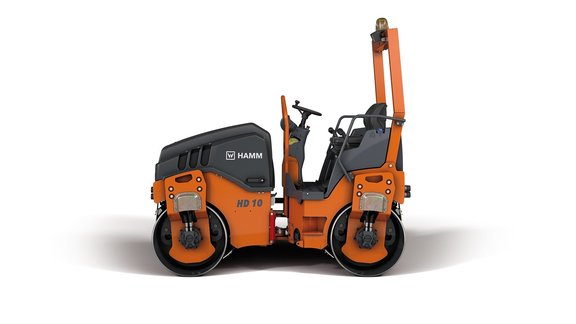

Compact dimensions
-

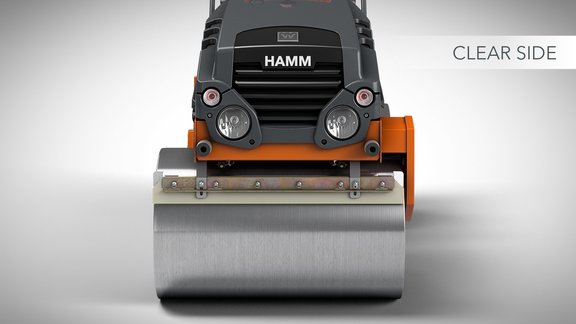

Clear Side — one-sided drum mounting
-
Simple, intuitive and language-neutral control
-
Simple transport, simple loading
-
Excellent view of drum edge, machine and construction site environment
| MACHINE DIMENSIONS - Center distance: | 61.4 in |
|---|---|
| BASIC DATA - Exhaust emissions category: | EU Stage V / EPA Tier 4 |
| DRUM DIMENSIONS - Drum width, front: | 39.4 in |
| DRUM DIMENSIONS - Drum width, rear: | 39.4 in |
| DIESEL ENGINE - Manufacturer: | KUBOTA |
| VIBRATION - Centrifugal force, front, II: | 2,475 lbs |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| DRUM DIMENSIONS - Drum diameter, rear: | 24.4 in |
| DIESEL ENGINE - Power SAE J1349, rpm: | 2,600 rpm |
| TRAVEL DRIVE - Speed, infinitely variable: | 0,0 - 6,8 |
| DRUM DIMENSIONS - Drum type, rear: | Smooth/non-split |
| DIESEL ENGINE - Model: | D1105 |
| VIBRATION - Vibration frequency, front, I: | 3,660 VPM |
| BASIC DATA - Series: | HD CompactLine |
| TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: | 8.7 gal |
| WEIGHTS - Static linear load, front: | 45.9 lbs/in |
| DRUM DIMENSIONS - Drum diameter, front: | 24.4 in |
| DIESEL ENGINE - Cylinders, quantity: | 3 |
| VIBRATION - Centrifugal force, front, I: | 3,825 lbs |
| BASIC DATA - Description: | Tandem roller with two vibrating roller drums |
| DRUM DIMENSIONS - Drum type, front: | Smooth/non-split |
| VIBRATION - Vibration frequency, rear, I: | 3,660 VPM |
| BASIC DATA - Name: | HD 10C VV |
| VIBRATION - Vibration frequency, front, II: | 2,880 VPM |
| VIBRATION - Amplitude, rear, I: | 0.015 in |
| DIESEL ENGINE - Power SAE J1349, HP: | 21.6 hp |
| MACHINE DIMENSIONS - Total width: | 44.6 in |
| DIESEL ENGINE - Power ISO 14396, HP: | 21.9 HP |
| TRAVEL DRIVE - Climbing ability, with vibration: | 30 |
| VIBRATION - Centrifugal force, rear, I: | 3,825 lbs |
| DIESEL ENGINE - Power SAE J1349, kW: | 16.1 kW |
| VIBRATION - Vibration frequency, rear, II: | 2,880 VPM |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 18.5 gal |
| DRUM DIMENSIONS - Drum thickness, front: | 0.5 in |
| MACHINE DIMENSIONS - Total length: | 90.4 in |
| WEIGHTS - Operating weight with ROPS: | 3,704 lbs |
| DIESEL ENGINE - Exhaust emission standard: | MEE III |
| DIESEL ENGINE - Power ISO 14396, kW: | 16.1 kW |
| VIBRATION - Amplitude, front, II: | 0.015 in |
| MACHINE DIMENSIONS - Maximum working width: | 42.1 in |
| STEERING - Oscillation angle +/-: | 8 ° |
| VIBRATION - Amplitude, front, I: | 0.015 in |
| SOUND LEVEL - Acoustic power LW(A), measured: | 101 db(A) |
| SOUND LEVEL - Sound power level L(WA), guaranteed: | 105 |
| STEERING - Steering, type: | Articulated steering |
| MACHINE DIMENSIONS - Total height with ROPS: | 87 in |
| WEIGHTS - Static linear load, rear: | 48.7 |
| VIBRATION - Centrifugal force, rear, II: | 2,475 lbs |
| MACHINE DIMENSIONS - Turning radius, inside: | 83.9 in |
| DIESEL ENGINE - Exhaust gas after-treatment: | - |
| TRAVEL DRIVE - Climbing ability, without vibration: | 40 % |
| VIBRATION - Amplitude, rear, II: | 0.015 in |
| DIESEL ENGINE - Power ISO 14396, rpm: | 2,600 rpm |
| DRUM DIMENSIONS - Drum thickness, rear: | 0.5 in |
