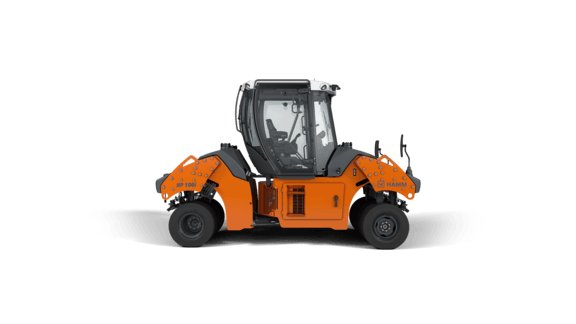

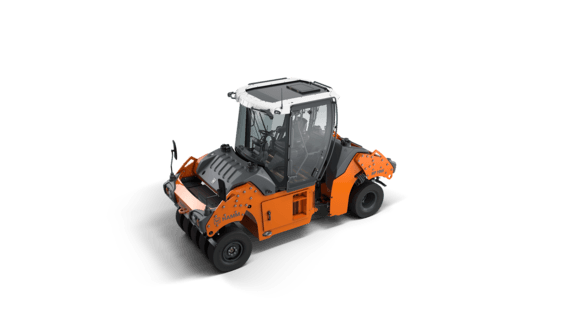

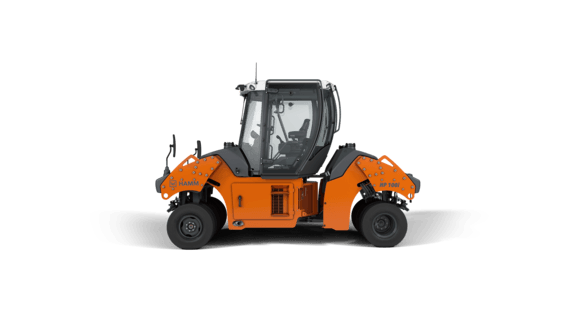

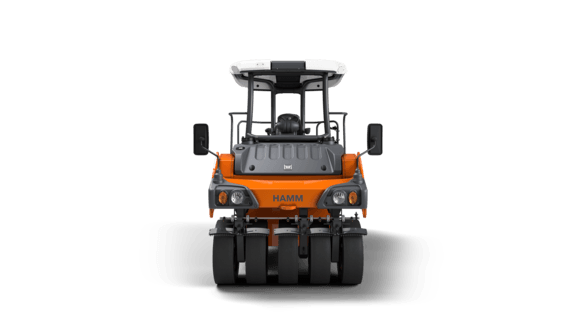

Hamm HP 100i
-
Electronic machine management Hammtronic
-
Simple, intuitive and language-neutral control
-
Excellent view of tires, machine and construction site
-
High compaction and surface quality due to even weight distribution and tire overlap of the front and rear wheel pairs
-
Seat-operating unit can be moved and rotated
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
HAMMTRONIC
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
| TRAVEL DRIVE - Speed, infinitely variable: | 0,0-12,4 |
|---|---|
| WEIGHTS - Wheel load per tire, rear: | 1,517 lbs |
| TIRE DIMENSIONS - Number of tires, front: | 5 |
| DIESEL ENGINE - Power SAE J1349, HP: | 74.2 hp |
| DIESEL ENGINE - Power SAE J1349, rpm: | 2,200 rpm |
| TIRE DIMENSIONS - Width over tires, front: | 67.9 in |
| TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: | 31.7 gal |
| DIESEL ENGINE - Power ISO 14396, HP: | 75.3 HP |
| DIESEL ENGINE - Model: | TCD 2.9 L4 |
| TIRE DIMENSIONS - Width over tires, rear: | 53.1 in |
| DIESEL ENGINE - Cylinders, quantity: | 4 |
| WEIGHTS - Axle load, front: | 6,924 lbs |
| DIESEL ENGINE - Manufacturer: | DEUTZ |
| STEERING - Steering, type: | Articulated steering |
| MACHINE DIMENSIONS - Turning radius, inside: | 163 in |
| WEIGHTS - Empty weight without cab, without ROPS: | 11,907 lbs |
| BASIC DATA - Name: | HP 100i |
| MACHINE DIMENSIONS - Total width with cab: | 71 in |
| DIESEL ENGINE - Exhaust emission standard: | EU Stage IIIB / EPA Tier 4 |
| MACHINE DIMENSIONS - Center distance: | 131.5 in |
| WEIGHTS - Operating weight with cab: | 12,987 lbs |
| DIESEL ENGINE - Power SAE J1349, kW: | 55.4 kW |
| WEIGHTS - Wheel load per tire, front: | 1,385 lbs |
| WEIGHTS - Operating weight with ROPS: | 12,613 lbs |
| MACHINE DIMENSIONS - Total height with cab: | 113.1 in |
| DIESEL ENGINE - Power ISO 14396, rpm: | 2,200 rpm |
| MACHINE DIMENSIONS - Maximum working width: | 67.9 in |
| MACHINE DIMENSIONS - Ground clearance, center: | 13.4 in |
| WATER-SPRINKLING SYSTEM - Water sprinkling, type: | Pressure |
| TIRE DIMENSIONS - Number of tires, rear: | 4 |
| TIRE DIMENSIONS - Tire size, front: | 7.50-15 |
| BASIC DATA - Series: | HP |
| DIESEL ENGINE - Power ISO 14396, kW: | 55.4 kW |
| MACHINE DIMENSIONS - Total height with ROPS: | 116.2 in |
| MACHINE DIMENSIONS - Total length: | 180.7 in |
| TIRE DIMENSIONS - Tire size, rear: | 7.50-15 |
| TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: | 184.9 gal |
| BASIC DATA - Description: | Pneumatic-tire rollers in the 6–10 t weight class |
| WEIGHTS - Axle load, rear: | 6,064 lbs |
| BASIC DATA - Exhaust emissions category: | EU Stage IIIB / EPA Tier 4 |
| DIESEL ENGINE - Exhaust gas after-treatment: | DOC |
