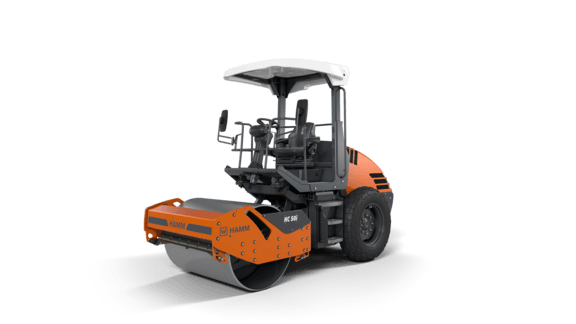

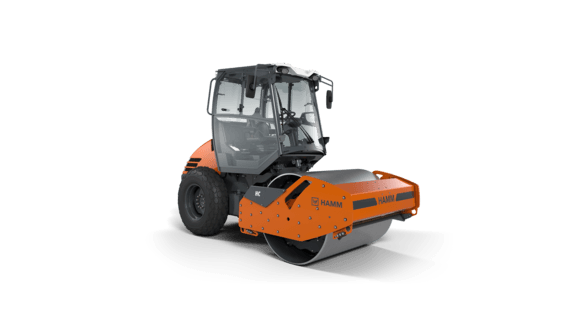

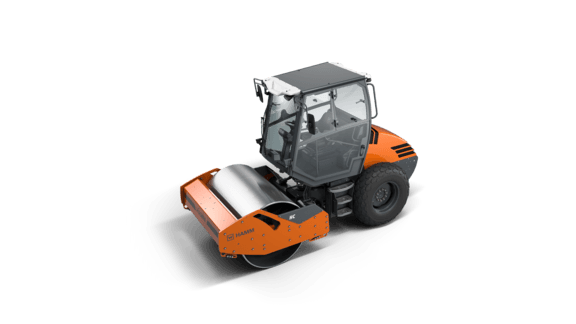

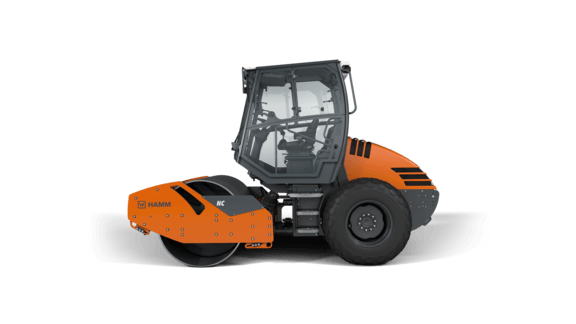

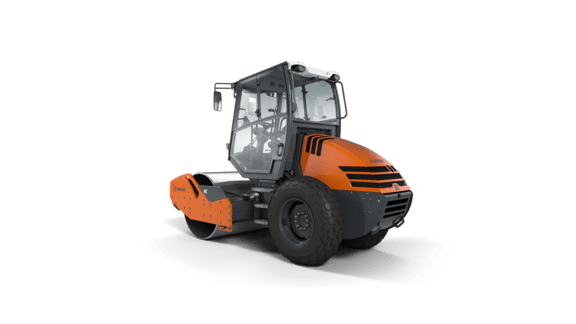

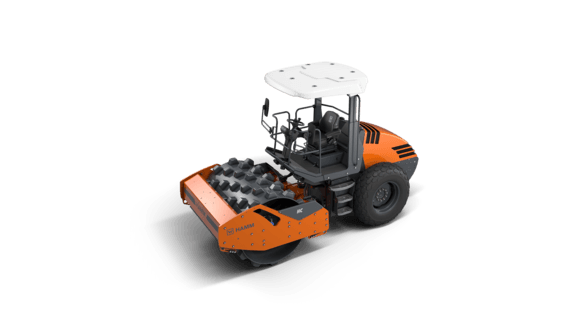

Hamm HC 70i

Compactors Hamm Equipment Roadbuilding Series HC CompactLine

Find a Location Financing Options Print Email Specs

Find Out More

(203) 265-6781

Request a Quote

Simple, intuitive and language-neutral control
High climbing ability
Compact dimensions
3-point articulation for excellent traction and cross-country mobility
Excellent view of machine and construction site

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Weights

Operating weight with ROPS	15,049 lbs
Empty weight without cab, without ROPS	14,355 lbs
Static linear load, front	141.3 lbs/in
Axle load, rear	6,218 lbs
Operating weight with cab	15,567 lbs
Axle load, front	9,349 lbs

Basic Data

Series	HC CompactLine
Name	HC 70i
Exhaust emissions category	EU Stage V / EPA Tier 4
Description	Compactor with smooth drum

Diesel Engine

Exhaust emission standard	EU Stage V / EPA Tier 4
Exhaust gas after-treatment	DOC-DPF
Power ISO 14396, kW	54.6 kW
Power ISO 14396, HP	74.3 HP
Model	V3307-CR-TE5AB
Power SAE J1995, HP	74.2 hp
Power ISO 14396, rpm	2,200 rpm
Power SAE J1995, kW	55.4 kW
Power SAE J1995, rpm	2,200 rpm
Cylinders, quantity	4
Manufacturer	KUBOTA

Tire Dimensions

Number of tires, rear	2
Tire size, rear	AW 14.9-24 6 PR
Width over tires, rear	65.6 in

Machine Dimensions

Turning radius, inside	130.3 in
Slope angle, rear	40 °
Center distance	92 in
Total height with ROPS	113.3 in
Maximum working width	66.1 in
Ground clearance, center	12.7 in
Slope angle, front	38 °
Total width with cab	79.4 in
Total length	174.8 in
Total height with cab	113.5 in

Travel Drive

Speed, transport gear	0,0-5,4
Speed, working gear, I	0,0-3,7
Climbing ability, without vibration	60 %

Vibration

Centrifugal force, front, II	21,375 lbs
Vibration frequency, front, II	2,160 VPM
Centrifugal force, front, I	28,125 lbs
Amplitude, front, II	0.027 in
Amplitude, front, I	0.067 in
Vibration frequency, front, I	1,800 VPM
