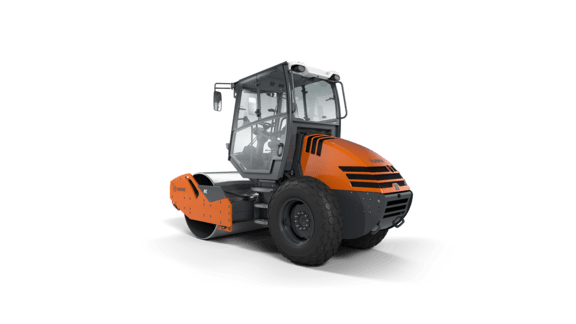

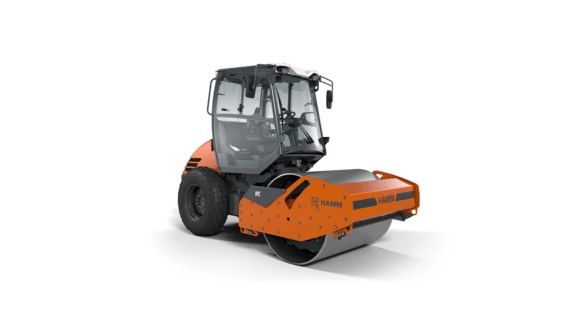

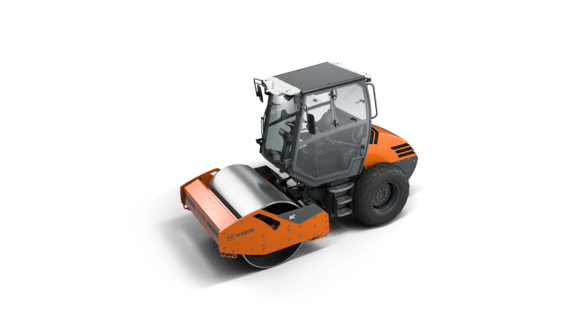

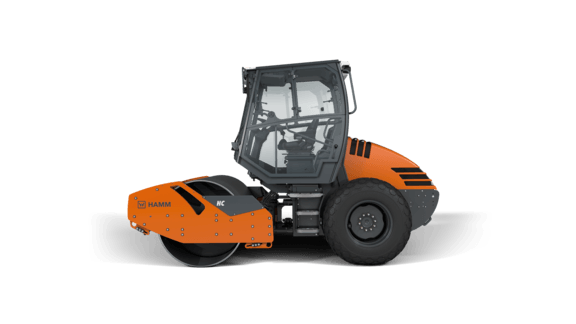

Hamm HC 70i P
-
3-point articulation for excellent traction and cross-country mobility
-
Excellent view of machine and construction site
-
Compact dimensions
-
High climbing ability
-
Simple, intuitive and language-neutral control
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Smart Compaction
In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Machine Dimensions
| Center distance | 92 in |
|---|---|
| Slope angle, front | 38 ° |
| Slope angle, rear | 41 ° |
| Total height with ROPS | 113.3 in |
| Turning radius, inside | 130.3 in |
| Maximum working width | 66.1 in |
| Total length | 174.8 in |
| Total height with cab | 113.7 in |
| Total width with cab | 79.4 in |
| Ground clearance, center | 12.7 in |
Tire Dimensions
| Width over tires, rear | 65.6 in |
|---|---|
| Tire size, rear | TR 14.9-24 8 PR |
| Number of tires, rear | 2 |
Weights
| Axle load, front | 8,897 lbs |
|---|---|
| Empty weight without cab, without ROPS | 13,903 lbs |
| Axle load, rear | 6,218 lbs |
| Operating weight with cab | 15,115 lbs |
| Operating weight with ROPS | 14,597 lbs |
Diesel Engine
| Power ISO 14396, rpm | 2,200 rpm |
|---|---|
| Exhaust gas after-treatment | DOC-DPF |
| Power SAE J1995, rpm | 2,200 rpm |
| Power ISO 14396, kW | 54.6 kW |
| Power SAE J1995, kW | 55.4 kW |
| Cylinders, quantity | 4 |
| Power SAE J1995, HP | 74.2 hp |
| Exhaust emission standard | EU Stage V / EPA Tier 4 |
| Manufacturer | KUBOTA |
| Power ISO 14396, HP | 74.3 HP |
| Model | V3307-CR-TE5AB |
Sound Level
| Sound power level L(WA), guaranteed | 105 |
|---|
Steering
| Steering, type | Articulated steering |
|---|
Travel Drive
| Climbing ability, without vibration | 60 % |
|---|---|
| Speed, transport gear | 0,0-5,8 |
| Speed, working gear, I | 0,0-3,7 |
Vibration
| Centrifugal force, front | 28,125 lbs |
|---|---|
| Amplitude, front | 0.074 in |
| Vibration frequency, front | 1,800 VPM |
Drum Dimensions
| Padfeet, quantity | 84 |
|---|---|
| Height of the padfeet | 3.2 in |

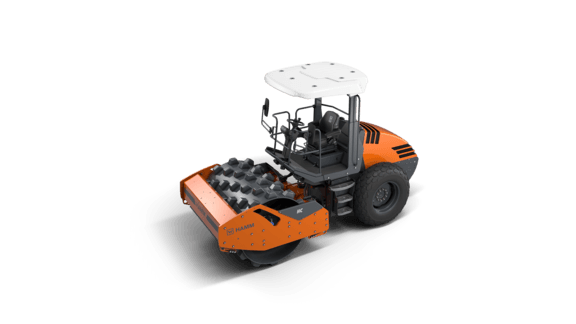

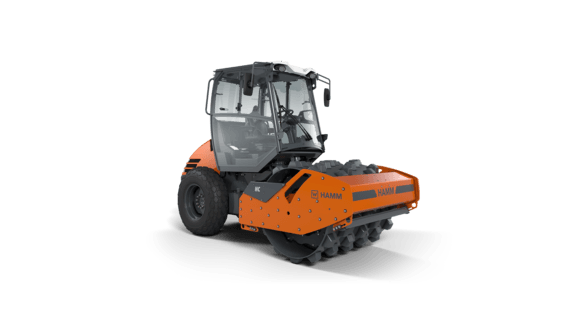

| Drum type, front | Padfoot |
| Drum width, front | 66.1 in |
| Drum thickness, front | 0.6 in |
| Drum diameter, front | 53.7 in |
Basic Data
| Name | HC 70i P |
|---|---|
| Exhaust emissions category | EU Stage V / EPA Tier 4 |
| Description | Compactor with padfoot drum |
| Series | H287 |
Tank Capacity/filling Capacity
| Fuel tank, capacity | 32.5 gal |
|---|
