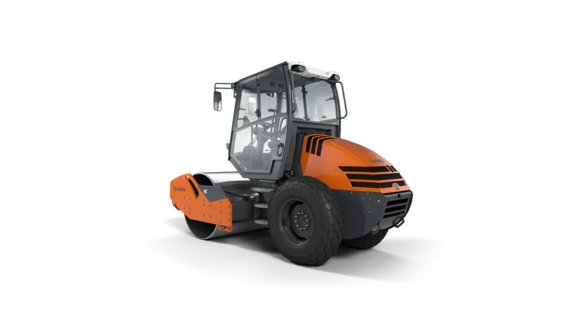

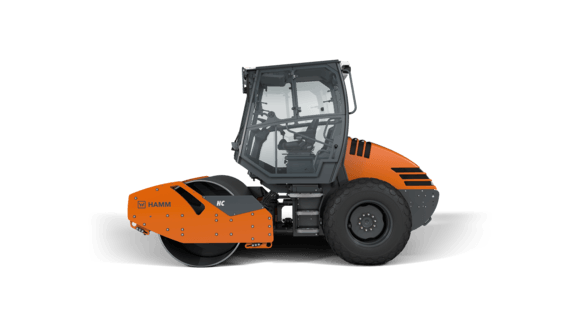

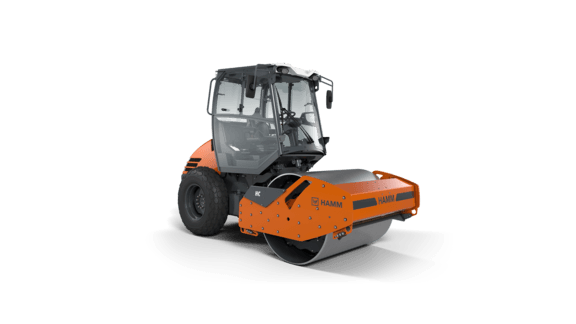

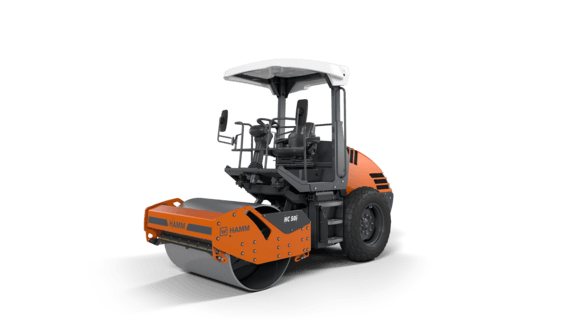

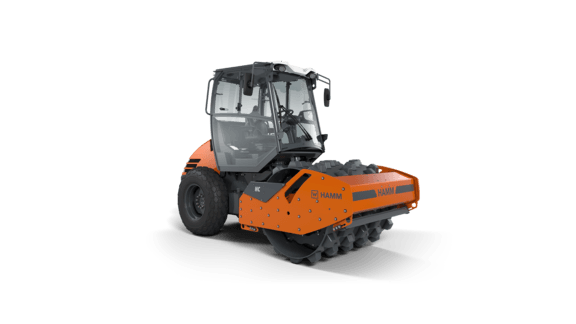

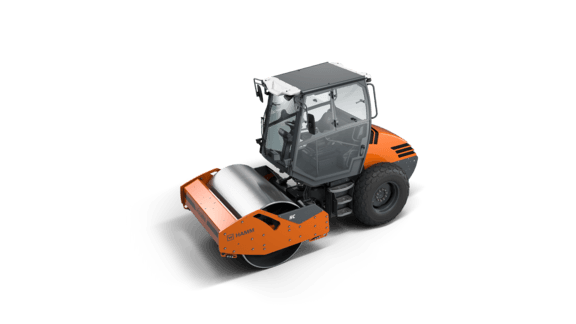

Hamm HC 70i P
-
3-point articulation for excellent traction and cross-country mobility
-
Simple, intuitive and language-neutral control
-
High climbing ability
-
Compact dimensions
-
Excellent view of machine and construction site
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Smart Compaction
In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Basic Data
| Exhaust emissions category | EU Stage IIIB / EPA Tier 4 |
|---|---|
| Series | H288 |
| Name | HC 70i P |
| Description | Compactor with padfoot drum |
Machine Dimensions
| Slope angle, rear | 41 ° |
|---|---|
| Ground clearance, center | 12.7 in |
| Center distance | 92 in |
| Total height with cab | 113.7 in |
| Turning radius, inside | 130.3 in |
| Total length | 174.8 in |
| Maximum working width | 66.1 in |
| Total width with cab | 79.4 in |
| Slope angle, front | 38 ° |
| Total height with ROPS | 113.3 in |
Diesel Engine
| Power SAE J1349, HP | 72.4 hp |
|---|---|
| Power ISO 14396, rpm | 2,200 rpm |
| Exhaust gas after-treatment | DOC |
| Exhaust emission standard | EU Stage IIIB / EPA Tier 4 |
| Power SAE J1349, kW | 54 kW |
| Power ISO 14396, kW | 54 kW |
| Manufacturer | DEUTZ |
| Cylinders, quantity | 4 |
| Power ISO 14396, HP | 73.4 HP |
| Power SAE J1349, rpm | 2,200 rpm |
| Model | TD 2.9 L4 |
Weights
| Axle load, front | 8,897 lbs |
|---|---|
| Operating weight with ROPS | 14,597 lbs |
| Operating weight with cab | 15,115 lbs |
| Axle load, rear | 6,218 lbs |
| Empty weight without cab, without ROPS | 13,903 lbs |
Travel Drive
| Speed, working gear, I | 0,0-3,7 |
|---|---|
| Climbing ability, without vibration | 60 % |
| Speed, transport gear | 0,0-5,8 |
Sound Level
| Sound power level L(WA), guaranteed | 105 |
|---|
Drum Dimensions
| Padfeet, quantity | 84 |
|---|---|
| Drum diameter, front | 53.7 in |
| Drum type, front | Padfoot |
| Drum thickness, front | 0.6 in |
| Drum width, front | 66.1 in |
| Height of the padfeet | 3.2 in |
Tire Dimensions
| Number of tires, rear | 2 |
|---|---|
| Tire size, rear | TR 14.9-24 8 PR |
| Width over tires, rear | 65.6 in |
Vibration
| Vibration frequency, front | 1,800 VPM |
|---|---|
| Amplitude, front | 0.074 in |
| Centrifugal force, front | 28,125 lbs |
Steering
| Steering, type | Articulated steering |
|---|
Tank Capacity/filling Capacity
| Fuel tank, capacity | 32.5 gal |
|---|
