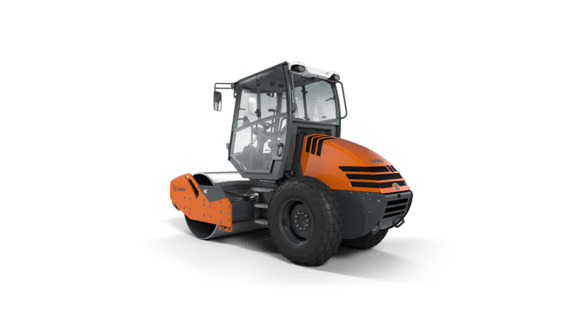

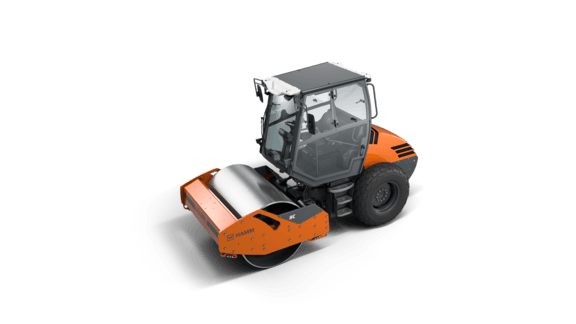

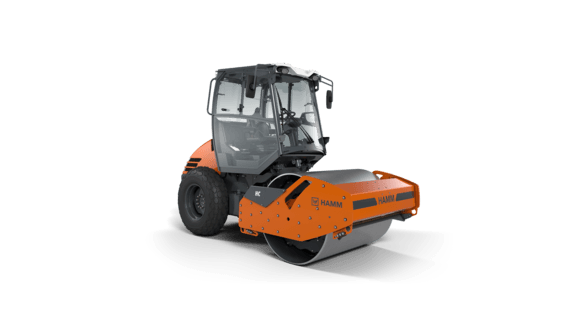

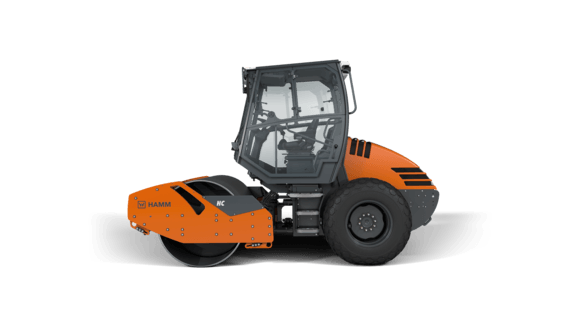

Hamm HC 70i

Compactors Hamm Equipment Roadbuilding Series HC CompactLine

Find a Location Financing Options Print Email Specs

Find Out More

(203) 265-6781

Request a Quote

Simple, intuitive and language-neutral control
Excellent view of machine and construction site
3-point articulation for excellent traction and cross-country mobility
Compact dimensions
High climbing ability

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Tire Dimensions

Number of tires, rear	2
Width over tires, rear	65.6 in
Tire size, rear	AW 14.9-24 6 PR

Machine Dimensions

Slope angle, front	38 °
Total height with ROPS	113.3 in
Maximum working width	66.1 in
Ground clearance, center	12.7 in
Center distance	92 in
Turning radius, inside	130.3 in
Total width with cab	79.4 in
Total length	174.8 in
Total height with cab	113.5 in
Slope angle, rear	40 °

Diesel Engine

Power ISO 14396, HP	73.4 HP
Power SAE J1349, HP	72.4 hp
Power SAE J1349, kW	54 kW
Cylinders, quantity	4
Model	TD 2.9 L4
Power ISO 14396, rpm	2,200 rpm
Exhaust gas after-treatment	DOC
Exhaust emission standard	EU Stage IIIB / EPA Tier 4
Power SAE J1349, rpm	2,200 rpm
Power ISO 14396, kW	54 kW
Manufacturer	DEUTZ

Travel Drive

Speed, transport gear	0,0-5,4
Climbing ability, without vibration	60 %
Speed, working gear, I	0,0-3,7

Basic Data

Exhaust emissions category	EU Stage IIIB / EPA Tier 4
Series	HC CompactLine
Name	HC 70i
Description	Compactor with smooth drum

Drum Dimensions

Drum thickness, front	1 in
Drum type, front	Smooth
Drum width, front	66.1 in
Drum diameter, front	47.9 in

Weights

Empty weight without cab, without ROPS	14,355 lbs
Static linear load, front	141.3 lbs/in
Operating weight with ROPS	15,049 lbs
Axle load, front	9,349 lbs
Operating weight with cab	15,567 lbs
Axle load, rear	6,218 lbs

Sound Level

Sound power level L(WA), guaranteed	105

Vibration

Vibration frequency, front, II	2,160 VPM
Amplitude, front, I	0.067 in
Centrifugal force, front, II	21,375 lbs
Centrifugal force, front, I	28,125 lbs
Amplitude, front, II	0.027 in
Vibration frequency, front, I	1,800 VPM
