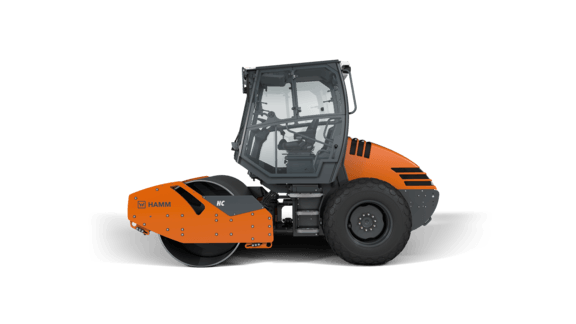

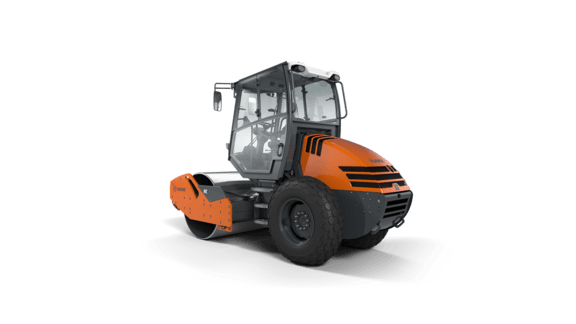

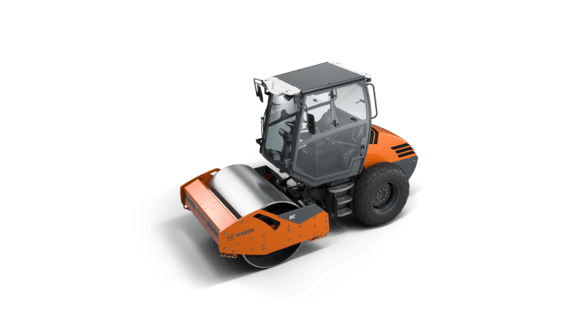

Hamm HC 50i
-
3-point articulation for excellent traction and cross-country mobility
-
High climbing ability
-
Excellent view of machine and construction site
-
Compact dimensions
-
Simple, intuitive and language-neutral control
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Smart Compaction
In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Machine Dimensions
| Total width with cab | 79.4 in |
|---|---|
| Maximum working width | 53.9 in |
| Total height with cab | 111.7 in |
| Slope angle, front | 44 ° |
| Total length | 159.1 in |
| Center distance | 85.4 in |
| Turning radius, inside | 132.9 in |
| Slope angle, rear | 35 ° |
| Total height with ROPS | 111.6 in |
| Ground clearance, center | 10.9 in |
Diesel Engine
| Manufacturer | KUBOTA |
|---|---|
| Power SAE J1995, rpm | 2,200 rpm |
| Model | V3307-CR-TE5AB |
| Power ISO 14396, rpm | 2,200 rpm |
| Cylinders, quantity | 4 |
| Exhaust gas after-treatment | DOC-DPF |
| Power ISO 14396, HP | 74.3 HP |
| Power ISO 14396, kW | 54.6 kW |
| Exhaust emission standard | EU Stage V / EPA Tier 4 |
| Power SAE J1995, kW | 55.4 kW |
| Power SAE J1995, HP | 74.2 hp |
Weights
| Axle load, rear | 5,435 lbs |
|---|---|
| Empty weight without cab, without ROPS | 10,352 lbs |
| Axle load, front | 6,020 lbs |
| Operating weight with ROPS | 10,937 lbs |
| Static linear load, front | 111.6 lbs/in |
| Operating weight with cab | 11,455 lbs |
Vibration
| Amplitude, front | 0.062 in |
|---|---|
| Centrifugal force, front | 15,525 lbs |
| Vibration frequency, front | 1,800 VPM |
Drum Dimensions
| Drum type, front | Smooth |
|---|---|
| Drum thickness, front | 0.8 in |
| Drum width, front | 53.9 in |
| Drum diameter, front | 39.4 in |
Tire Dimensions
| Tire size, rear | AW 12.4-24 8 PR |
|---|---|
| Width over tires, rear | 59.1 in |
| Number of tires, rear | 2 |
Basic Data
| Description | Compactor with smooth drum |
|---|---|
| Exhaust emissions category | EU Stage V / EPA Tier 4 |
| Series | H287 |
| Name | HC 50i |
Tank Capacity/filling Capacity
| Fuel tank, capacity | 32.5 gal |
|---|
Sound Level
| Sound power level L(WA), guaranteed | 105 |
|---|
Steering
| Steering, type | Articulated steering |
|---|
Travel Drive
| Speed, transport gear | 0,0-6,6 |
|---|---|
| Speed, working gear, I | 0,0-3,7 |
| Climbing ability, without vibration | 60 % |
