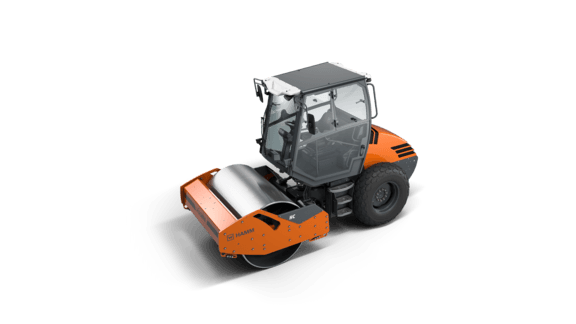

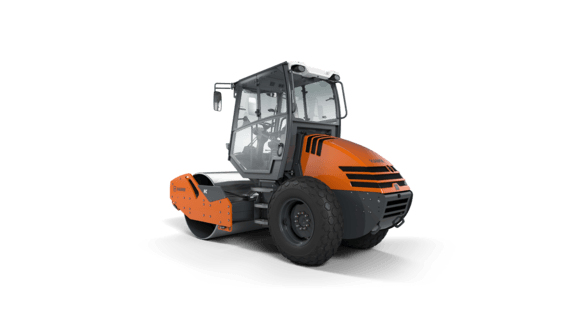

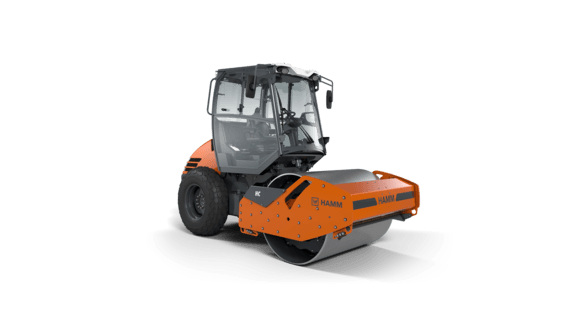

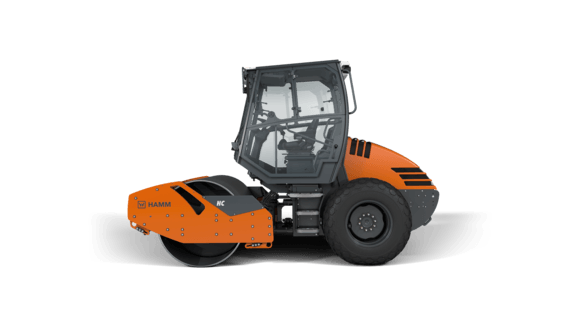

Hamm HC 50i P

Compactors Hamm Equipment Roadbuilding Series HC CompactLine

Find a Location Financing Options Print Email Specs

Find Out More

(203) 265-6781

Request a Quote

High climbing ability
3-point articulation for excellent traction and cross-country mobility
Simple, intuitive and language-neutral control
Compact dimensions
Excellent view of machine and construction site

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Diesel Engine

Power ISO 14396, HP	74.3 HP
Power SAE J1995, HP	74.2 hp
Exhaust emission standard	EU Stage V / EPA Tier 4
Manufacturer	KUBOTA
Power ISO 14396, rpm	2,200 rpm
Power SAE J1995, kW	55.4 kW
Power SAE J1995, rpm	2,200 rpm
Model	V3307-CR-TE5AB
Power ISO 14396, kW	54.6 kW
Cylinders, quantity	4
Exhaust gas after-treatment	DOC-DPF

Tire Dimensions

Number of tires, rear	2
Width over tires, rear	59.1 in
Tire size, rear	TR 12.4-24 8 PR

Vibration

Centrifugal force, front	15,525 lbs
Amplitude, front	0.059 in
Vibration frequency, front	1,800 VPM

Machine Dimensions

Ground clearance, center	10.9 in
Slope angle, rear	36 °
Total length	159.1 in
Total width with cab	79.4 in
Slope angle, front	43 °
Total height with ROPS	111.6 in
Total height with cab	111.7 in
Turning radius, inside	132.9 in
Center distance	85.4 in
Maximum working width	53.9 in

Drum Dimensions

Drum width, front	53.9 in

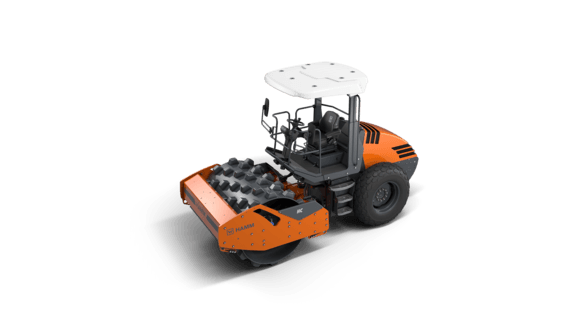

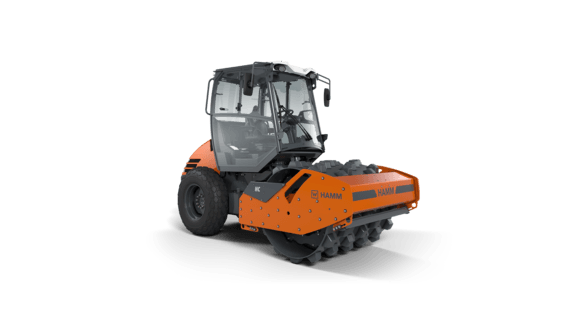

Drum type, front	Padfoot
Padfeet, quantity	60
Height of the padfeet	3.2 in
Drum diameter, front	45.5 in
Drum thickness, front	0.6 in

Steering

Steering, type	Articulated steering

Weights

Operating weight with ROPS	11,411 lbs
Axle load, front	6,494 lbs
Operating weight with cab	11,929 lbs
Axle load, rear	5,435 lbs
Empty weight without cab, without ROPS	10,827 lbs
