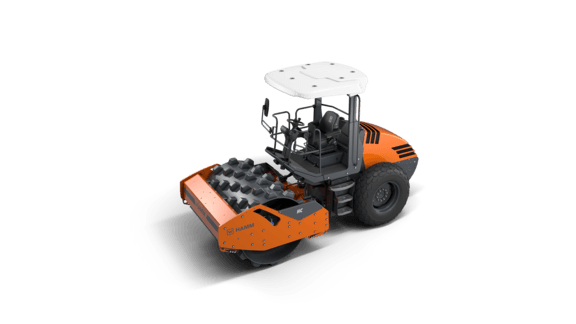

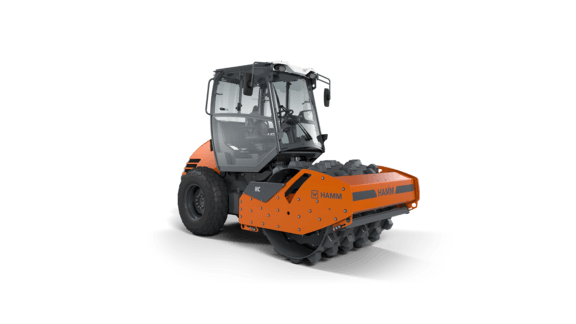

Hamm HC 50i P
-
High climbing ability
-
Excellent view of machine and construction site
-
Compact dimensions
-
Simple, intuitive and language-neutral control
-
3-point articulation for excellent traction and cross-country mobility
Smart Compaction
In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Weights
| Operating weight with ROPS | 11,411 lbs |
|---|---|
| Operating weight with cab | 11,929 lbs |
| Empty weight without cab, without ROPS | 10,827 lbs |
| Axle load, rear | 5,435 lbs |
| Axle load, front | 6,494 lbs |
Travel Drive
| Speed, working gear, I | 0,0-3,7 |
|---|---|
| Climbing ability, without vibration | 60 % |
| Speed, transport gear | 0,0-7,3 |
Diesel Engine
| Exhaust gas after-treatment | DOC |
|---|---|
| Manufacturer | DEUTZ |
| Power ISO 14396, rpm | 2,200 rpm |
| Power ISO 14396, HP | 73.4 HP |
| Power ISO 14396, kW | 54 kW |
| Exhaust emission standard | EU Stage IIIB / EPA Tier 4 |
| Power SAE J1349, kW | 54 kW |
| Model | TD 2.9 L4 |
| Cylinders, quantity | 4 |
| Power SAE J1349, rpm | 2,200 rpm |
| Power SAE J1349, HP | 72.4 hp |
Tank Capacity/filling Capacity
| Fuel tank, capacity | 32.5 gal |
|---|
Machine Dimensions
| Total width with cab | 79.4 in |
|---|---|
| Slope angle, rear | 36 ° |
| Slope angle, front | 43 ° |
| Total length | 159.1 in |
| Center distance | 85.4 in |
| Ground clearance, center | 10.9 in |
| Total height with ROPS | 111.6 in |
| Turning radius, inside | 132.9 in |
| Total height with cab | 111.7 in |
| Maximum working width | 53.9 in |
Tire Dimensions
| Tire size, rear | TR 12.4-24 8 PR |
|---|---|
| Width over tires, rear | 59.1 in |
| Number of tires, rear | 2 |
Steering
| Steering, type | Articulated steering |
|---|
Drum Dimensions
| Drum diameter, front | 45.5 in |
|---|---|
| Drum type, front | Padfoot |
| Padfeet, quantity | 60 |
| Height of the padfeet | 3.2 in |
| Drum thickness, front | 0.6 in |
| Drum width, front | 53.9 in |
Vibration
| Vibration frequency, front | 1,800 VPM |
|---|---|
| Amplitude, front | 0.059 in |
| Centrifugal force, front | 15,525 lbs |
Basic Data
| Exhaust emissions category | EU Stage IIIB / EPA Tier 4 |
|---|---|
| Description | Compactor with padfoot drum |
| Series | H288 |
| Name | HC 50i P |
Sound Level
| Sound power level L(WA), guaranteed | 105 |
|---|
