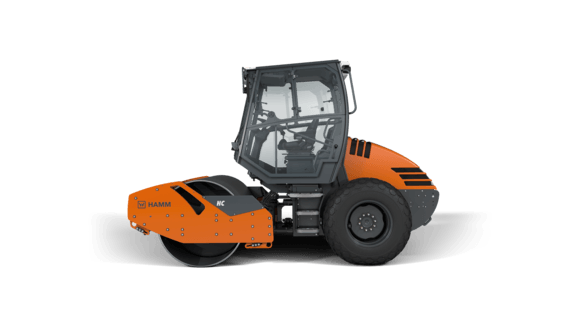

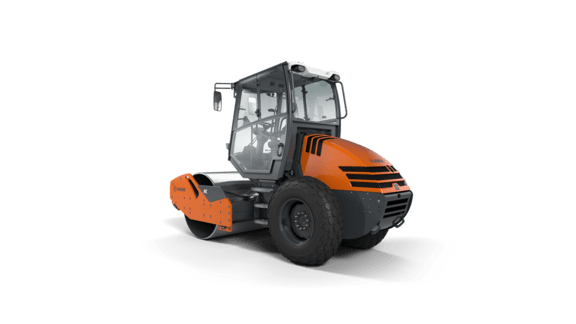

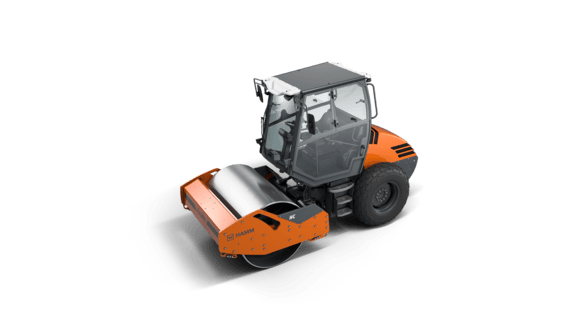

Hamm HC 50i

Compactors Hamm Equipment Roadbuilding Series HC CompactLine

Find a Location Financing Options Print Email Specs

Find Out More

(203) 265-6781

Request a Quote

3-point articulation for excellent traction and cross-country mobility
Simple, intuitive and language-neutral control
Compact dimensions
Excellent view of machine and construction site
High climbing ability

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Travel Drive

Speed, working gear, I	0,0-3,7
Climbing ability, without vibration	60 %
Speed, transport gear	0,0-6,6

Steering

Steering, type	Articulated steering

Weights

Operating weight with cab	11,455 lbs
Empty weight without cab, without ROPS	10,352 lbs
Operating weight with ROPS	10,937 lbs
Axle load, front	6,020 lbs
Static linear load, front	111.6 lbs/in
Axle load, rear	5,435 lbs

Basic Data

Series	HC CompactLine
Description	Compactor with smooth drum
Exhaust emissions category	EU Stage IIIB / EPA Tier 4
Name	HC 50i

Drum Dimensions

Drum width, front	53.9 in
Drum diameter, front	39.4 in
Drum thickness, front	0.8 in
Drum type, front	Smooth

Machine Dimensions

Slope angle, front	44 °
Maximum working width	53.9 in
Turning radius, inside	132.9 in
Total height with ROPS	111.6 in
Center distance	85.4 in
Total width with cab	79.4 in
Slope angle, rear	35 °
Total height with cab	111.7 in
Ground clearance, center	10.9 in
Total length	159.1 in

Diesel Engine

Exhaust gas after-treatment	DOC
Power ISO 14396, rpm	2,200 rpm
Cylinders, quantity	4
Power SAE J1349, HP	72.4 hp
Manufacturer	DEUTZ
Power ISO 14396, HP	73.4 HP
Exhaust emission standard	EU Stage IIIB / EPA Tier 4
Power SAE J1349, rpm	2,200 rpm
Model	TD 2.9 L4
Power ISO 14396, kW	54 kW
Power SAE J1349, kW	54 kW
