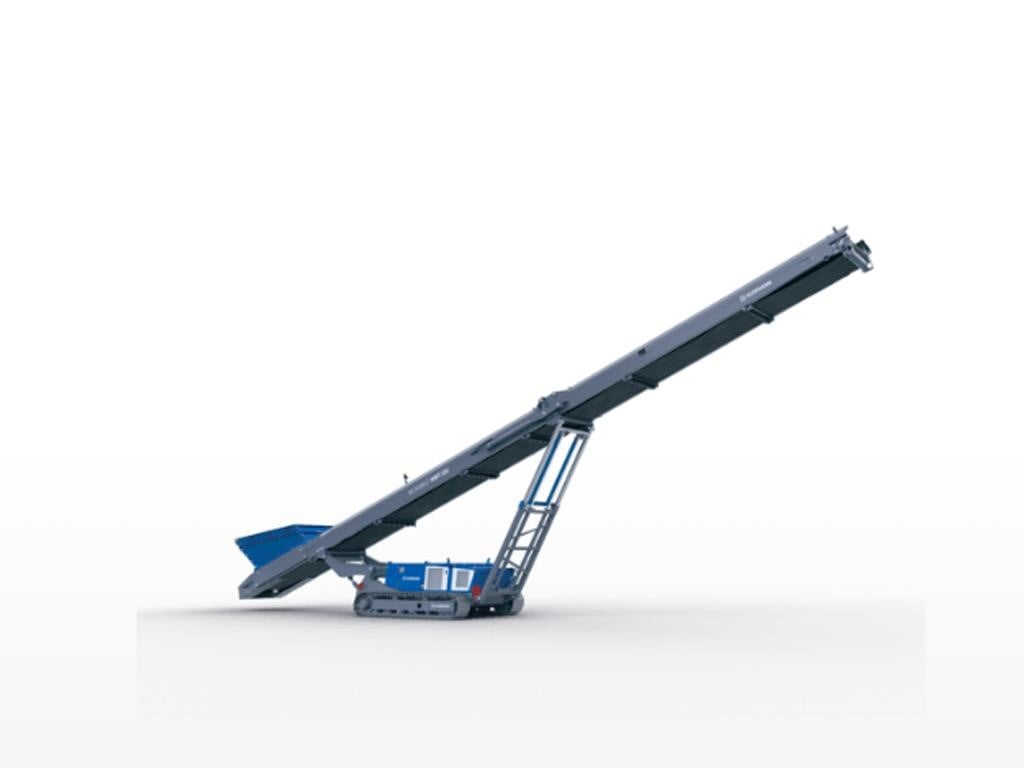

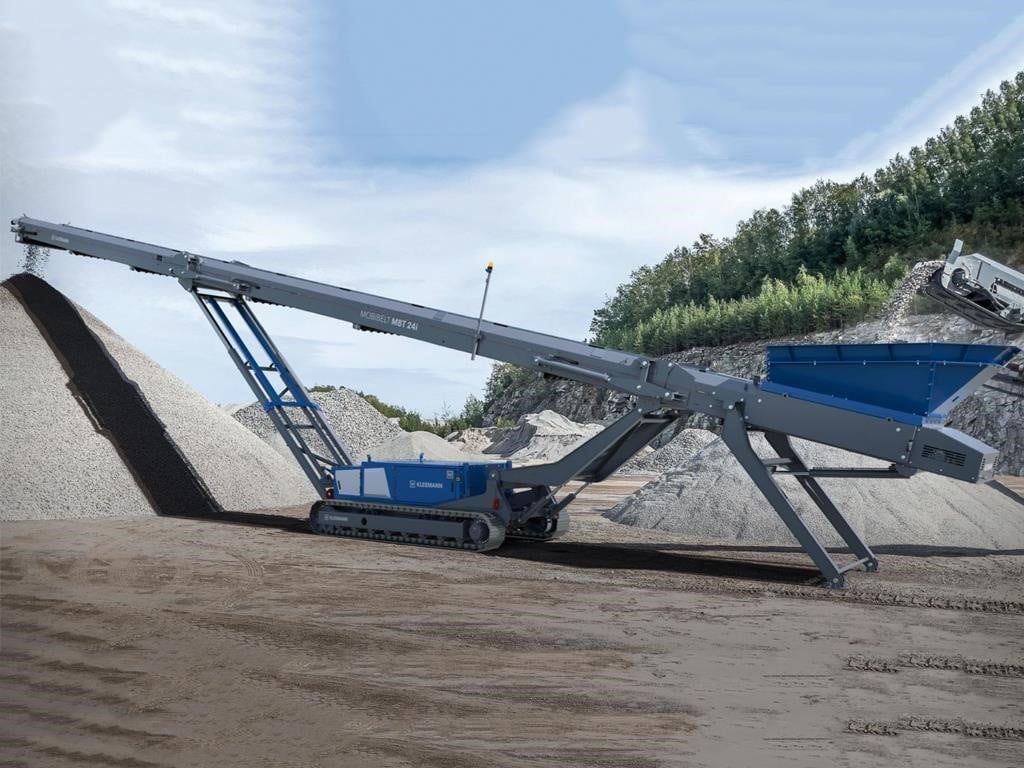

Kleemann MBT24I
MBT24i — MOBILE SCREENING PLANT
The MOBIBELT mobile stackers are used for efficient logistics processes on building sites. The direct material transport from the crushing or screening plant to the dedicated stockpile means that additional material movements with the wheel loader can be avoided. This reduces operating costs, increases operational reliability and efficiency.
MOBILE STACKERS
The MOBIBELT mobile stackers are used for efficient logistics processes on building sites. The direct material transport from the crushing or screening plant to the dedicated stockpile means that additional material movements with the wheel loader can be avoided. This reduces operating costs, increases operational reliability and efficiency.
PROPERTIES

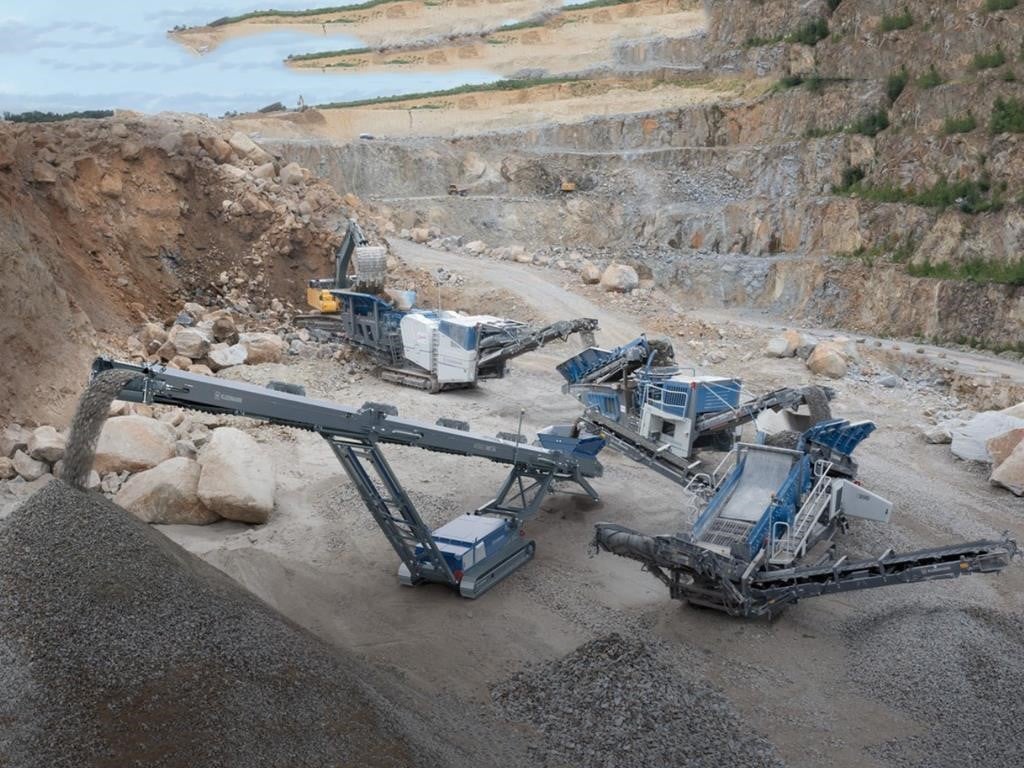

The mobile stackers MOBIBELT MBT 20(i)/MBT 24(i) are used for efficient logistics processes on work sites. They flexibly extend the operating range of mobile crushing and screening plants and guarantee larger stockpiles, improved work site logistics and all this combined with simple operation.
• Generously dimensioned feed hopper
• Diesel-hydraulic drive concept H-DRIVE, external power supply (optional)
• Simple operation thanks to SPECTIVE operating position and local control elements
• Hydraulically adjustable feeding and discharge height
HIGHLIGHTS
Larger stockpiles, improved work site logistics and all this combined with simple operation.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Feeding Unit
| Max. feed size | 8 in |
|---|---|
| Feed capacity up to approx. | 496 US t/hr |
| Hopper volume | 1.6 yd³ |
Size And Weight
| Transport weight of basic plant | 27,750 lbs |
|---|---|
| Width | 7 ft x 6 in |
| Transport width | 7 ft x 6 in |
| Transport length | 38 ft x 9 in |
| Transport height max. | 8 ft x 4 in |
| Height x height | 33 ft x 12 in |
| Width x length | 7 ft 6 in x 71 ft 11 in |
Power Supply Unit
| Power pack manufacturer (Tier 3/ Stage IIIA) | Kubota |
|---|---|
| Diesel tank capacity | 58 Imp.gal |
| Power pack manufacturer (Tier 4/ Stage IV) | John Deere |
| Power supply unit output | 49 hp |
| Drive concept | H-DRIVE (Diesel-hydraulic) |
| Power pack manufacturer (Stage V) | John Deere |
Conveyor Belt
| Belt drive, hydraulic | 38 in³ |
|---|---|
| Discharge height | 33 ft x 2 in |
| Belt spec | EP400/3 +1,5 |
| Stockpile volume | 1,770 yd³ |
| Width x length | 39 in x 74 ft 6 in |
| Troughing angle | 45 ° |
