Kleemann MBT20I

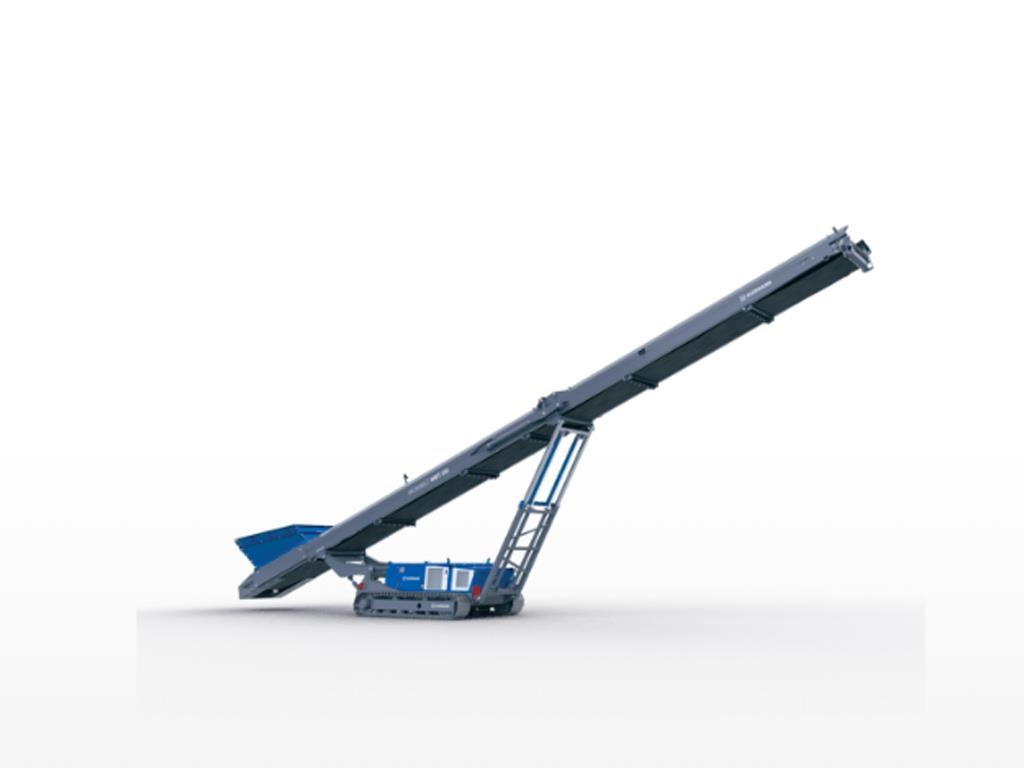

MBT20i — MOBILE SCREENING PLANT
The MOBIBELT mobile stackers are used for efficient logistics processes on building sites. The direct material transport from the crushing or screening plant to the dedicated stockpile means that additional material movements with the wheel loader can be avoided. This reduces operating costs, increases operational reliability and efficiency.
MOBILE STACKERS
The MOBIBELT mobile stackers are used for efficient logistics processes on building sites. The direct material transport from the crushing or screening plant to the dedicated stockpile means that additional material movements with the wheel loader can be avoided. This reduces operating costs, increases operational reliability and efficiency.
PROPERTIES

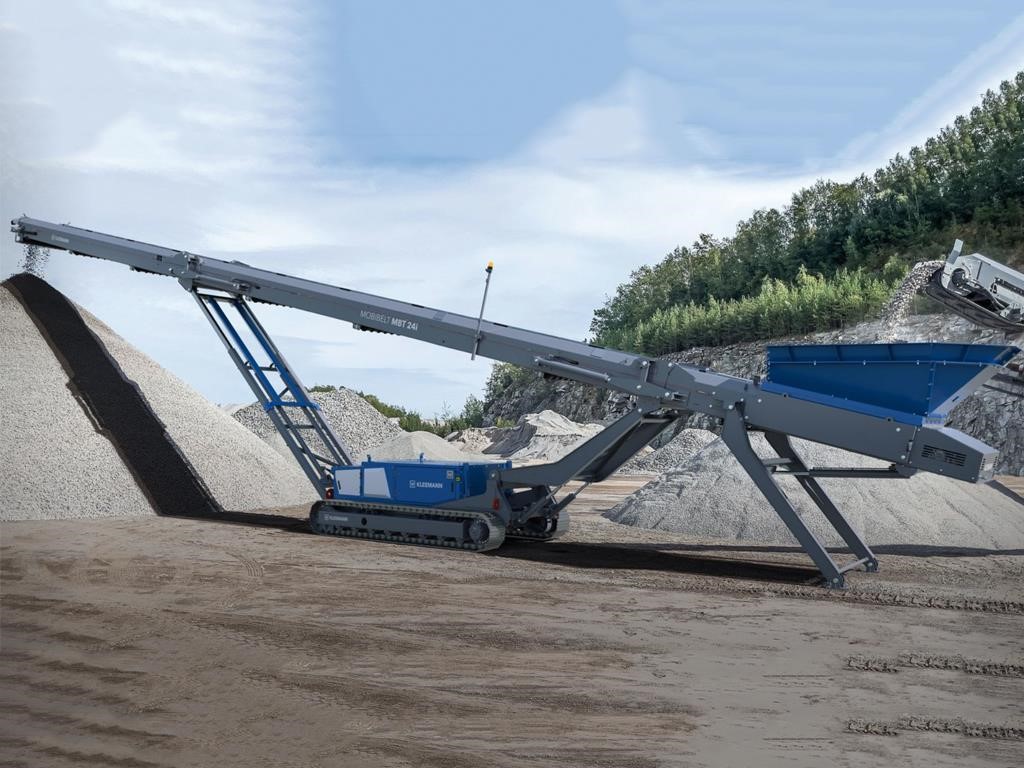

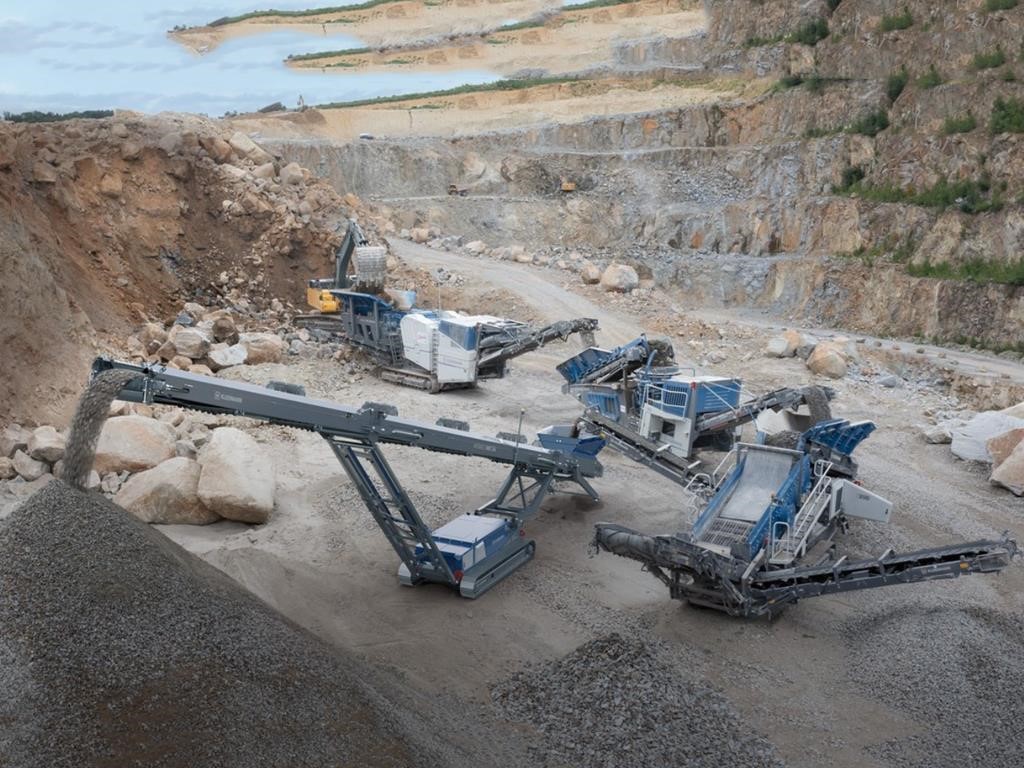

The mobile stackers MOBIBELT MBT 20(i)/MBT 24(i) are used for efficient logistics processes on work sites. They flexibly extend the operating range of mobile crushing and screening plants and guarantee larger stockpiles, improved work site logistics and all this combined with simple operation.
• Generously dimensioned feed hopper
• Diesel-hydraulic drive concept H-DRIVE, external power supply (optional)
• Simple operation thanks to SPECTIVE operating position and local control elements
• Hydraulically adjustable feeding and discharge height
HIGHLIGHTS
Larger stockpiles, improved work site logistics and all this combined with simple operation.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Conveyor Belt
| Troughing angle | 45 ° |
|---|---|
| Belt drive, hydraulic | 38 in³ |
| Width x length | 39 in x 63 ft 8 in |
| Stockpile volume | 1,120 yd³ |
| Discharge height | 27 ft x 7 in |
| Belt spec | EP400/3 +1,5 |
Power Supply Unit
| Drive concept | H-DRIVE (Diesel-hydraulic) |
|---|---|
| Power pack manufacturer (Tier 4/ Stage IV) | John Deere |
| Power supply unit output | 64 hp |
| Power pack manufacturer (Tier 3/ Stage IIIA) | Kubota |
| Power pack manufacturer (Stage V) | John Deere |
| Diesel tank capacity | 58 Imp.gal |
Size And Weight
| Transport height max. | 8 ft x 4 in |
|---|---|
| Width x length | 7 ft 6 in x 62 ft 6 in |
| Transport width | 7 ft x 6 in |
| Width | 7 ft x 6 in |
| Transport length | 39 ft x 1 in |
| Transport weight of basic plant | 24,750 lbs |
| Height x height | 28 ft x 4 in |
Feeding Unit
| Max. feed size | 8 in |
|---|---|
| Hopper volume | 1.6 yd³ |
| Feed capacity up to approx. | 496 US t/hr |
