Eager Beaver 70GLB-5
EAGER BEAVER – 70GLB-5 — OILFIELD LOWBOY TRAILERS®
70 Ton Fixed Gooseneck Lowboy
FEATURES
• All-Wheel ABS (8S/5M) With Spring Brakes On All Axles
• 24″ Deep I-Beam Mainframe, 16″ Deep I-Beam Siderails
• 10″ Deep Crossmembers Pierced Through Mainframe
• (5) 25,000 # Axles, 5″ Diameter (3/4″ Wall), Maximum Track Width
• 275 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheels
• Cush Air Ride Suspension – 125,000 # Capacity With Lift 5th Axle
OPTIONS
• Air Lift Deck Rollers – one set 2’ Forward of Suspension, one set 6’ aft of Gooseneck
• Four Inch Dia. stanchion pockets (81” between) – one set 4’ aft of Gooseneck, one set on forward
• Bolster, includes stanchion pipes and stanchion pipe rack on Gooseneck
• Lockable Toolbox in Gooseneck and Expanded Metal Floor in Gooseneck
• Additional Gooseneck Lengths and Heights
• Inverted 5th Wheel
• Heavy Duty Drop Leg Supports
• Dual Air & Electrical Connections – Front of GN and Front of Bed
• Manual Raise and Lower Valve
• Oak Deck in lieu of Apitong
• Aluminum Wheels
• Spare Tire Carrier with or without Mounted Spare
• Tire & Disc Wheel 275/70R22.5 (H) Upgrade (Yokohama)
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data
| Winch Loop | Winch Loop on Front of Gooseneck with Full Width Integrated Skid Pipe |
|---|---|
| Tail Roller | Bolt on Tail Roller with Weevil Pockets and two support rollers |
| Wiring Harness | Sealed LED Lights & USA Star PLUS Sealed Modular Wiring Harness |
| Crossmembers | 10” x 12 lbs. per ft. I-Beam, pierced through mainbeam (18” spacing) |
| Tie Down | Eight Roto Rings Per Side; Fixed D-Rings on Rear of Neck and Tailboard |
| Frame | Mainrails: fabricated 24” Deep I-Beam. Siderails: fabricated 16” Deep I-Beam |
| GVWR | 167,000 lbs. |
| Trailer Weight | 28,640 lbs. |
| Colors | Yellow, Red, Black with matching Undercoating |
| Fairlead Roller | Fairlead Roller in Rear of Gooseneck with Weevil Pockets |
| Decking | 2” Nominal Apitong wood ahead of wheels, 3/8” smooth steel over wheels |
| Gooseneck | 4” Relief Style and 102” Swing Clearance STD (Other Lengths Available) |
| Deck Width | 8 ft. 6 in. |
| Weevil Pockets | Mounted every 6 ft on Outside of Side Rail and on one Bolster |

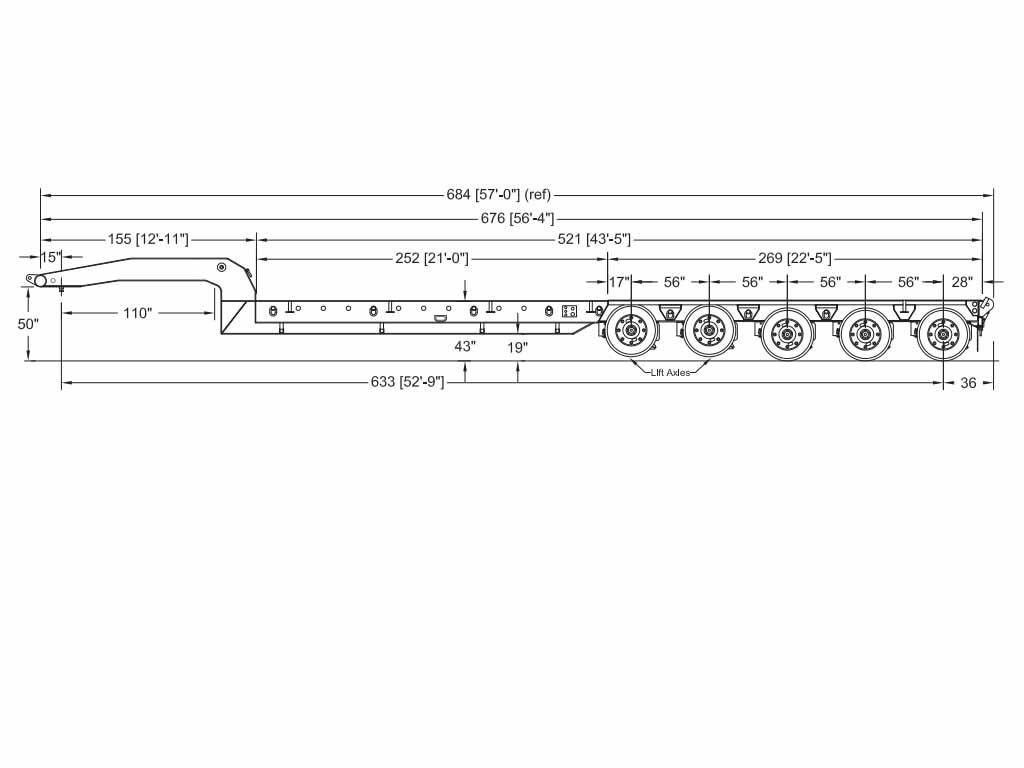

| Length | 57 ft. 0in. (with 110” swing neck) |
| Capacity | 140,000 lbs. |
| Height | 43 in. (Loaded) |
Running Gear
| Tires | Twenty 255/70R22.5 (H) Steel Belted Radial (Yokohama) |
|---|---|
| Brakes | 16 ½” x 7” Air, “S” Cam, Automatic Slack Adjusters |
| Parking Brake | Spring Brakes on All Wheels |
| Hubs/Wheels | Disc Type Hubs, 8.25 x 22.5 Disc Type Wheels, Stemco Oil Seals, Hub Piloted |
| Suspension | Air Ride (Combined Capacity 125,000 lbs) with Dump Valve; Lift 1st & 2nd Axle |
| Axles | Five 5” Diameter 25,000 lbs. each, H.M. series bearings |
| ALL WHEEL ABS | Anti-lock brake system 4S3M, Sensors on (2) Axles, 3 modulator valves |
