Eager Beaver 50GLB-3
EAGER BEAVER – 50GLB-3 — OILFIELD LOWBOY TRAILERS®
50 Ton Fixed Gooseneck Oilfield Lowboy
FEATURES
• All-Wheel ABS (4S3M) With Spring Brakes On All Axles
• 24″ Deep I-Beam Mainframe, 16″ Deep I-Beam Siderails
• 10″ Deep Crossmembers Pierced Through Mainframe
• 25,000 # Axles, 5″ Diameter (3/4″ Wall), Maximum Track Width
• 255 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheels
• Cush Air Ride Suspension – 75,000 # Capacity With Lift 3rd Axle
OPTIONS
• Air Lift Deck Rollers – one set 2’ Forward of Suspension, one set 6’ aft of Gooseneck
• Four Inch Dia. stanchion pockets (81” between) – one set 4’ aft of Gooseneck, one set on forward Bolster, includes stanchion pipes and stanchion pipe rack on Gooseneck
• Lockable Toolbox in Gooseneck Expanded Metal Floor in Gooseneck Heavy Duty Drop Leg Supports
• Dual Air & Electrical Connections – Front of GN and Front of Bed
• Manual Raise and Lower Valve
• Inverted 5th Wheel
• Oak Deck in lieu of Apitong
• Aluminum Wheels
• Spare Tire Carrier with or without Mounted Spare
• Tire & Disc Wheel 275/70R22.5 (H) Upgrade (Yokohama)
• Paint (other than standard Black,Yellow, Blue)
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Running Gear
| Brakes | 16 ½” x 7” Air, “S” Cam, Automatic Slack Adjusters |
|---|---|
| Parking Brake | Spring Brakes on All Wheels |
| Hubs/Wheels | Disc Type Hubs, 8.25 x 22.5 Disc Type Wheels, Stemco Oil Seals, Hub Piloted |
| Suspension | Air Ride (Combined Capacity 75,000 lbs) with Dump Valve; Lift 1st Axle |
| All Wheel ABS | Anti-lock brake system 4S3M, Sensors on (2) Axles, 3 Modulator Valves |
| Tires | Twelve 255/70R22.5 (H) Steel Belted Radial (Yokohama) |
| Axles | Three 5” Diameter 25,000 lbs. each, H.M. series bearings |

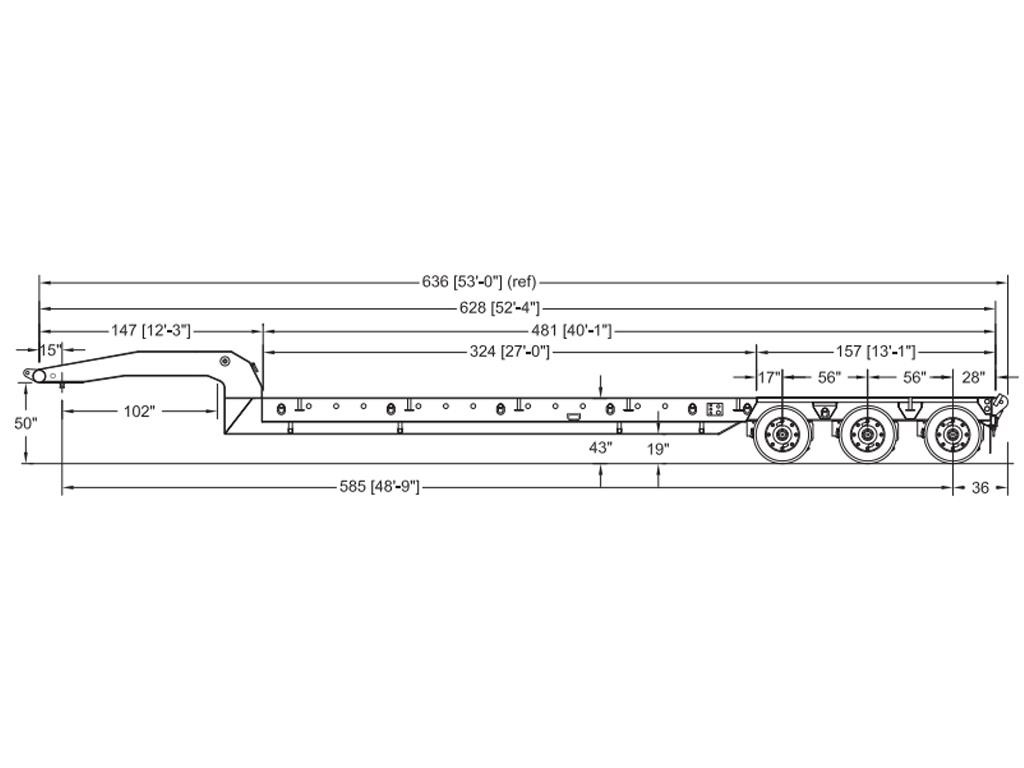

Technical Data
| Decking | 2” Nominal Apitong wood ahead of wheels, 3/8” smooth steel over wheels |
|---|---|
| Deck Width | 8 ft. 6 in. |
| Deck Height | 43in. (Loaded) |
| Frame Siderails | Fabricated 16” Deep I-Beam |
| Tie Down | 8- Roto Rings Per Side; Fixed D-Rings on Rear of Neck and Tailboard |
| GVWR | 122,000 lbs. |
| Crossmembers | 10” x 12 lbs. per ft. I-Beam, pierced through mainbeam (18” spacing) |
| Fairlead Roller | Fairlead Roller in Rear of Gooseneck with Weevil Pockets |
| Weevil Pockets | Mounted every 6 ft on Outside of Side Rail and on one Bolster |
| Colors | Black, Yellow, Blue (standard) Imron Paint |
| Gooseneck | 4” Relief Style and 102” Swing Clearance STD (Other Lengths Available) |
| Frame Mainrails | Fabricated 24” Deep I-Beam |
| Winch Loop | Winch Loop on Front of Gooseneck with Full Width Integrated Skid Pipe |
| Wiring Harness | Sealed LED Lights & USA Star PLUS Sealed Modular Wiring Harness |
| Trailer Weight | 21,600 lbs. |
| Deck Overall Length | 53 ft. 0 in. (with 102” swing neck) |
| Capacity | 100,000 lbs. |
| Tail Roller | Bolt on Tail Roller with Weevil Pockets and two support rollers |
