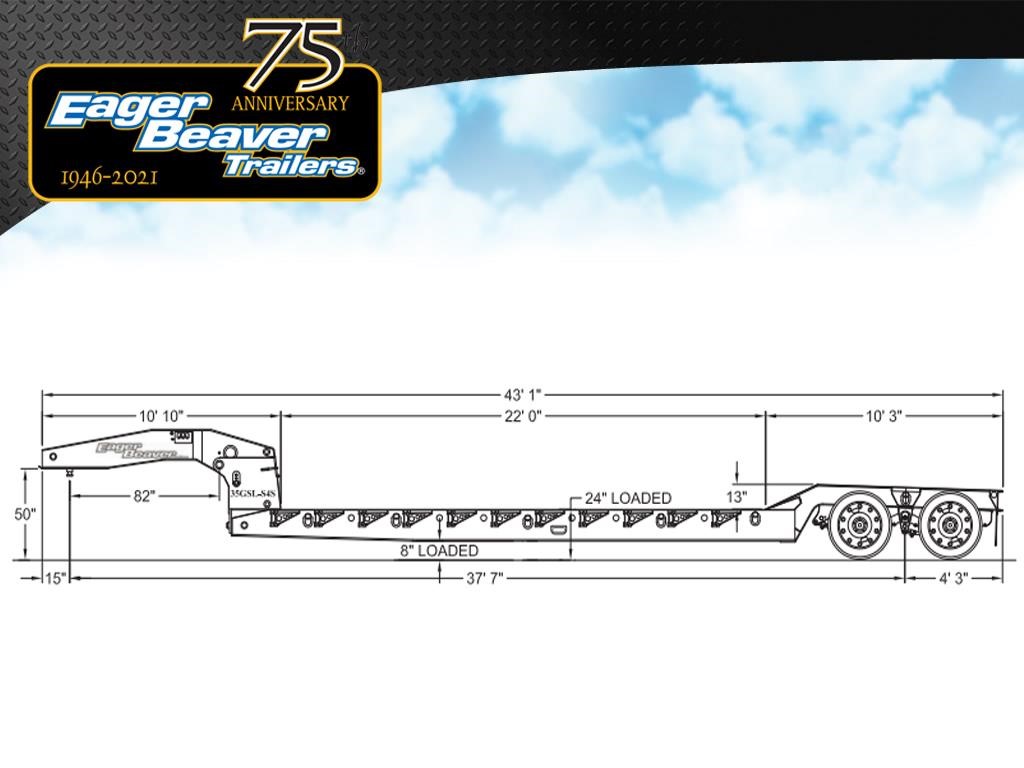

Eager Beaver 35GSL-S4S
EAGER BEAVER – 35GSL-S4S — LOWBOYS TRAILERS®
Our most basic and economical hydraulic detachable lowboy.
FEATURES
• All-Wheel ABS (4S2M) With Spring Brakes On All Axles
• 4 Beam 16″ Deep Cambered I-Beam Mainframe & Siderails
• 10″ Deep Crossmembers Pierced Through Mainframe
• 25,000 # Axles, 5″ Diameter, Maximum Track Width
• 255 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheels
• Hutch 9700 Suspension — 50,000 # Capacity
OPTIONS
• Power Pack: 11hp, 12hp Kohler, 13hp Honda, or 16hp Kohler (Combination Power Pack/Wet Kit Available)
• Lockable Tool & Chain Storage: Forward center deck area (1 or 2 compartments)
• Additional “ROTO-RINGS”®
• Spare Tire & Disc Wheel 255/70R22.5 (H) Optional: Spare Tire Carrier
• Tire & Disc Wheel 275/70R22.5 (H) Upgrade
• Oak Decking in lieu of Apitong
• Paint (other than standard Black,Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide. At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer. Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data
| Colors | Black,Yellow, Blue (standard) Imron Paint |
|---|---|
| Decking | 1 ½” Apitong Decking With Expanded Metal Center |
| Front Ramps | Front Flip Steel w/ Grousers (Wood filled is available) |
| Tie Down | 6 per side - Patented "ROTO RINGS"® Swivel 360º |
| Crossmembers | 10" x 9 lbs. per ft. I-Beam, pierced through mainbeam (18" spacing Std.) |
| Capacity | 70,000 lbs |
| Deck Width | 8 ft. 6 in. Length: 22 ft. Height: 24 in. (Loaded) |
| Hydraulics | Wetline hook-up for tractor PTO operation • REQUIREMENT: Low Flow/High Pressure System |
| Wiring Harness | Sealed L.E.D. Lights & USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
| Controls | Control Valve eye level |
| Gooseneck Length | 82", 86", 90", 94", 98" and 102" available |
| GVWR | 85,500 lbs. |
| Trailer Weight | 15,500 lbs |
| Frame | Mainrails: Four fabricated 16" Deep cambered I-Beam, 80,000 P.S.I. steel |
| Hydraulic Cylinders | Two Main 6", One 3" Locking, One 4" Gooseneck Support |
| Outriggers | Cast Steel (Locks both in and out position) |
Running Gear
| Brakes | 16 1/2" x 7" Air, "S" Cam., Auto Slack Adjusters |
|---|---|
| Axles | Two 5" diameter 25,000 lbs. each, H.M. series bearings |
| Parking Brake | Spring Brakes on All Wheels |
| Suspension | Hutch H-9700, three leaf, capacity 50,000 lbs. tandem (Adjustable Alignment) |
| Hubs/Wheels | Four Disc Type Hubs, Eight 8.25 x 22.5 Disc Type Wheels, Stemco Oil Seals, Hub Piloted |
| Tires | Eight 255/70R22.5 (H) Steel Belted Radial |
| All Wheel ABS | Anti-lock brake system 4S2M, Sensors on All Wheels, Two modulator valves |
