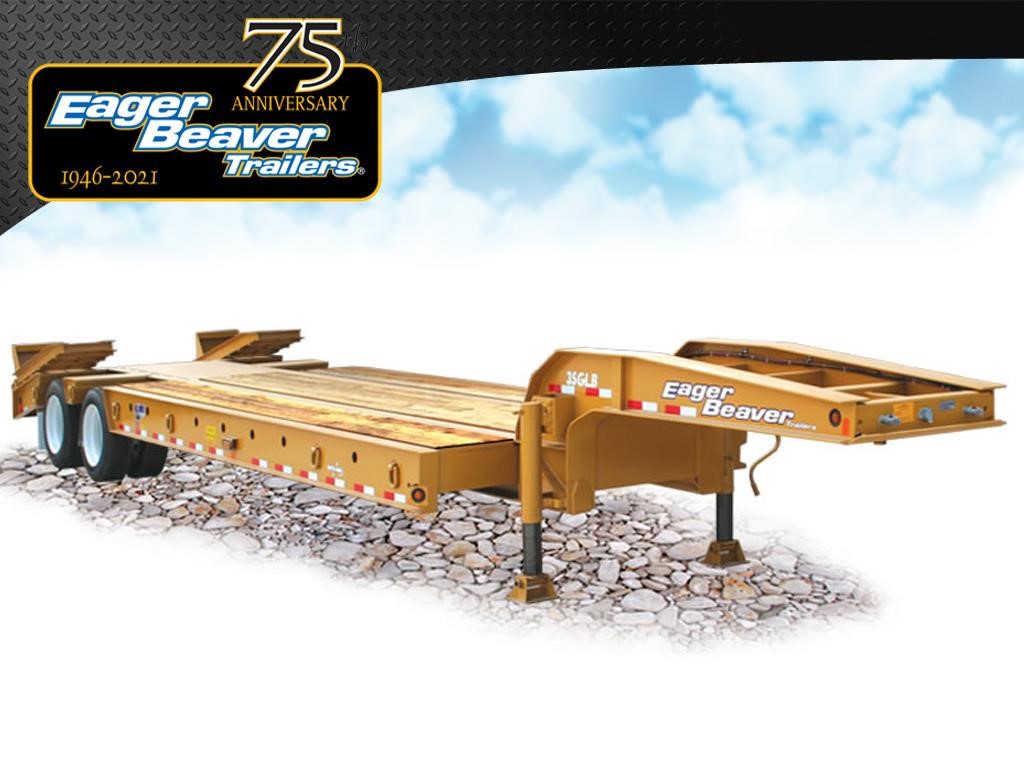

Eager Beaver 35GLB

EAGER BEAVER – 35GLB — LOWBOYS TRAILERS®

FEATURES

• All-Wheel ABS (4S2M) With Spring Brakes On All Axles

• 4 Beam 16″ Deep I-Beam Mainframe & Side rails

• 10″ Deep Crossmembers Pierced Through Mainframe

• 25,000 # Axles, 5″ Diameter (3/4″ Wall), Maximum Track Width

• 255 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheel

• Hutch H900-50 Single Point Suspension — 50,000 # Capacity

OPTIONS

• Additional Deck Length & Width: (19′-20′-21′-22′-23′-24′-25′ Optional Lengths) (96″ Optional Width)

• Gooseneck Length: (82″, 86″, 90″, 94″, 98″ and 102″ available as Std.) (For special lengths contact sales)

• Gooseneck Fenders

• Motor Grader-Ramps Full Width Gooseneck

• Additional “ROTO-RINGS”®

• Spare Tire & Disc Wheel 255/70R22.5 (H) Optional: Spare Tire Carrier

• Low Profile: 33″ Loaded Deck Height, 265/70R19.5 Tires and 7.5 x 19.5 Disc Type Wheels (15 x 8 5/8 Brakes)

• Wheel Covers (Flush)

• Ramps: Wood (Standard)

• Ladder (Optional N/C)

• Oak Decking in lieu of Apitong

• Paint (other than standard Black,Yellow, Blue) Price on Request

OUR COMPANY…

Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide. At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.

Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer. Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

Technical Data

Trailer Weight13,900 lbs
Tie DownFive per side - Patented "ROTO RINGS"® Swivel 360º
Crossmembers10" x 9 lbs. per ft. I-Beam, pierced through mainbeam
Wiring HarnessSealed L.E.D. Lights & USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug
ColorsBlack, Yellow, Blue (standard) Imron Paint
DeckWidth 8 ft. 6 in. Length: 18 ft. Height: 36 in. (Loaded) Overall Length: 38 ft. 11 in
Parking Jack(2) Two-Speed Landing Gear
Capacity70,000 lbs
Frame(4) 16" Fabricated I-Beam, 80,000 psi Stee
GVWR82,295 lbs.
Decking1½” Apitong (Full Width)

Running Gear

SuspensionHutch H-900-50 Single Point 50,000 lbs. capacity tandem
AxlesTwo 5" diameter 25,000 lbs. each, H.M. series bearings
Hubs/WheelsFour Disc Type Hubs, Eight 8.25 x 22.5 Disc Type Wheels, Stemco Oil Seals, Hub Piloted
Brakes16 1/2" x 7" Air, "S" Cam., Auto Slack Adjusters
All Wheel ABSAnti-lock brake system 4S2M, Sensors on All Wheels, Two modulator valves
Parking BrakeSpring Brakes on All Wheels
TiresEight 255/70R22.5 (H) Steel Belted Radial
