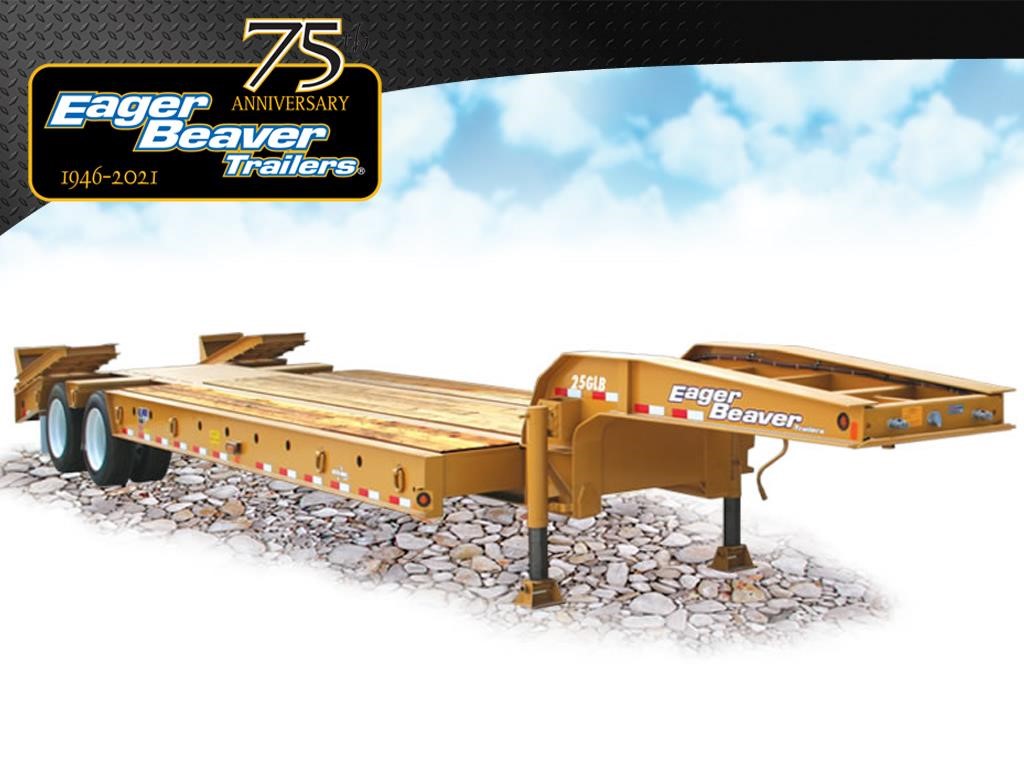

Eager Beaver 25GLB-L
EAGER BEAVER 25GLB-L — LOWBOYSTRAILERS®
FEATURES
• All-Wheel ABS (4S2M) With Spring Brakes On All Axles
• 16″ Deep I-Beam Mainframe, 12″ Deep Structural Channel Side Rails
• 10″ Deep Crossmembers Pierced Through Mainframe
• 22,500 # Axles, 5″ Diameter, Maximum Track Width
• 215 / 75R 17.5 Radial Tires On Hub-Piloted Disc Wheels
• 32″ Loaded Deck Height – 16″ Ground Clearance
OPTIONS
• Additional Deck Length & Width: (19′-20′-21′-22′-23′-24′-25′ Optional Lengths) (96″ Optional Width)
• Gooseneck Length: (82″, 86″, 90″, 94″, 98″ and 102″ available as Std.) (For special lengths contact sales)
• Gooseneck Fenders
• Motor Grader-Ramps Full Width Gooseneck
• Additional “ROTO-RINGS”®
• Spare Tire & Rim 215/75R17.5 (H) Optional: Spare Tire Carrier
• Wheel Covers (Raised)
• Ramps: Wood (Standard)
• Ladder (Optional N/C)
• Apitong Decking in lieu of Oak
• Paint (other than standard Black,Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data
| Wiring Harness | Sealed L.E.D. Lights & USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
|---|---|
| Load Capacity | 50,000 lbs |
| Frame | (2) 16" Fabricated I-Beam, 80,000 psi Steel |
| Deck | Width 8 ft. 6 in. Length: 18 ft. Height: 32 in. (Loaded) Overall Length: 38 ft. 11 in. |
| Parking Jack | (2) Two-Speed Landing Gear |
| Trailer Weight | 11,600 lbs |
| Crossmembers | 10" x 9 lbs. per ft. I-Beam, pierced through mainbeam Decking Nominal 2" Hardwood |
| Colors | Black, Yellow, Blue (standard) |
| GVWR | 61,600 lbs. |
| Tie Down | Five per side - Patented "ROTO RINGS"® Swivel 360º |
Running Gear
| Brakes | Dana 12 1/4" x 7 1/2" Air, "S" Cam., Auto Slack Adjusters |
|---|---|
| Axles | Two 5" diameter 22,500 lbs. each, H.M. series bearings (maximum axle track width) |
| Hubs/Wheels | Four Disc Type Hubs, Eight 6.75 x 17.5, 8-Bolt, Hub-Piloted Disc Wheels |
| Suspension | Hutch H-9700, Three leaf, capacity 50,000 lbs. tandem |
| Parking Brake | Spring Brakes on All Wheels |
| Tires | Eight 215/75R17.5 (H) Steel Belted Radial |
| All Wheel ABS | Anti-lock brake system 4S2M, Sensors on All Wheels, Two modulator valves |
