Eager Beaver B9DOW

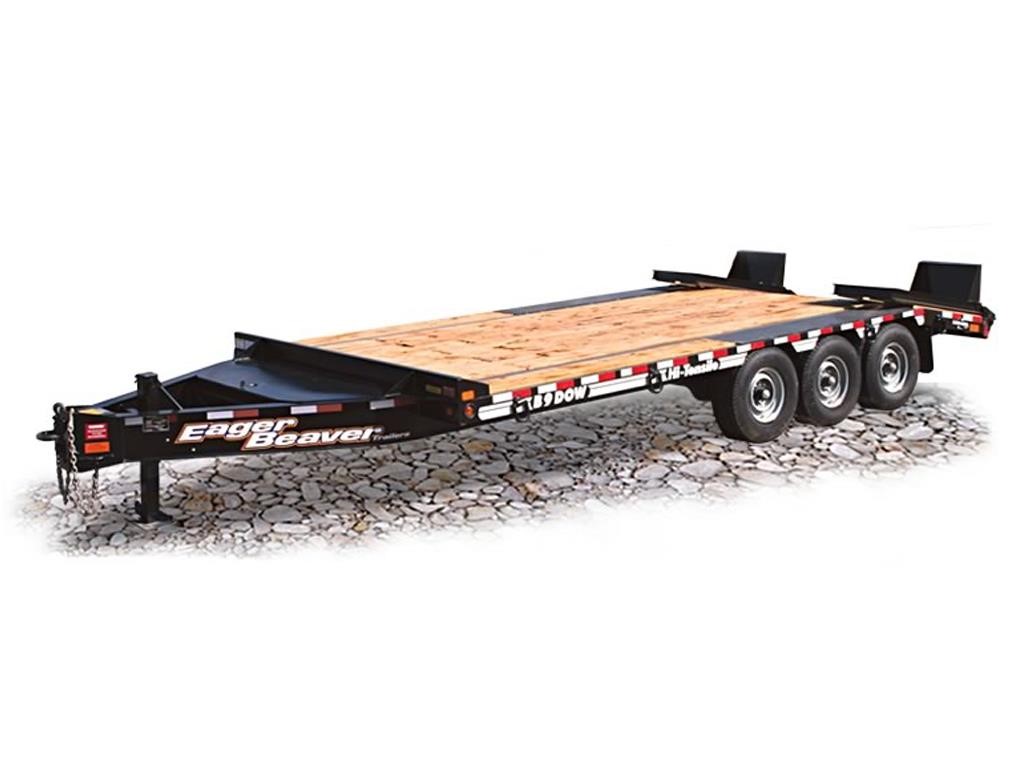

EAGER BEAVER B9DOW — EASYLOADER TRAILERS
FEATURES
• 17′ Flat Deck With 5′ Beavertail & 5′ Ramps
• 12″ Hi-Tensile Steel Mainframe With Cold-Formed Drawbar

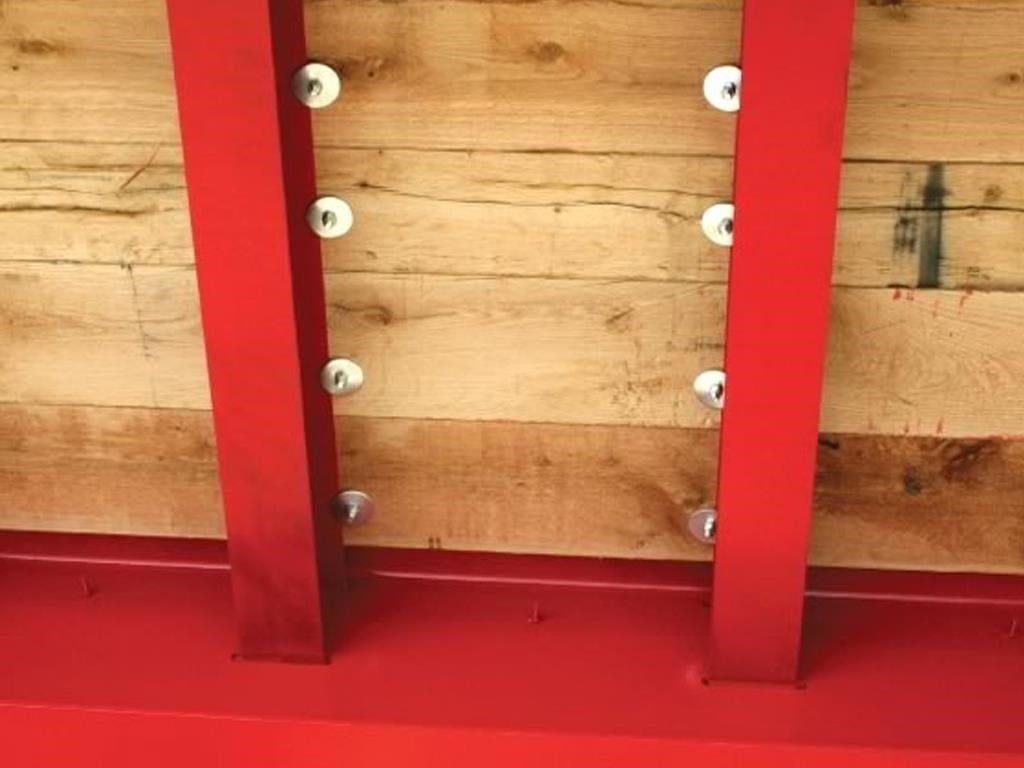

• 6″ Crossmembers Pierced Through Mainframe
• (3) 6,000 lb. HD Dexter Axles with HD Bearings
• ST235 / 80R 16 Goodyear Marathon Tires On Hub-Piloted Disc Wheels
• 12″ X 2″ Electric Brakes With Breakaway Switch
OPTIONS
• Spare Tire & Disc Wheel 235/80R16 (E) Optional: Spare Tire Carrier
• Tool Box Lid (Lockable) Optional: Expanded Metal Tray Plate
• Traction 2″ x 2″ Angle 6″ C/C Wheel Paths Optional: Traction Center Section, Bucket Pocket or Plate Ramps
• Ramps Ladder (standard) Wood (Optional N/C)
• Brake Controller: Cab mounted w/ complete truck wiring harness and receptacle
• Paint (other than standard Black,Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data
| Capacity | 18,000 lbs. |
|---|---|

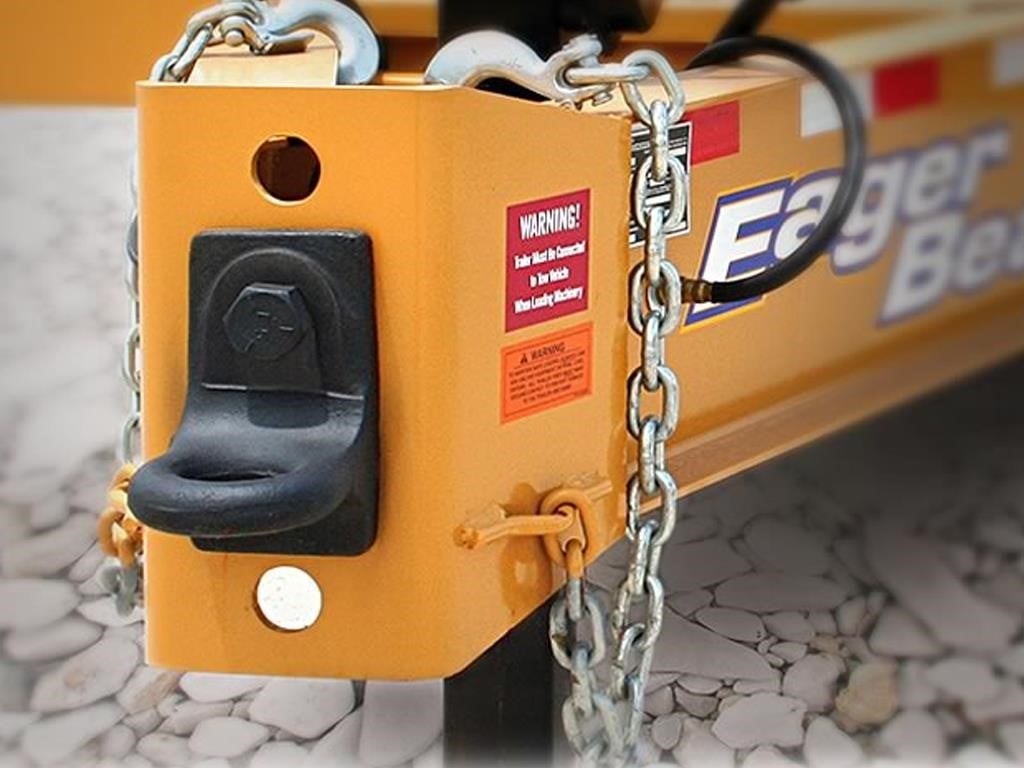

| Hitch | One piece solid cast steel (adjustable) lunette eye & flange mount |
| Crossmembers | 6" x 3.7 lbs. per ft. I-Beam |
| Trailer Weight | 4,600 lbs. |
| Headboard | 8" high, full width of trailer Drawbar Storage Area |
| Deck Width | 8’ 0” |
| GVWR | 22,600 lbs. |
| Length | 17’ 0” |

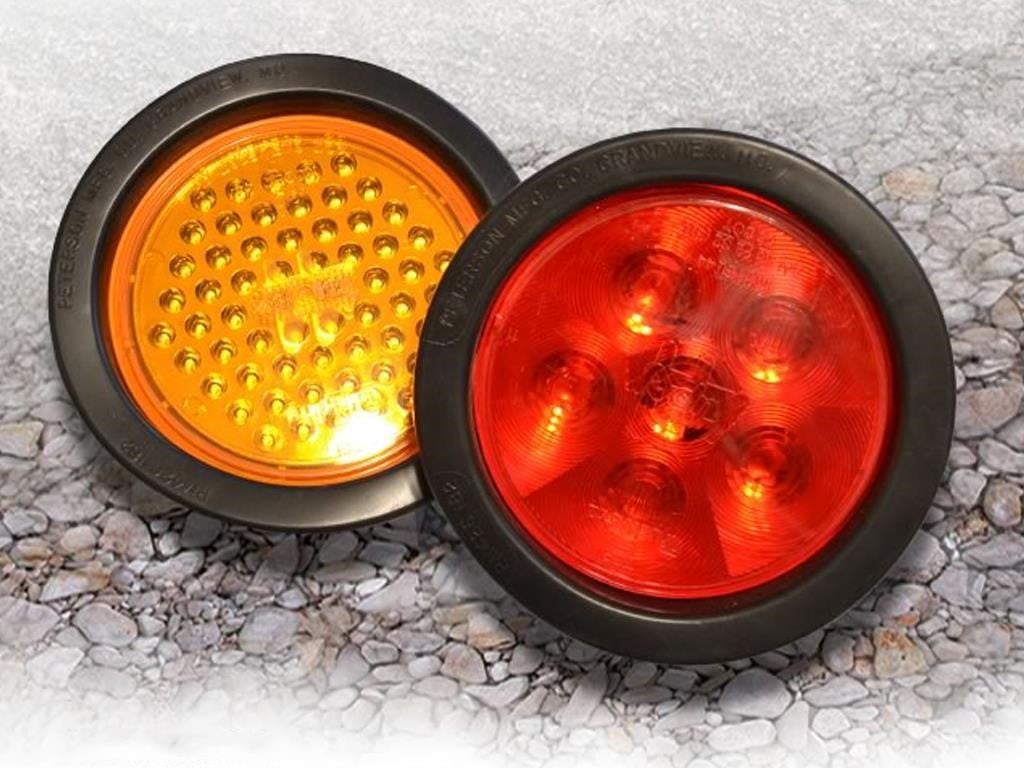

| Lights | 12 volt, DOT approved |
| Height | 34” |

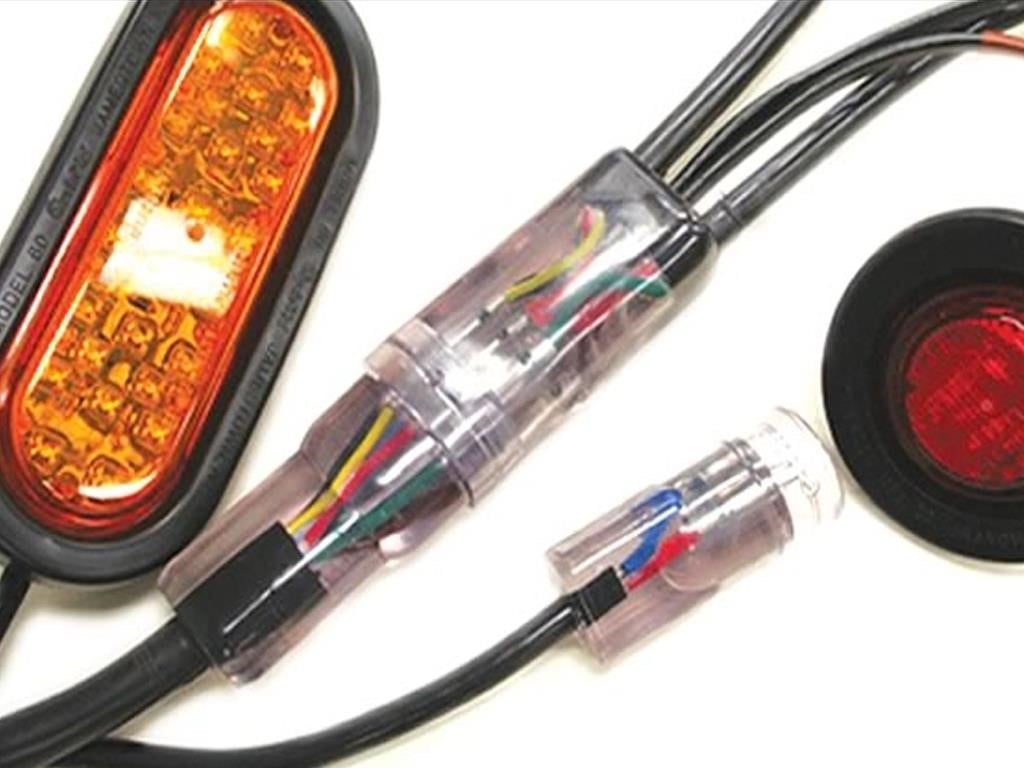

| Wiring Harness | USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
| Safety Chains | Two 3/8" Blue-Krome plated high test, Safety Hook w/ Latch |

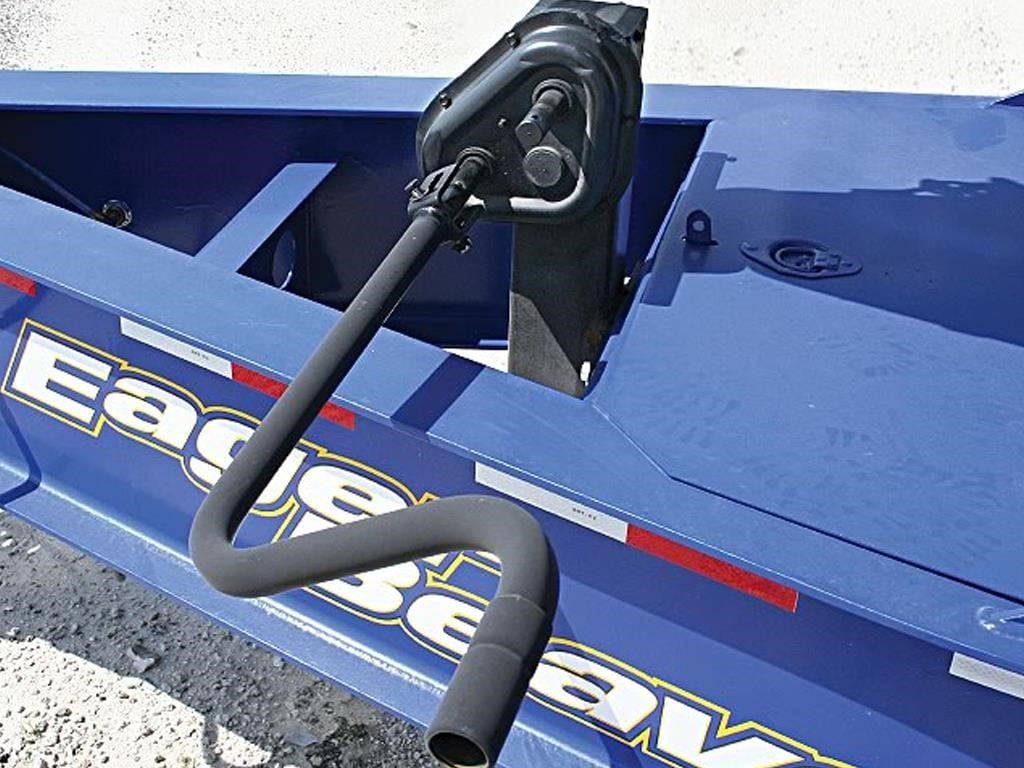

| Parking Jack | 12,000 lbs. static / 10,000 lbs. lift (Heavy Duty drop leg screw type) |
| Colors | Black,Yellow, Blue (standard) |
| Decking | Nominal 2" Hardwood |
| Tie Down | Four per side - Patented "ROTO RINGS"® Swivel 360º |
| Frame | Mainrails: W12" x 16 lbs. wide flange I-Beam, one piece cold formedHi-tensile 50,000 P.S.I. steel mainrails from front to drawbar to rear of trailer |
Running Gear
| Brakes | Dexter 12" x 2" electric each wheel |
|---|---|
| Break-away | 12 Volt, wet cell battery with integrated battery charging system |

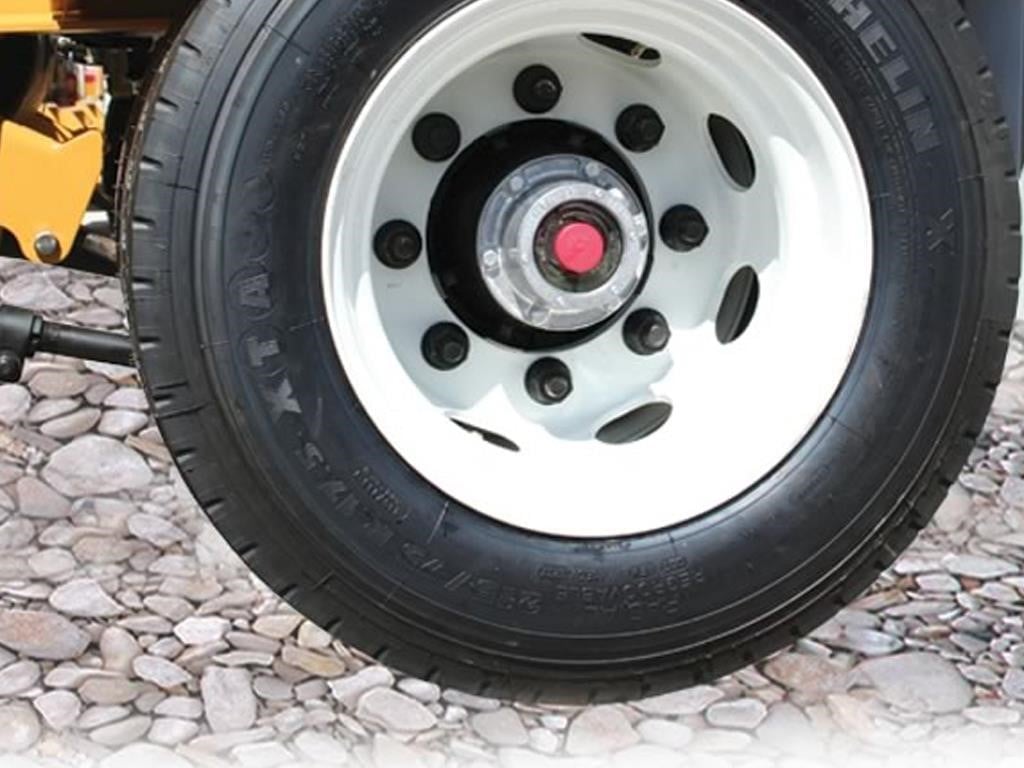

| Tires | Six 235/80R16 (E) |
| Hubs/Wheels | Six 8 Stud on 6 1/2" BC Hubs, Six 6.00 x 16 Disc Type Wheels |

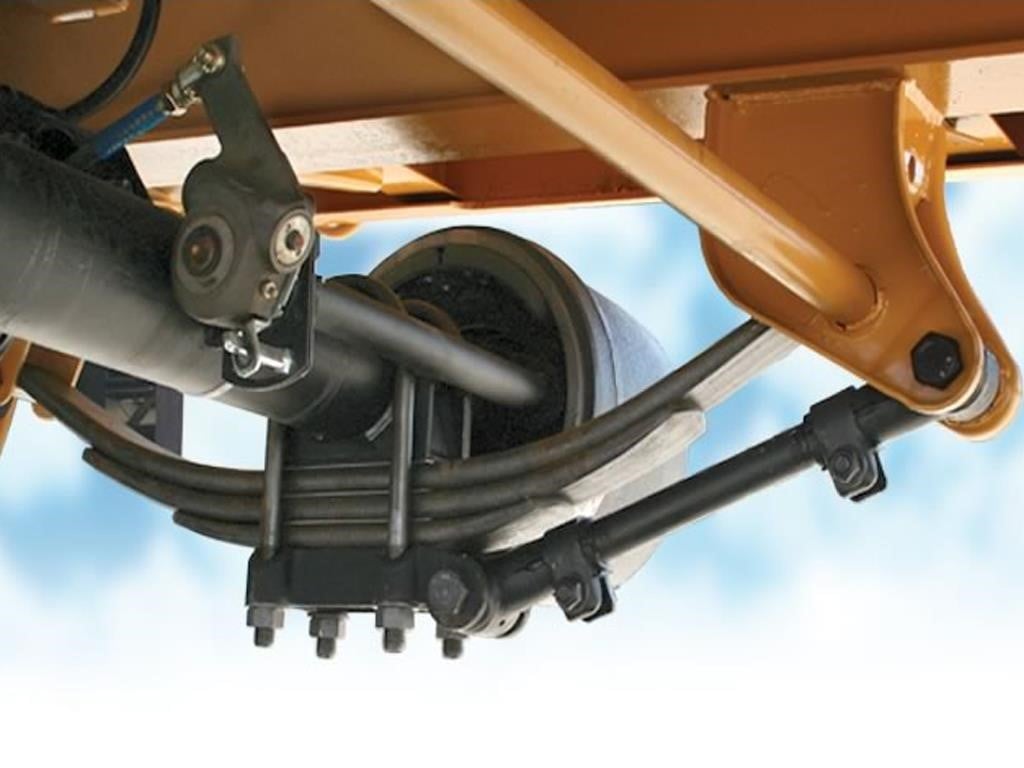

| Suspension | Nylon bushed slipper spring w/ equalizer, capacity 18,000 lbs. tandem |
| Axles | Three Dexter 6,000 lbs. each |
