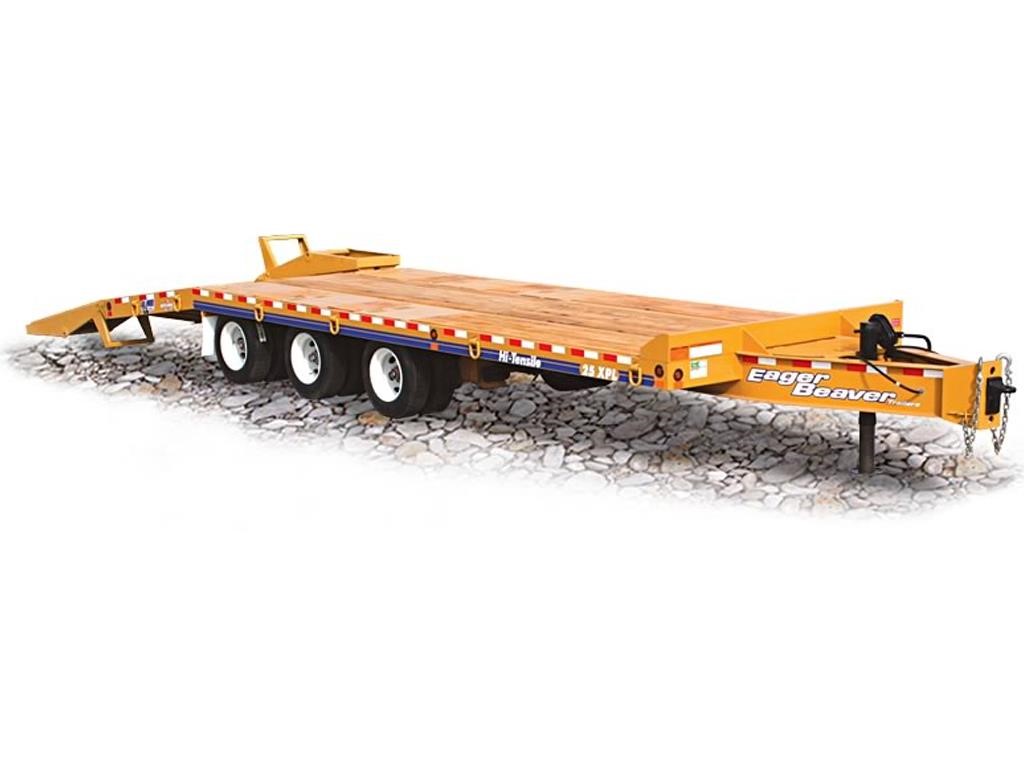

Eager Beaver 25XPL
EAGER BEAVER – 25XPL — EASYLOADER TRAILERS®
FEATURES
• Air Lift Front Axle
• 4S2M ABS With Spring Brakes On All Axles
• 6′ Beavertail & 6′ Ramps (8 degree beavertail)
• 14″ Hi-Tensile Steel Mainframe With Cold-Formed Drawbar
• 6″ Crossmembers Pierced Through Mainframe
• 22,500 # Axles, 5″ Diameter, Maximum Track Width
• 215 / 75R 17.5 Radial Tires On Hub-Piloted Disc Wheels
OPTIONS
• Additional Deck Length & Width (23′-24′-25′ Optional Lengths) (96″ Optional Width)
• Additional “ROTO-RINGS”®
• Tool Box Lid (Lockable) Optional: Expanded Metal Tray Plate
• Spare Tire & Rim 215/75R 17.5 (H) Optional: Spare Tire Carrier
• Traction 2″ x 2″ Angle 6″ C/C Wheel Paths Optional: Traction Center Section, Bucket Pocket or Plate Ramps
• Wood (standard) Ladder (Optional N/C)

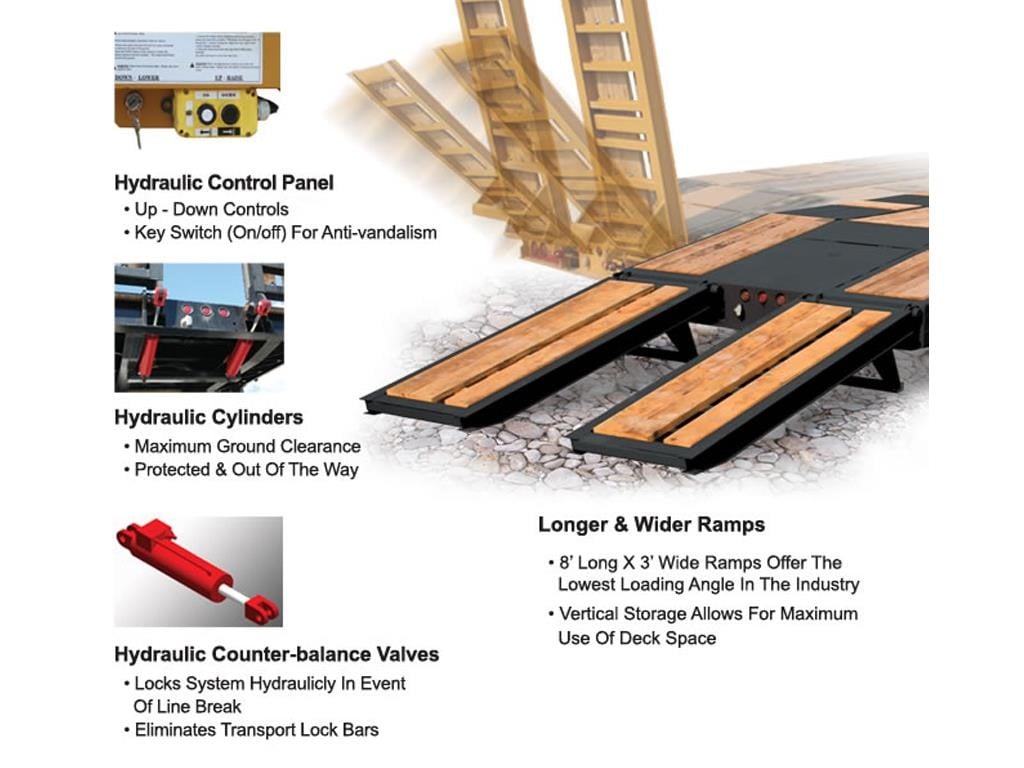

• Electric-Hydraulic 36″ Wide x 8′ Long
• Extension Ramps T-6 Alum. 22″ x 75″ 8-degree angle (SET)
• Apitong Decking in lieu of Oak
• Paint (other than standard Black,Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data

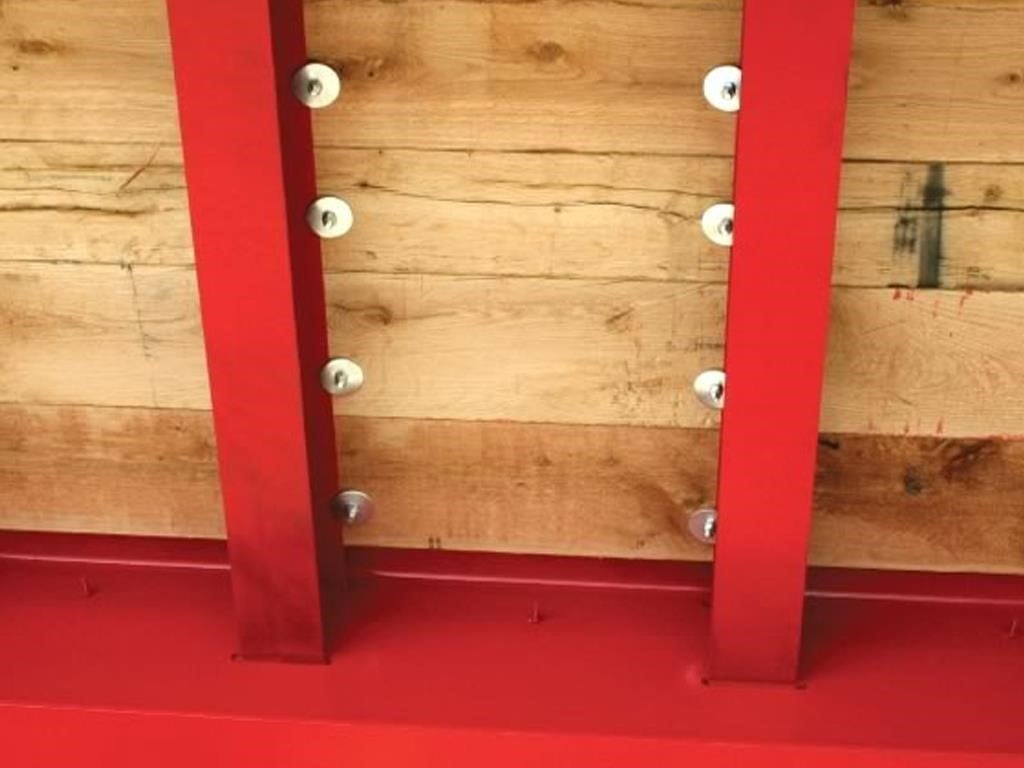

| Crossmembers | 6" x 9 lbs. per ft. I-Beam pierced through mainbeam |
|---|---|
| Safety Chains | Two 1/2" Blue-Krome plated high test, safety hook w/ latch |
| Tie Down | Six per side - Patented "ROTO RINGS"® Swivel 360º |
| Capacity | 50,000 lbs. |
| Length | 22 ft. |

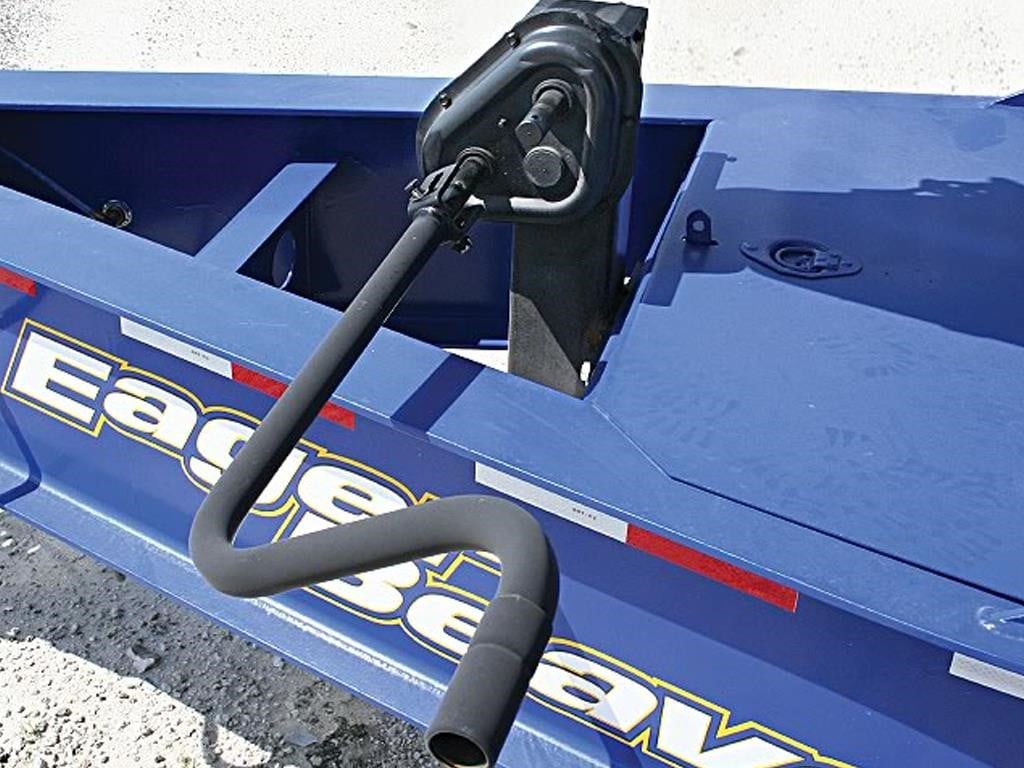

| Parking Jack | 70,000 lbs. static / 40,000 lbs. lift (Heavy Duty 2-speed screw type) |
| Colors | Black,Yellow, Blue (standard) Imron Paint |
| Height | 34 in. |
| Decking | Nominal 2" Hardwood |
| Trailer Weight | 11,720 lbs. |

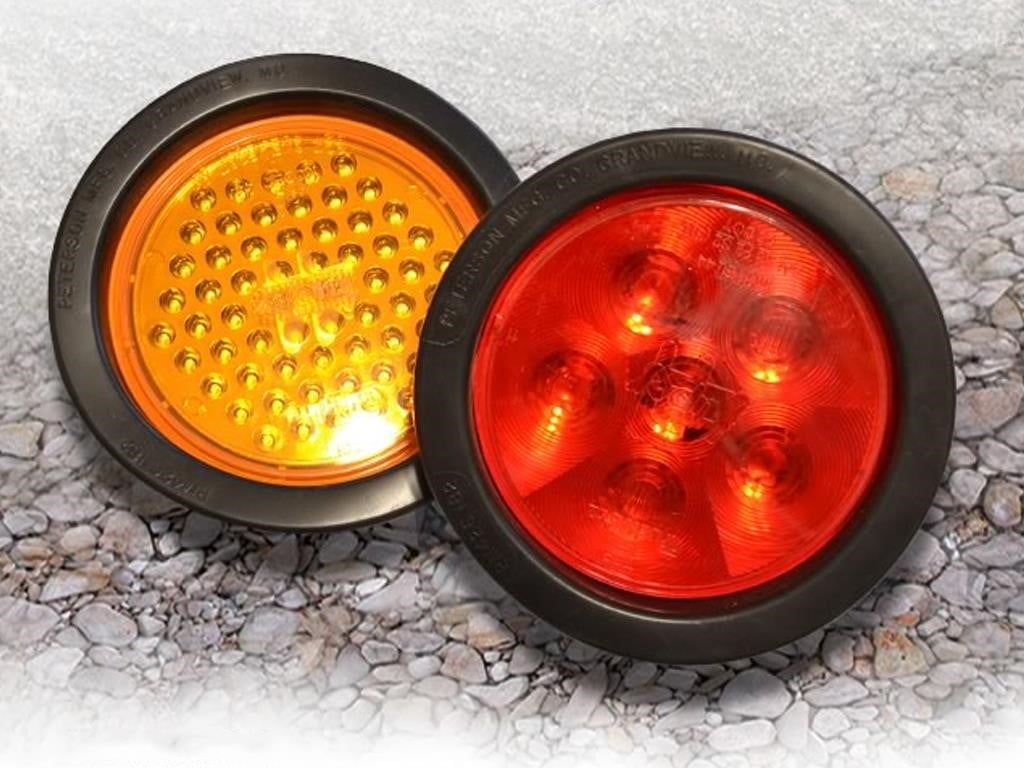

| Lights | Sealed L.E.D., 12 volt, DOT approved |
| Deck Width | 8 ft. 6 in. |

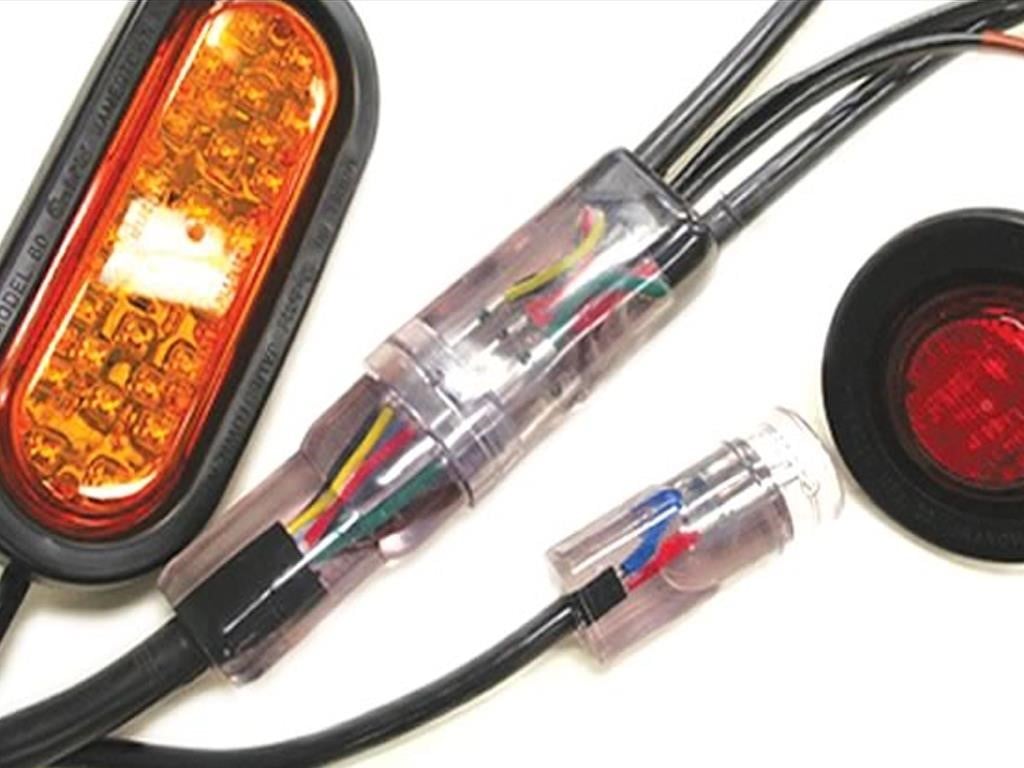

| Wiring Harness | USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
| Frame | Mainrails: W14" x 26 lbs. wide flange I-Beam, one piece cold formed Hi-tensile 50,000 P.S.I. steel mainrails from front to drawbar to rear of trailer 8º Beaver Tail (Safe Low Loading Angle) |

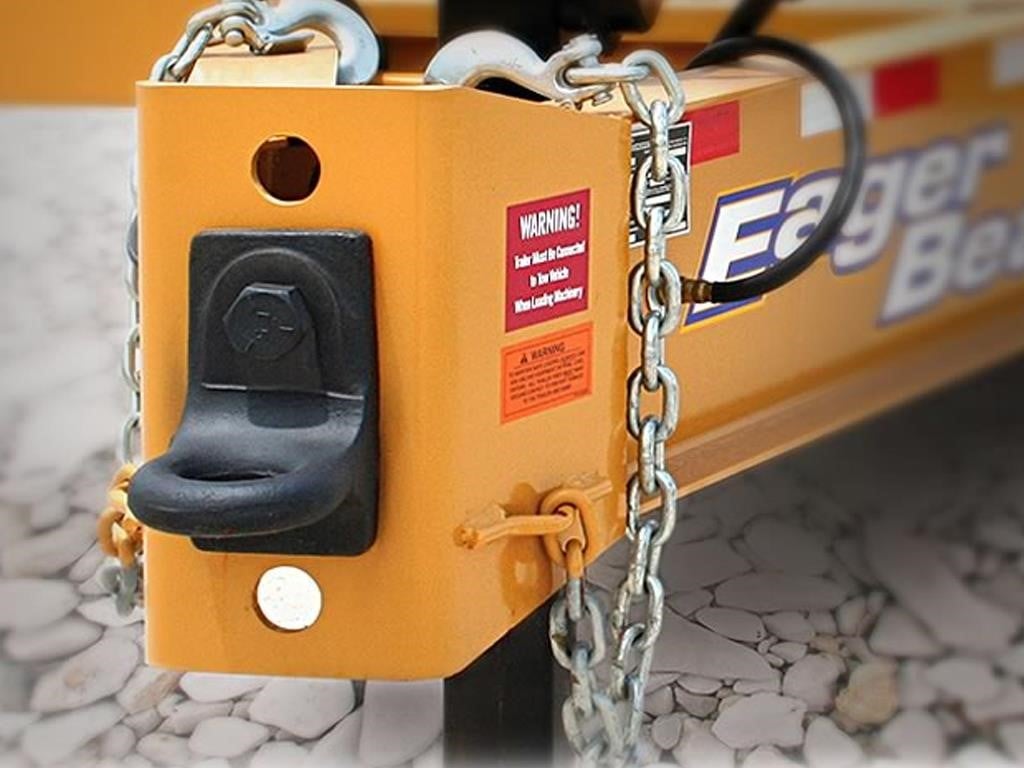

| Hitch | One piece solid cast steel (adjustable) lunette eye & flange mount |
| GVWR | 61,720 lbs. |
| Headboard | 8" high, full width of trailer Drawbar Storage Area |
Running Gear

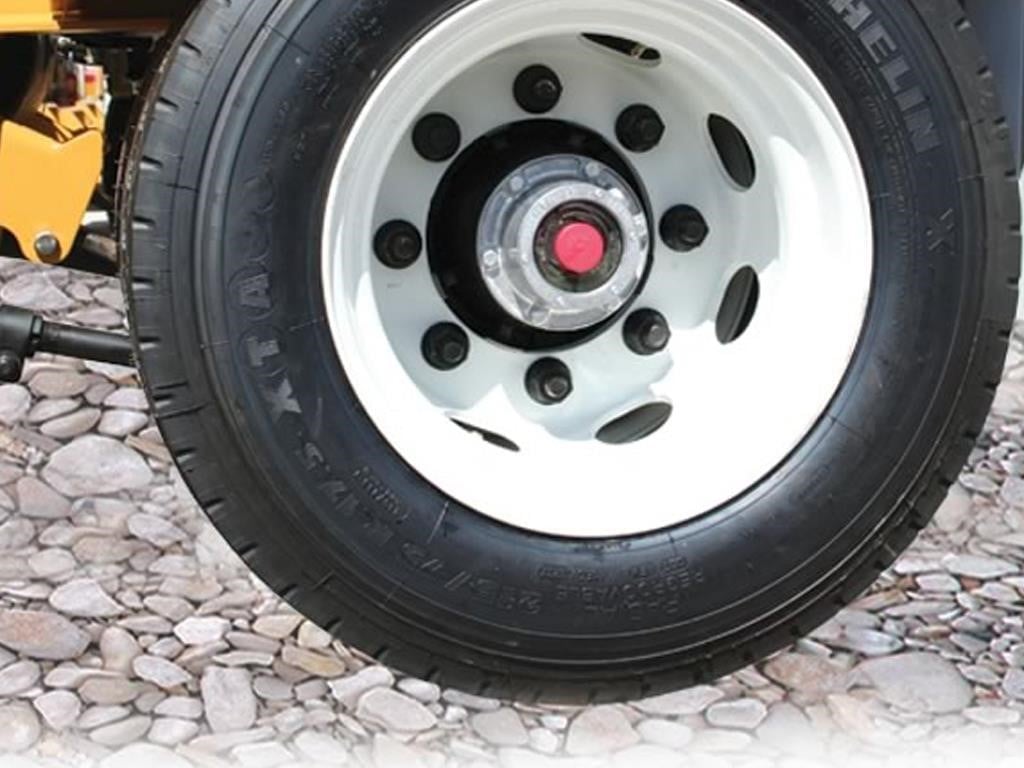

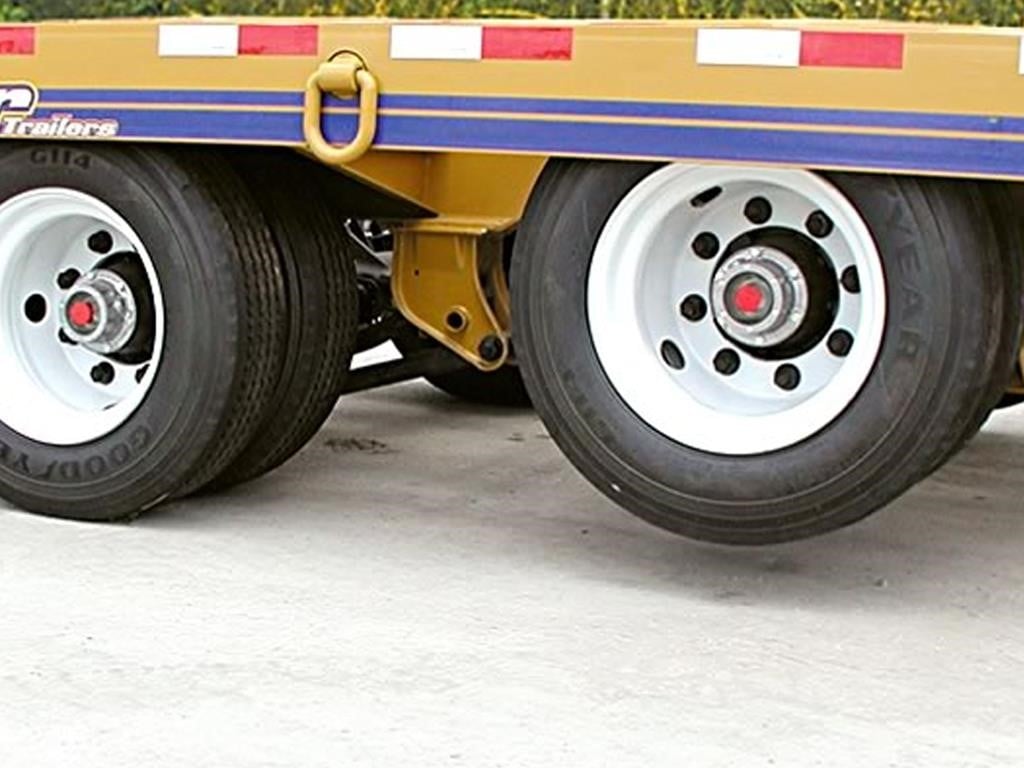

| Hubs/Wheels | Six Disc Type Hubs, Twelve 6.75 x 17.5, 8-Bolt, Hub-Piloted Disc Wheels |
|---|---|
| All Wheel ABS | Anti-Lock Brake System 4S3M Sensors on (2) Axles Three Modulator Valves |

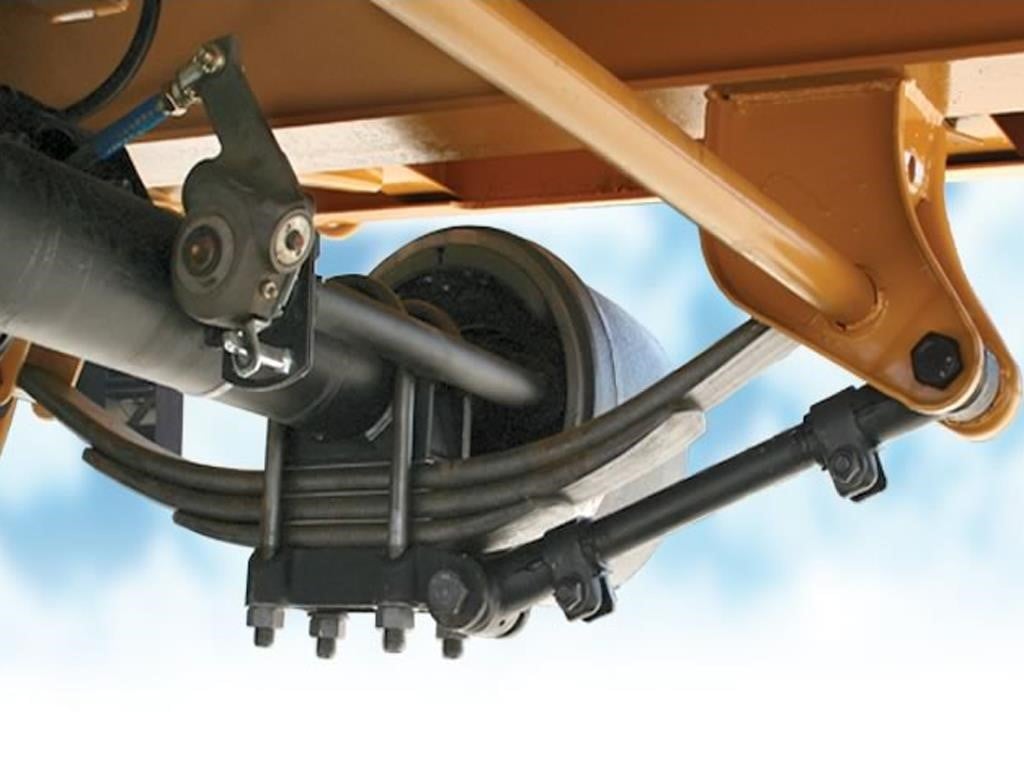

| Suspension | (1) Hutch H-9700, Three leaf, capacity 50,000 lbs. Tandem (1) Cush CLC-25-005 Air Ride with Lift, capacity 25,000 lbs. |
| Parking Brake | Spring Brakes on All Axles |
| Tires | Twelve 215/75R17.5 (H) Steel Belted Radial |
| Axles | Three 5" diameter 22,500 lbs. each, H.M. series bearings (maximum axle track width) |
| Brakes |
