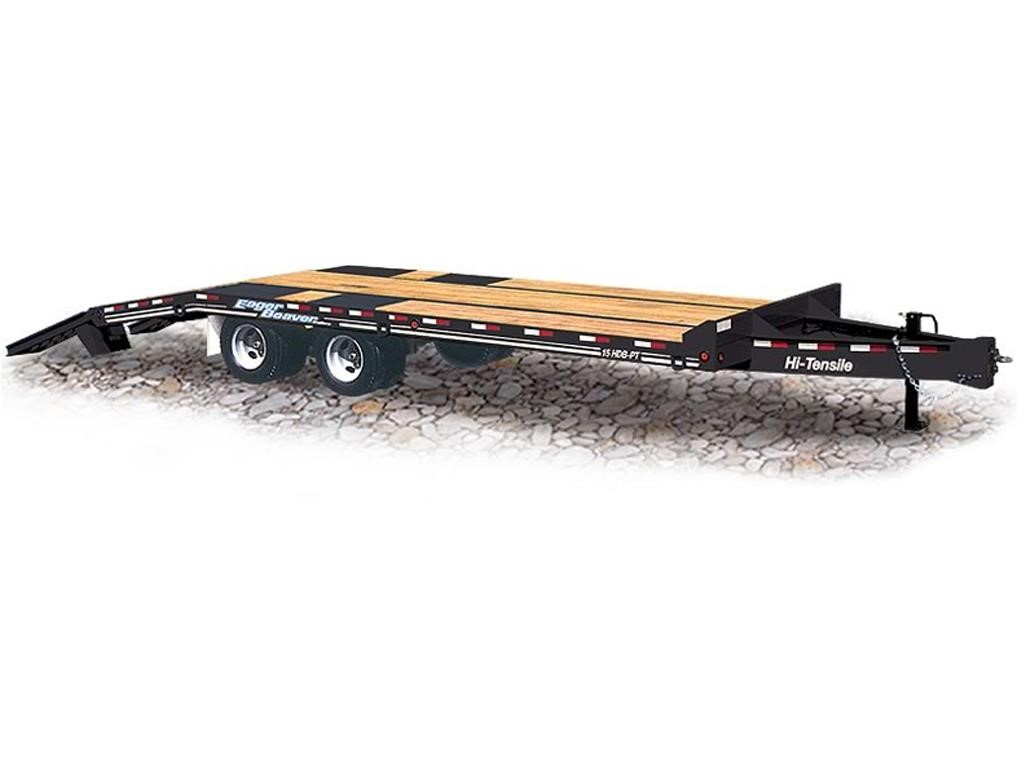

Eager Beaver 15HDB-PT
EAGER BEAVER – 15HDB-PT — EASYLOADER TRAILERS
FEATURES
• 6′ Beavertail & 6′ Ramps (8 degree beavertail)
• 14″ Hi-Tensile Steel Mainframe With Cold-Formed Drawbar
• 6″ Crossmembers Pierced Through Mainframe
• 15K HD Dexter Axles with HD Bearings
• 215 / 75R 17.5 Radial Tires On Hub-Piloted Disc Wheels
• 12 ¼” X 5″ Electric Brakes With Breakaway Switch
OPTIONS
• Additional Deck Length & Width (20′-21′-22′-23′-24′ Optional Lengths) (96″ Optional Width)
• Additional “ROTO-RINGS”®
• Tool Box Lid (Lockable) Optional: Expanded Metal Tray Plate
• Spare Tire & Rim 215/75R17.5 (H) Optional: Spare Tire Carrier
• Traction 2″ x 2″ Angle 6″ C/C Wheel Paths Optional: Traction Center Section, Bucket Pocket or Plate Ramps
• Wood (standard) Ladder (Optional N/C)
• Extension Ramps T-6 Alum. 22″ x 75″ 8º angle (SET)
• Brake controller: Cab mounted w/ complete truck wiring harness and receptacle
• Parking Jack
• Optional: Jack mounted on Headboard
• Optional: 2-Speed Landing Gear is Available
• Apitong Decking in lieu of Oak
• Paint (other than standard Black,Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data
| Decking | Nominal 2" Hardwood |
|---|---|

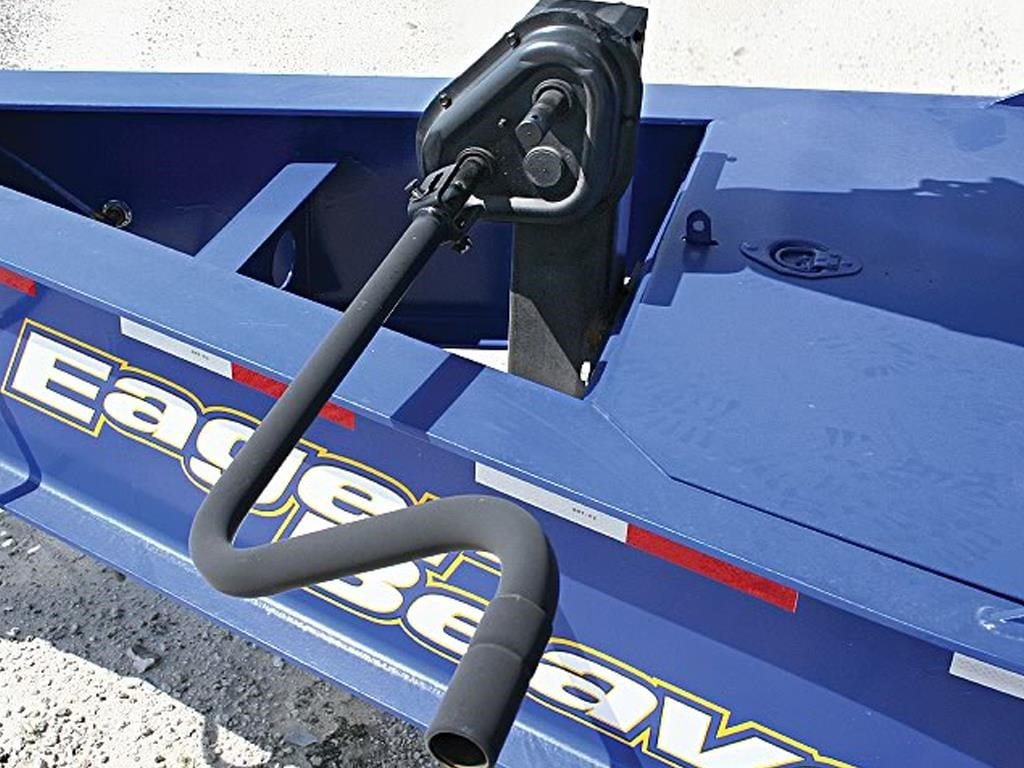

| Parking Jack | 70,000 lbs. static / 40,000 lbs. lift (Heavy Duty 2-speed screw type) |

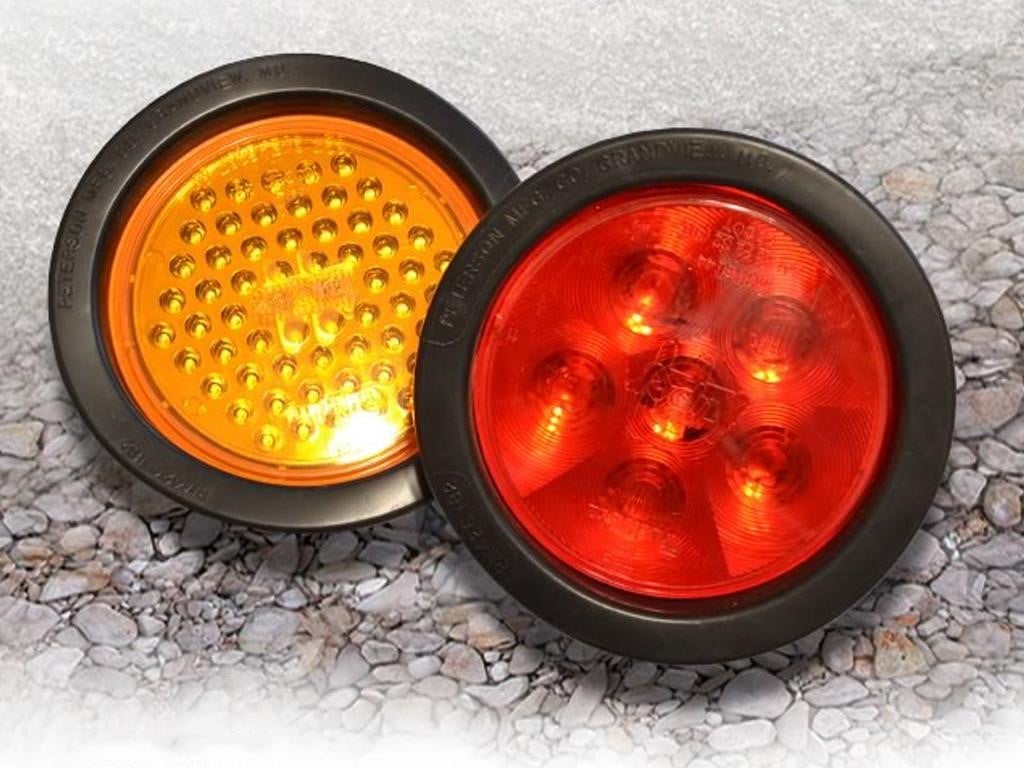

| Lights | Sealed L.E.D., 12 volt, DOT approved |
| Deck Width | 8 ft. 6 in. |

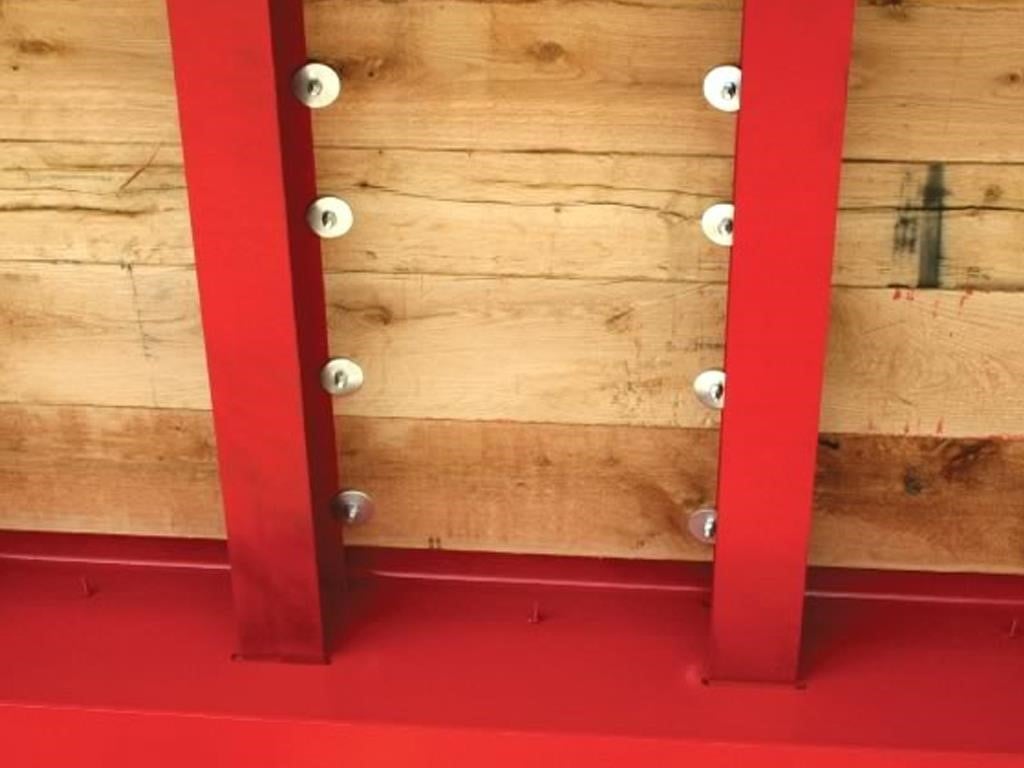

| Crossmembers | 6" x 3.7 lbs. per ft. I-Beam pierced through mainbeam |
| Length | 19 ft. |

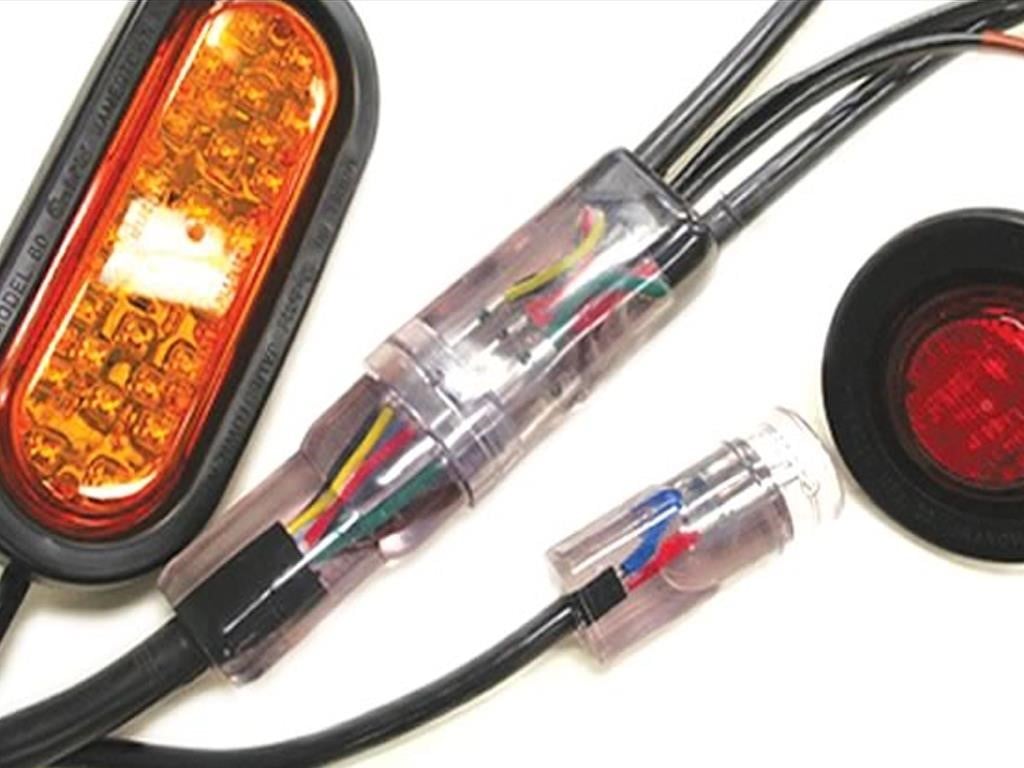

| Wiring Harness | USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
| Trailer Weight | 8,100 lbs. |
| Height | 34 in. |
| Capacity | 30,000 lbs. |
| Safety Chains | Two 1/2" Blue-Krome plated high test, safety hook w/ latch |
| Tie Down | Five per side - Patented "ROTO RINGS"® Swivel 360º |

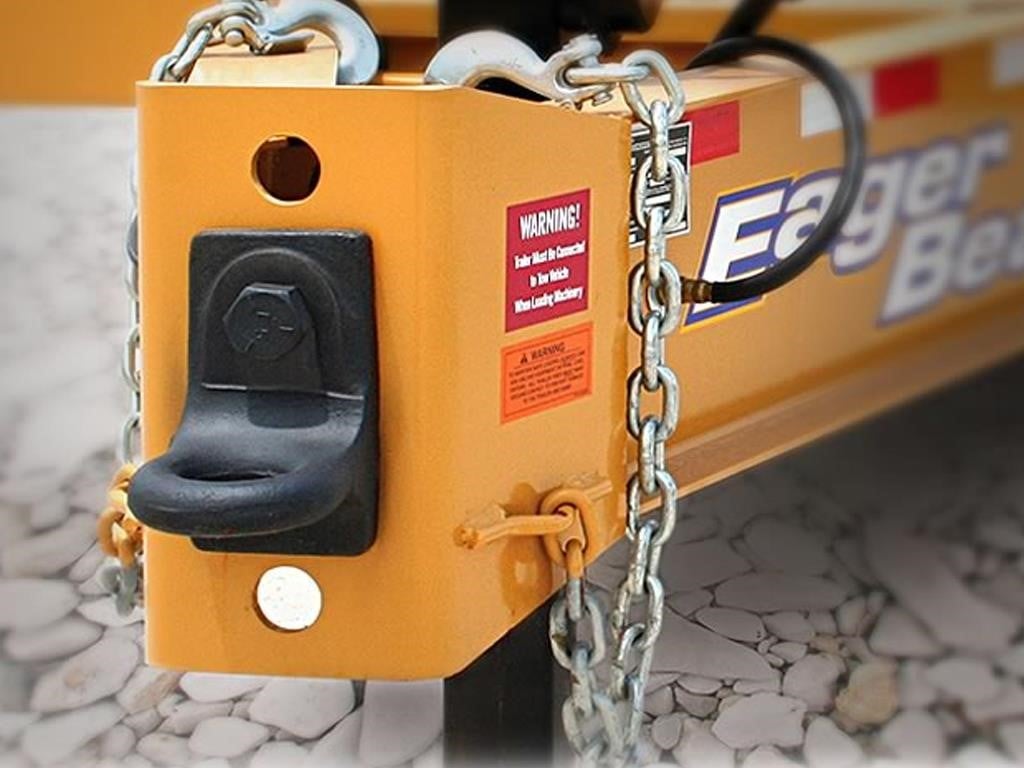

| Hitch | One piece solid cast steel (adjustable) lunette eye & flange mount |
| GVWR | 38,100 lbs. |
| Colors | Black,Yellow, Blue (standard) Imron Paint |
| Frame | Mainrails: W14" x 22 lbs. wide flange I-Beam, one piece cold formed Hi-tensile 50,000 P.S.I. steel mainrails from front to drawbar to rear of trailer 8º Beaver Tail (Safe Low Loading Angle) |
| Headboard | 8" high, full width of trailer Drawbar Storage Area |
Running Gear

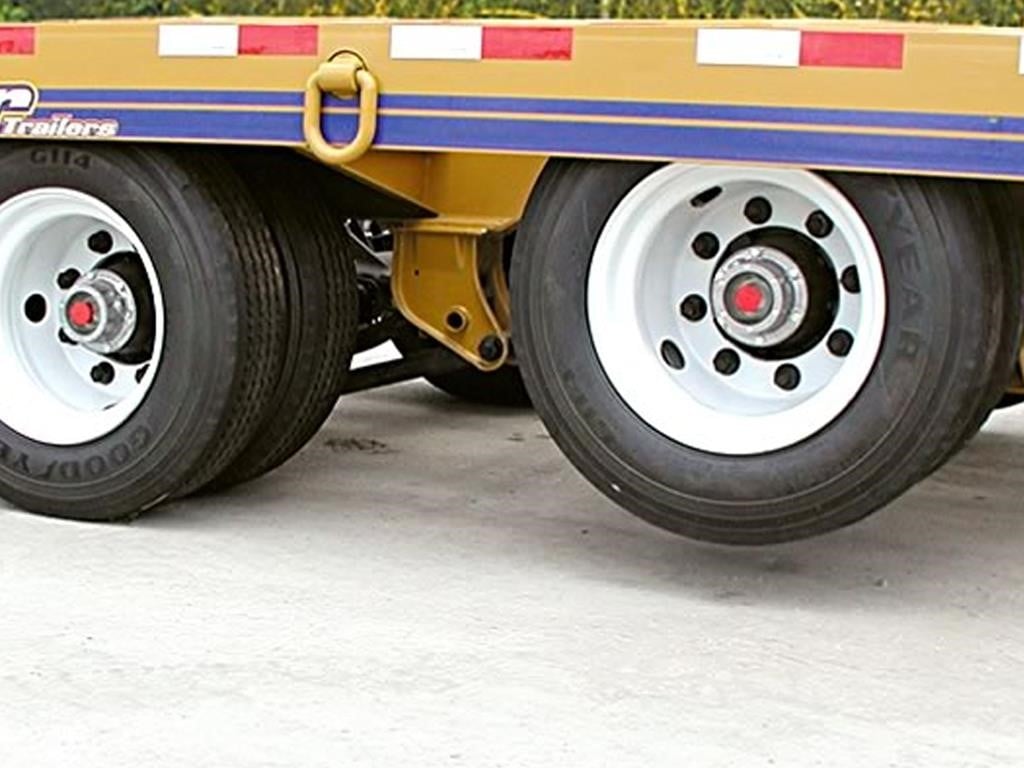

| Axles | Two Heavy Duty Dexter, 15,000 lbs. each |
|---|---|

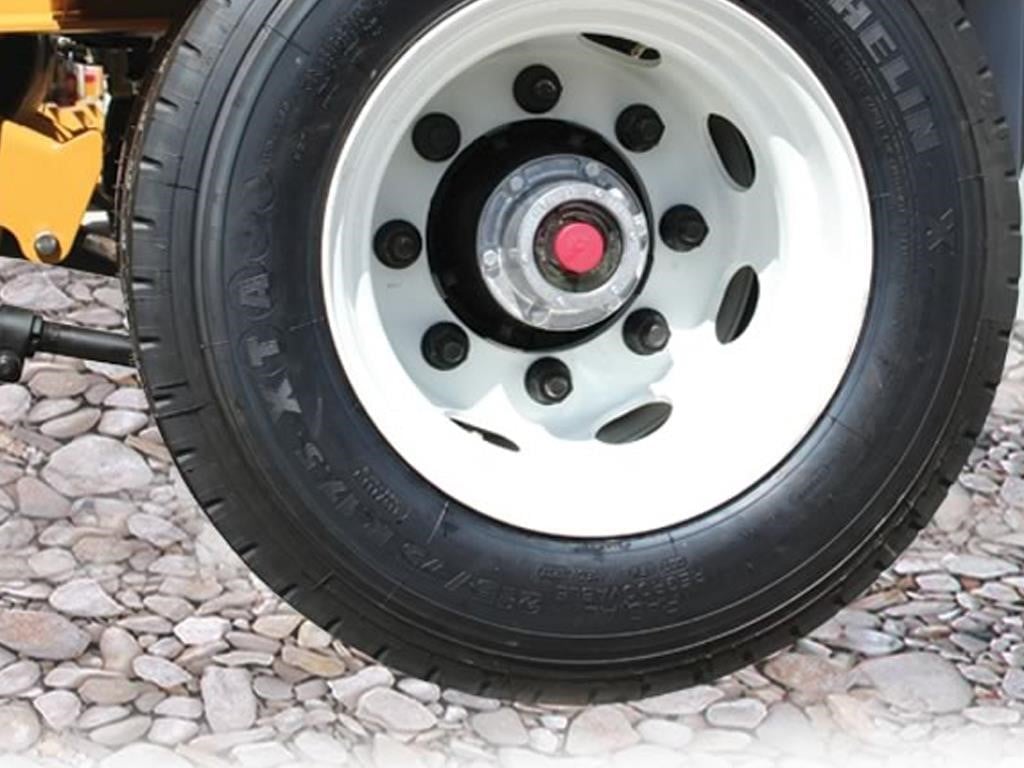

| Tires | Eight 215/75R17.5 (H) Steel Belted Radial |
| Hubs/Wheels | Four Disc Type Hubs, Eight 6.75 x 17.5, 8-Bolt Hub Piloted Disc Wheels, Oil seals |
| Brakes | 12 1/4" x 5" Electric |
| Break-away | 12 Volt, wet cell battery with integrated battery charging system |

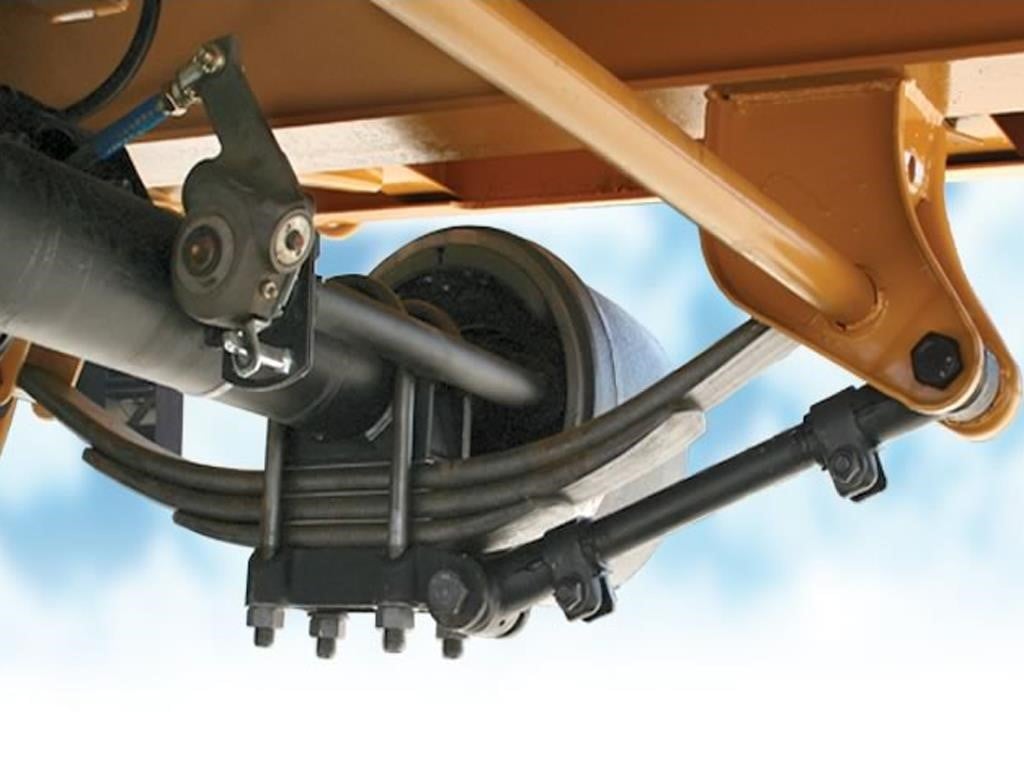

| Suspension | Hutch H-9700, Three leaf, capacity 50,000 lbs. tandem |
