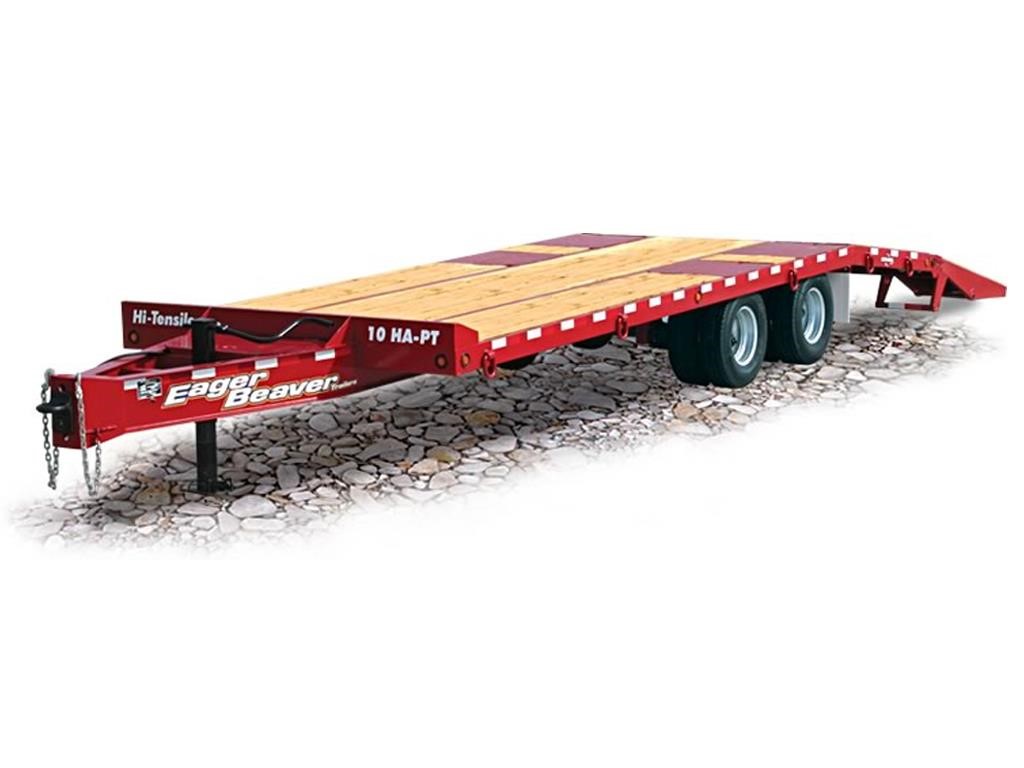

Eager Beaver 10HA-PT
EAGER BEAVER – 10 HA-PT — EASYLOADER TRAILERS
FEATURES
• All-Wheel ABS (4S2M) With Spring Brakes On All Axles

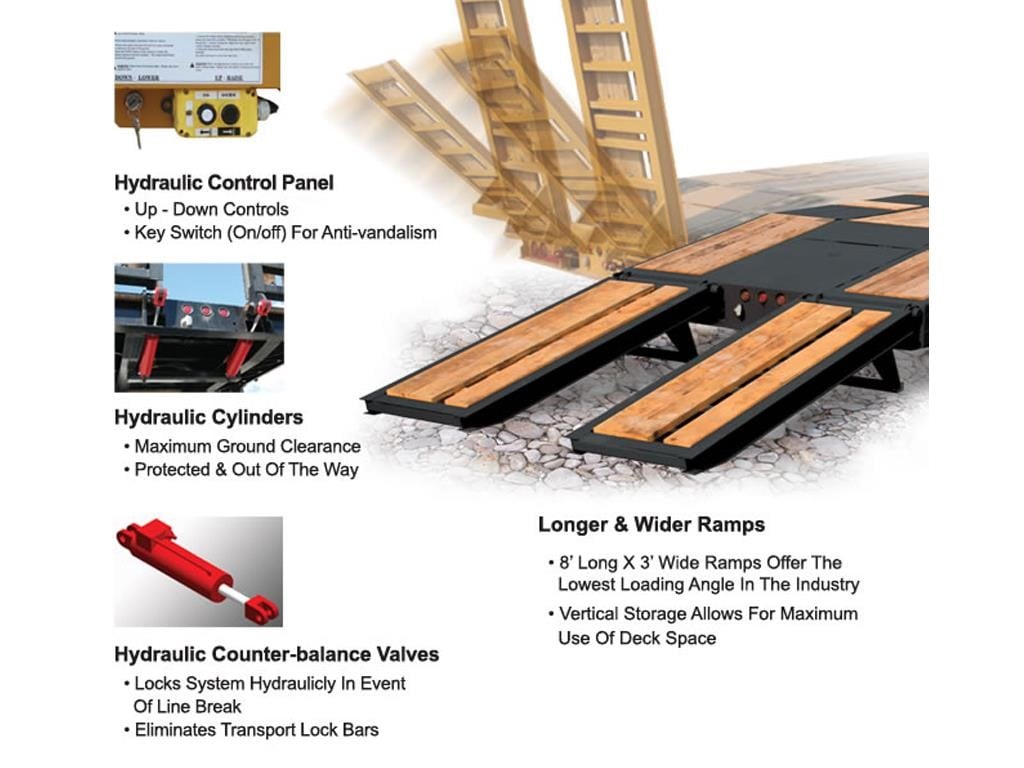

• 6′ Beavertail & 6′ Ramps (8 degree beavertail)
• 12″ Hi-Tensile Steel Mainframe With Cold-Formed Drawbar
• 6″ Crossmembers Pierced Through Mainframe
• 10K HD Dexter Axles with HD Bearings
• ST235 / 80R 16 Goodyear Marathon Tires On Hub-Piloted Disc Wheels
OPTIONS
• Additional Deck Length & Width (20′-21′-22′-23′-24′ Optional Lengths)
• Additional “ROTO-RINGS”®
• Tool Box Lid (Lockable) Optional: Expanded Metal Tray Plate
• Spare Tire & Rim 235/80R16 (E) Optional: Spare Tire Carrier
• Traction 2″ x 2″ Angle 6″ C/C Wheel Paths Optional: Traction Center Section, Bucket Pocket or Plate Ramps
• Ramps Wood (standard) Ladder (Optional N/C)
• Extension Ramps T-6 Alum. 22″ x 75″ 8º angle (SET)
• Parking Jack
• Optional: 2-Speed Jack
• Optional: Jack mounted on Headboard
• Optional: 2-Speed Landing Gear is Available
• Apitong Decking in lieu of Oak
• Paint (other than standard Black,Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Technical Data

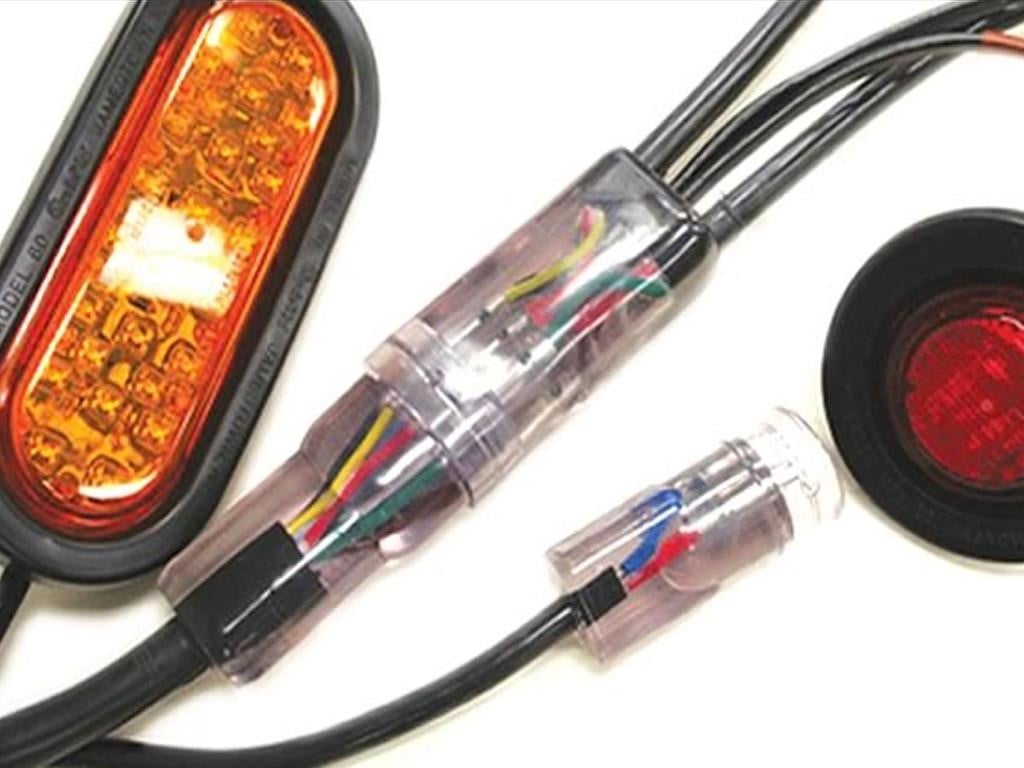

| Wiring Harness | USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
|---|---|
| Capacity | 20,000 lbs. |
| Frame | Mainrails: W12" x 16 lbs. wide flange I-Beam, one piece cold formed Hi-tensile 50,000 P.S.I. steel mainrails from front to drawbar to rear of trailer 8º Beaver Tail (Safe Low Loading Angle) |

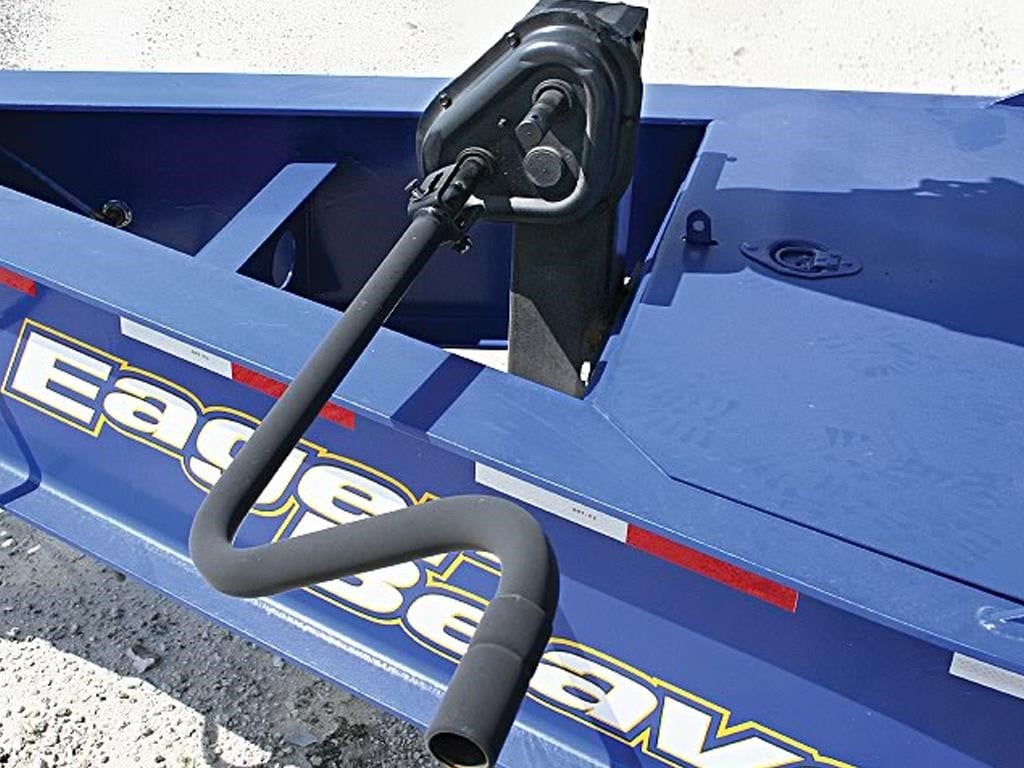

| Parking Jack | 12,000 lbs. static / 10,000 lbs. lift (Heavy Duty drop leg screw type) |
| Decking | Nominal 1 3/4" Hardwood |
| Height | 34 in. |
| GVWR | 25,880 lbs. |
| Trailer Weight | 5,880 lbs. |
| Colors | Black,Yellow, Blue (standard) Imron Paint |
| Headboard | 8" high, full width of trailer Drawbar Storage Area |

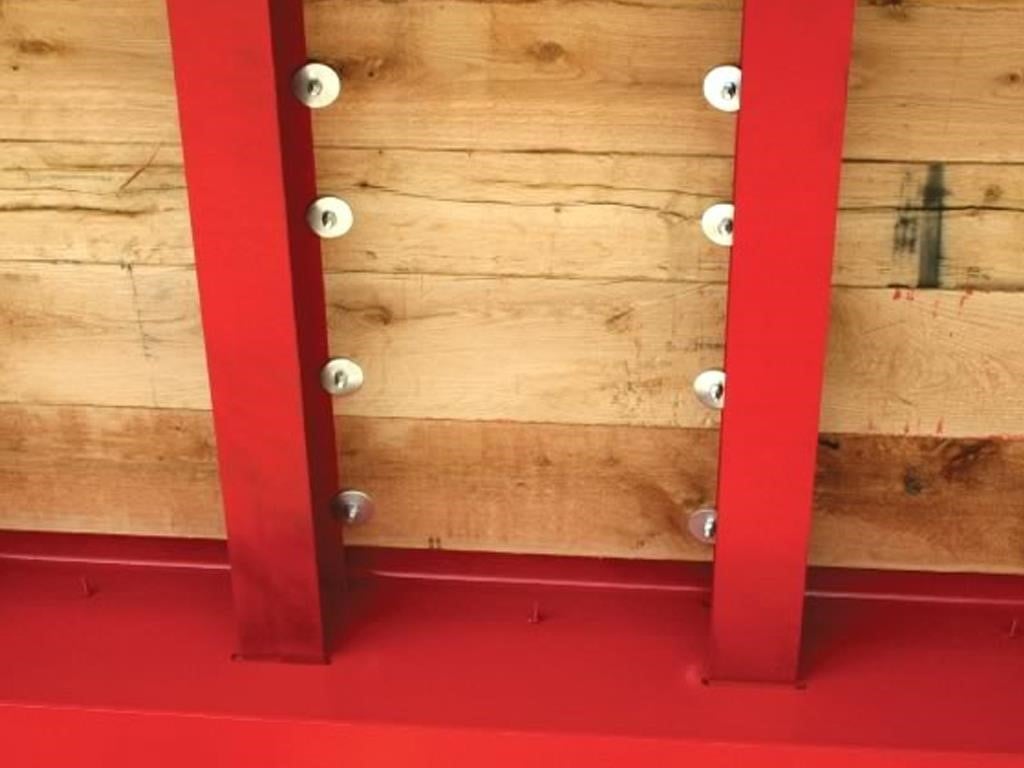

| Crossmembers | 6" x 3.7 lbs. per ft. I-Beam pierced through mainbeam |
| Length | 19 ft. |

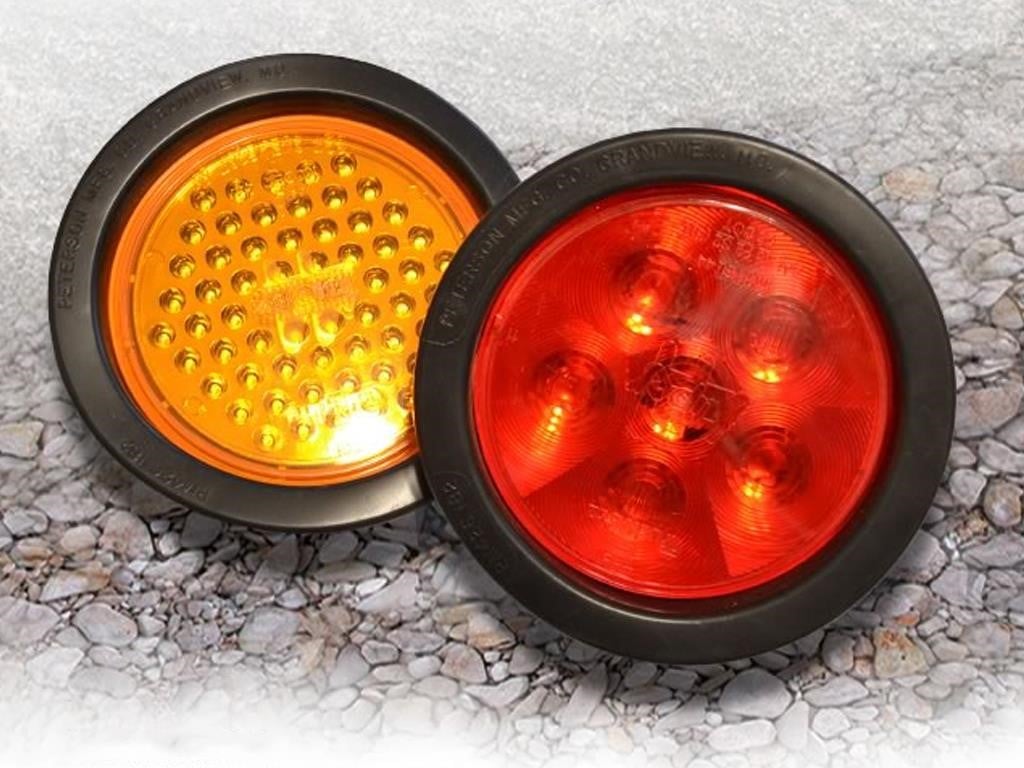

| Lights | 12 volt L.E.D., DOT approved |
| Deck Width | 8 ft. 6 in. |

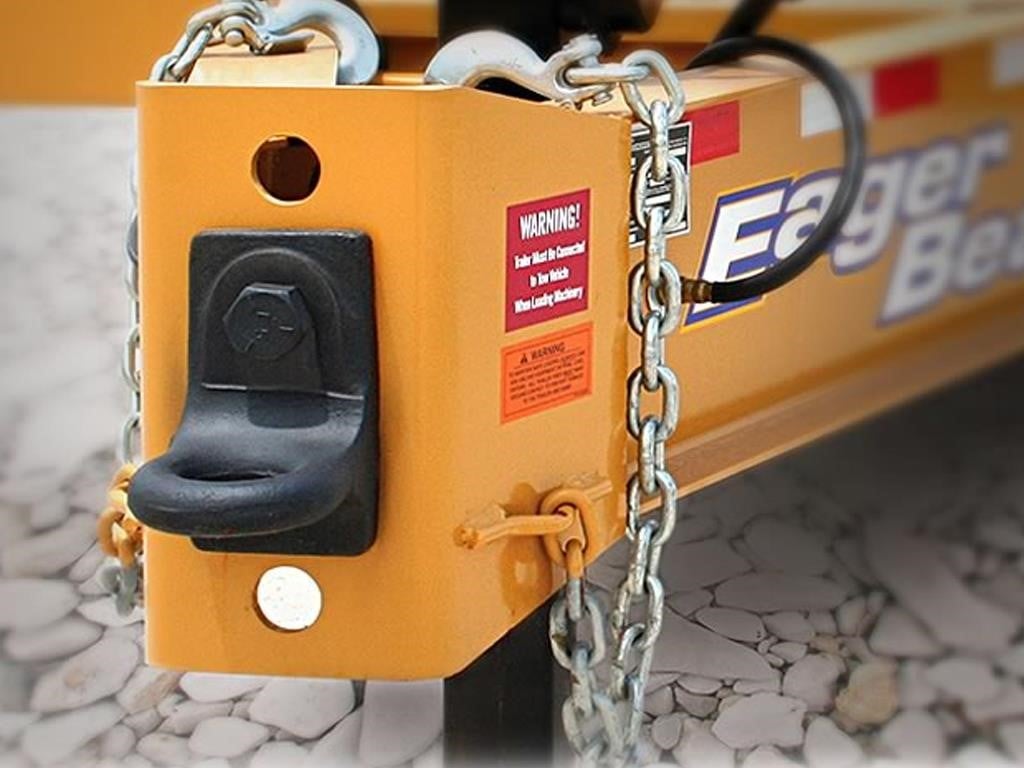

| Hitch | One piece solid cast steel (adjustable) lunette eye & flange mount |
| Tie Down | Five per side - Patented "ROTO RINGS"® Swivel 360º |
| Safety Chains | Two 3/8" Blue-Krome plated high test, Safety Hook w/ Latch |
Running Gear
| Axles | Two Heavy Duty Dexter, 10,000 lbs. each, Inner Bearing Size 2.625", Outer Bearing Size 2.250" |
|---|---|
| Brakes | Dexter 12 1/4" x 4" Air, "S" Cam, Auto Slack Adjusters |

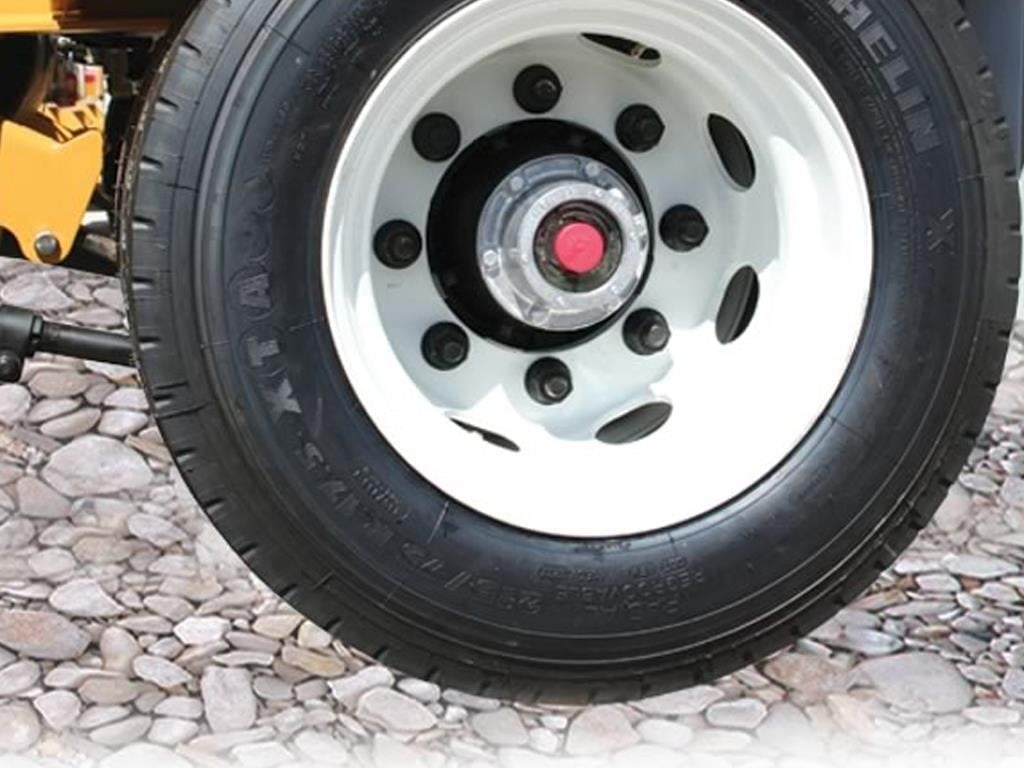

| Hubs/Wheels | Four 8 Stud on 6 1/2" BC (2 pc hub & drum), Eight 6.00 x 16 Disc Type Wheels, Oil seals |
| Tires | Eight 235/80R16 (E) Steel Belted Radial |

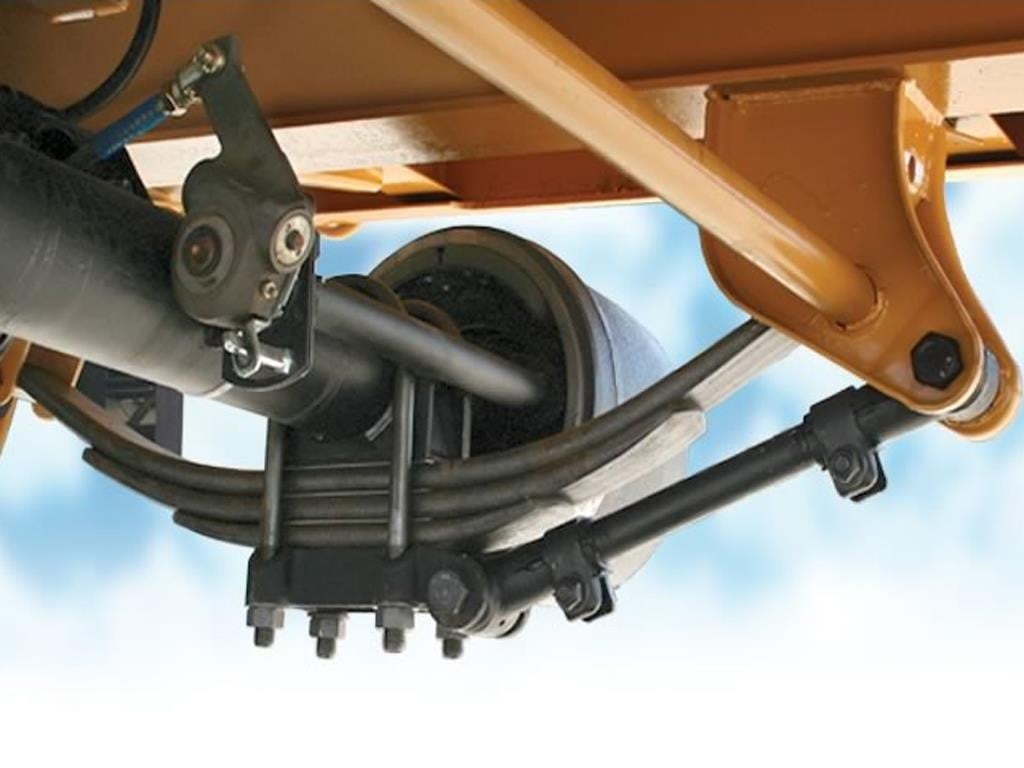

| Suspension | 3" wide rubber bushed Slipper Spring w/ equalizer, capacity 20,000 lbs. tandem (Adj. Alignment) |
