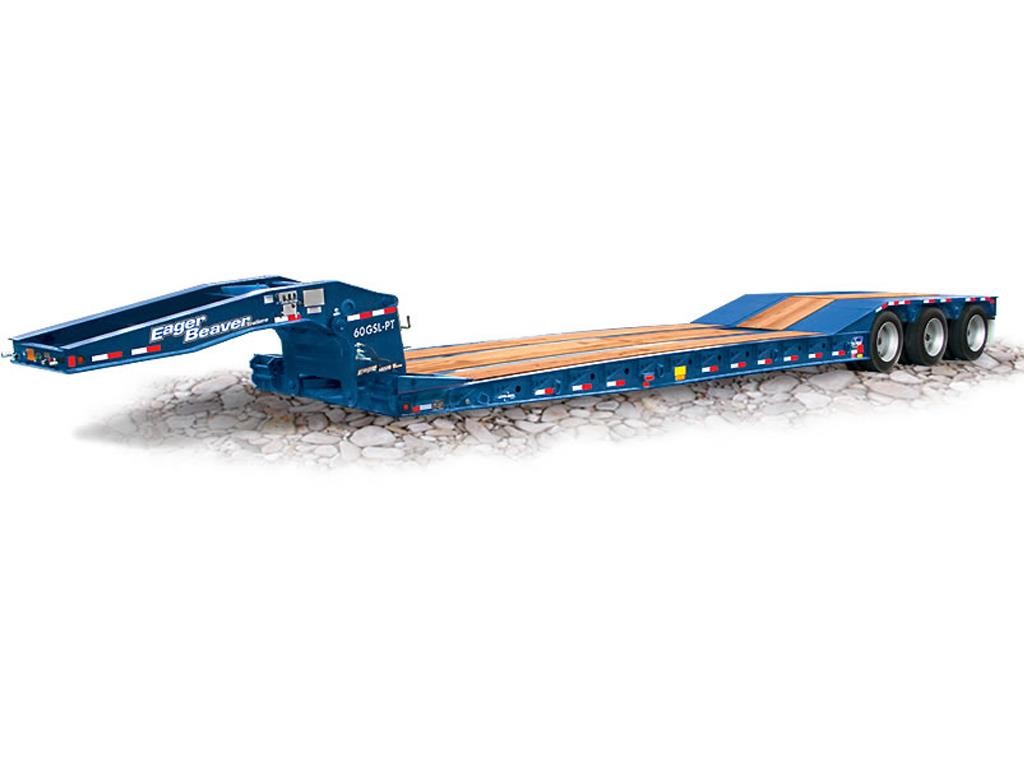

Eager Beaver 60GSL-PT
EAGER BEAVER – 60GSL-PT — PAVER TRAILERS®
Ideal for loading rollers, pavers and milling machines. Also works well for towing and recovery.
FEATURES
• All-Wheel ABS (4S3M) With Spring Brakes On All Axles
• Tapered 4 Beam 16″ Deep Cambered I-Beam Mainframe & Siderails
• 10″ Deep Crossmembers Pierced Through Mainframe
• 25,000 # Axles, 5″ Diameter (3/4″ Wall), Maximum Track Width, PT Style
• Covered Rear Deck
• 275 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheels

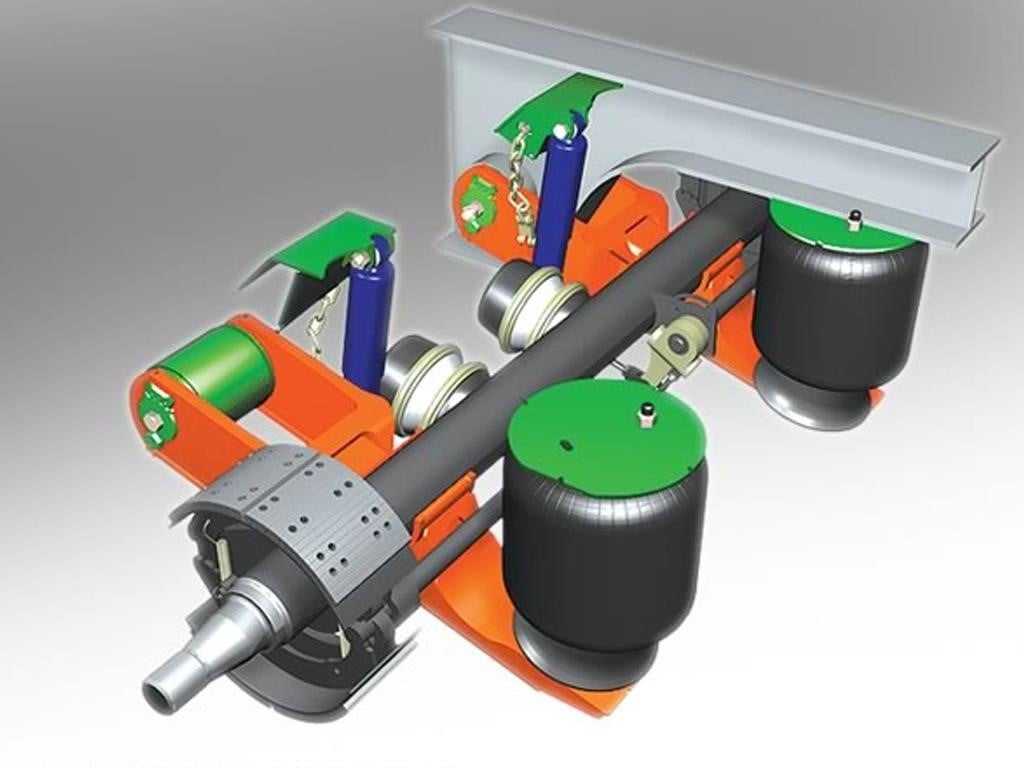

• Cush Air Ride Suspension – 120,000 # Capacity, Air Lift 3rd Axle
OPTIONS
• Additional Deck Length: (25′-26′-27′-28′ Optional Lengths)
• Additional Deck Width: (108″ w/ 102″ axles or 108″ axles) – (120″ w/ 120″ axles)
• Power Pack: 11hp, 12hp Kohler, 13hp Honda, or 16hp Kohler (Combination Power Pack/Wet Kit Available)
• Lockable Tool & Chain Storage: Forward center deck area (1 or 2 compartments)
• Additional “ROTO-RINGS”®
• Spare Tire & Disc Wheel 255/70R22.5 (H) Optional: Spare Tire Carrier
• Oak Decking in lieu of Apitong
• Paint (other than standard Black, Yellow, Blue)
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.

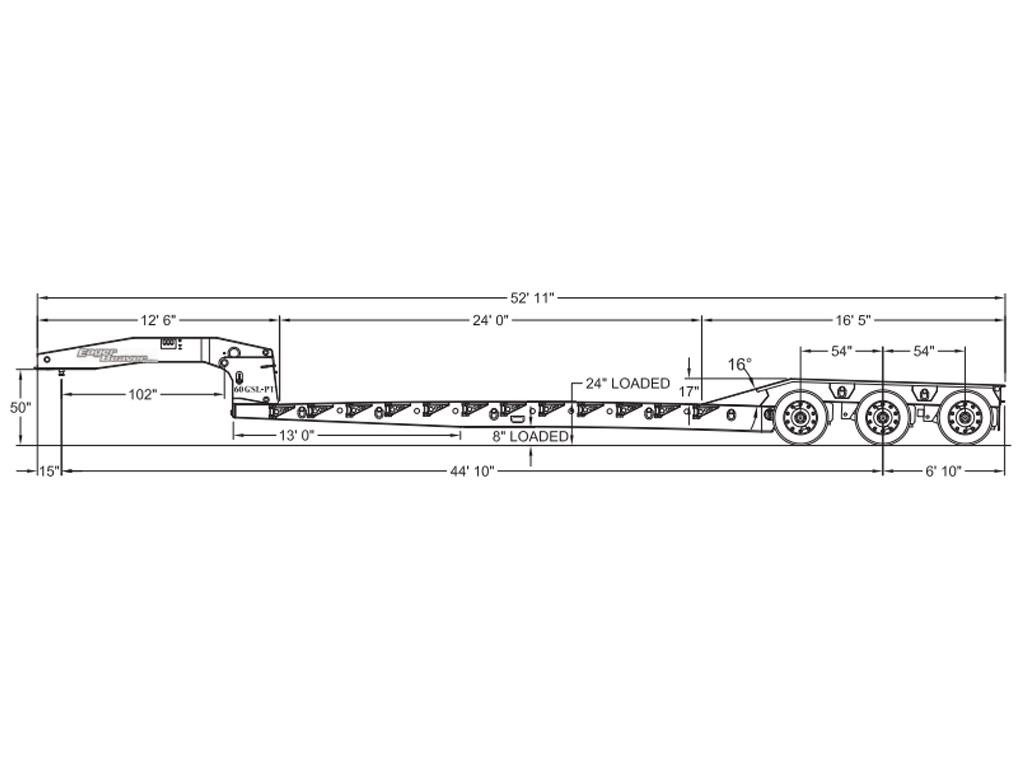

Technical Data
| Controls | Control Valve eye level |
|---|---|
| Deck Height | 24 in. (Loaded) |

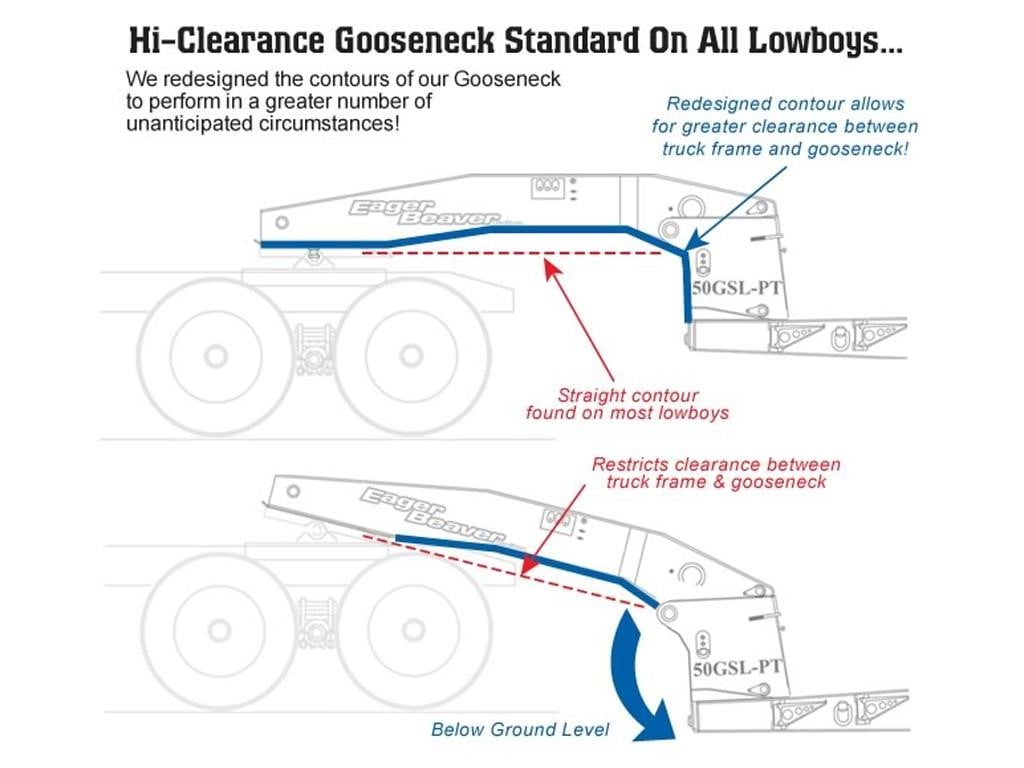

| Gooseneck Length | 82", 86", 90", 94", 98" and 102" available (For special lengths contact sales) |

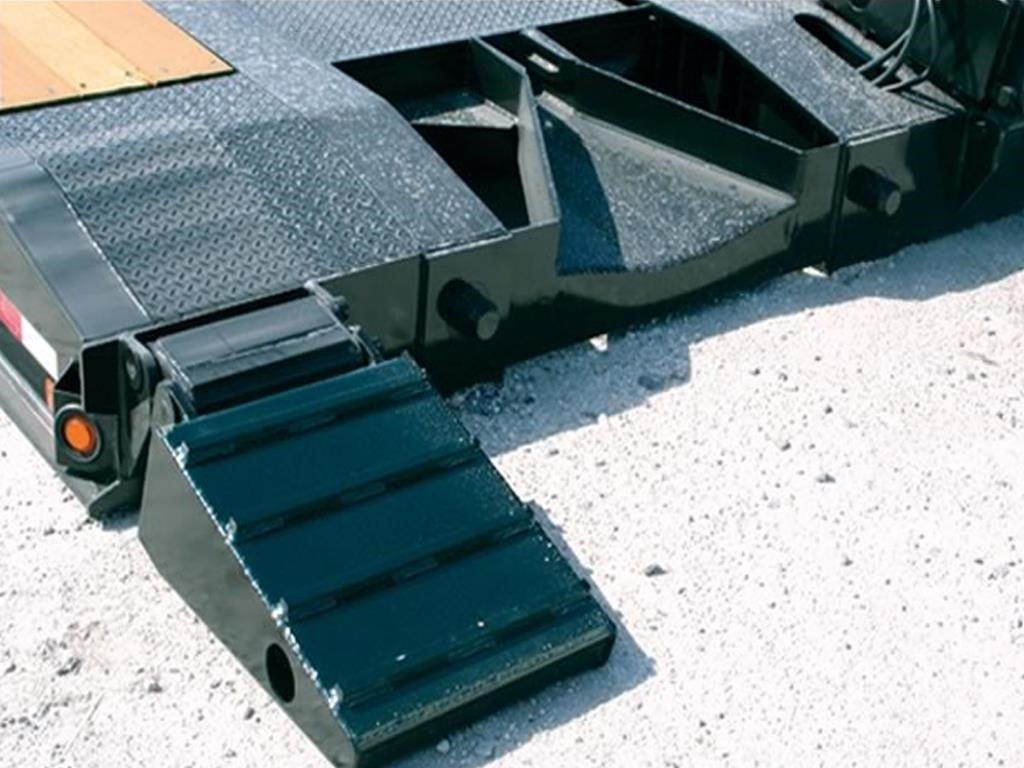

| Outriggers | Cast Steel (Locks both in and out position) |

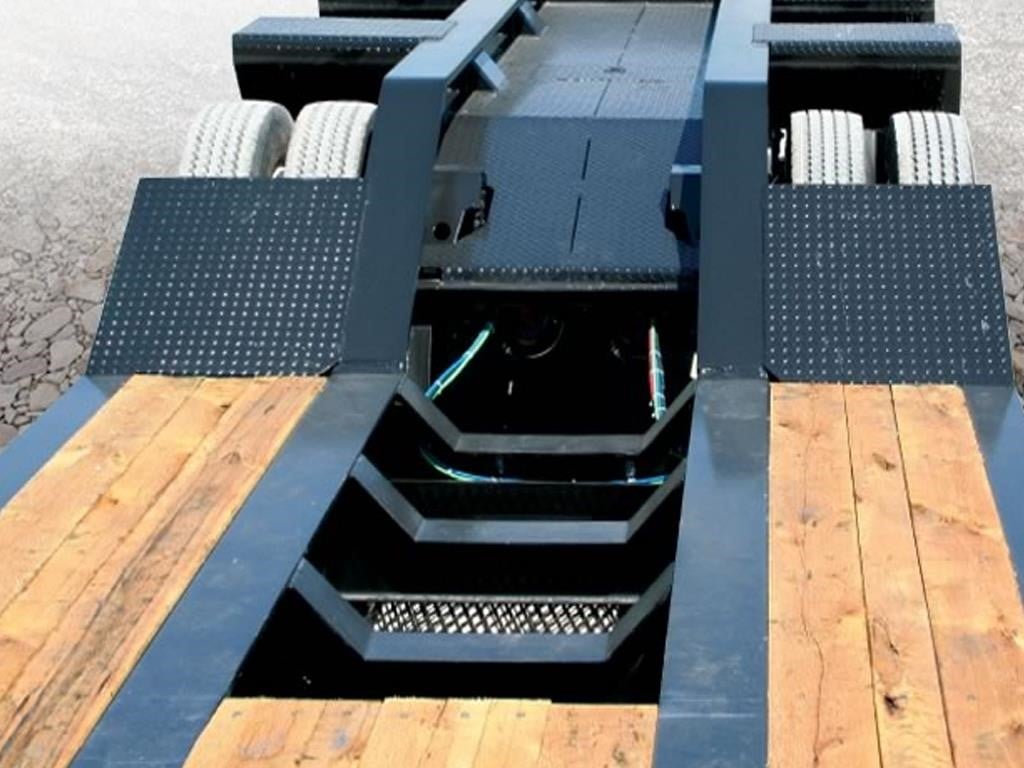

| Decking | Nominal 2" Full Width Apitong |
| Hydraulics | Wetline hook-up for tractor PTO operation • REQUIREMENT: Low Flow/High Pressure System |
| Lift Axle | Air Lift 3rd Axle |
| Crossmembers | 10" x 12 lbs. per ft. I-Beam, pierced through mainbeam (18" spacing Std.) |
| Deck Length | 24 ft. |

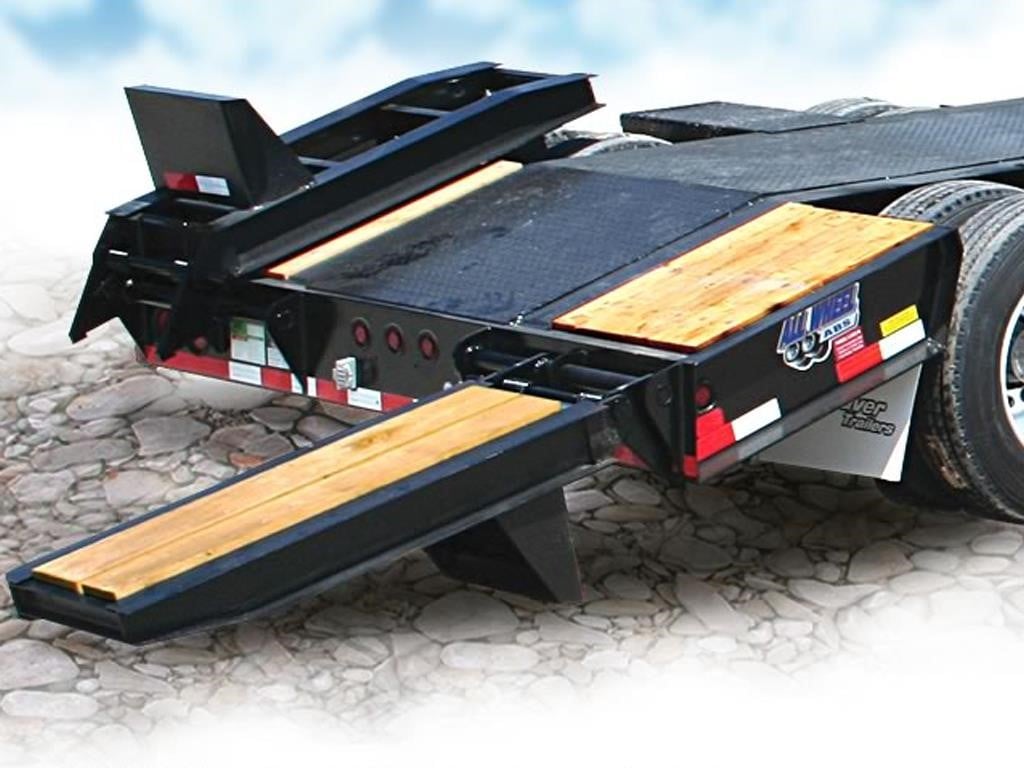

| Front Ramps | Front Flip (Wood filled) |
| Colors | Black, Yellow, Blue (standard) Imron Paint |
| Capacity | 120,000 lbs. |
| GVWR | 145,000 lbs. |

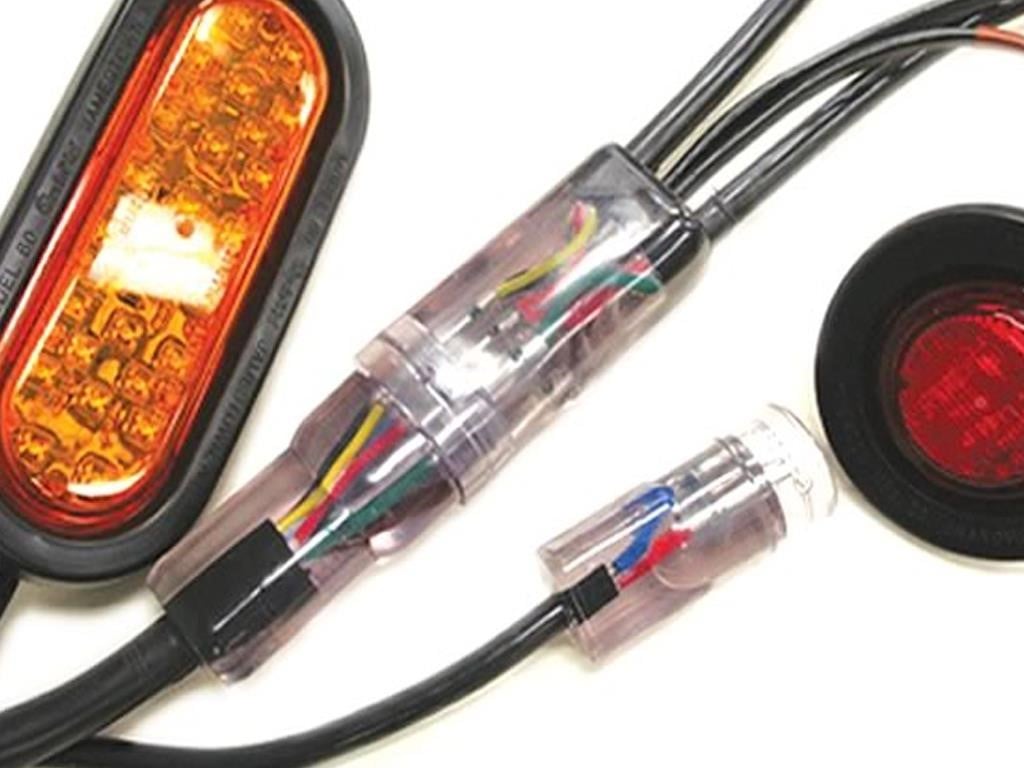

| Wiring Harness | Sealed L.E.D. Lights & USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
| Deck Width | 8 ft. 6 in. |
| Hydraulic Cylinders | Two Main 7.75", One 3" Locking, One 4" Gooseneck Support |
| Frame Mainrails | Four fabricated 16" Deep cambered I-Beam, 100,000 P.S.I. steel wheel covers, wood in center |
| Tie Down | 7 per side - Patented "ROTO RINGS"® Swivel 360º |
| Trailer Weight | 25,000 lbs. |
Running Gear

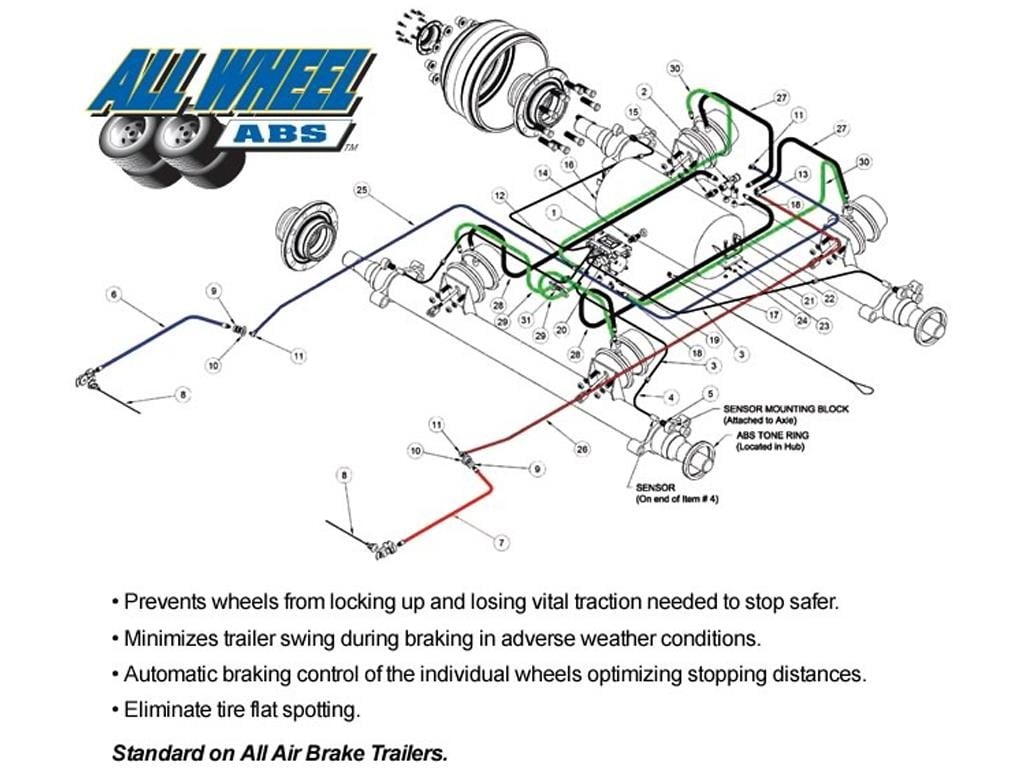

| All Wheel ABS | Anti-lock brake system 4S3M, Sensors on (2) Axles, 3 modulator valves |
|---|---|

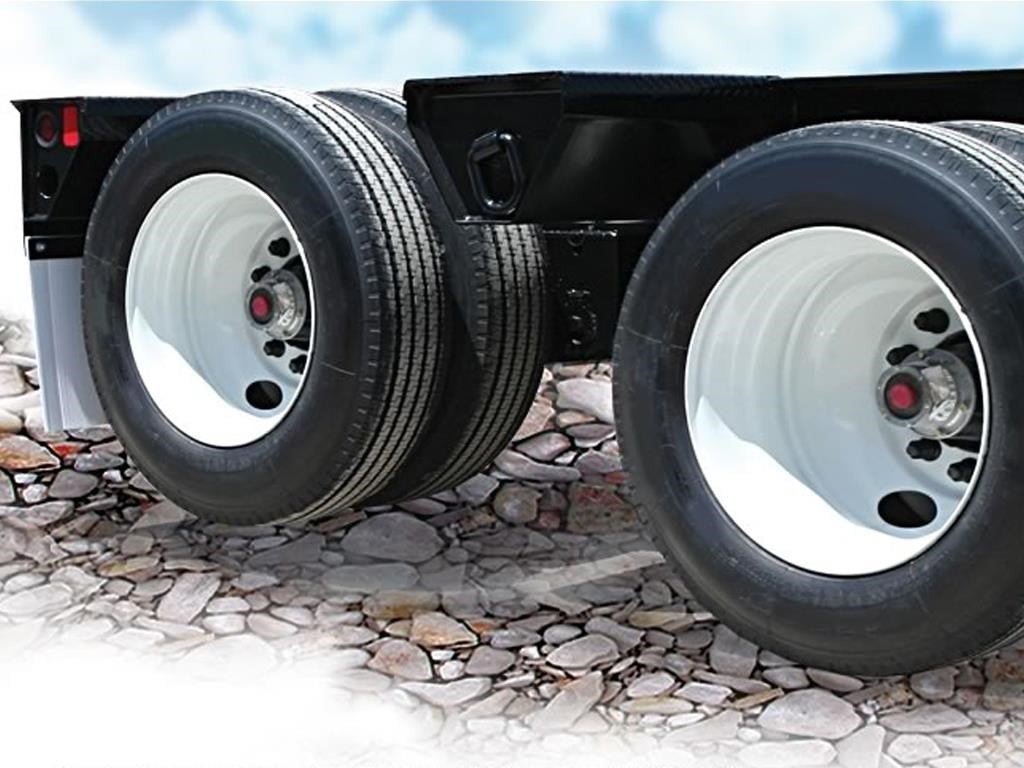

| Tires | Twelve 275/70R22.5 (H) Steel Belted Radial |
| Axles | Three 5" diameter 25,000 lbs. each, H.M. series bearings |
| Suspension | Air Ride (Combined Capacity 75,000 lbs.) Dump Valve, Air Lift 3rd Axle |
| Parking Brake | Spring Brakes on All Wheels |
| Brakes | 16 1/2" x 7" Air, "S" Cam., Auto Slack Adjusters |
| Hubs/Wheels | Six Disc Type Hubs, Twelve 8.25 x 22.5 Disc Type Wheels, Stemco Oil Seals, Hub Piloted |
