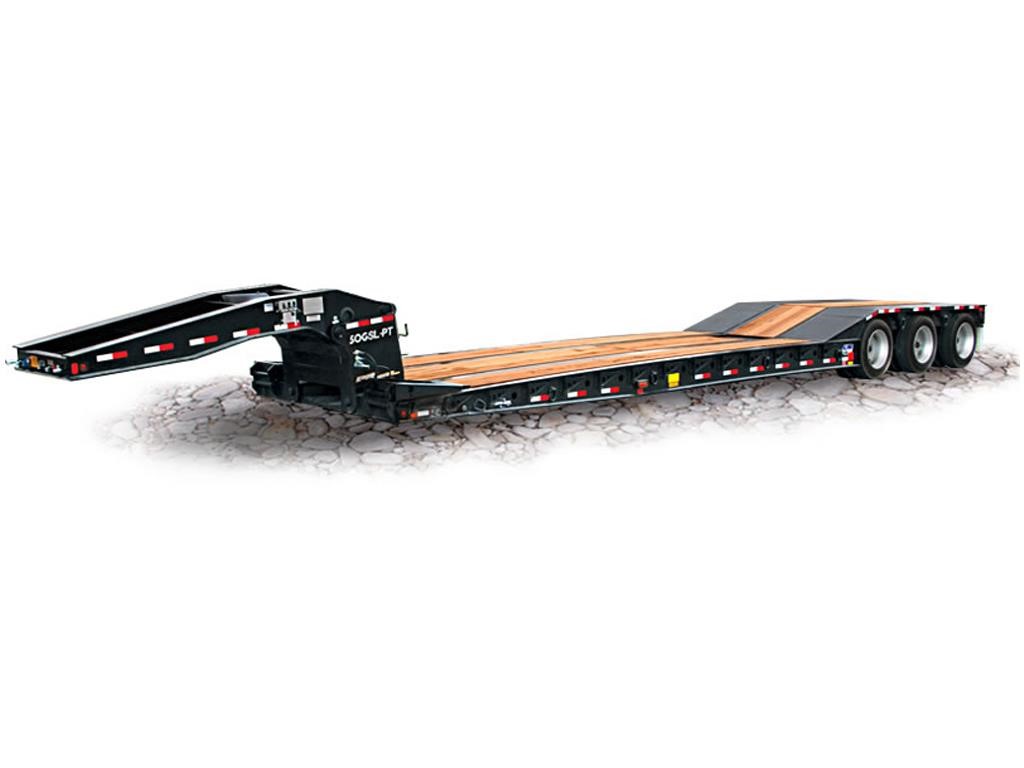

Eager Beaver 50GSL-PT
EAGER BEAVER – 50GSL-PT — PAVER TRAILERS®
Ideal for loading rollers, pavers and milling machines. Also works well for towing and recovery.
FEATURES
• All-Wheel ABS (4S3M) With Spring Brakes On All Axles
• Tapered 4 Beam 16″ Deep Cambered I-Beam Mainframe & Siderails
• 10″ Deep Crossmembers Pierced Through Mainframe
• 25,000 # Axles, 5″ Diameter (3/4″ Wall), Maximum Track Width, PT Style

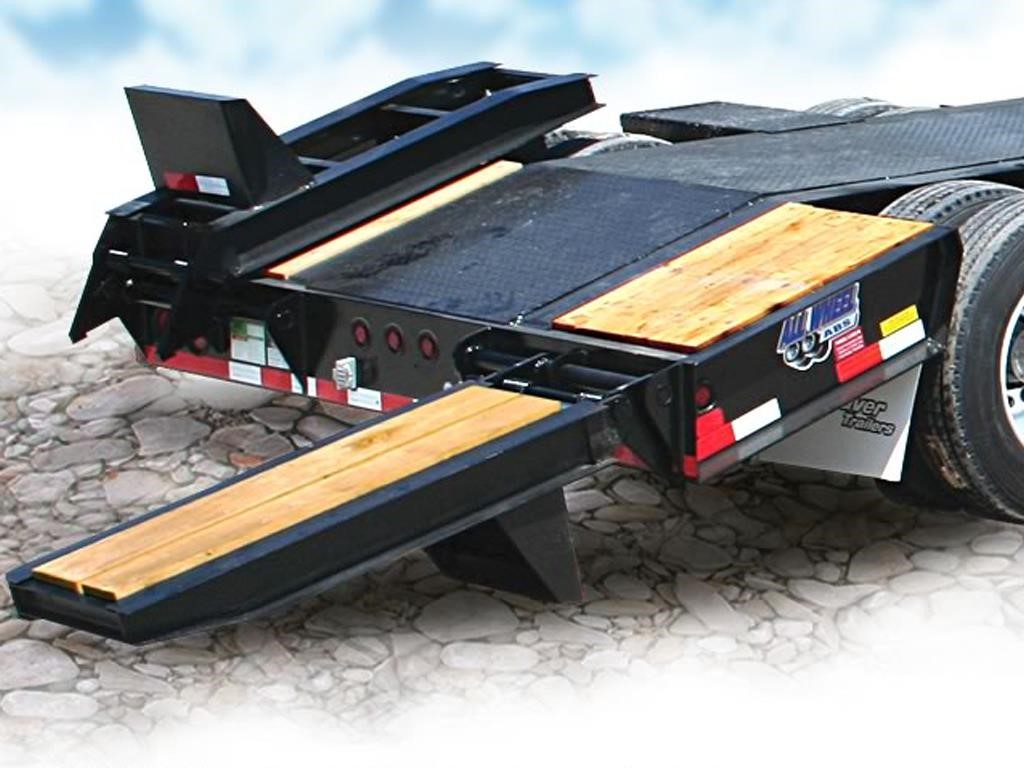

• Covered Rear Deck
• 255 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheels
• Cush Air Ride Suspension – 75,000 # Capacity, Air Lift 3rd Axle
OPTIONS
• Additional Deck Length: (25′-26′-27′-28′ Optional Lengths)
• Additional Deck Width: (108″ w/ 102″ axles or 108″ axles) – (120″ w/ 120″ axles)
• Gooseneck Fenders
• Power Pack: 11hp, 12hp Kohler, 13hp Honda, or 16hp Kohler (Combination Power Pack/Wet Kit Available)
• Lockable Tool & Chain Storage: Forward center deck area (1 or 2 compartments)
• Additional “ROTO-RINGS”®
• Spare Tire & Disc Wheel 255/70R22.5 (H) Optional: Spare Tire Carrier
• Tire & Disc Wheel 275/70R22.5 (H)
• Upgrade Oak Decking in lieu of Apitong
• Paint (other than standard Black, Yellow, Blue) Price on Request
OUR COMPANY…
Since 1946, Eager Beaver Trailers® has been manufacturing the highest quality construction equipment trailers from 5-100 ton capacities. The company’s approach to transportation safety has made Eager Beaver Trailers® a leader in product development and dealer support nationwide.
At Eager Beaver Trailers®, your business is important to us. As part of our customer service, we can supply you with the engineering and sales support needed for a custom-designed trailer that is best for your business.
Although many look-a-likes are on the road today, no other trailer company provides the latest technology innovations and offers more standard features on tagalongs and detachable lowboys than Eager Beaver Trailers®. We use only the highest quality components on the market to ensure a safer haul, and most importantly, a more reliable trailer.
Eager Beaver Trailers® now has a network of over 300 dealerships throughout the United States, Canada, Mexico and Latin America ready to serve your trailer needs.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.

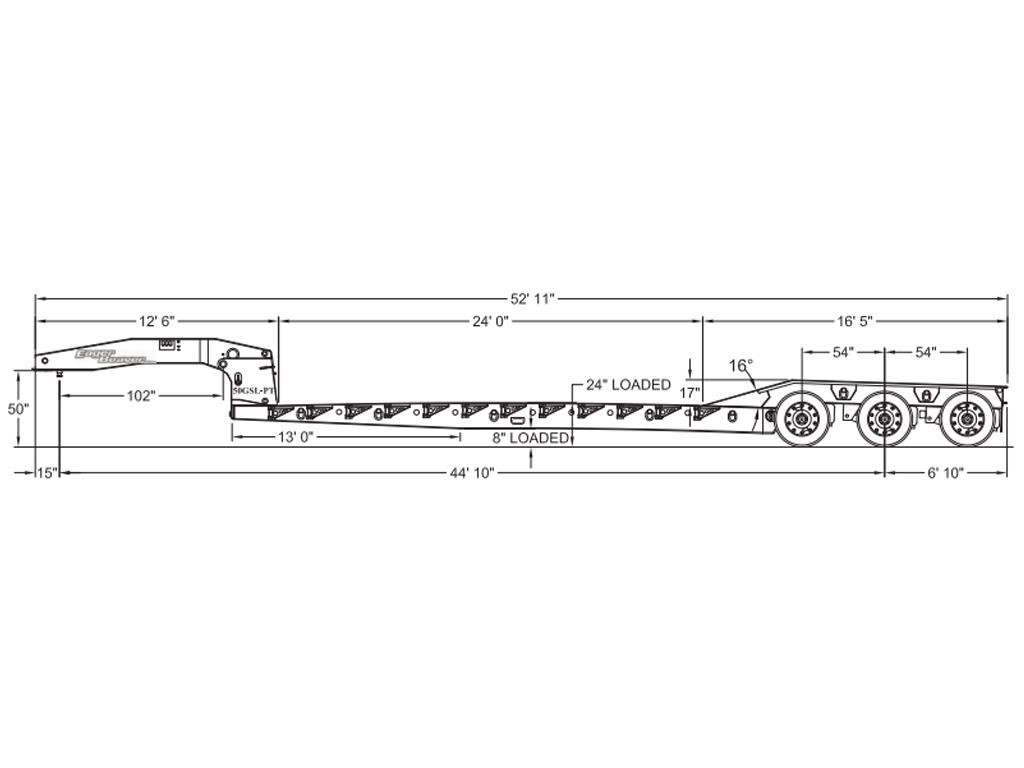

Technical Data
| Crossmembers | 10" x 9 lbs. per ft. I-Beam, pierced through mainbeam (18" spacing Std.) |
|---|---|
| Hydraulics | Wetline hook-up for tractor PTO operation • REQUIREMENT: Low Flow/High Pressure System |
| Hydraulic Cylinders | Two Main 7", One 3" Locking, One 4" Gooseneck Support |
| Deck Length | 24 ft. |
| Deck Width | 8 ft. 6 in. |

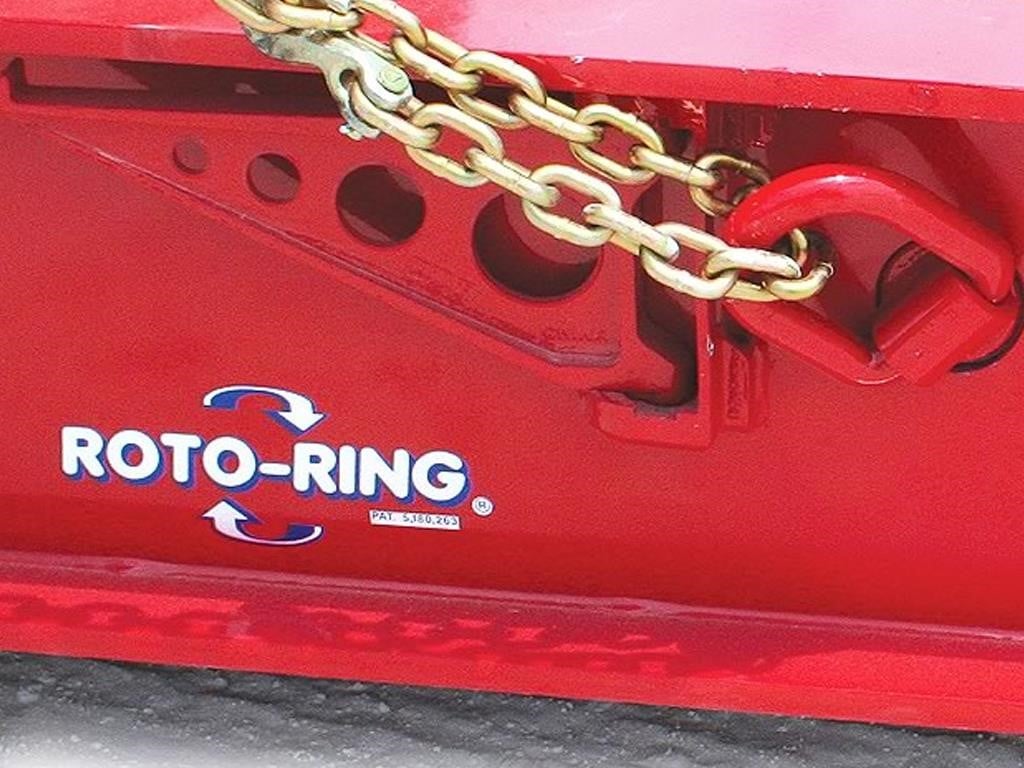

| Tie Down | 7 per side - Patented "ROTO RINGS"® Swivel 360º |
| Decking | 1 ½” Apitong Decking Full Width |
| Controls | Control Valve eye level |
| Colors | Black, Yellow, Blue (standard) Imron Paint |
| Lift Axle | Air Lift 3rd Axle |
| Capacity | 100,000 lbs. |

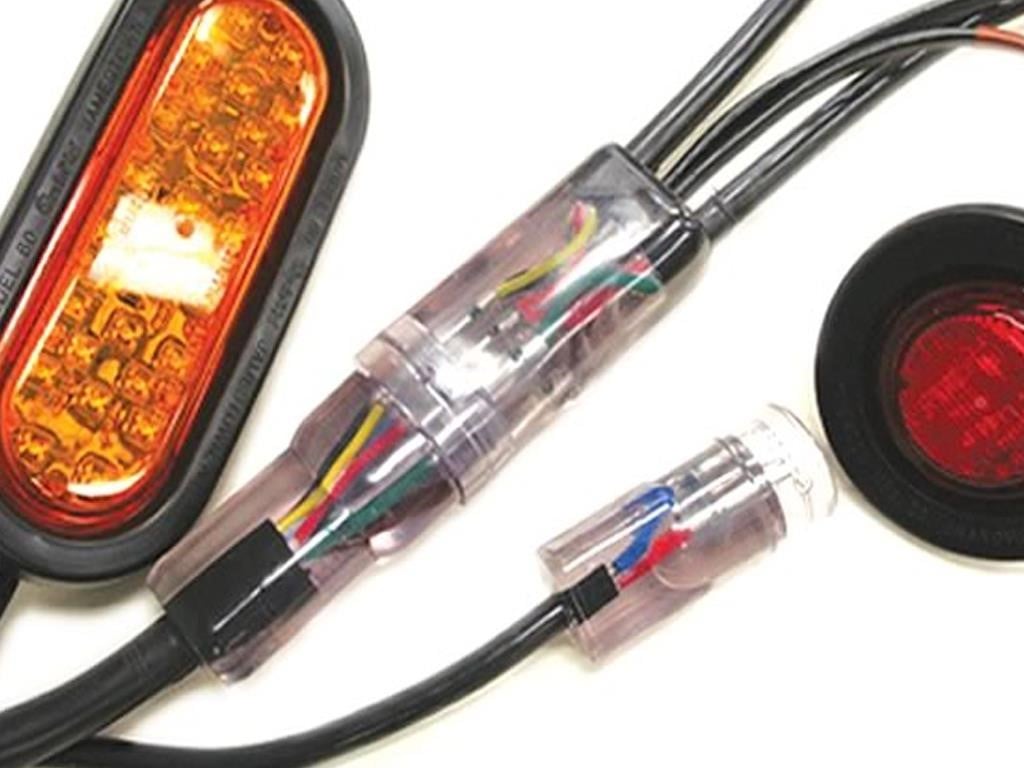

| Wiring Harness | Sealed L.E.D. Lights & USA Star PLUS Sealed Modular Wiring Harness w/ 7-Way ATA Plug |
| Outriggers | Cast Steel (Locks both in and out position) |
| GVWR | 122,700 lbs. |
| Trailer Weight | 22,700 lbs. |

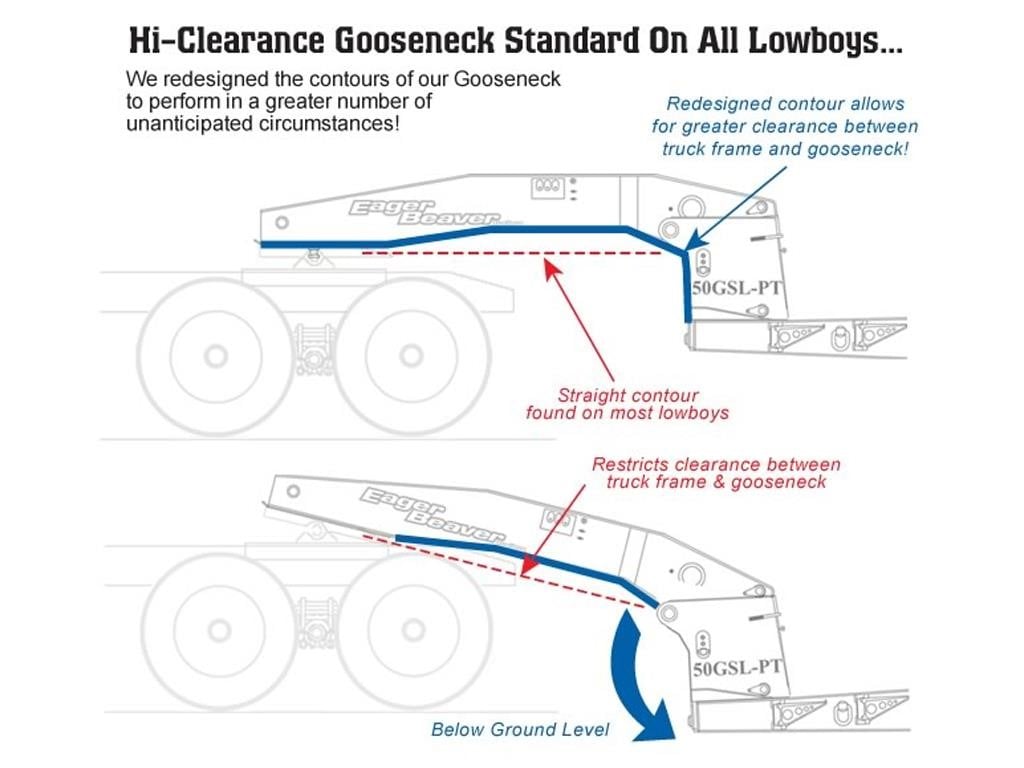

| Gooseneck Length | 82", 86", 90", 94", 98" and 102" available |

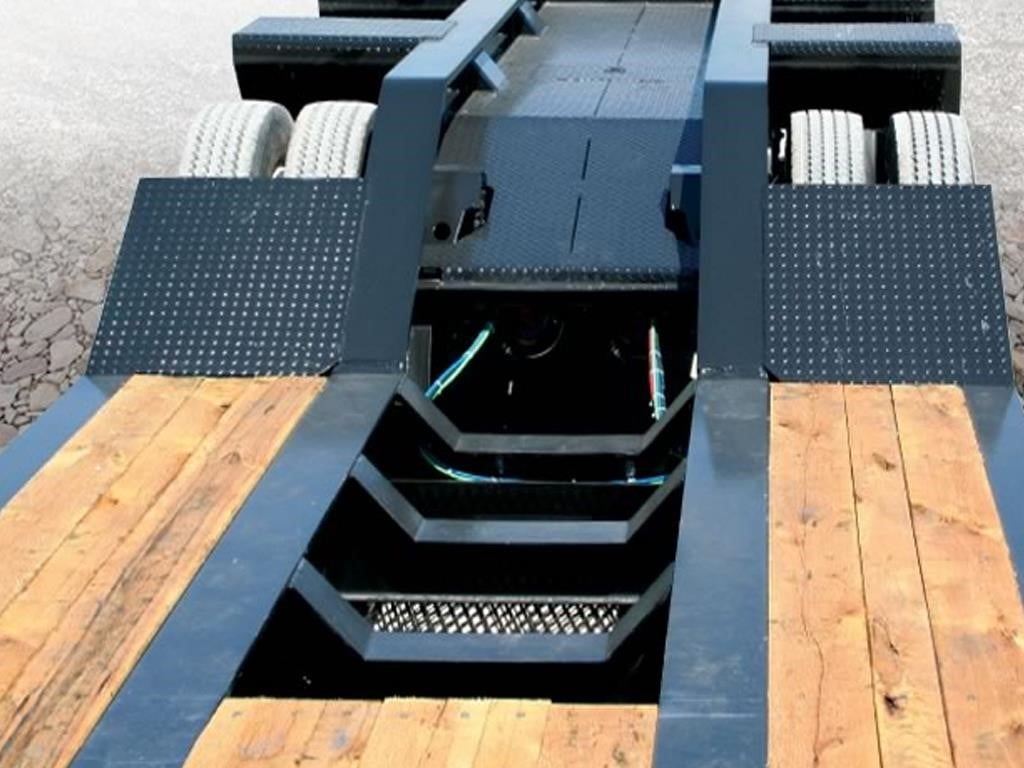

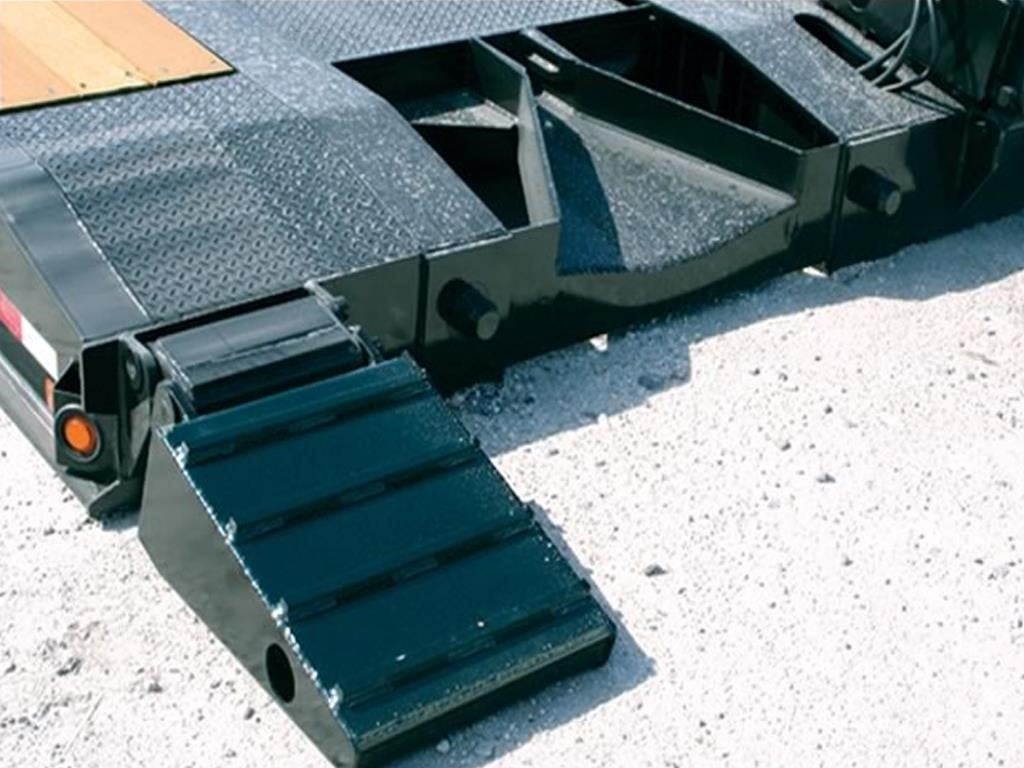

| Front Ramps | Front Flip (Wood filled) |

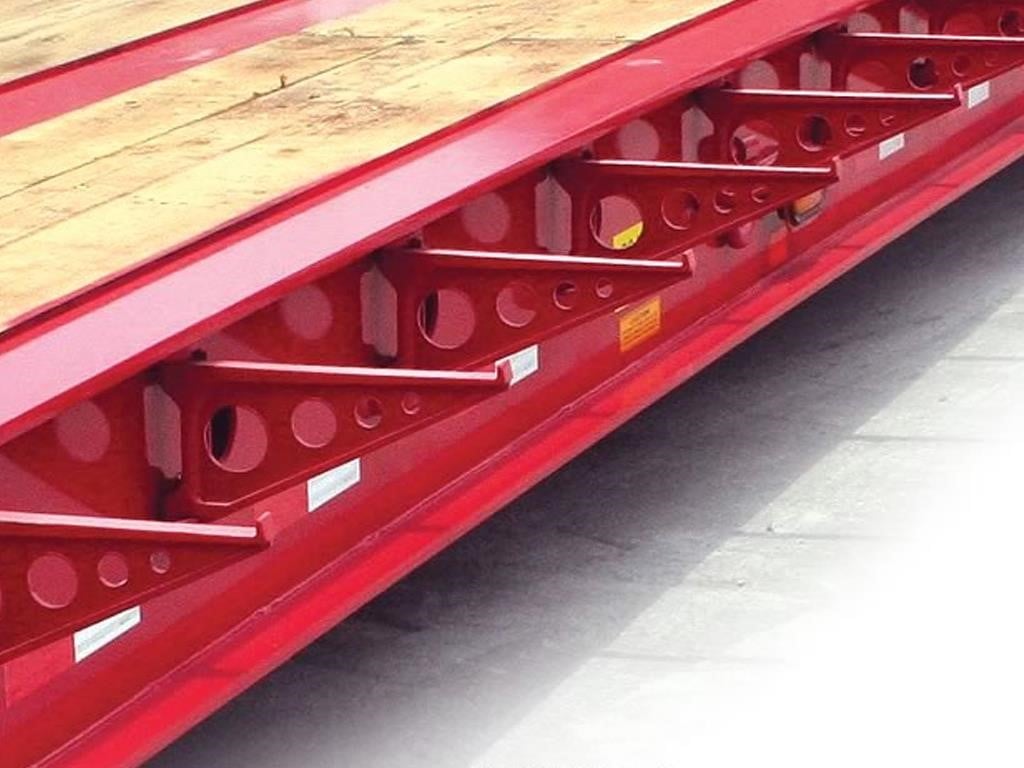

| Frame Mainrails | Four fabricated 16" Deep cambered I-Beam, 80,000 P.S.I. steel wheel covers, wood in center |
| Deck Height | 24 in. (Loaded) |
Running Gear

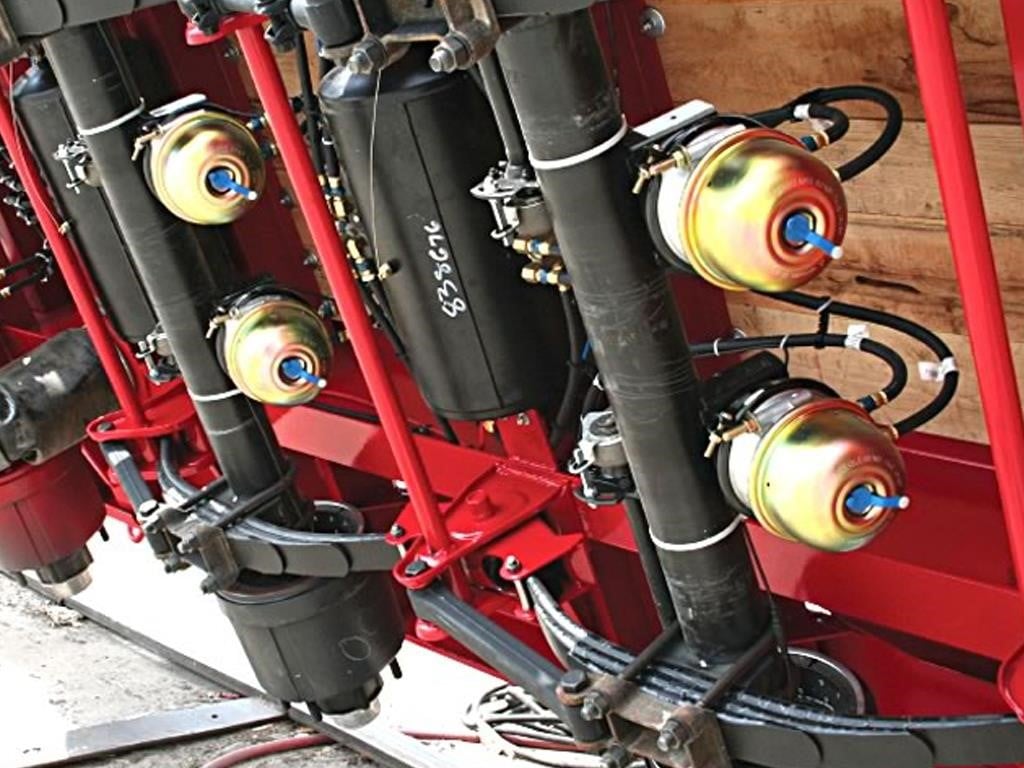

| All Wheel ABS | Anti-lock brake system 4S3M, Sensors on (2) Axles, 3 modulator valves |
|---|---|
| Brakes | 16 1/2" x 7" Air, "S" Cam., Auto Slack Adjusters |

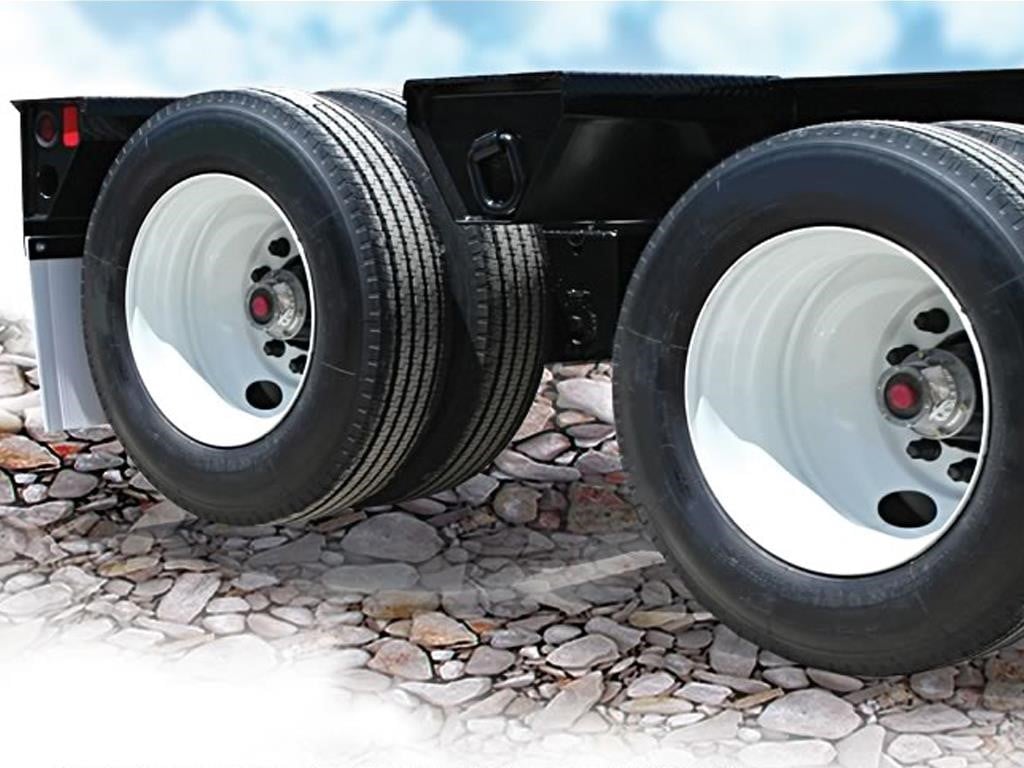

| Tires | Twelve 255/70R22.5 (H) Steel Belted Radial |
| Hubs/Wheels | Six Disc Type Hubs, Twelve 8.25 x 22.5 Disc Type Wheels, Stemco Oil Seals, Hub Piloted |
| Axles | Three 5" diameter 25,000 lbs. each, H.M. series bearings |
| Suspension | Air Ride (Combined Capacity 75,000 lbs.) Dump Valve, Air Lift 3rd Axle |
| Parking Brake | Spring Brakes on All Wheels |
